Fisher & Paykel - 10 inches - Range Hood Insert - Black
$39.99 delivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Specifications
- Product Height7 1/8 inchesProduct Width5 1/8 inchesProduct Depth20 7/8 inchesVent TypeDuctedWorks WithSmartThings
- Key Specs
- Product Height: 7 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5 1/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Fisher & Paykel
- Model Number: CD5DB1

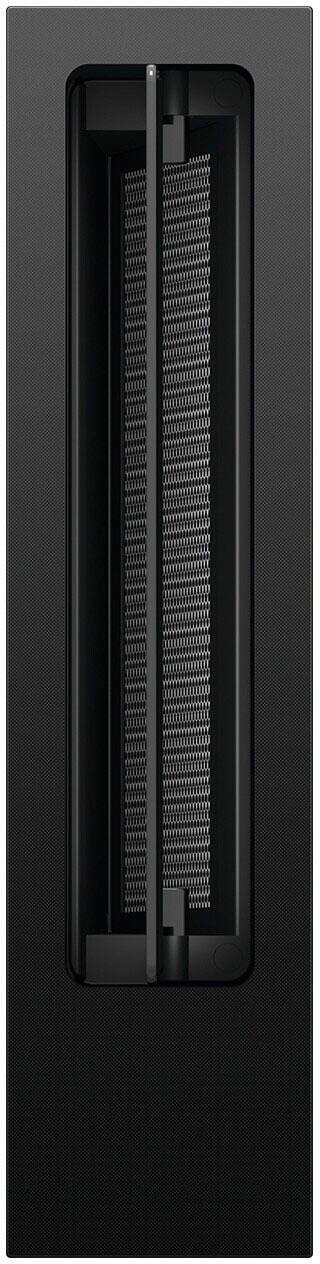

- Product Name: Auxiliary ventilation module downdraft system
- Color: Black
- Dimensions
- Product Height: 7 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 18 inches
- Product Width: 5 1/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 10 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 20 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Cut-Out Dimensions
- Cut-Out Height: 7 1/3 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 5 1/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 20 7/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Vent Type: Ducted
- Range Hood Type: Insert, Downdraft
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Filter Info
- Filter Material: Mesh
- Dishwasher-Safe Filter: true
- Electrical Specification
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Compatibility
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 822843828340
This modular ventilation down draft system by fisher and paykel was designed to match with your main modular cooktop for customized configuration to best suit your cooking needs. It has powerful extraction and fits seamlessly into you countertop
- Modular design freedom: Enhance your cooking space with downdraft ventilation. These modules can be discreetly positioned alongside your primary cooktop and auxiliary modules, ensuring a fresh environment regardless of your chosen cooking method. Tailor your setup to reflect the way you live, cook, and entertain.
- Sleek and subtle: Redefine your kitchen's aesthetic with the black glass downdraft ventilation module. Seamlessly integrated into the countertop and alongside cooktop modules, it allows for an open-style, social kitchen design.
- Design versatility: Ideal for layouts where traditional overhead hoods pose challenges, this ventilation module pairs beautifully with island cooktops and open kitchens. Its ability to retract or hide ensures a cleaner, more open appearance, enhancing your kitchen's functionality and design.
- Quiet efficiency: The auxiliary ventilation module operates efficiently and discreetly in the background, seamlessly controlled via the primary module touchscreen. With five fan speeds plus a boost function, it quickly removes steam, odors, and grease
- Intuitive extraction: Simply open the cover and enjoy convenient extraction with link mode. The fan intuitively activates, adjusting its speed according to the power levels of nearby cooktop zones, eliminating the need for manual adjustments. Even after you have finished cooking, the fan remains active to capture any remaining vapors.
- Easy to clean: The nine-layer filter effectively traps grease particles during extraction. Designed for simple removal, the filters are easy to clean and dishwasher safe.
- Prolonged freshness: A Delayed Off timer ensures that cooking smells continue to be extracted even after you've finished cooking. Additionally, the timer will automatically shut off the ventilation after a preset time, reducing energy waste if you forget to turn it off.
Product Manuals
A: The Link Mode feature on the Fisher & Paykel 5 in Auxiliary Modular Ventilation automatically activates the fan when the nearby cooktop zones are turned on. It adjusts the fan speed based on the power levels of those cooktop zones, eliminating the need for manual adjustments. This feature ensures efficient extraction of steam, odors, and grease while cooking.
A: The 5 in Auxiliary Modular Ventilation, Duct Out enhances the functionality of island cooktops and open kitchens by providing efficient and discreet ventilation, controlled via the primary module touchscreen. Its retractable or hidden design ensures a cleaner and more open appearance, improving the overall aesthetics and functionality of the kitchen.
A: The 5 in Auxiliary Modular Ventilation by Fisher & Paykel offers five fan speed options, allowing users to adjust the extraction power based on their cooking needs. Higher fan speeds efficiently remove steam, odors, and grease by increasing the airflow, ensuring a fresh and clean kitchen environment during and after cooking. The intuitive Link Mode automatically adjusts the fan speed according to the power levels of nearby cooktop zones, optimizing odor and grease removal without the need for manual adjustments.
Q: What is the purpose of the Delayed Off timer, and how does it help in prolonging freshness?
A: The Delayed Off timer in the Fisher & Paykel 5 in Auxiliary Modular Ventilation ensures that cooking smells continue to be extracted even after cooking is finished. This helps prolong freshness in the kitchen by allowing the ventilation system to run for a set amount of time after the cooktop is turned off, removing any lingering odors or fumes.
Q: How does the nine-layer filter work, and how easy is it to remove and clean?
A: The nine-layer filter effectively traps grease particles during extraction. Designed for simple removal, the filters are dishwasher safe and easy to clean.
Q: What is the warranty period offered by Fisher & Paykel for this ventilation module?
A: Fisher & Paykel offers a 2-year warranty for both parts and labor for this ventilation module. The warranty covers any defects in materials or workmanship under normal use and service.
Q: Does this ventilation module require a specific voltage, and if so, what is it?
A: Yes, this ventilation module requires a specific voltage. The required voltage is 240 volts.
Q: What type of duct shape does this ventilation module accommodate?
A: The 5 in Auxiliary Modular Ventilation, Duct Out by Fisher & Paykel accommodates a rectangular duct shape for ventilation. The product specifications clearly state "Duct Shape: Rectangular".
