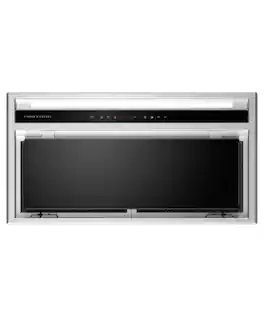

Fisher & Paykel - 24 inches - Convertible - Range Hood Insert - Stainless Steel
Need-haul away?
Related Item
Specifications
- Color FinishStainless steelProduct Height12 4/9 inchesProduct Width20 7/8 inchesProduct Depth11 inchesVent TypeDuctedVent StyleConvertible
- Key Specs
- Color Finish: Stainless steel
- Product Height: 12 4/9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 20 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Fisher & Paykel
- Model Number: HP24IDCHX4
- Product Name: 24 in Recirculationg Insert Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 12 4/9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 18 inches
- Maximum Installation Height Above Cooktop: 24 inches
- Product Width: 20 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 24 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 30 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 6 inches
- Duct Length: 6 inches
- Cut-Out Dimensions
- Cut-Out Height: 14 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 22 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 13 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Vent Type: Ducted
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Insert
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 3
- Control Type: Touch pad
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Performance
- Maximum Air Flow Capacity: 400 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 400 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 1.75 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Aluminum Mesh
- Number of Filters: 1
- Electrical
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 822843502059
This Fisher & Paykel 24 inch 400 CFM Insert Hoodfan High-quality, integrated insert range hood seamlessly blends with cabinetry and can be installed in a variety of kitchen layouts. Quiet and efficient, with four fan speeds. Enjoy seamless operation with Wi-Fi enabled remote control.
- Achieve the invisible: This high quality integrated range hood seamlessly blends behind cabinetry in a variety of kitchen layouts. Beautiful in its simplicity, this product has brushed finished surfaces with no visible screws.
- Simple controls: The intuitive control panel responds to the touch of your finger. LED strip lighting illuminates the entire cooktop surface for the perfect sear or ideal reduction. Range hood settings, including temperature and fan speed, can be controlled via the SmartHQ app, with additional voice control options for fan speeds and lighting.
- Easy cleaning: Designed for simple removal, the filters are easy to clean and dishwasher safe, while the glass and stainless steel finish is easily wiped clean. The SmartHQ app will notify you when to clean the filter to ensure you get the best performance out of your rangehood.
- Quality materials: This rangehood comes in a sleek black glass finish with a real stainless steel frame.
Product Manuals
Q: How many fan speeds does the range hood have?
A: This range hood has three fan speeds.
Q: What is the maximum air flow capacity of the range hood?
A: The maximum air flow capacity of this range hood is 400 cubic feet per minute.
Q: What is the minimum installation height above the cooktop?
A: The minimum installation height above the cooktop is 18 inches.
Q: Does the range hood have a delay shut-off feature?
A: This range hood model does have a delay shut-off feature.
Q: Is the range hood Wi-Fi enabled?
A: This range hood offers seamless operation with Wi-Fi enabled remote control.
Q: What are the dimensions of the range hood?
A: The range hood has a width of 20 7/8 inches, a height of 12 4/9 inches, and a depth of 11 inches.
Q: What is the weight of the range hood?
A: The product weight is 30 pounds.
Q: Can the range hood be installed in different kitchen layouts?
A: This range hood can be installed in a variety of kitchen layouts.
