FOTILE - 36 inches - Externally Vented - Under cabinet Range Hood - Black
FOTILE - 36 inches - Externally Vented - Under cabinet Range Hood - Black
FREE shipping to
Related Item
Specifications
- Color FinishBlackProduct Height17.4 inchesProduct Width35.9 inchesProduct Depth18.43 inchesExhaust Vent LocationTopVent TypeDucted
- Key Specs
- Color Finish: Black
- Product Height: 17.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.43 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: FOTILE
- Model Number: JQG9001
- Product Name: FOTILE 36" 850CFM Under Cabinet|Wall Mount Range Hood in Black Tempered Glass
- Color: Black
- Color Finish: Black
- Dimensions
- Product Height: 17.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 29.5 inches
- Maximum Installation Height Above Cooktop: 32.5 inches
- Product Width: 35.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.43 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 69.7 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 6 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 3
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touchscreen
- Display Type: None
- Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 3 watts
- Performance
- Maximum Air Flow Capacity: 520 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 230 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1.2 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Electrical
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 2 years
- Other
- UPC: 856454005074

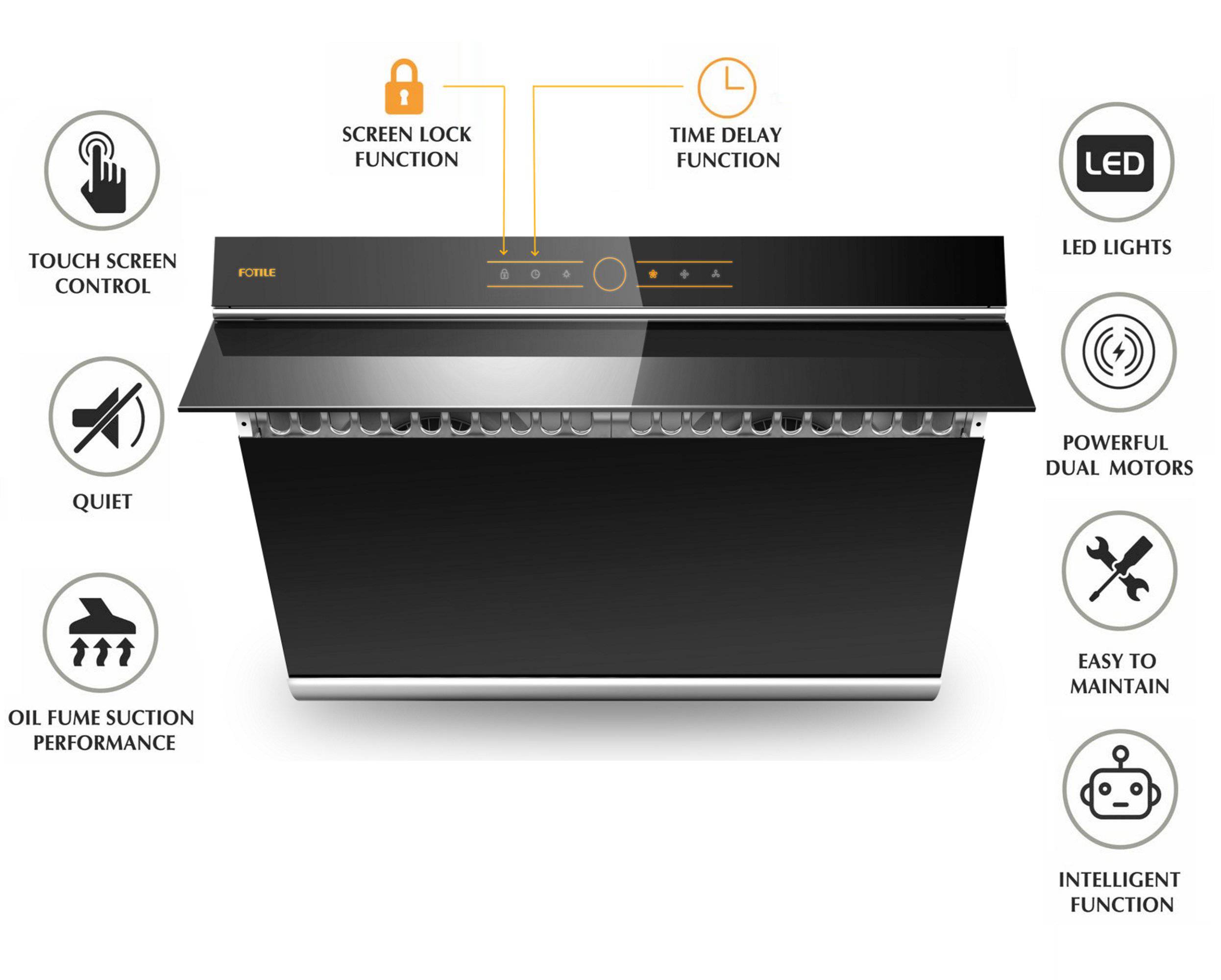

The FOTILE JQG01 Classic Series slant vent range hood is the perfect combination of style and function for your modern kitchen. Its slanted design looks elegant and maximizes smoke and odor capture. Available in 30" or 36" sizes, it seamlessly integrates under your cabinets or mounts on the wall to offer flexible installation options.With this under-cabinet or wall-mount range hood, you can experience powerful ventilation with an 850 CFM maximum airflow rating. This means it can quickly and effectively clear your kitchen of all the smoke, steam, and cooking odors, keeping your air fresh, clean, and free of unwanted particles. The range hood features three fan speeds, allowing you to adjust the ventilation to match your cooking needs. Designed with user-friendliness in mind, the JQG01 Series features a sleek touchscreen control panel. With a simple touch, you can easily adjust fan speeds, lighting, and the automatic-opening baffle plate. Plus, the baffle plate opens automatically when the hood is turned on and closes when turned off. The wall-mounted or under-cabinet range hood operates at a whisper-quiet level of only 39dB at its lowest setting to ensure a peaceful cooking environment, even at higher fan speeds. Its sleek design, powerful performance, and user-friendly features make it an essential addition to any modern home.
- WhisPower System: Due to our WhisPower Technology, FOTILE’s Classic Series range hood is able to capture a higher CFM than actually published by achieving the Venturi effect created with our Capture Shield Technology. Air speed and power are increased as we capture smoke and grease in the Golden Collection Zone and pass it through our centrifugal WhisPower motors.
- 90-degree Auto Open Fume Capture Shield: prevents the smoke from spreading effectively and protects you against harm.
- Extra-wide Fume Inlet: ensures even suction pressure and airflow at every angle. Super-large Coverage Area easily covers all the burners on your cooktop.
- WhisPower System: Due to our WhisPower Technology, FOTILE’s Classic Series range hood is able to capture a higher CFM than actually published by achieving the Venturi effect created with our Capture Shield Technology. Air speed and power are increased as we capture smoke and grease in the Golden Collection Zone and pass it through our centrifugal WhisPower motors.
- 90-degree Auto Open Fume Capture Shield: prevents the smoke from spreading effectively and protects you against harm.
- Extra-wide Fume Inlet: ensures even suction pressure and airflow at every angle. Super-large Coverage Area easily covers all the burners on your cooktop.
