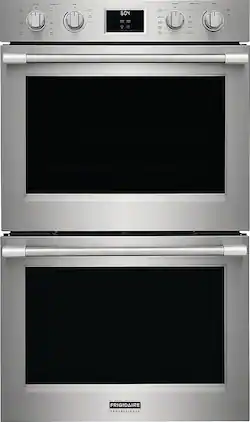

Frigidaire - Professional 30" Built-in Electric Double Wall Oven with Total Convection - Stainless Steel
Need-haul away?
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height50 3/4 inchesProduct Width29 7/8 inchesProduct Depth25 3/16 inchesDepth Without Handle25 3/16 inchesDepth With Handle27 3/5 inches
- Key Specs
- Color Finish: Stainless steel
- Product Height: 50 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 3/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 25 3/16 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 27 3/5 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Frigidaire
- Model Number: PCWD3080AF
- Product Name: Professional 30" Built-in Electric Double Wall Oven with Total Convection
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Frigidaire Professional (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 50 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 3/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 25 3/16 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 27 3/5 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door 90 Degrees Open: 48 3/16 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 285 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 48 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 23 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 5.3 cubic feet
- Oven 2 Capacity: 5.3 cubic feet
- Features
- Oven Type: Double wall oven
- Oven Power Source: Electric
- Fingerprint Resistant: true
- Control Type: Knob, Touchpad
- Clock Display: true
- Oven Light: true
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Design
- Display Type: LED
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Delay Clean Option: true
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Keep Warm Setting: true
- Variable Broil: true (This feature allows you to change the temperature of the broil function, which provides more versatility and control when preparing your favorite foods.)
- Timer: true
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: true
- Oven 1
- Oven 1 Location: Upper
- Oven 1 Interior Height: 18 1/8 inches
- Oven 1 Interior Width: 25 1/5 inches
- Oven 1 Interior Depth: 19 7/8 inches
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Convection Type: True Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-High Heat Cleaning, Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Rack Positions: 3
- Number of Oven 1 Racks: 2
- Oven 1 Bake Element: 2500 watts
- Oven 1 Broil Element: 4000 watts
- Oven 2
- Oven 2 Location: Lower
- Oven 2 Interior Height: 18 1/8 inches
- Oven 2 Interior Width: 25 1/5 inches
- Oven 2 Interior Depth: 19 7/8 inches
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection Type: True Convection (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-High Heat Cleaning, Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Rack Positions: 3
- Number of Oven 2 Racks: 2
- Oven 2 Bake Element: 2500 watts
- Oven 2 Broil Element: 4000 watts
- Electrical
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Wattage: 4000 watts (Measurement of electrical power.)
- Amperage At 240 Volts: true
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed, CSA Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: No chemical disclosures for this product. No hay divulgaciones químicas para este producto. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 012505515354
The Frigidaire Professional 30" Double Wall Oven with Total Convection, features our new Total Convection system, which enables cooking modes like No Preheat, Air Fry, Slow Cook, Steam Bake, Steam Roast, Convection Bake and more! Also includes a convenient temperature probe and the ReadyCook Air Fry Tray. Plus, enjoy our fingerprint resistant, Smudge-Proof Stainless Steel finish.
- Our most advanced and powerful convection system, Total Convection - in both ovens.: Total Convection gives you maximum versatility in the kitchen, powering cooking modes like Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, Steam Roast and and more!
- Start baking immediately with No Preheat: Eliminates time wasted waiting on your oven to heat up - simply place your food in the cold oven and get to meal time, in no time.
- Deliver all of the flavor and none of the guilt with Air Fry.: Air Fry allows you to make healthier and delicious meals for the entire family, right in your oven.
- ReadyCook Air Fry Tray is included: For perfectly crispy and delicious Air Fry results.
- Experience a hassle-free way to cook with Slow Cook: With Slow Cook, your food cooks slowly and at a lower temperature (as low as 100° F), allowing you to lock in moisture and flavor without over or undercooking your food.
- Achieve bakery results at home with Steam Bake: With Steam Bake, steam evenly circulates throughout the oven cavity, resulting in breads and muffins that rise higher and are light and fluffy.
- Take the guesswork out of cooking with the Temperature Probe: The Temperature Probe monitors and alerts when the desired finished cooking temperature has been reached.
- Offers two convenient cleaning options: Enjoy more cleaning flexibility. Select Steam Clean for a quick, 30 minute clean or choose Self Clean, which is available in 2, 3 and 4 hour cycles.
- Enjoy crispy, perfectly roasted meals with Steam Roast: Steam Roast uses moisture to make perfectly crispy and tender meats and vegetables that are roasted to perfection.
- Better access to your meals with our Glide Rack: Our extending Glide Rack makes it easier to monitor and lift your food out of the oven.
- Extra Large Oven Capacity: Cook more at once with a combined 10.6 cu.ft. of oven capacity.
- Smudge-Proof Stainless Steel: Resists fingerprints and cleans easily.
Whats Included
- Professional 30" Built-in Electric Double Wall Oven with Total Convection
Q: What is the benefit of the Total Convection system?
A: The Total Convection system provides maximum versatility by powering various cooking modes, including Air Fry, No Preheat, Slow Cook, Convection Bake, Steam Bake, Convection Roast, and Steam Roast.
Q: Is the stainless steel finish fingerprint resistant?
A: Yes, the oven features Smudge-Proof Stainless Steel that resists fingerprints and is easy to clean.
Q: What are the different cleaning options available for this oven?
A: This oven offers two cleaning options: Steam Clean, a quick 30-minute clean, and Self Clean, available in 2, 3, and 4-hour cycles.
Q: Does this double oven have a slow cook feature?
A: Yes, this oven features a Slow Cook option that cooks food slowly at a lower temperature, as low as 100° F.
Q: Does this oven come with a temperature probe?
A: Yes, a temperature probe is included with this oven to monitor cooking temperatures and provide alerts.
Q: How large is the oven capacity in total?
A: This double oven has a combined capacity of 10.6 cubic feet.
A: Thank you for providing your cabinet cutout dimensions! Based on the measurements you shared (28 3/4" W x 51 3/4" H), the Frigidaire Professional 30" Double Wall Oven should fit within your space. The required cutout width is 28 1/2", so your opening is slightly larger, which is perfectly acceptable. The required cutout height is approximately 50 3/4", and while your opening is about 1" taller, cutout dimensions are minimum requirements—so a slightly larger height will not prevent installation. The oven’s front trim is designed to cover minor gaps around the opening. However, depending on the final installation, a small filler or adjustment may be needed for the most finished appearance. - Jessica
Q: Cabinet opening is 51 3/4 × 28 3/4, will the pro fit?
A: Hi Drew, thank you for reaching out! Based on the specifications for the Frigidaire PCWD3080AF double wall oven, your cabinet opening of 51 3/4" × 28 3/4" is too narrow for this model. While the height of your opening is sufficient, the width is about an inch smaller than the required 30" cutout, so the oven will not fit properly without widening the space. For proper installation, a standard 30-inch-wide opening is needed. — Reed
