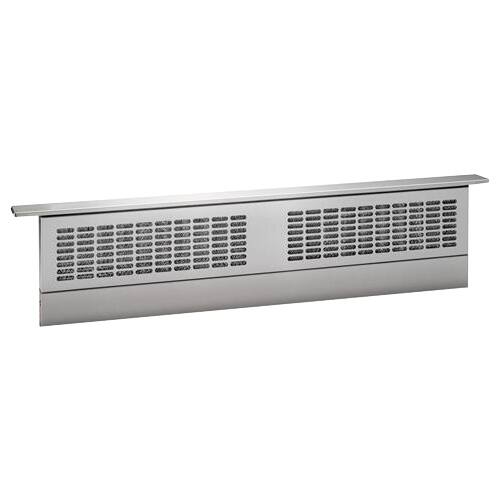

GE - 36 inches - Externally Vented - Telescopic Downdraft Range Hood - Stainless Steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 27 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 9 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: GE
- Model Number: UVB36SKSS
- Product Name: Universal 36" Telescopic Downdraft System
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 27 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 36 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 9 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 59 pounds (The out of box weight of the item.)
- Duct Shape: Rectangular
- Duct Length: 10 inches
- Duct Width: 3 1/4 inches
- Features
- Exhaust Vent Location: Rear
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Telescoping: true (Make the most of your space with a range hood that can raise up for operation and then retract when not in use.)
- Range Hood Type: Downdraft
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 4
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Button
- Display Type: None
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Remote Control: true
- Damper Included: false
- Integrated Light(s): false
- Performance
- Maximum Air Flow Capacity: 370 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 140 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Minimum Operating Sound Level: 9 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Mesh
- Dishwasher-Safe Filter: false
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical Specification
- Amperage: 4 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): None (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 084691819141
Rid your kitchen of odors, smoke and steam with this 36-inch GE telescopic downdraft system. Four fan-speed options keep the air in your kitchen fresh, and the remote control makes it easy to lower and raise the telescopic hood. This GE telescopic downdraft system uses a 370-CFM venting system that delivers smoke to the outside of your home.
- 370-CFM venting system: Effectively removes smoke, grease, odor and moisture.
- Four-speed fan control: Helps draw smoke, grease, odors and moisture out of the kitchen air.
- Telescopic hood: Raises over cooktop surface and retracts when not in use.
- 370-CFM venting system: Effectively removes smoke, grease, odor and moisture.
- Four-speed fan control: Helps draw smoke, grease, odors and moisture out of the kitchen air.
- Telescopic hood: Raises over cooktop surface and retracts when not in use.
Whats Included
- 1 x remote switch
- 1 x wire and white connector
- 2 x filters
- 4 x stabilizing brackets with screws
- Universal 36" Telescopic Downdraft System
- 1 x remote switch
- 1 x wire and white connector
- 2 x filters
- 4 x stabilizing brackets with screws
- Universal 36" Telescopic Downdraft System
Product Manuals
Q: How far does it come up in inches
A: Hi - The vent extends 8 1/2"H. We suggest to view the Quick Specs at the following link for more details: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=UVB36SK_c3%204.pdf - Thanks for your interest! Sue
A: Hi Ali - Universal 36" Telescopic Downdraft System UVB36SKSS must be vented outdoors. We suggest to view the Installation Instructions at the following link for complete details. See page 12 VENTING OPTIONS: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=49-80777-1.pdf - Keep in touch! SUE@GEA
Q: Will someone be able to install this system?
A: Hello Carmella - Installation services are an option you can select when ordering through BestBuy. - TREY@GEA
A: Hello LMA. We have checked and find the same as you for the part you need. Neither of the asked about models is a direct replacement to your present downdraft model of ZVB36SHSS. The closest would be model UVB36SKSS. Please check with your BestBuy Store. Geoff@GEA
Q: I currently have a GE Profile (maybe 10 years old or more) will this fit?
A: Hello Lted. Thanks for reaching out. In order to better assist with your question, we would need more details from you. If you are able, please reach out to us via e-mail or social media with this question and include your model and serial numbers. Someone from our team will then be happy to help find you an answer. - Guy@GEA
A: Hi Akamai22, Thank you for reaching out. To remove: Slip fingers into the vent holes, lift the vent straight up and pull forward. Grasp the filter tabs, push down and out of the retainer. I hope this helps. Best wishes -Mike
A: Hi Erin - Thanks for your interest in GE! Universal 36" Telescopic Downdraft System UVB36SKSS is approved for use with the following Monogram, GE Profile™ Series and GE® Series cooktops: 36" electric models, 36" gas sealed-burner models and 36" induction models. It is not approved for use with other brands (Dacor). Keep in touch! Sue
Q: I have a LG six burner gas stovetop RT 36. Is this downdraft compatible?
A: Hello Toad - We appreciate your interest in the Universal 36" Telescopic Downdraft System and we are happy to help! Telescopic downdraft vents are not recommended to be installed with cooktops that are flush mounted. This model is approved for use with the following Monogram, GE Profile™ Series and GE® Series cooktops–36" electric models, 36" gas sealed-burner models and 36" induction models. Please visit the following link to view this model installation information provided on page 1 of the specifications: https://products.geappliances.com/MarketingObjectRetrieval/Dispatcher?RequestType=PDF&Name=UVB36SK_c3%204.pdf We are glad you checked! Olga
