Gearmo - 16-Port USB 3.2 Gen 2 Type-C Hub - 10Gbps - ESD Surge Protection - Rack Mount Ready - Includes Power Supply - Black
Reviews coming soon
Related Item
Specifications
- Number of USB Port(s)16
- Key Specs
- Number of USB Port(s): 16
- General
- Brand: Gearmo
- Model Number: GM-HU316C-RM
- Product Name: 16-Port USB 3.2 Gen 2 Type-C Hub - 10Gbps - ESD Surge Protection - Rack Mount Ready - Includes Power Supply
- Color: Black
- Features
- Hub Type: USB hubs (The type of connection, such as Ethernet or USB, used to connect peripheral devices to the hub for shared access.)
- Ports
- Number of USB Port(s): 16
- Port Type(s): USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Dimensions
- Product Height: 1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 11 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 3.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.61 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 045079164758

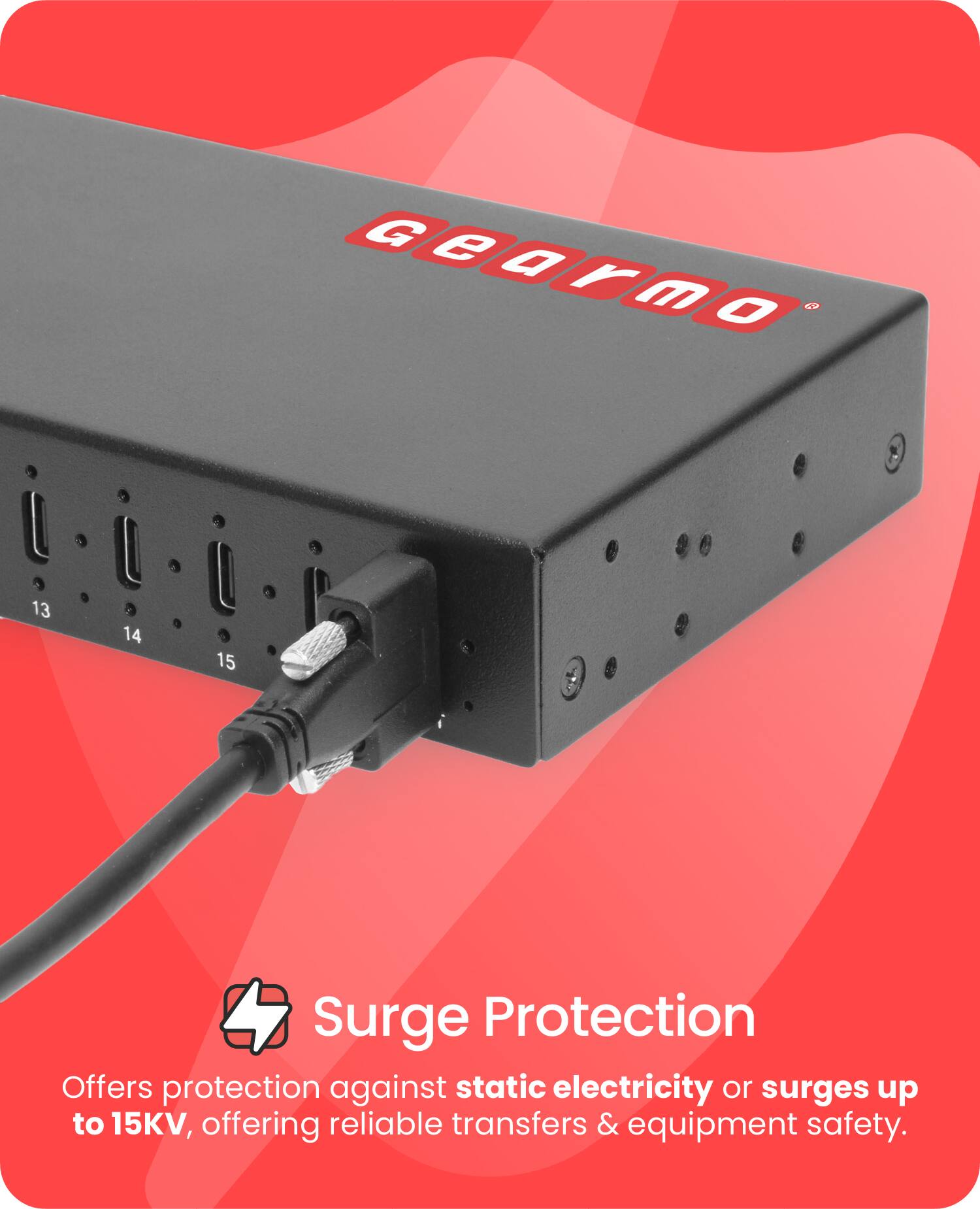

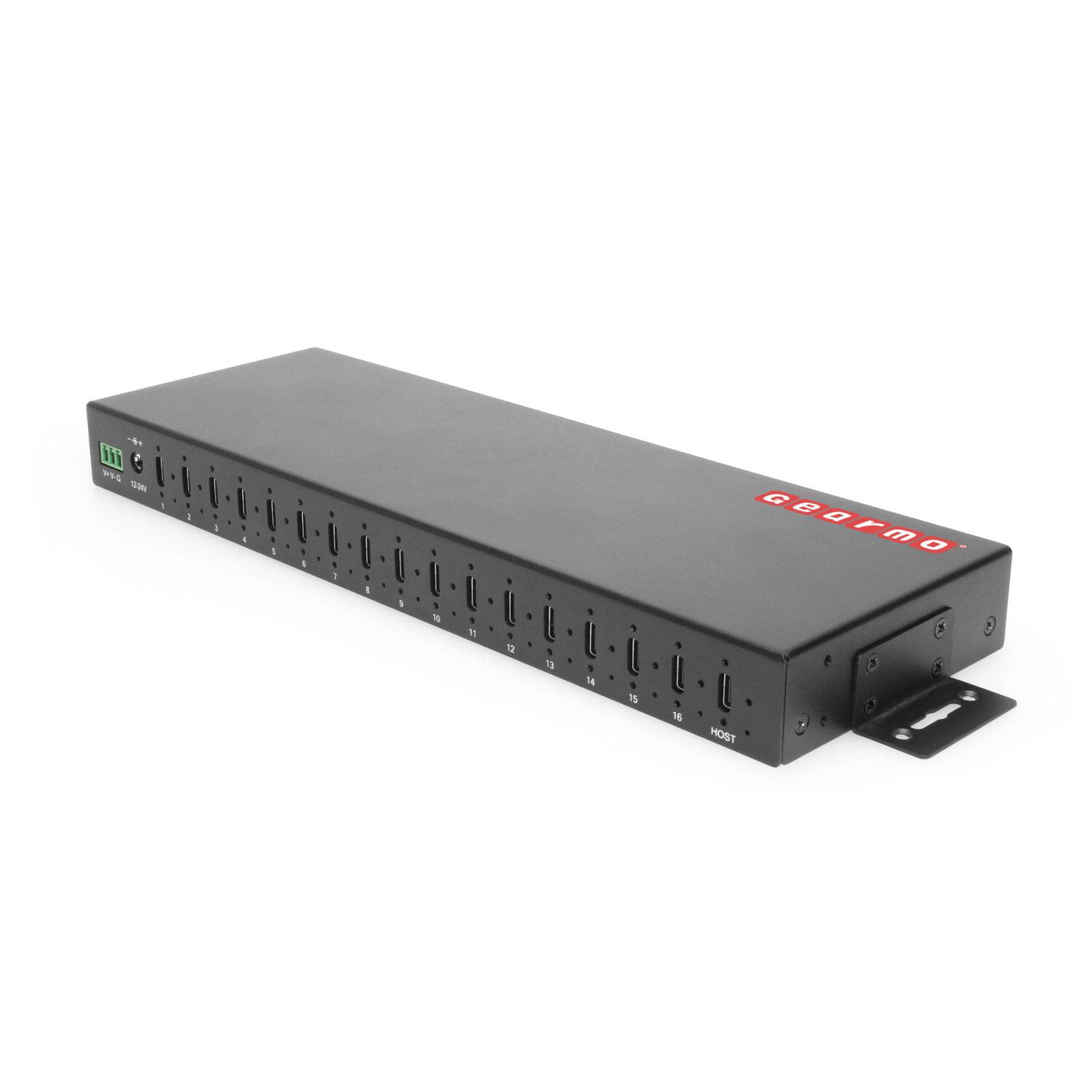

The GM-HU316C-RM is the ultimate rack-mountable USB hub, packing 16 USB 3.2 Gen 2 ports with blazing 10Gbps transfer speeds for high-performance connectivity. Built with robust metal construction and versatile mounting options for rack, wall, desk, or DIN rail setups, this hub is designed to thrive in demanding environments. Each port delivers up to 2.4A with USB Battery Charging v1.2 support, for a total output of 120W - enough to power and charge multiple devices at once without a host connection. Redundant 12–24V DC inputs, independent over-current protection, and 15kV ESD with 600W surge protection ensure rock-solid reliability. With LED indicators for real-time status and seamless compatibility across Windows, Mac, and Linux, the GM-HU316C-RM is the go-to hub for expanding, charging, and securing your connectivity setup.
- Expand your connections: Instantly upgrade your workspace with sixteen USB ports - this hub delivers up to 10Gbps data transfer and features 16 USB-C ports for maximum versatility - great for SSDs and large file transfers. Includes LED indicators for connection confirmation.
- Smart port layout: Features 16 downstream USB 3.2 Gen 2 Type-C ports for device connections and 1 upstream USB Type-C port to your host. All Type-C ports support single or dual screw locks for security to minimize disconnections.

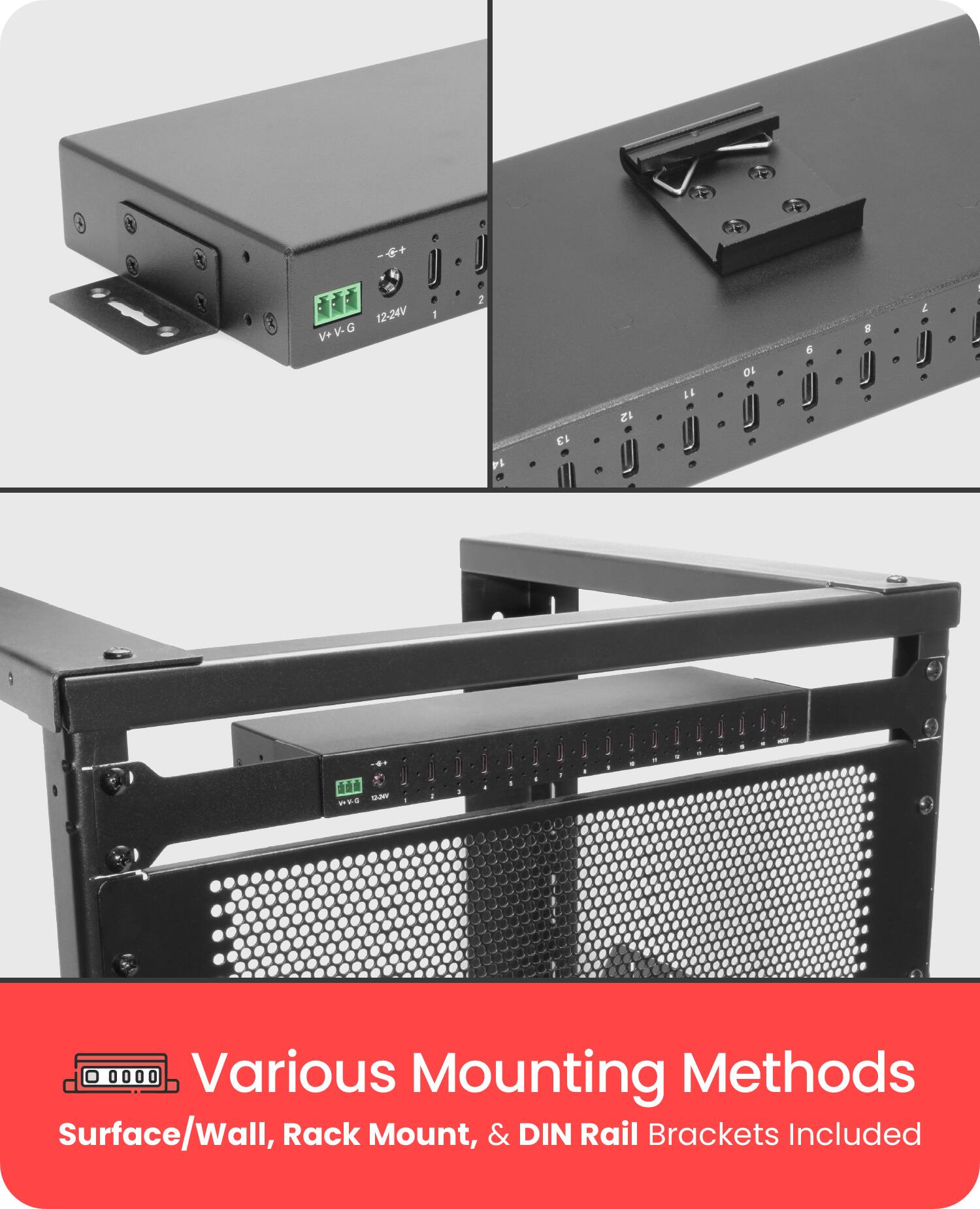

- Flexible mounting options: Rugged metal enclosure is ready for secure installation on a desktop, wall, DIN rail, or rack with included hardware for easy integration into your setup.

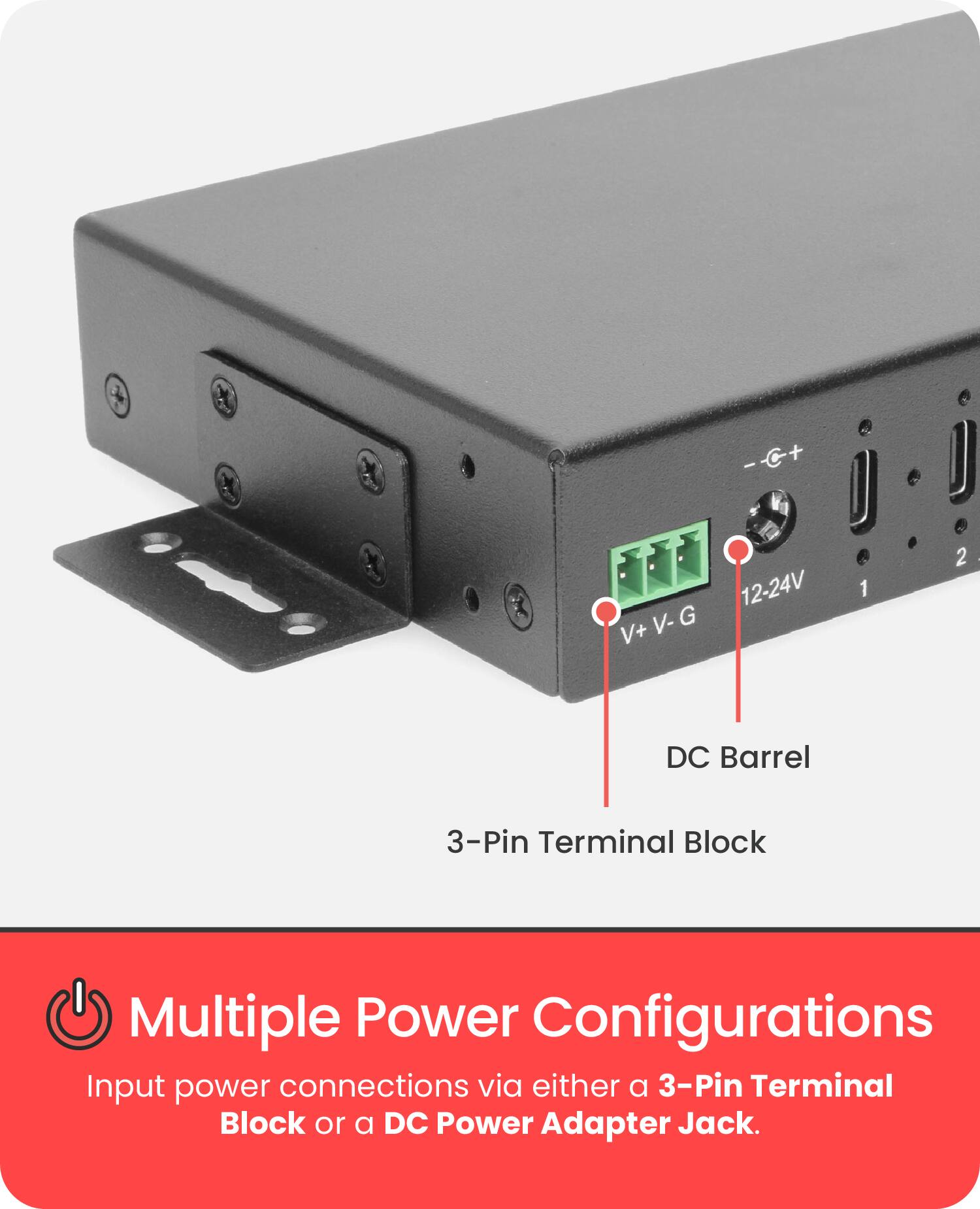

- Power and device protection: Accepts 12–24V DC input via barrel jack or 3-pin terminal block, and includes 15kV ESD protection to keep your devices safe and uninterrupted. USB Battery Charging v1.2 support with up to 2.4A output per port, 120W total.
- Broad OS compatibility: Works seamlessly with Windows 7 through Windows 11, macOS, and Linux.
Whats Included
- 16-Port Hub, DC Power Adapter and Cable, USB Type-C to C Screw Lock Cable, Mounting Kit (Rack, Wall/Surface, and DIN Rail), Screws, User Manual
Compare similar products
The GM-HU316C-RM is the ultimate rack-mountable USB hub, packing 16 USB 3.2 Gen 2 ports with blazing 10Gbps transfer speeds for high-performance connectivity. Built with robust metal construction and versatile mounting options for rack, wall, desk, or DIN rail setups, this hub is designed to thrive in demanding environments. Each port delivers up to 2.4A with USB Battery Charging v1.2 support, for a total output of 120W - enough to power and charge multiple devices at once without a host connection. Redundant 12–24V DC inputs, independent over-current protection, and 15kV ESD with 600W surge protection ensure rock-solid reliability. With LED indicators for real-time status and seamless compatibility across Windows, Mac, and Linux, the GM-HU316C-RM is the go-to hub for expanding, charging, and securing your connectivity setup.
The CG-U3MINI4PH is a compact, industrial-grade 4-Port USB 3.2 Gen 1 hub engineered for applications that demand reliable power delivery and fast data performance in challenging environments. Built with a durable metal chassis and integrated surface-mounting flanges, this hub supports transfer rates up to 5Gbps while remaining fully backward-compatible. Each port operates on its own protected circuit using the robust GL3510 controller, providing 15kV ESD and surge protection along with fast-charging that complies with USB-IF Battery Charging Specification 1.2. With flexible power options (including a 5V/4A power input and automatic switching between self-powered and bus-powered modes) the CG-U3MINI4PH ensures consistent performance whether used in industrial systems, lab environments, or commercial POS setups. Its ability to charge devices even without upstream VBUS, combined with broad OS compatibility across Windows, macOS, and Linux, makes this hub a dependable and versatile solution for expanding and powering your USB infrastructure.
The USBG-BREC307 is a rugged, compact 7-Port USB 3.2 Gen 1 hub designed for reliable high-speed data transfer and efficient device charging across a wide range of professional environments. Engineered with a heavy-duty extruded aluminum chassis and mounting flanges on both ends, it offers stable heat dissipation and flexible placement on walls, benches, or equipment racks. Each port supports SuperSpeed data rates up to 5Gbps while maintaining full backward compatibility with USB 2.0 and 1.1, ensuring seamless integration with legacy peripherals. Built to follow USB Battery Charging Specification 1.2, the hub delivers up to 900mA per port for dependable charging, reinforced by smart control and current-limiting protection when bus-powered. Features plug-and-play operation, hot-swap support, and broad OS compatibility including Windows, macOS, and Linux. The USBG-BREC307 is a versatile solution for industrial, medical, laboratory, educational, and commercial applications requiring durable connectivity and consistent performance.
The GM-HU316A2H-RM is a 16-port USB 3.2 Gen 1 hub built for serious connectivity - perfect for tech enthusiasts and power users who need fast, reliable performance. Dual upstream ports enable two different hosts to connect to the same USB hub, allowing for switching between the two as needed. Data transfer speeds up to 5Gbps and charging support up to 2.4A per port offer high-speed expansion and heavy-duty power. Features include 15kV ESD and 600W surge protection, plus independent over-current detection on each port. Power input at 12-30V DC is available via 3-Pin Terminal Block or DC barrel, while LED indicators keep you informed. Mounting options include surface, wall, DIN rail, and rack mounting with included hardware. Whether you're building out a pro workstation or powering up a fleet of devices, this hub is ready to deliver.
