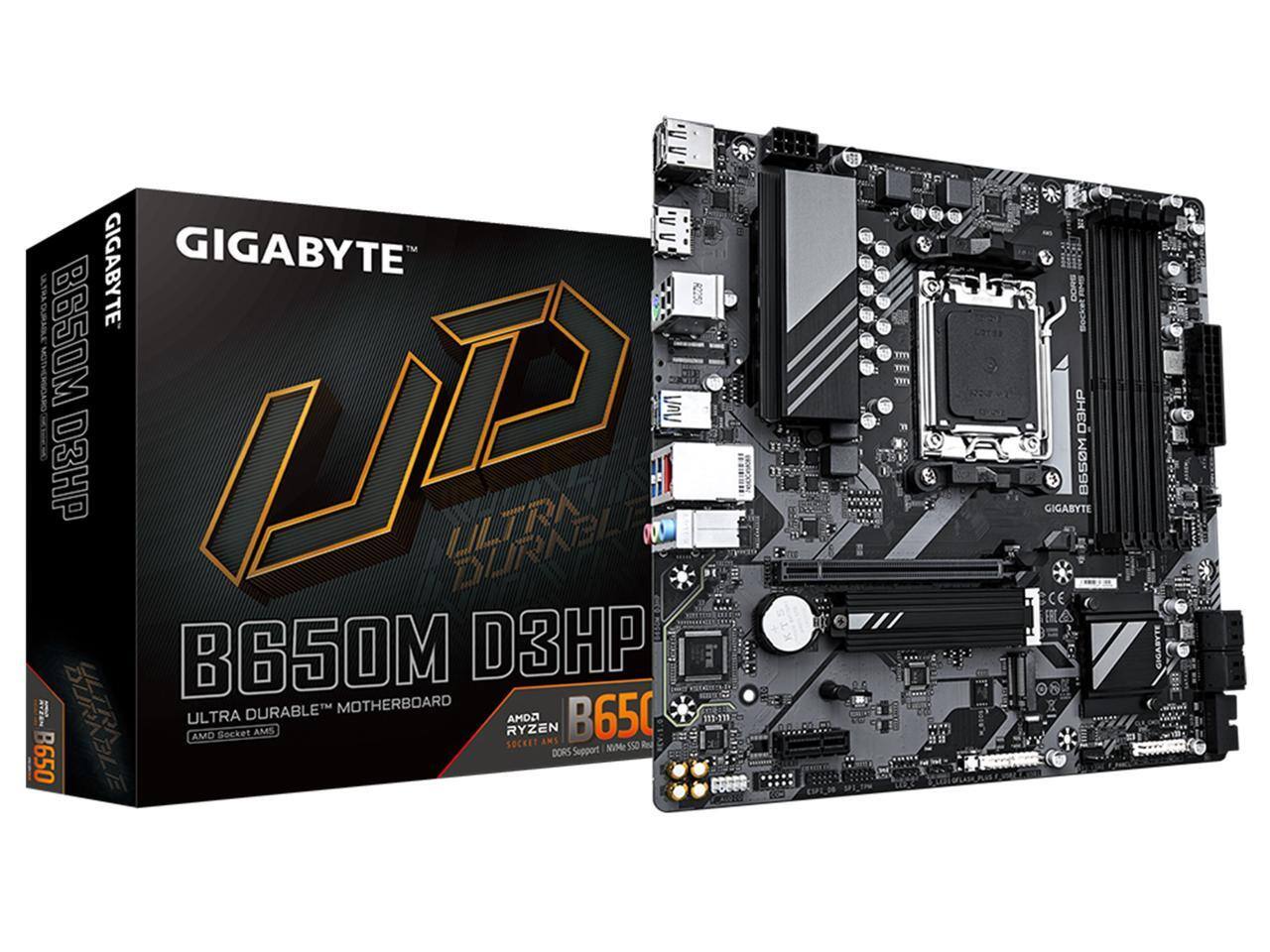

GIGABYTE - Ultra Durable B650M D3HP Gaming Desktop Motherboard
Specifications
- ChipsetAMD B650Form FactormicroATXProcessor SocketSocket AM5 (LGA 1718)Wireless Networking StandardNo Wi-Fi standardNumber Of Memory Slots4Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: AMD B650
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: No Wi-Fi standard (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5 SDRAM
- General
- Brand: GIGABYTE
- Product Name: Ultra Durable B650M D3HP Gaming Desktop Motherboard
- Compatibility
- Chipset: AMD B650
- Chipset Compatibility: AMD
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 3 7000 Series, AMD Ryzen 3 8000 Series, AMD Ryzen 5 9000 Series
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: No Wi-Fi standard (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 3 x USB-A 2.0, 4 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 8 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 9.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 9.6 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2.1 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5 SDRAM
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4800 MHz | 5200 MHz | 5600 MHz | 6000 MHz | 6200 MHz | 6400 MHz | 6600 MHz | 6800 MHz | 7000 MHz | 7200 MHz | 7600 MHz (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 years
- Other
- UPC: 889523039083
The Ultra Durable B650M D3HP Gaming Desktop Motherboard is designed to provide robust performance and durability for gaming enthusiasts. It supports AMD Ryzen 7000, 8000, and 9000 Series processors with Socket AM5, ensuring compatibility with the latest AMD CPUs. The motherboard is equipped with 4 DIMM slots that support DDR5 memory up to 7600 MHz, allowing for high-speed memory configurations. For expansion, it includes 1 PCIe 4.0 x16 slot and 1 PCIe 3.0 x1 slot, accommodating various add-on cards. Storage options are versatile with 2 M.2 slots and 4 SATA III connectors, enabling multiple storage devices. Networking is handled by a 2.5GbE LAN port, providing high-speed connectivity, and an HDMI port is available for video output. The motherboard's design emphasizes durability and performance, making it a solid foundation for a gaming desktop build.
- Processor Compatibility: Supports AMD Ryzen 7000, 8000, and 9000 Series processors with Socket AM5.
- Memory Support: Equipped with 4 DIMM slots supporting DDR5 memory up to 7600 MHz.
- Expansion Slots: Includes 1 PCIe 4.0 x16 slot and 1 PCIe 3.0 x1 slot for expansion.
- Storage Options: Offers 2 M.2 slots and 4 SATA III connectors for versatile storage configurations.
- Networking Capabilities: Features 2.5GbE LAN for high-speed networking and 1 HDMI port for video output.
