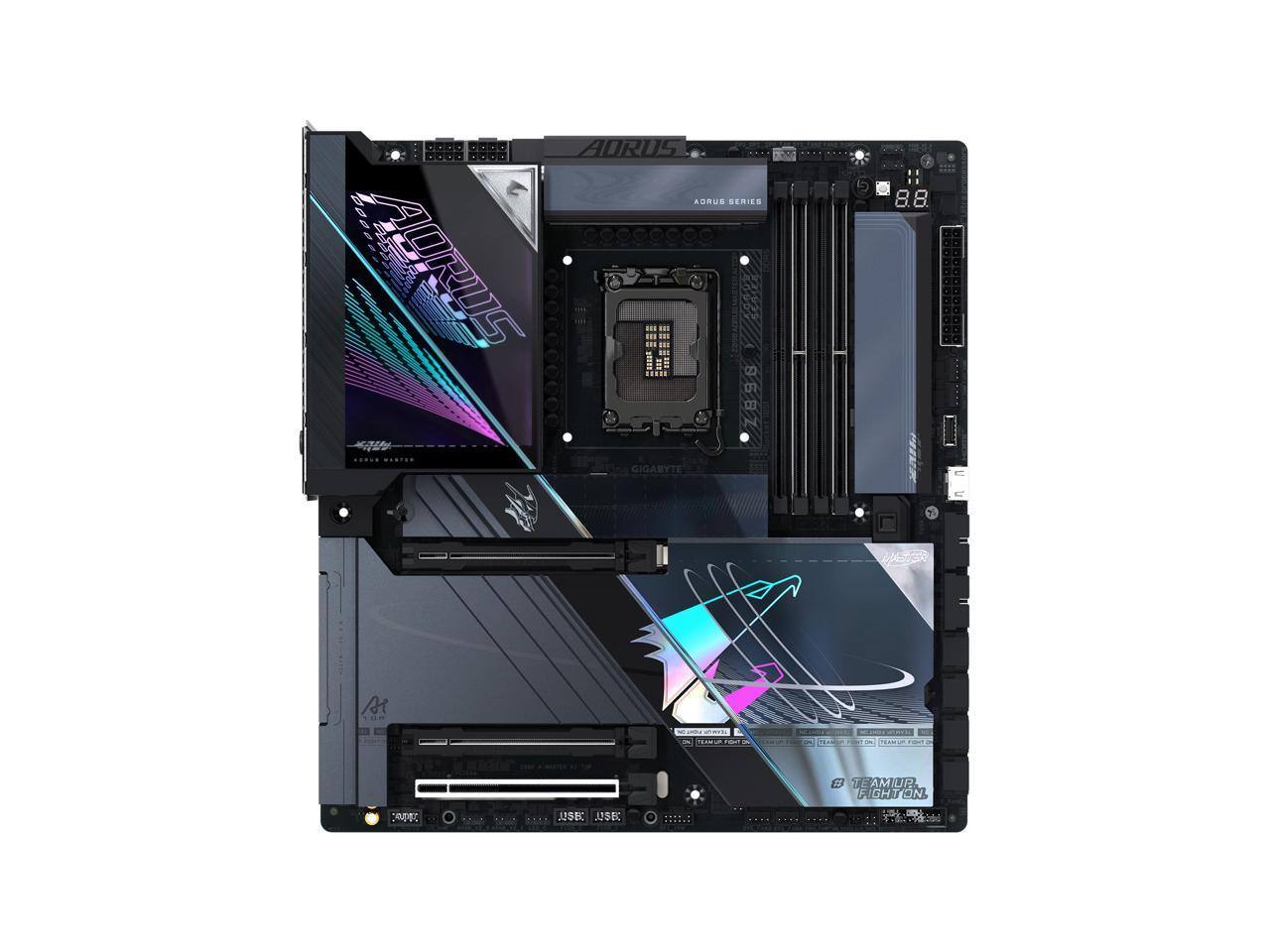

GIGABYTE - Ultra Durable Z890 AORUS MASTER AI TOP Gaming Desktop Motherboard
FREE shipping to
Intel - Core i5-12600K Desktop Processor 10 (6P+4E) Cores up to 4.9 GHz Unlocked LGA1700 600 Series Chipset 125W - Grey/Black/Gold$195.99$199.99
Related Item
Specifications
- ChipsetIntel Z890Form FactorEATXProcessor SocketSocket LGA 1851Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: Intel Z890
- Form Factor: EATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5 SDRAM
- General
- Brand: GIGABYTE
- Product Name: Ultra Durable Z890 AORUS MASTER AI TOP Gaming Desktop Motherboard
- Compatibility
- Chipset: Intel Z890
- Chipset Compatibility: Intel
- Form Factor: EATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core Ultra 5 Series 2
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 3
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 10 x USB-A 3.2, 2 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 8 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 12 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 11.2 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 8.35 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5 SDRAM
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800,8933,9066,9200,9333,9466,9500 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 years
- Other
- UPC: 889523045831
The Ultra Durable Z890 AORUS MASTER AI TOP Gaming Desktop Motherboard is engineered to deliver exceptional performance and reliability. It supports Intel Core Ultra processors (Series 2) and features a robust 20+1+2 phases VRM solution with 110A Smart Power Stage for stable power delivery. The motherboard accommodates DDR5 memory with speeds up to 9500 MHz (OC) and a maximum capacity of 256 GB. Connectivity options include PCIe 5.0, four M.2 slots, dual Thunderbolt 4 ports, and Wi-Fi 7. Thermal management is optimized with VRM Thermal Armor Advanced and M.2 Thermal Guard XL to ensure efficient heat dissipation.
- Supports Intel Core Ultra Processors (Series 2): Compatible with Intel Core Ultra processors (Series 2) for enhanced performance.
- Advanced Power Design: Features a 20+1+2 phases VRM solution with 110A Smart Power Stage for stable power delivery.
- High-Speed Memory Support: Supports DDR5 memory with speeds up to 9500 MHz (OC) and a maximum capacity of 256 GB.
- Comprehensive Connectivity: Equipped with PCIe 5.0, four M.2 slots, dual Thunderbolt 4 ports, and Wi-Fi 7 for versatile connectivity.
- Enhanced Thermal Management: Includes VRM Thermal Armor Advanced and M.2 Thermal Guard XL for efficient heat dissipation.
- Supports Intel Core Ultra Processors (Series 2): Compatible with Intel Core Ultra processors (Series 2) for enhanced performance.
- Advanced Power Design: Features a 20+1+2 phases VRM solution with 110A Smart Power Stage for stable power delivery.
- High-Speed Memory Support: Supports DDR5 memory with speeds up to 9500 MHz (OC) and a maximum capacity of 256 GB.
- Comprehensive Connectivity: Equipped with PCIe 5.0, four M.2 slots, dual Thunderbolt 4 ports, and Wi-Fi 7 for versatile connectivity.
- Enhanced Thermal Management: Includes VRM Thermal Armor Advanced and M.2 Thermal Guard XL for efficient heat dissipation.
Compare similar products
The Ultra Durable Z890 AORUS MASTER AI TOP Gaming Desktop Motherboard is engineered to deliver exceptional performance and reliability. It supports Intel Core Ultra processors (Series 2) and features a robust 20+1+2 phases VRM solution with 110A Smart Power Stage for stable power delivery. The motherboard accommodates DDR5 memory with speeds up to 9500 MHz (OC) and a maximum capacity of 256 GB. Connectivity options include PCIe 5.0, four M.2 slots, dual Thunderbolt 4 ports, and Wi-Fi 7. Thermal management is optimized with VRM Thermal Armor Advanced and M.2 Thermal Guard XL to ensure efficient heat dissipation.

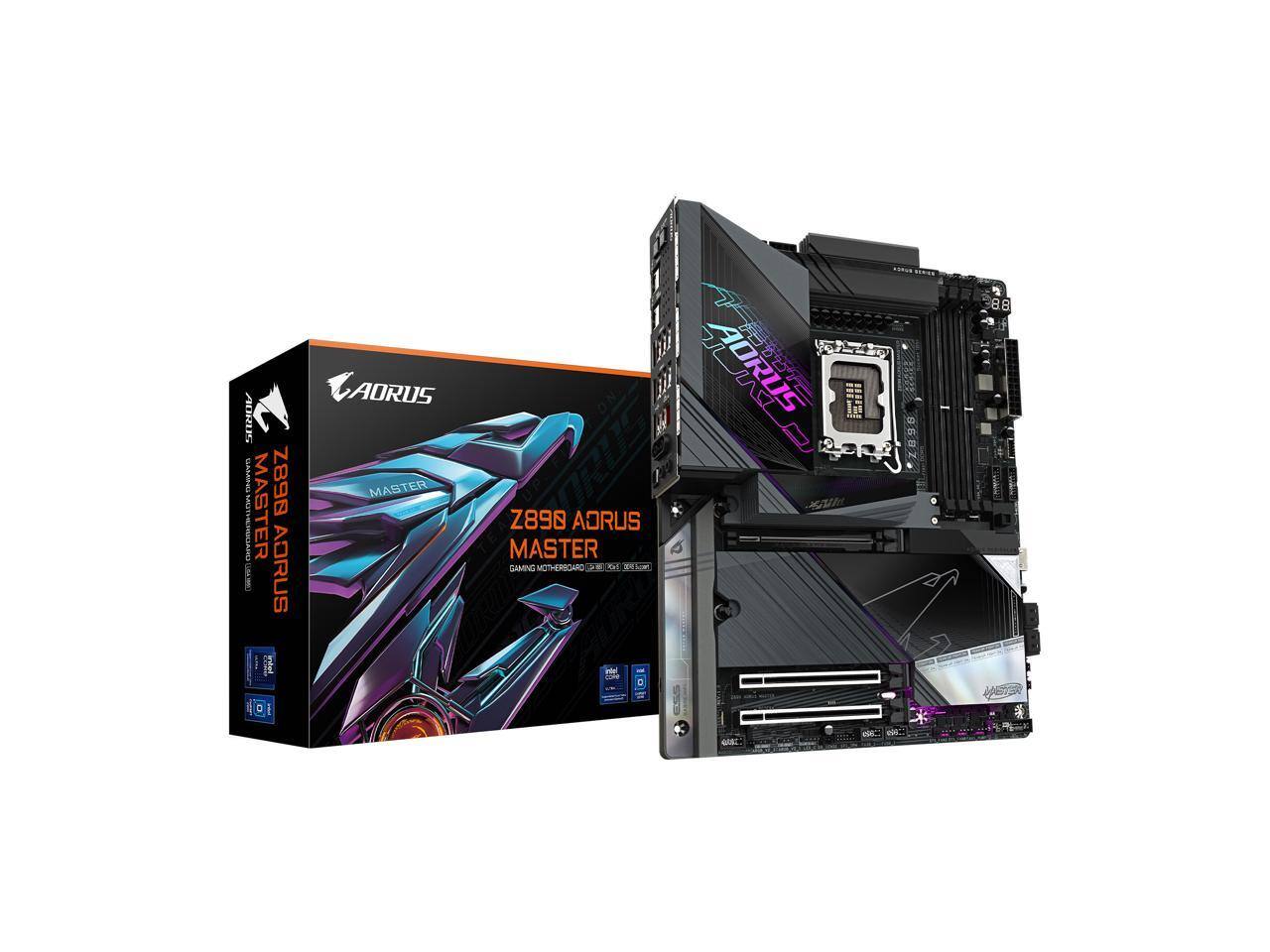

The Ultra Durable Z890 AORUS MASTER Gaming Desktop Motherboard is engineered for high-performance computing, featuring support for Intel Core Ultra processors (Series 2) via Socket LGA-1851. It accommodates DDR5 memory modules up to 9500 MHz (overclocked), with a total capacity of 256 GB across 4 DIMM slots. The motherboard provides 3 PCIe slots, including a PCIe 5.0 x16 slot, and offers 5 M.2 slots (2 PCIe 5.0 x4, 3 PCIe 4.0 x4) along with 4 SATA 6Gb/s ports, all supporting RAID 0/1/5/10 configurations. Connectivity options are extensive, featuring 2 Thunderbolt 4 Type-C ports, 6 USB 3.2 Gen 2 ports, 4 USB 3.2 Gen 1 ports, 2 USB 2.0 ports, 1 HDMI port, 1 10GbE LAN port, and Wi-Fi 7 with Bluetooth 5.4, ensuring robust and versatile connectivity for demanding applications.
