GIGABYTE - X870E AORUS ELITE WIFI7 (Socket AM5)AMD X870E ATX DDR5 Wi-Fi 7 Motherboard - Black
GIGABYTE - X870E AORUS ELITE WIFI7 (Socket AM5)AMD X870E ATX DDR5 Wi-Fi 7 Motherboard - Black
- Intel - Core Ultra 9 285K 24-Cores 24-Threads - 4.6GHz (5.7 GHz Turbo) Socket LGA 1851 Unlocked Desktop Processor - Multi$559.99The price was $619.99
More Buying Options
Specifications
- ChipsetAMD X870Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots3Wireless Networking StandardWi-Fi 7Number Of Memory Slots4
- Key Specs
- Chipset: AMD X870
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: GIGABYTE
- Model Number: X870E AORUS ELITE WIFI7
- Product Name: X870E AORUS ELITE WIFI7 (Socket AM5)AMD X870E ATX DDR5 Wi-Fi 7 Motherboard
- Color: Black
- Year of Release: 2025
- Compatibility
- Chipset: AMD X870
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 9 8000 Series, AMD Ryzen 9 7000 Series
- Operating System Compatibility: Windows 11 Home
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 24-pin ATX main power connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports

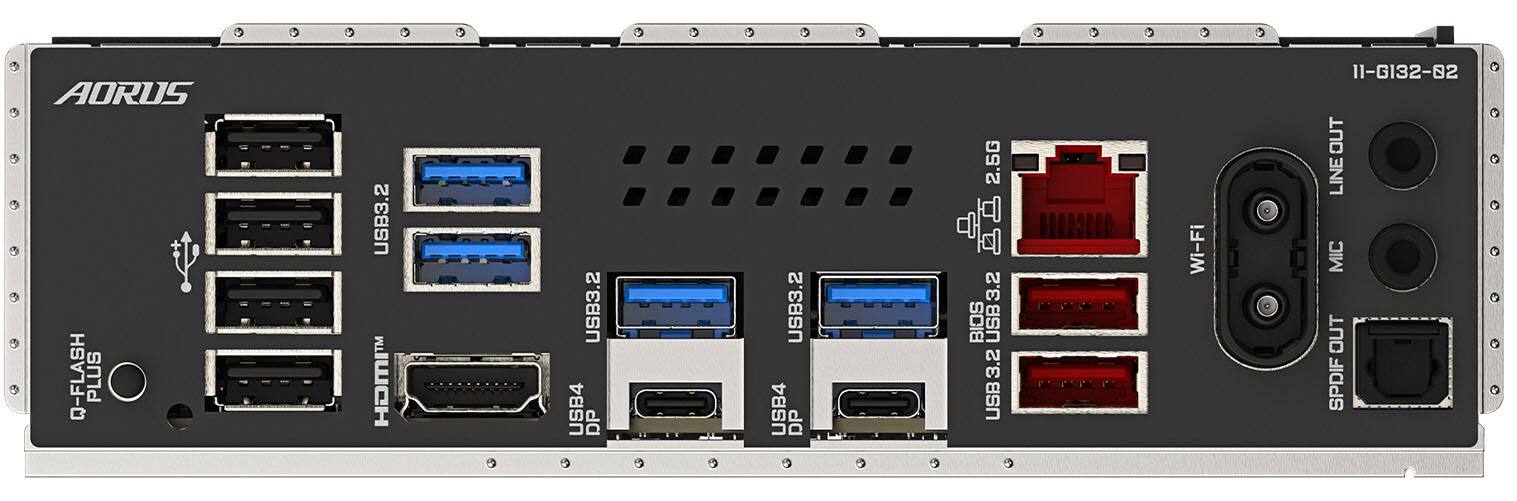

- USB Ports: 4 x USB-A 2.0, 4 x USB-A 3.2, 2 x USB-A 3.2, 2 x USB-C 3.2 (The number and type of USB ports the product has.)
- Audio Ports: 2 x audio jacks
- Number of Audio Channels: 2, 4, 5.1, 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 90.88 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 5200 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 5, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 889523045237

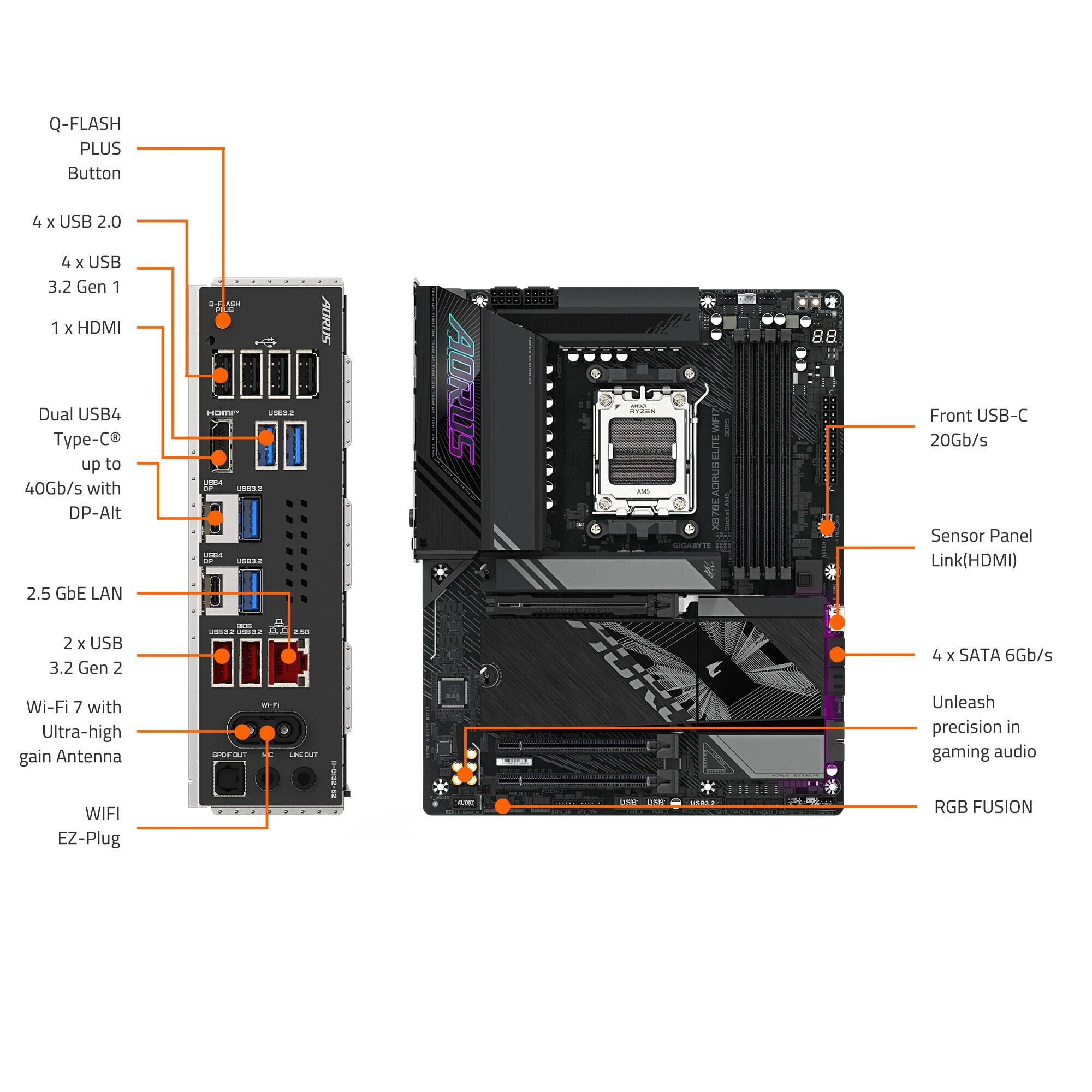

A new era is here. The X870E AORUS ELITE WIFI7 supports AM5 Processors and features unparalleled performance. GIGABYTE X870E motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
- Warranty: 5-year Warranty
- Processor Compatibility: Supports AMD Ryzen 9000 / Ryzen 8000 / Ryzen 7000 Series Processors
- DDR5 Compatible: 4*SMD DIMMs with AMD EXPO Memory Module Support
- Next Gen Connectivity: PCIe 5.0, NVMe PCIe 5.0 x4 M.2, SuperSpeed USB 3.2 Gen 2x2 Type-C
- Sturdy Power Design: 16+2+2 Phases Digital VRM Solution
- Comprehensive Thermal Design: Advanced Thermal Design, M.2 Thermal Guard
- Fast Networking: 2.5GbE LAN
- Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
Whats Included
- X870E AORUS ELITE WIFI7
Q: Does this motherboard have wireless connectivity?
A: Yes, this motherboard has bluetooth connectivity.
Q: Does this motherboard support RAID?
A: Yes, this motherboard supports RAID 0.
Q: What type of memory is supported by this motherboard?
A: This motherboard supports DDR5 memory.
Q: What series of processors does this motherboard support?
A: This motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors.
Q: How many M.2 slots are available on this motherboard?
A: There are four M.2 slots on this motherboard.
Q: How many memory slots does this motherboard have?
A: This motherboard has four memory slots.
Q: What is the warranty on this motherboard?
A: The motherboard has a 5-year warranty for both parts and labor.
