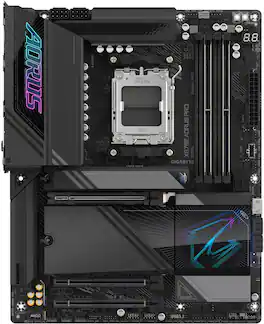

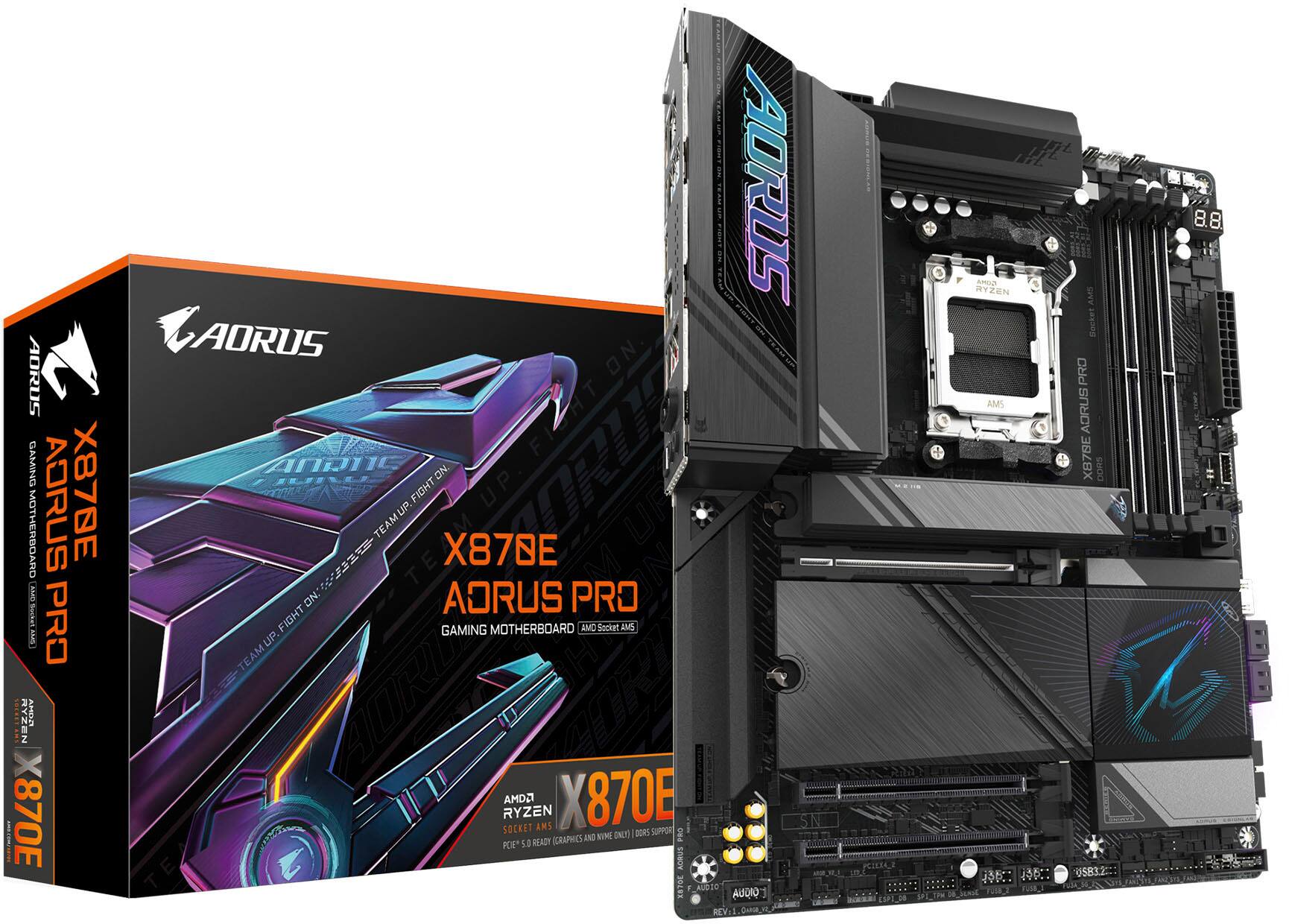

GIGABYTE - X870E AORUS PRO (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black
CORSAIR - NAUTILUS 360 ARGB Liquid CPU Cooler with RS120 ARGB Fans - Black$109.99$129.99
More Buying Options
Specifications
- ChipsetAMD X870Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots3Wireless Networking StandardWi-Fi 7Number Of Memory Slots4
- Key Specs
- Chipset: AMD X870
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: GIGABYTE
- Model Number: X870E AORUS PRO
- Product Name: X870E AORUS PRO (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard
- Color: Black
- Year of Release: 2024
- Compatibility
- Chipset: AMD X870
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 9 8000 Series, AMD Ryzen 9 7000 Series
- Operating System Compatibility: Windows 11 Home
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 3
- Number Of PCI-E x8 Slots: 0
- Number Of PCI-E x4 Slots: 0
- Number Of PCI-E x2 Slots: 0
- Number Of PCI-E x1 Slots: 0
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 1 x CPU fan header,1 x water cooling CPU fan header,4 x system fan headers,2 x water cooling system fan header (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports

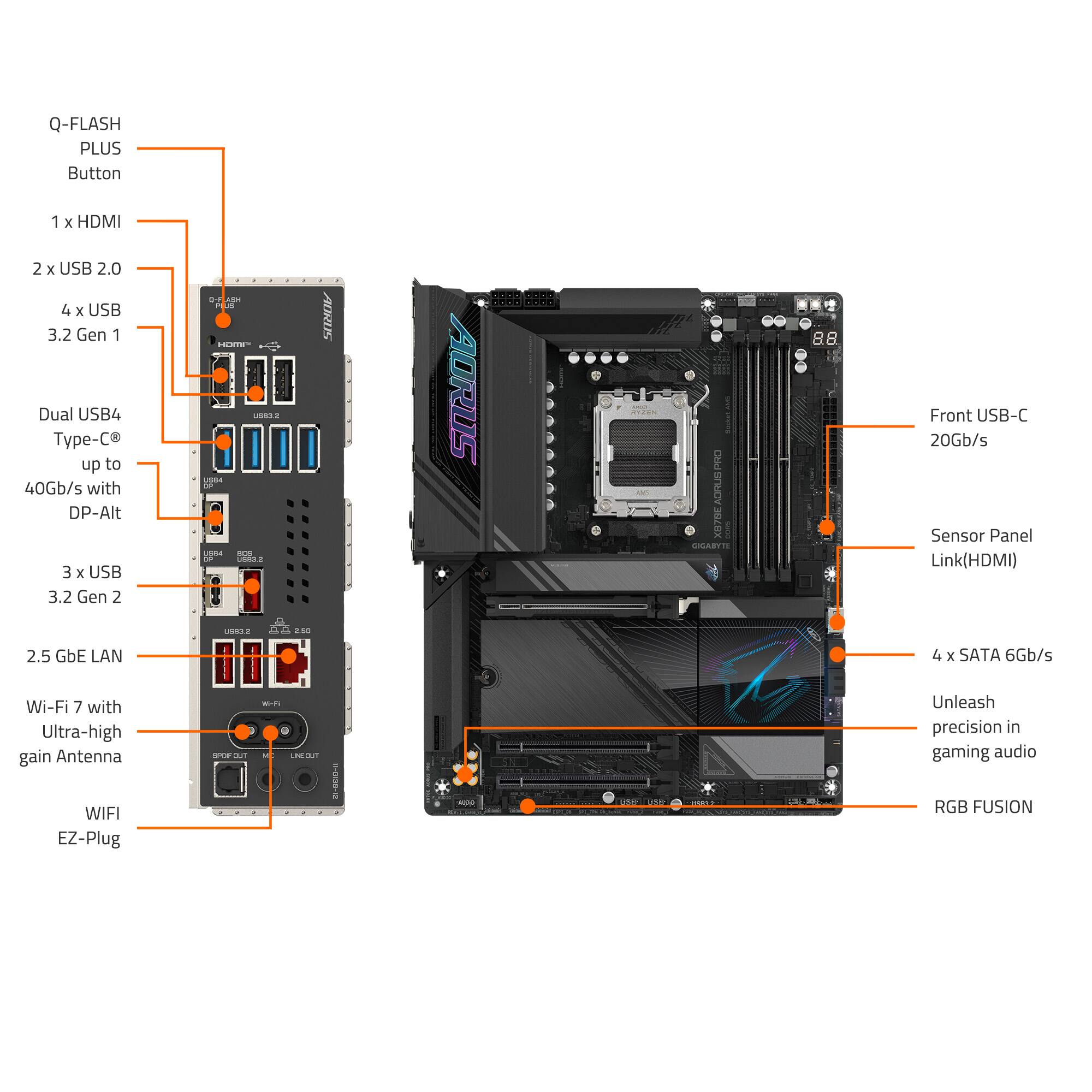

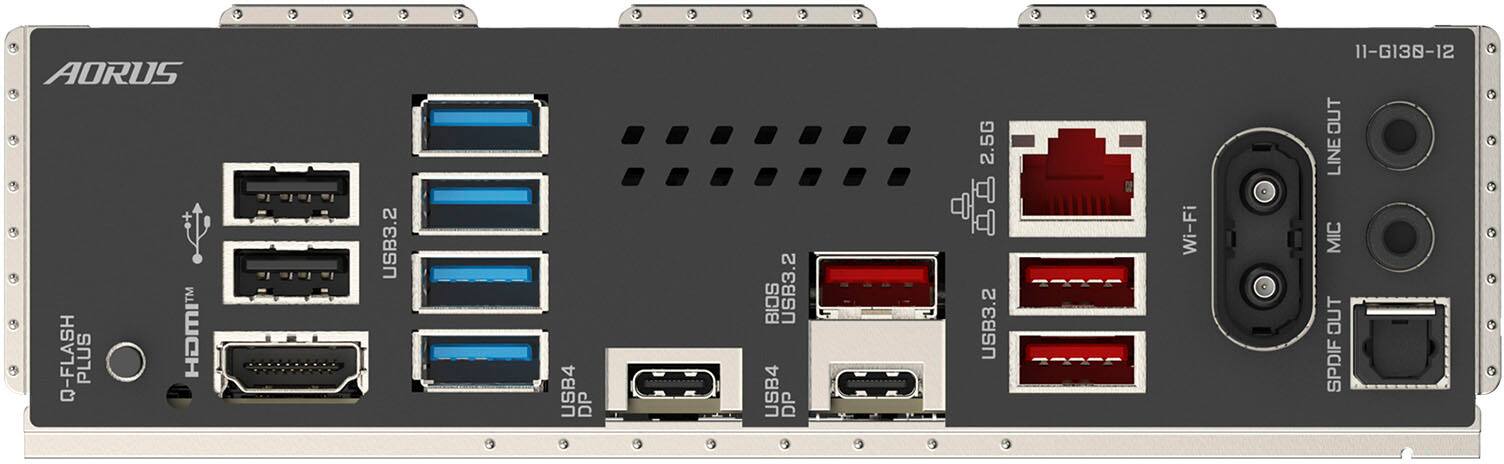

- USB Ports: 2 x USB-C 4, 7 x USB-A 3.2, 2 x USB-A 2.0 (The number and type of USB ports the product has.)
- Audio Ports: 2 x audio jacks
- Number of Audio Channels: 1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 300.5 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 92.64 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 5, RAID 01 (RAID 0+1), RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 889523045251

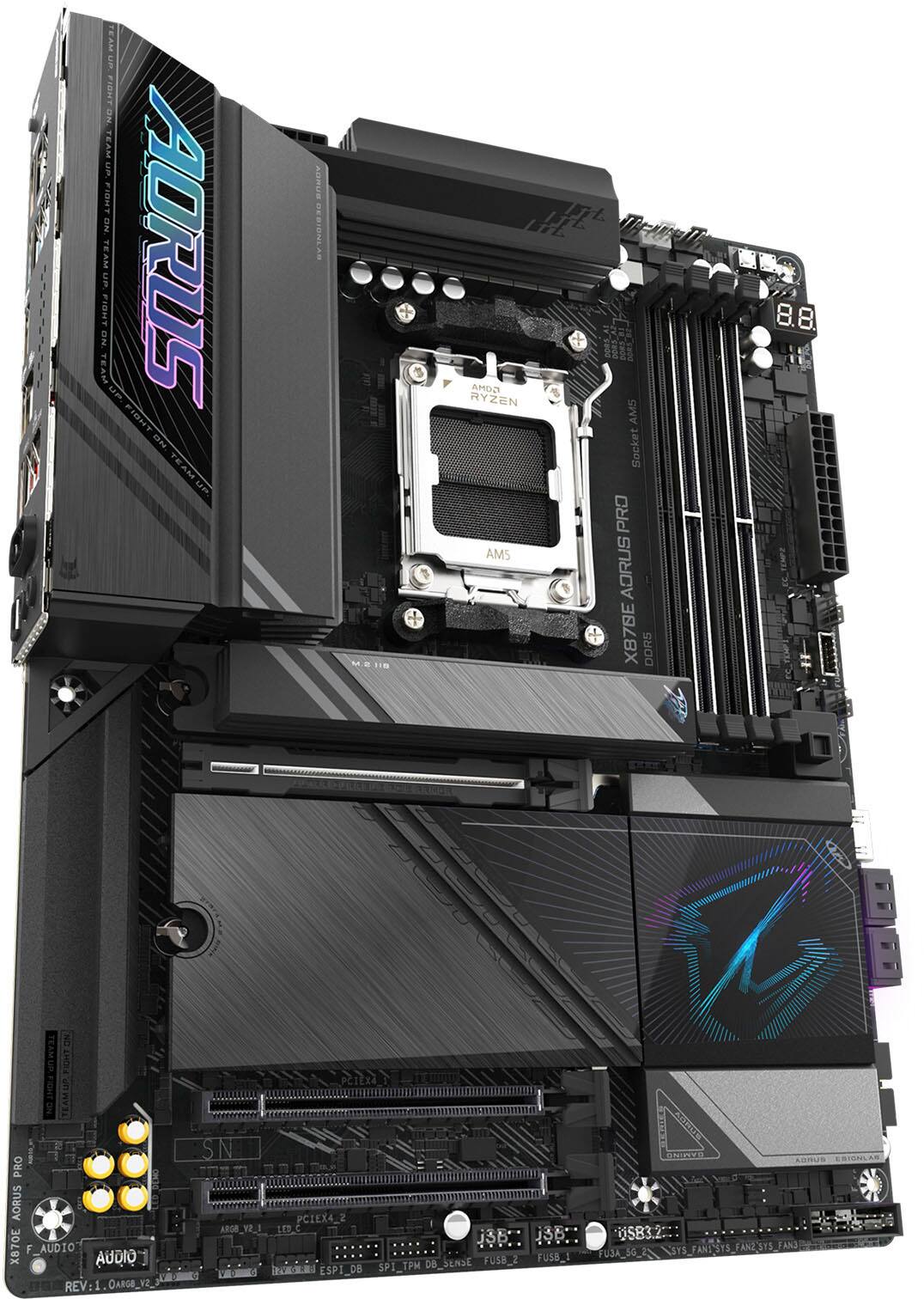

The X870E AORUS PRO supports AM5 Processors and features unparalleled performance. GIGABYTE X870 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
- Warranty: 5-year Warranty
- Processor Compatibility: Supports AMD Ryzen 9000 / Ryzen 8000 / Ryzen 7000 Series Processors
- DDR5 Compatible: 4*DIMMs with AMD EXPO Support
- Next Gen Connectivity: PCIe 5.0, 4x M.2 Slots, Dual USB4, Front and Rear USB-C, Sensor Panel Link
- Sturdy Power Design: 16+2+2, 80A Smart Power Stage
- Comprehensive Thermal Design: VRM and M.2 Thermal Guard
- Fast Networking: Wi-Fi 7, 2.5GbE LAN
- DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, Wi-Fi EZ-Plug, EZ-Debug Zone
- Warranty: 5-year Warranty
- Processor Compatibility: Supports AMD Ryzen 9000 / Ryzen 8000 / Ryzen 7000 Series Processors
- DDR5 Compatible: 4*DIMMs with AMD EXPO Support
- Next Gen Connectivity: PCIe 5.0, 4x M.2 Slots, Dual USB4, Front and Rear USB-C, Sensor Panel Link
- Sturdy Power Design: 16+2+2, 80A Smart Power Stage
- Comprehensive Thermal Design: VRM and M.2 Thermal Guard
- Fast Networking: Wi-Fi 7, 2.5GbE LAN
- DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, Wi-Fi EZ-Plug, EZ-Debug Zone
Q: How many M.2 slots does the motherboard have?
A: The motherboard has 4 M.2 slots.
Q: Are there any USB-C ports on the motherboard?
A: This motherboard has two USB-C ports.
Q: Can the motherboard support AMD Ryzen 9 9000 Series processors?
A: This motherboard supports AMD Ryzen 9 9000 Series processors.
Q: Does the motherboard support RAID 5?
A: This motherboard does support RAID 5.
Q: What is the maximum memory supported by the motherboard?
A: The maximum memory supported is 256 gigabytes.
Q: What is the form factor of the motherboard?
A: The form factor of the motherboard is ATX.
Q: Where can I get an Installation guide
A: undefined
Q: Does board still share pcie lanes which would limit support
A: Yes, the x870e chipset has 24 PCIe 5.0 lanes provided by the CPU, 20 are directly wired from the CPU to the top 16x slot and top M.2 slot. The rest are allocated to the chipset which breaks out the remaining 4 into 24 lanes giving a total of 44 available. The chipset can do this by bifurcating the lanes and running some at slower speeds.
Compare similar products
The X870E AORUS PRO supports AM5 Processors and features unparalleled performance. GIGABYTE X870 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
ASUS ROG STRIX X870-F GAMING WIFI, AMD X870 ATX motherboard with 16+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 support with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, PCIe 5.0 x16 SafeSlots with PCIe Q-Release Slim, two USB4 ports, USB 10Gbps Type-C with PD 3.0 up to 30W, AI Overclocking, AI Cooling II, AI Networking, and Aura Sync RGB lighting.
The X870 AORUS ELITE WIFI7 supports AM5 Processors and features unparalleled performance. GIGABYTE X870 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
A new era is here. The X870E AORUS MASTER supports AM5 Processors and features unparalleled performance. GIGABYTE X870E motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
| Pros for GIGABYTE - X870E AORUS PRO (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black | |||
|---|---|---|---|
| BIOS, Build Quality, Performance | Connectivity, Overall Performance, Design, Overclocking, Compatibility | Build Quality, Connectivity, BIOS, Wi-Fi 7, Installation | There were no pros for this product— |
| Cons for GIGABYTE - X870E AORUS PRO (Socket AM5) AMD X870 ATX DDR5 Wi-Fi 7 Motherboard - Black | |||
| There were no cons for this product— | There were no cons for this product— | PCIe Bandwidth | There were no cons for this product— |
Specs
Reviews
Customers are saying
Customers consistently note the X870E AORUS PRO motherboard for its stable performance and solid build quality. Users find the BIOS easy to navigate. Overall, the motherboard is well-received for its performance and user-friendly design.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Worth the money for Future upgrades
Great Motherboard for future proofing/future upgrades. The Bios is up to date so no need for downloading software. Unless you have ethernet available to you, You will need to download the Wifi and Bluetooth drivers onto a USB drive to install during your Windows 11 installation as it does not recognize any wifi and bluetooth capabilities. The install was easy but if you do run into problems like the drivers not being recognized in the USB during the installation process, you may need to look up a video on how to bypass that step during the installation process. Motherboard was screw less for m2 slots and there is a button that releases the graphics card without damaging the teeth. Great motherboard overall, worth the money as it has features the enable you to be more cautions during your install of other components.
Posted by Jordy
- Rated 5 out of 5 stars

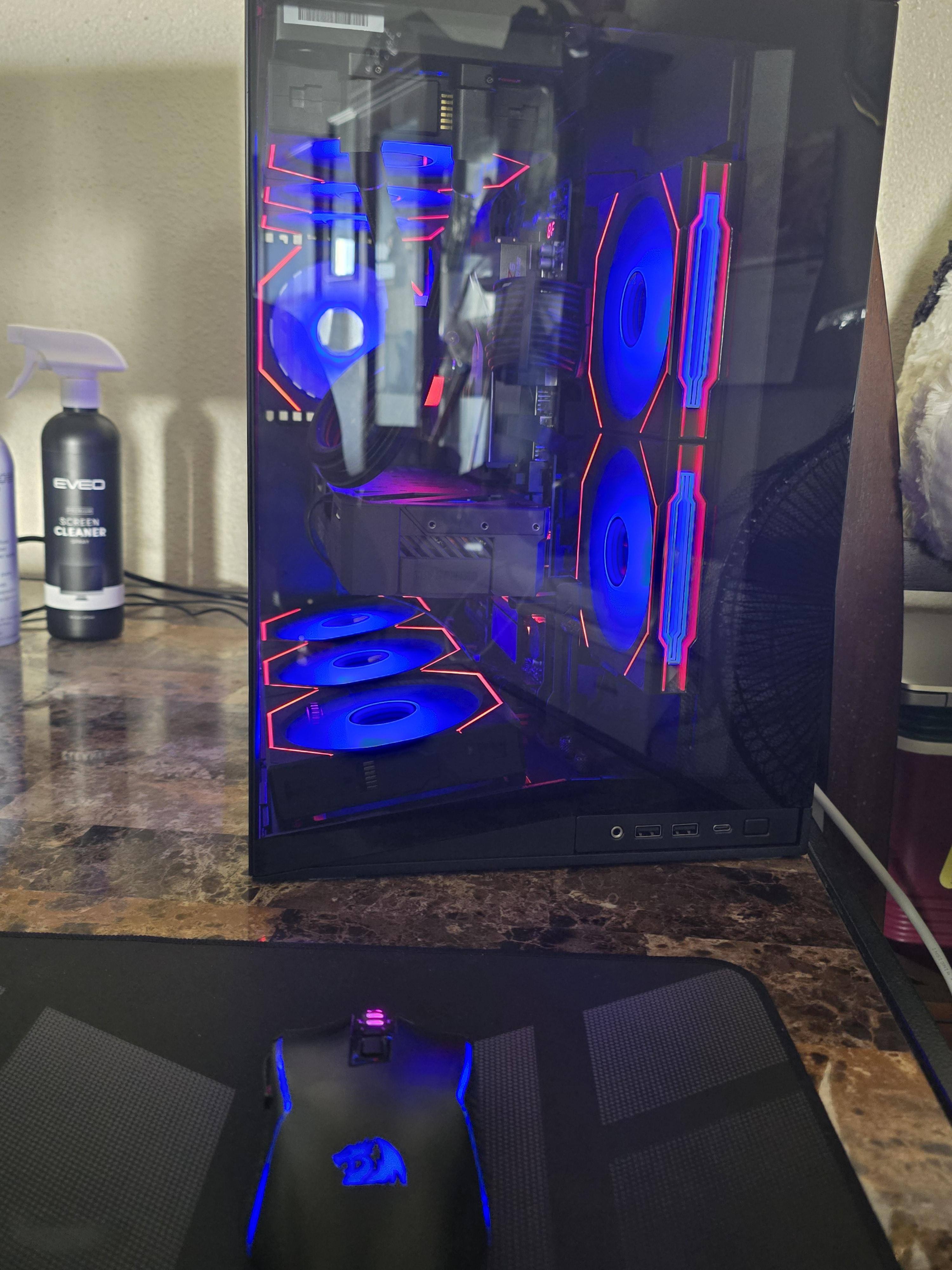

2025 Office/Media/Gaming pc

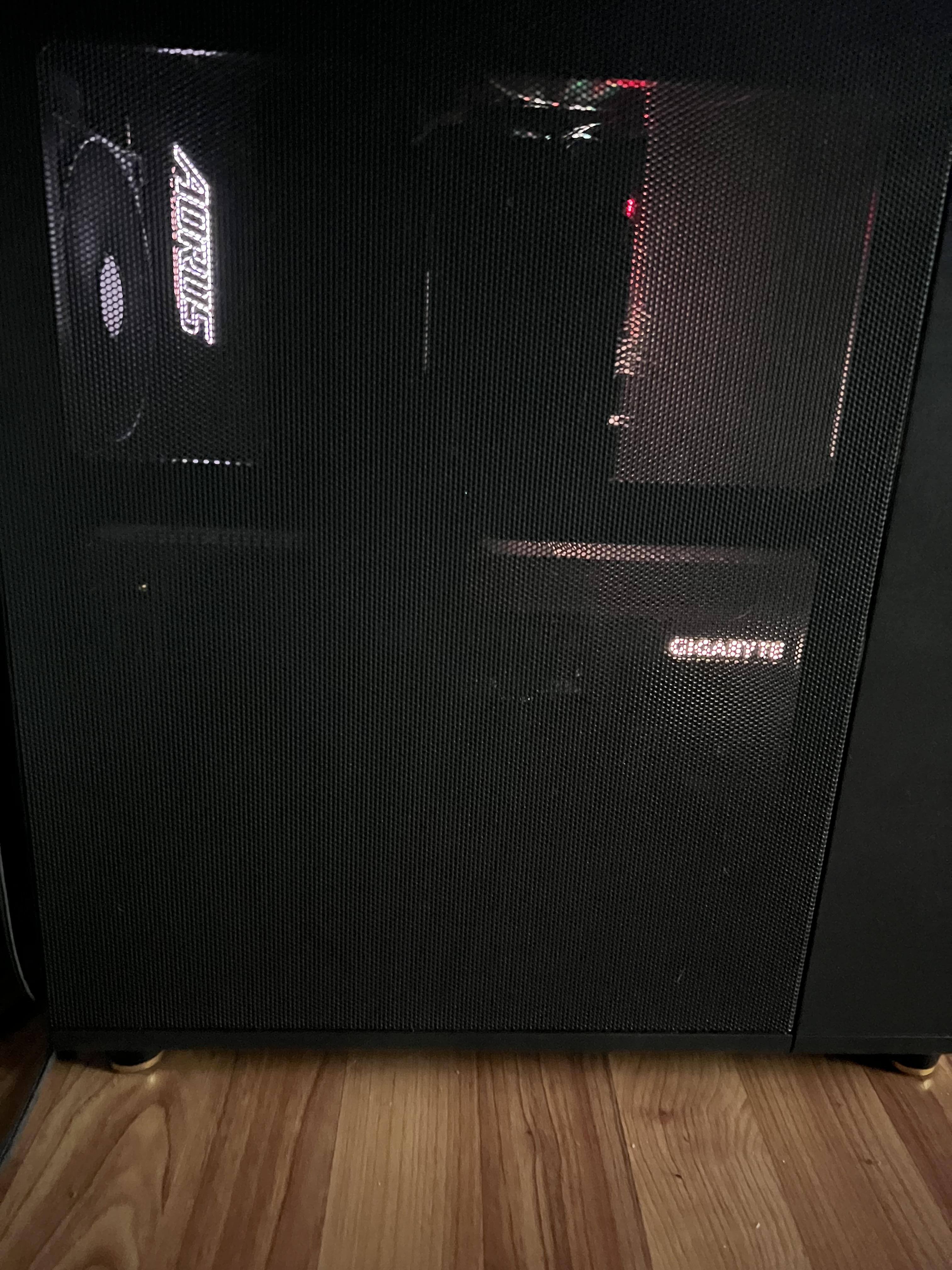

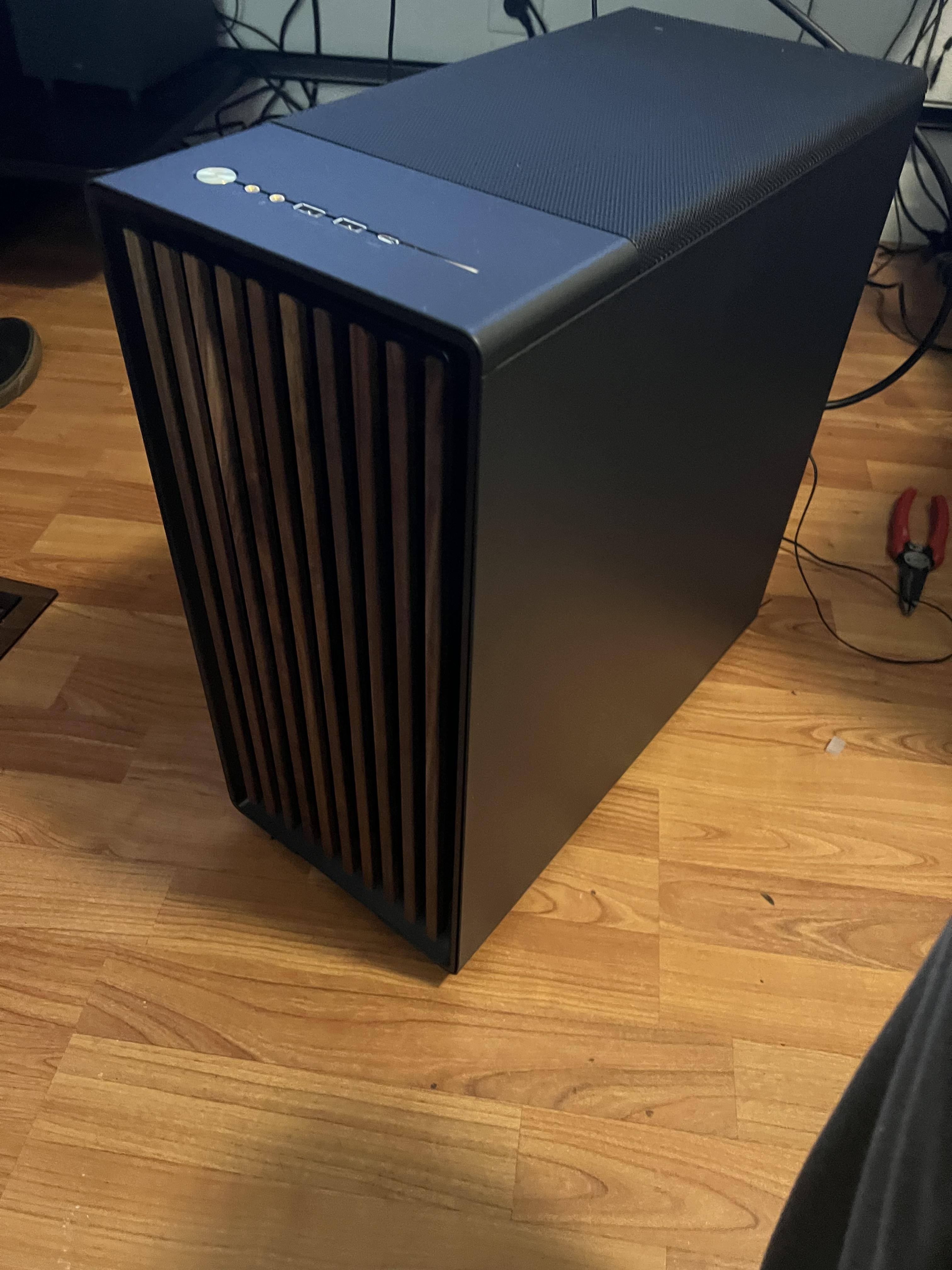

2025 AM5 build. Paired with 9800x3d. Excellent build quality. Beefy heat sinks over essential components. Quick releases on the drive slots and heat sinks. Button release for the gpu. Rgb is tasteful current build is in a fractal north and minimal rgb (see second pic with mesh panel on). Zero complaints. Maybe a bit on the expensive side but this will last a few years before anything new offers significant performance advantages.
Posted by StephenB
- Rated 5 out of 5 stars
Affordable
Was building my first ever PC from scratch and was getting all the components I needed 1 by 1. Was down to my most expensive parts motherboard, CPU, GPU, and SSD storage...Came across this motherboard and got for $210 bundle with the Ryzen 9 9950X3D CPU and a few gifts cards and discounts. Built my PC over the weekend after picking it up and been solid since then.
Posted by EyeAmTJ
