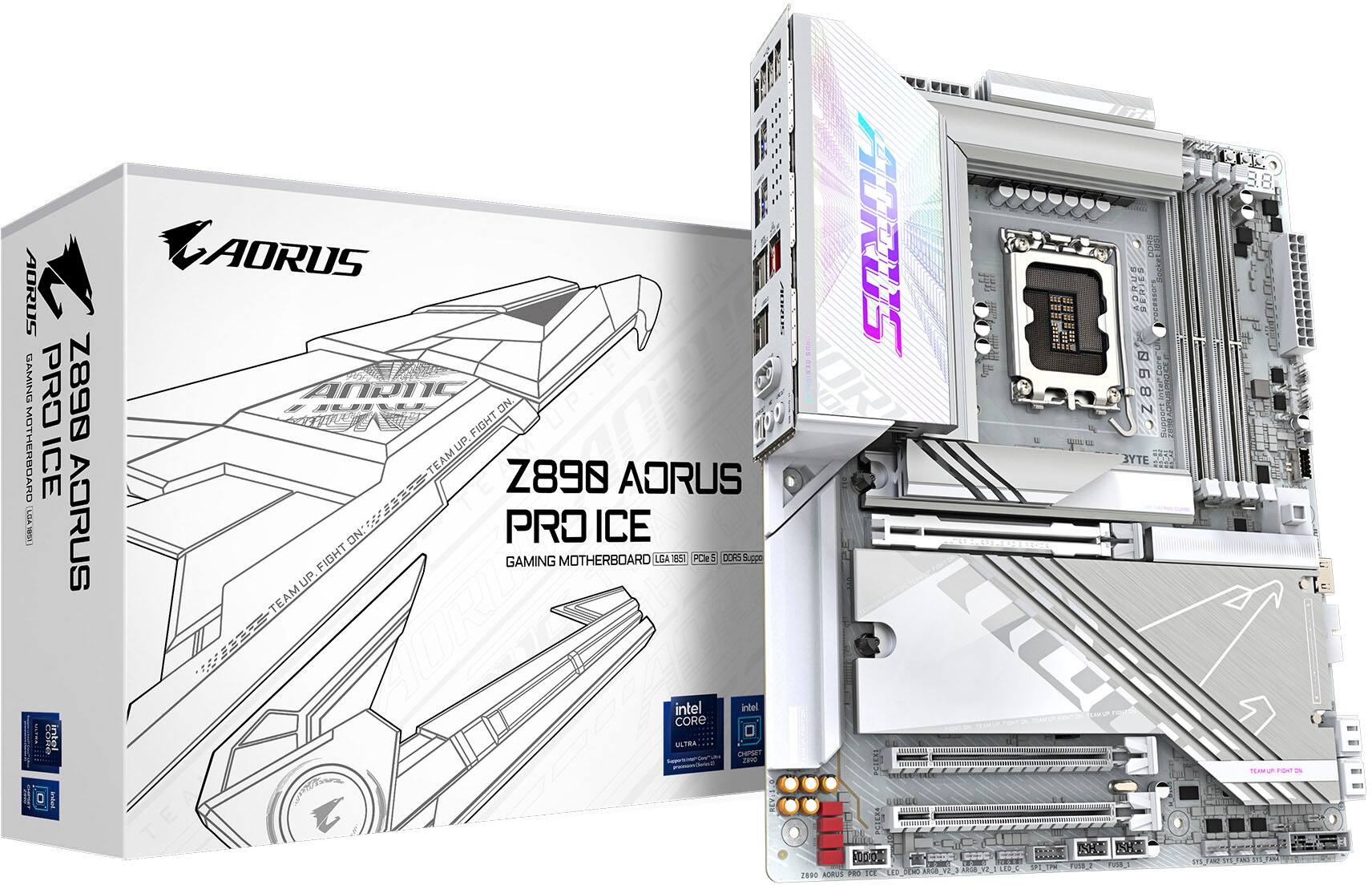

GIGABYTE - Z890 AORUS PRO ICE (Socket LGA 1851) Intel Z890 ATX DDR5 Wi-Fi 7 Motherboard - White
Intel - Core i7-14700K 14th Gen 20-Core 28-Thread - 4.3GHz (5.6GHz Turbo) Socket LGA 1700 Unlocked Desktop Processor - Multi$334.99$399.99
More Buying Options
Specifications
- ChipsetIntel Z890Form FactorATXProcessor SocketSocket LGA 1851Number of PCI-E Slots3Wireless Networking StandardWi-Fi 7Number Of Memory Slots4
- Key Specs
- Chipset: Intel Z890
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: GIGABYTE
- Model Number: Z890 AORUS PRO ICE
- Product Name: Z890 AORUS PRO ICE (Socket LGA 1851) Intel Z890 ATX DDR5 Wi-Fi 7 Motherboard
- Color: White
- Year of Release: 2024
- Compatibility
- Chipset: Intel Z890
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core Ultra 9 Series 2, Intel Core Ultra 7 Series 2, Intel Core Ultra 5 Series 2
- Operating System Compatibility: Windows 11 Home
- Slot
- Number of M.2 Slots: 5 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 3
- Number Of PCI-E x8 Slots: 0
- Number Of PCI-E x4 Slots: 0
- Number Of PCI-E x2 Slots: 0
- Number Of PCI-E x1 Slots: 0
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 1 x CPU fan header,1 x water cooling CPU fan header,4 x system fan headers, 2 x system fan/water cooling pump headers (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)

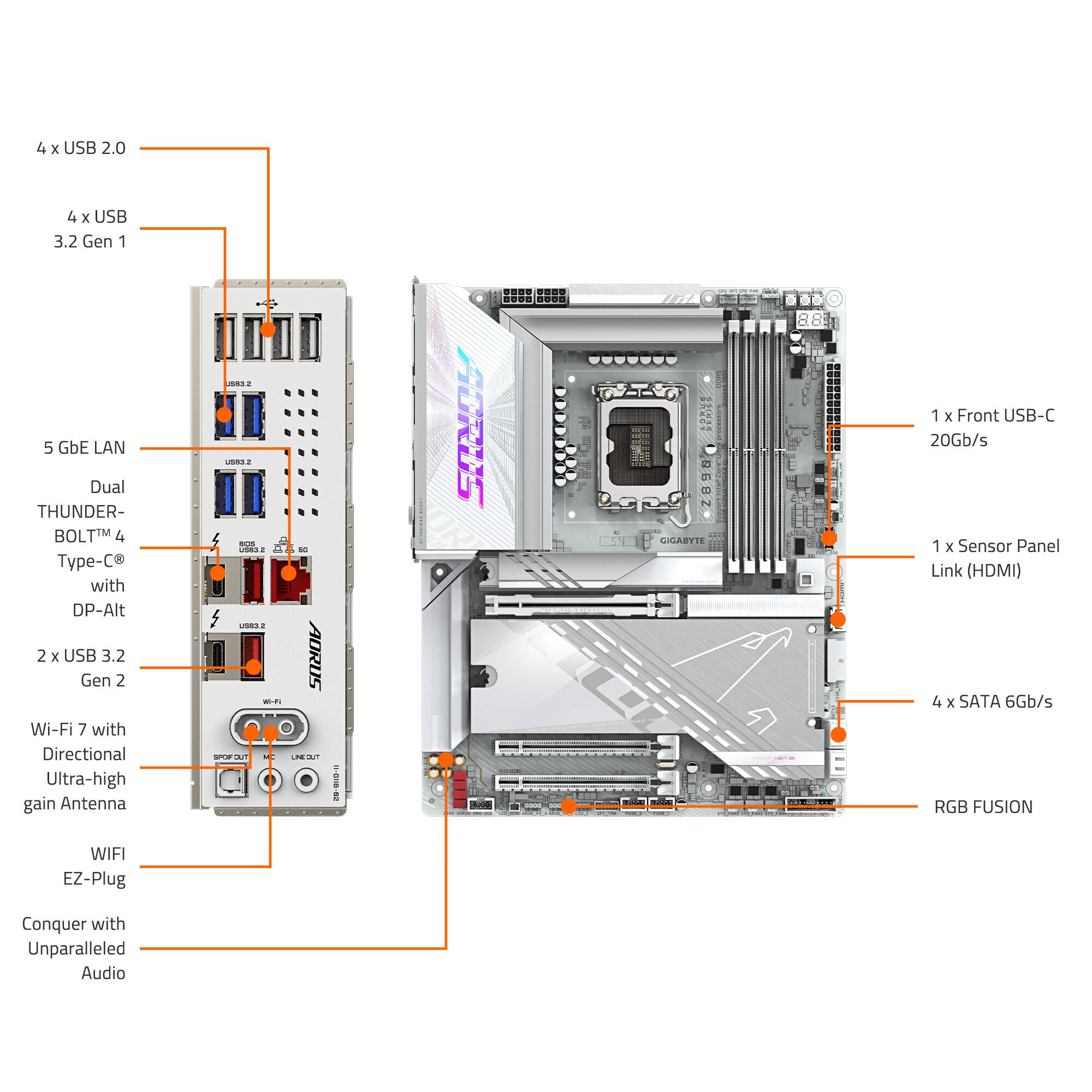

- Ports

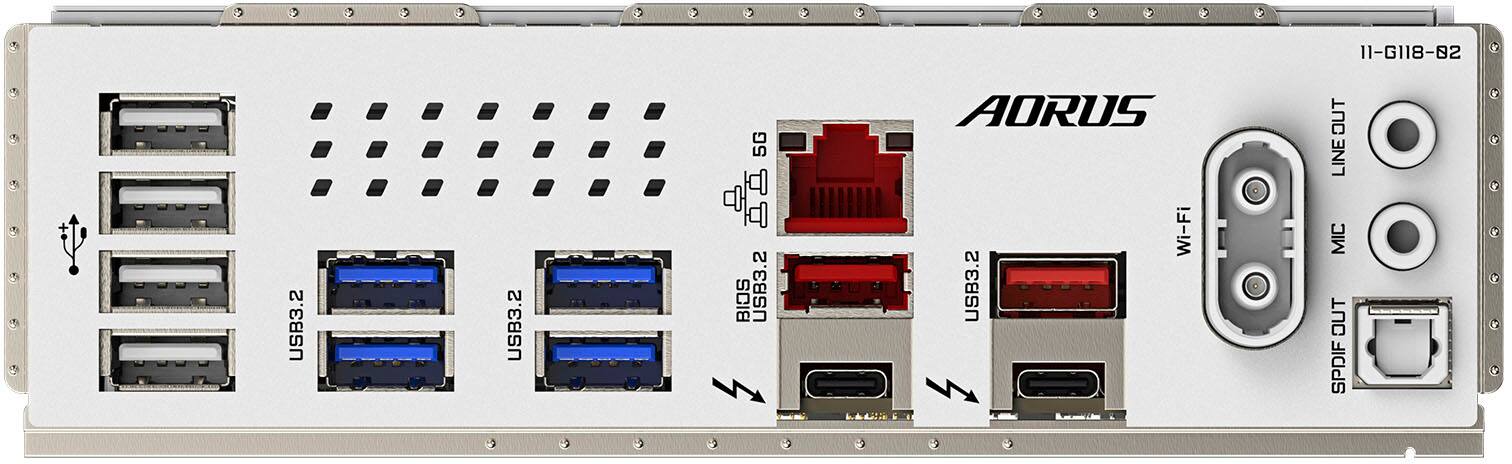

- USB Ports: 6 x USB-A 3.2, 4 x USB-A 2.0, None, None, None (The number and type of USB ports the product has.)
- Thunderbolt Ports: 2 x Thunderbolt 4 (The number and type of Thunderbolt ports the product has.)
- Audio Ports: 2 x audio jacks
- Number of Audio Channels: 1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 28.8 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 1, RAID 5, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 889523045084
Ascend the Throne of Gaming with the Z890 AORUS PRO ICE. The Z890 AORUS PRO ICE supports Intel Ultra Core Processors (Series 2) and features unmatched performance. Unlock your gaming potential with GIGABYTE Z890 Motherboards. GIGABYTE Z890 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance. Claim what is yours.
- Warranty: 5-year Warranty
- Processor Compatibility: Supports Intel Core Ultra Processors (Series 2)
- DDR5 Compatible: 4* DIMMs with XMP Memory Module Support
- Next Gen Connectivity: PCIe 5.0, 5x M.2 Slots, Thunderbolt 4
- Sturdy Power Design: Twin 16+1+2 Phases Digital VRM Solution
- Comprehensive Thermal Design: VRM Thermal Armor and M.2 Thermal Guard
- Fast Networking: 5GbE LAN
- DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, WIFI EZ-Plug, EZ-Debug Zone
- Warranty: 5-year Warranty
- Processor Compatibility: Supports Intel Core Ultra Processors (Series 2)
- DDR5 Compatible: 4* DIMMs with XMP Memory Module Support
- Next Gen Connectivity: PCIe 5.0, 5x M.2 Slots, Thunderbolt 4
- Sturdy Power Design: Twin 16+1+2 Phases Digital VRM Solution
- Comprehensive Thermal Design: VRM Thermal Armor and M.2 Thermal Guard
- Fast Networking: 5GbE LAN
- DIY Friendly: M.2 EZ-Latch, PCIe EZ-Latch, WIFI EZ-Plug, EZ-Debug Zone
Q: What is the maximum memory supported by the motherboard?
A: The maximum memory supported by the motherboard is 256 gigabytes.
Q: What is the form factor of the motherboard?
A: The form factor of the motherboard is ATX.
Q: Does the motherboard support RAID 1?
A: This motherboard offers RAID 1 support.
Q: How many Thunderbolt 4 ports does the motherboard have?
A: The motherboard has 2 Thunderbolt 4 ports.
Q: What is the weight of the motherboard?
A: The product weight is 28.8 ounces.
Q: Can the motherboard support Intel Core Ultra 9 Series 2 processors?
A: The Z890 AORUS PRO ICE motherboard supports Intel Core Ultra 9 Series 2 processors.
A: undefined
Compare similar products
Ascend the Throne of Gaming with the Z890 AORUS PRO ICE. The Z890 AORUS PRO ICE supports Intel Ultra Core Processors (Series 2) and features unmatched performance. Unlock your gaming potential with GIGABYTE Z890 Motherboards. GIGABYTE Z890 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance. Claim what is yours.
ROG STRIX Z890-F GAMING WIFI, Intel Z890 LGA 1851 ATX motherboard, Advanced AI PC-ready, 16+2+1+2 power stages, DDR5 slots , DIMM Flex, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, five M.2 slots, one PCIe 5.0 NVMe SSD slot with M.2 Q-release, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim, and full support for next-gen graphics card, two Thunderbolt 4 ports, USB 10Gbps Type-C rear I/O port with up to 30-watt Power Delivery fast charging, NPU Boost, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and Polymo Lighting
Ascend the Throne of Gaming with the Z890 AORUS ELITE WIFI7 ICE. The Z890 AORUS ELITE WIFI7 ICE supports Intel Ultra Core Processors (Series 2) and features unmatched performance. Unlock your gaming potential with GIGABYTE Z890 Motherboards. GIGABYTE Z890 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance. Claim what is yours.
Ascend the Throne of Gaming with the Z890 AORUS ELITE WIFI7. The Z890 AORUS ELITE WIFI7 supports Intel Ultra Core Processors (Series 2) and features unmatched performance. Unlock your gaming potential with GIGABYTE Z890 Motherboards. GIGABYTE Z890 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance. Claim what is yours.
Specs
Reviews
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Great looking motherboard
One of the best looking white/silver color motherboard in the market. Two things to consider before making the purchase. Among the 4 nvme slots. Only the 1st & 3rd slot will give you the maximum speed. Using 2nd or 4th nvme ssd will decreased the speed of the pcie. 2nd issue is I wish the placement of the CMOS battery on this board.
Posted by Eico
- Rated 1 out of 5 stars
Omg, the coil whine
The coil whine on this thing is driving me insane. It wasn't noticeable at first but has gotten worse over 1-2 months past the return period. Don't buy this if you value your sanity -- I realize now that it was on sale for a reason. Never buying a gigabyte mobo again.
Posted by Tommy
