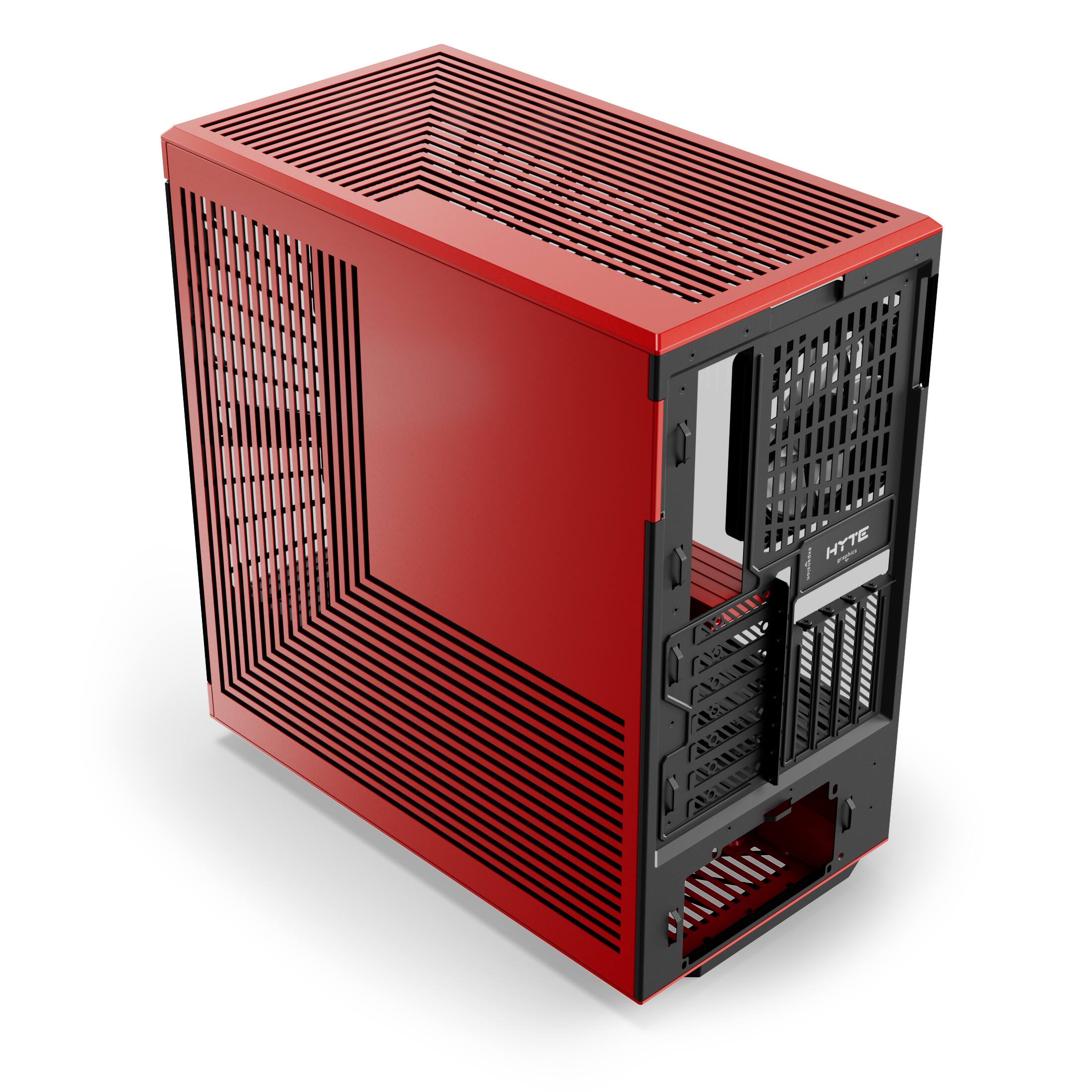

HYTE - Y40 ATX Mid-Tower PC Case - Red
Color
RedMore Buying Options
Related Item
Specifications
- Motherboard Form FactorATXMaximum GPU Length422 millimetersProduct Height18.6 inchesProduct Width9.5 inchesProduct Depth13.4 inchesWindow Panel(s)Front, Left side, Right side
- Key Specs
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 422 millimeters
- Product Height: 18.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Front, Left side, Right side
- Case Material: Tempered glass, Steel
- General
- Brand: HYTE
- Model Number: CS-HYTE-Y40-BR
- Product Name: Y40 ATX Mid-Tower PC Case
- Color: Red
- Case Material: Tempered glass, Steel
- Assembly Required: No
- Compatibility
- Motherboard Form Factor: ATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 224 millimeters
- Maximum GPU Length: 422 millimeters
- Number of Expansion Slots: 10
- Ports
- USB Port Location: Front, Front
- Number of USB Ports (Total): 3
- USB Ports: 2 x USB-A 3.0, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 2
- Number Of Internal 3.5" Bays: 1
- Number Of External 2.5" Expansion Bays: 0
- Number Of External 3.5" Expansion Bays: 0
- Dimensions
- Product Height: 18.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 339.2 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Front, Left side, Right side
- Customizable Case Lighting: false
- Lighting Type: None
- Cooling
- Maximum CPU Cooler Height: 183 millimeters
- Number of Fans Supported: 6
- Cooling System: Not included (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Support: Yes
- Number of Fans Included: 7
- Radiator Support: Side: 120, 140, 240, 280mm up to 120mm thick. Top: 120, 240, 360mm. Rear: 120mmTop: 120, 240, 360mm
- Other
- UPC: 848604044262

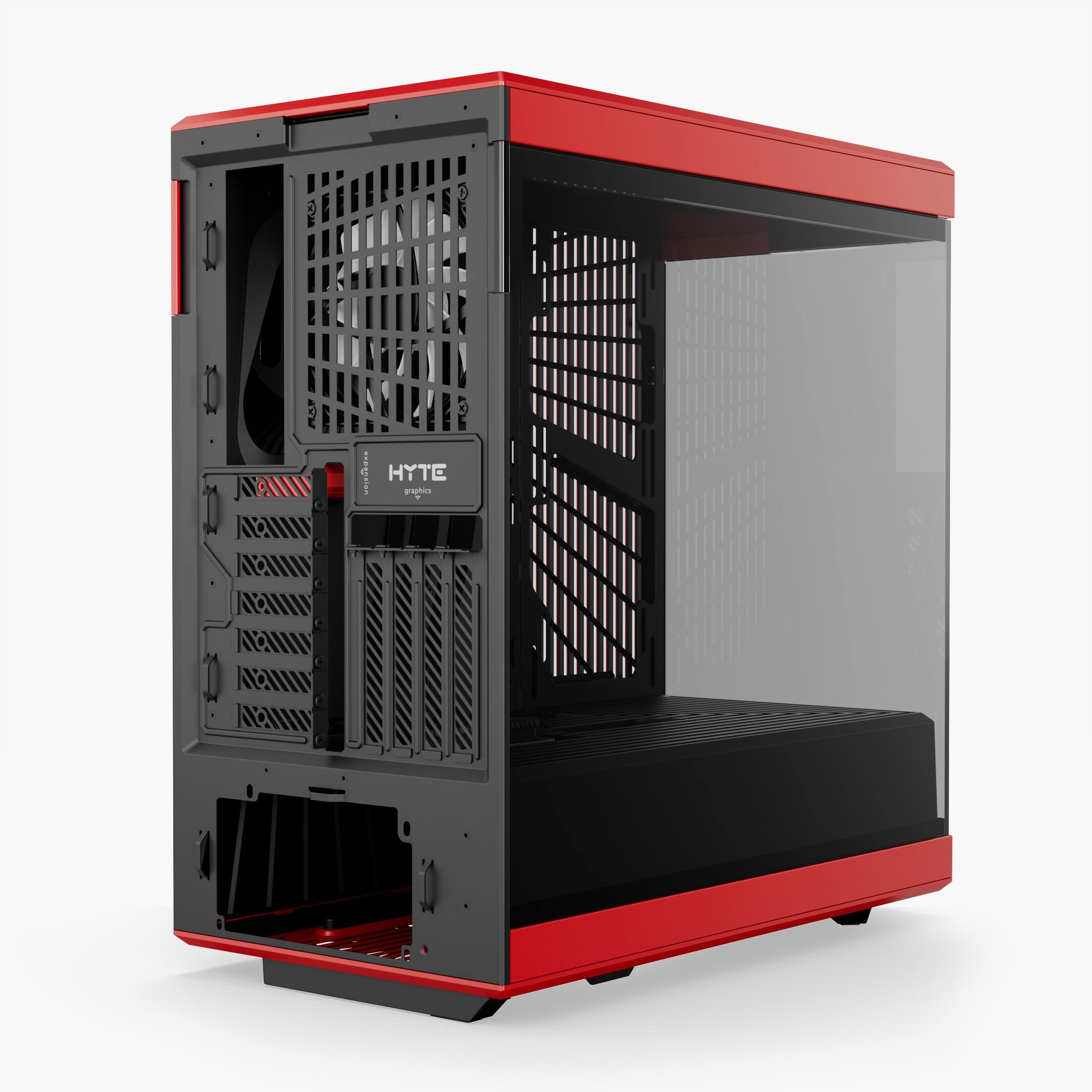

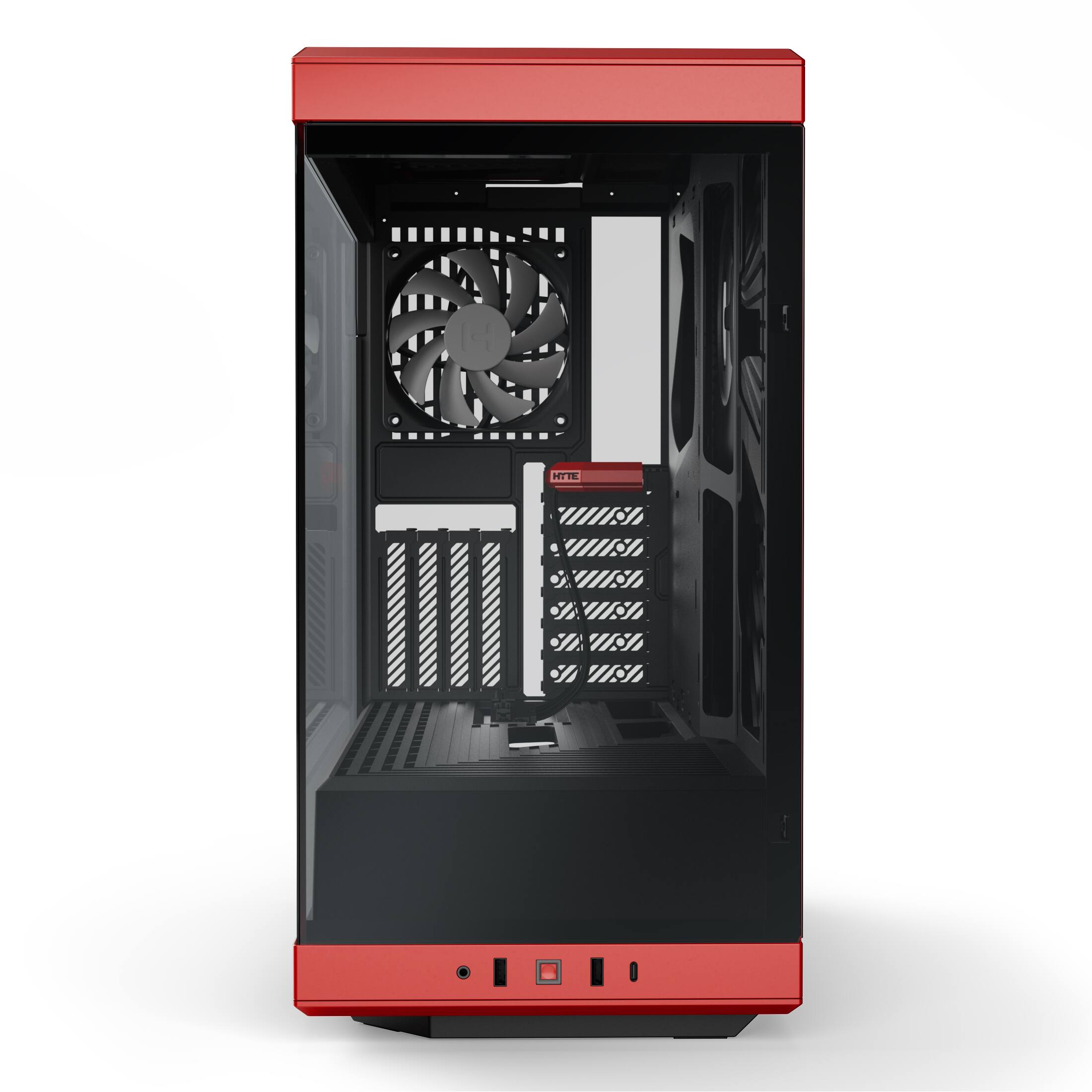

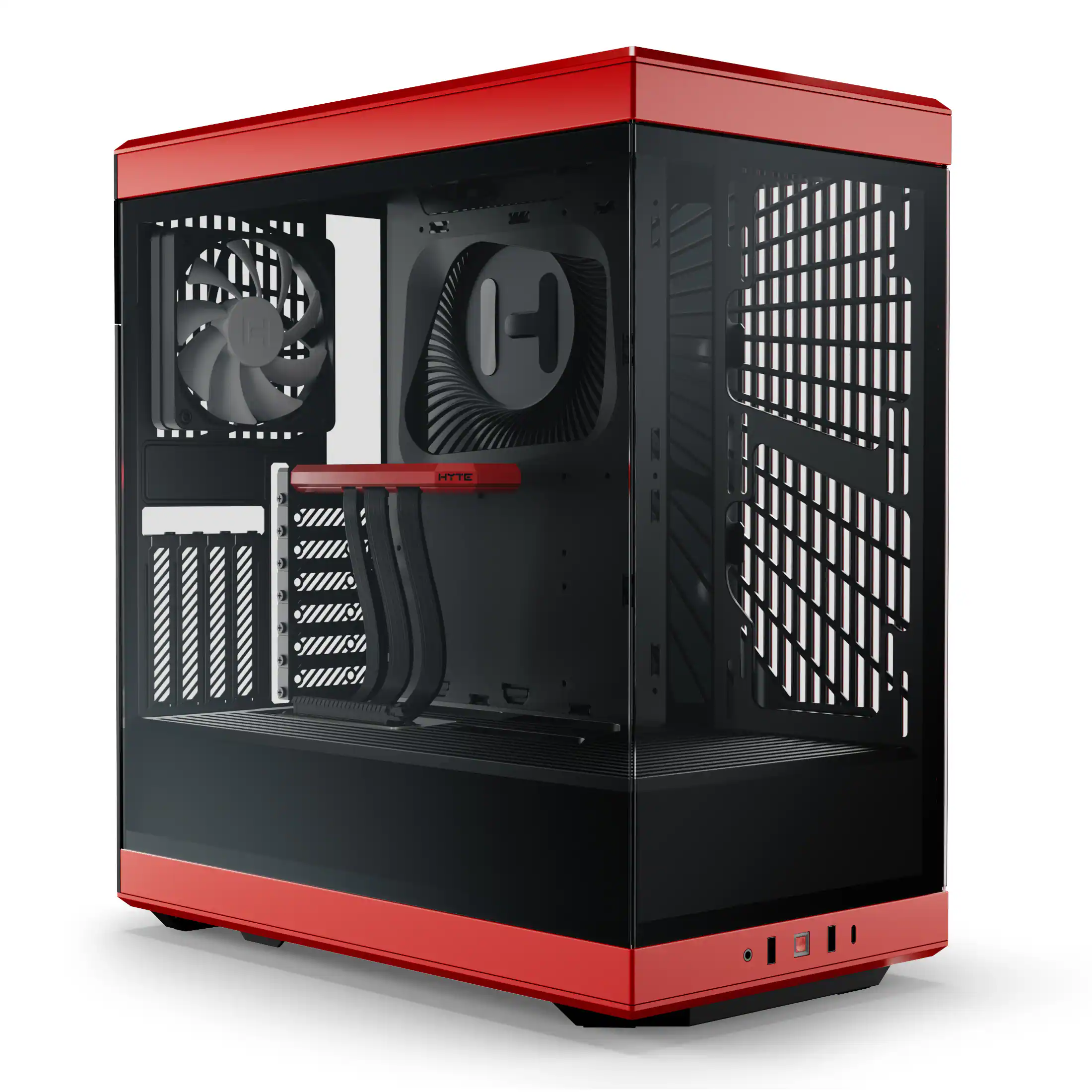

The HYTE Y40 computer chassis has a smooth, harmonic design with precisely beveled edges and 2-piece panoramic glass that showcases your unique PC build. With a focus on the future, the HYTE Y40 has a clean aesthetic and delivers upgraded performance capabilities and compatibility with future PC parts. The included PCIe 4.0 riser supports the latest and greatest graphics cards, and the Y40 has 4 full slots for GPU support as well as space for additional airflow for high intensity processing. Build the perfect gaming desktop with the HYTE Y40’s ample space and high performance capabilities.
- Enormous vertical graphics support: Y40 delivers upgraded performance, compatibility, and aesthetics that expand on Y60’s exclusive vertical graphics card architecture
- Included PCIE40 4.0 luxury riser cable: Supports the latest and greatest graphics cards and its canopy is color-matched with your Y40 color choice
- Stack your expansion cards: Y40 includes support up to 6 half-height expansion cards behind the primary graphics card. Capture cards, PCIE SSDs, sound cards and other PCIE expansion cards are compatible as long as they’re available in half-height form factor
- Get even cooler: Y40’s top mount can fit up to a 360mm radiator for a dual radiator set up. Y40 also brings support for large air coolers over 180mm in height—allowing for almost every CPU air cooler available on the market.
- Cable management: HYTE’s new “cable shelf” design is deployed within the power supply shroud cavity and allows cable management to sit further back in the case and away from vital airflow zones that impact GPU cooling.
Q: Can the case support a 360mm radiator on the top?
A: The case supports a 120mm, 240mm, or 360mm radiator on the top.
Q: What is the maximum length of a graphics card that can be installed?
A: The maximum length of a graphics card that can be installed is 422 millimeters.
Q: Are there any external 3.5-inch expansion bays?
A: This PC case does not include any external 3.5-inch expansion bays.
Q: What is the maximum height of a CPU cooler that can be installed?
A: The maximum height of a CPU cooler that can be installed is 183 millimeters.
Q: How many fans are included with the case?
A: The case includes seven fans.
Q: Will a 360mm aio fit in this case?
A: I have the red case but still Mid-Tower and it fits great.
A: There’s only 2 on one in the back and one underneath
Q: Can you fit a microatx motherboard in this case?
A: Yes it can fit a micro atx motherboard. It is more set for ATX though
Compare similar products
The HYTE Y40 computer chassis has a smooth, harmonic design with precisely beveled edges and 2-piece panoramic glass that showcases your unique PC build. With a focus on the future, the HYTE Y40 has a clean aesthetic and delivers upgraded performance capabilities and compatibility with future PC parts. The included PCIe 4.0 riser supports the latest and greatest graphics cards, and the Y40 has 4 full slots for GPU support as well as space for additional airflow for high intensity processing. Build the perfect gaming desktop with the HYTE Y40’s ample space and high performance capabilities.

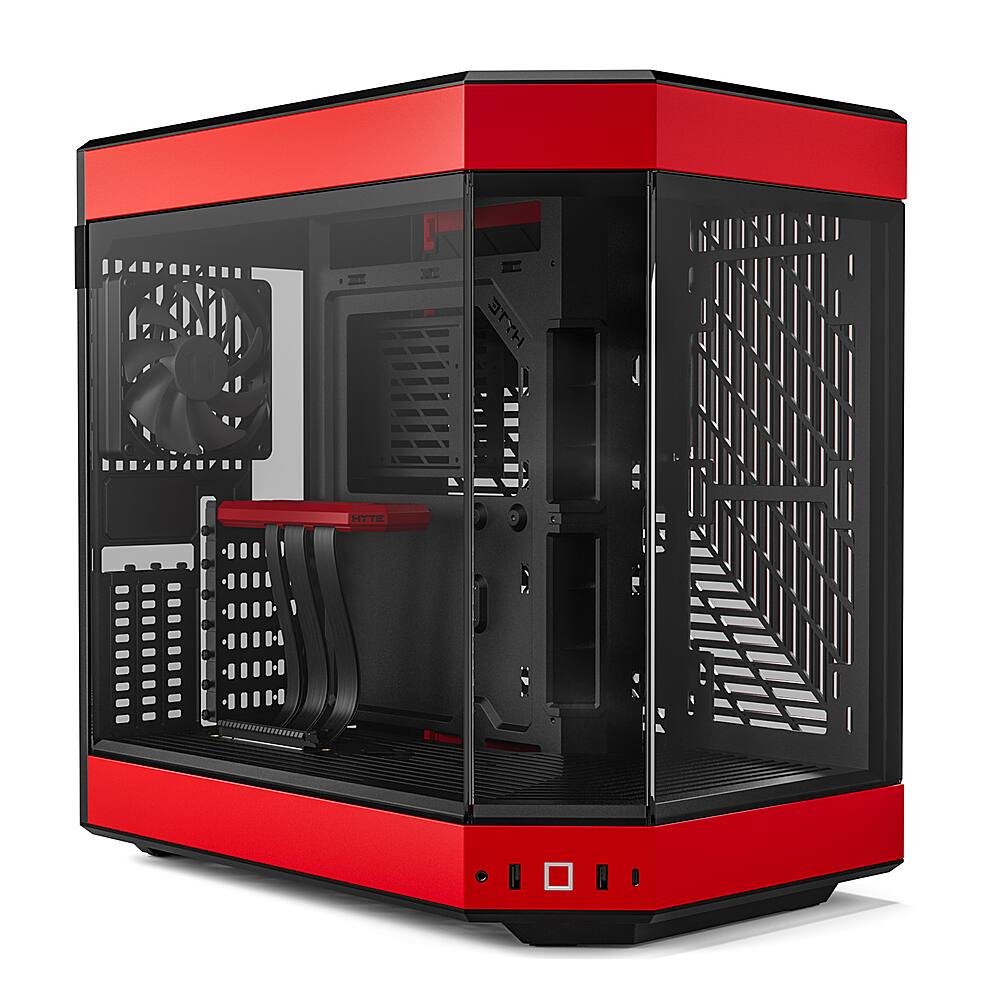

The Y60 is an innovative genesis in design for the open ATX chassis. We crafted this case to celebrate your favorite hardware, and show your PC the way it was meant to be seen. The Y60 is designed to exclusively display your GPU vertically. The Y60 has an included riser cable designed to waterfall cleanly over half-height cards attached behind your vertical GPU. Worried about cooling? The Y60 includes as well 120mm fans beneath the floor to draw air up and over your card, maximizing thermal performance and eliminating hotspots.

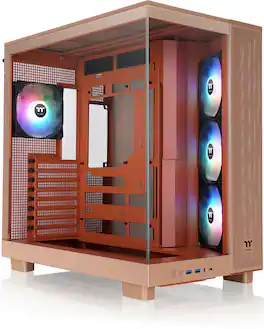

Our new View 380 XL TG ARGB is packed with a bunch of new features to help your build stand out with excellent views of the products and cooling inside. With support for up to 360mm Radiators, 420mm GPUs, and support for up to ten 120mm fans there is plenty of space for whatever components you decide on. On top of that there is support for Hidden Connector motherboards and extra grommet openings for plenty of options to get the best cable management for your build.

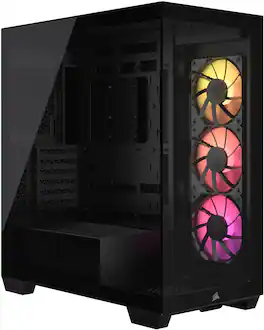

The CORSAIR 3500X ARGB Mid-Tower Glass PC Case is your gateway to a superior PC build with easy lighting, combining builder-friendly features with a stunning wraparound tempered glass aesthetic. Three pre-installed RS120 ARGB fans deliver high cooling performance and simple motherboard lighting control. Multiple side, roof, and bottom fan mounting options ensure that even high-performance components stay cool. The 3500X ARGB’s spacious interior will fit most large graphics cards and CPU coolers, with multiple radiators up to 360mm to support liquid-cooled builds. Compatibility with ASUS BTF and MSI Project Zero reverse connection motherboards give you a cable-free view of your PC.
| Pros for HYTE - Y40 ATX Mid-Tower PC Case - Red | |||
|---|---|---|---|
| Cable Management, Space, Build Quality, GPU Mount | Space, Cable Management, Airflow, Design, Size | There were no pros for this product— | Airflow, Space, Cable Management, Aesthetics, Appearance |
| Cons for HYTE - Y40 ATX Mid-Tower PC Case - Red | |||
| Airflow | GPU, Price | There were no cons for this product— | There were no cons for this product— |
Specs
Reviews
Customers are saying
Customers admire the Y40 ATX Mid-Tower PC Case for its build quality, ease of cable management, and vertical GPU mount. Users also appreciate the spacious interior, which comfortably accommodates large graphics cards and cables. However, some customers have expressed concerns about the case's airflow.

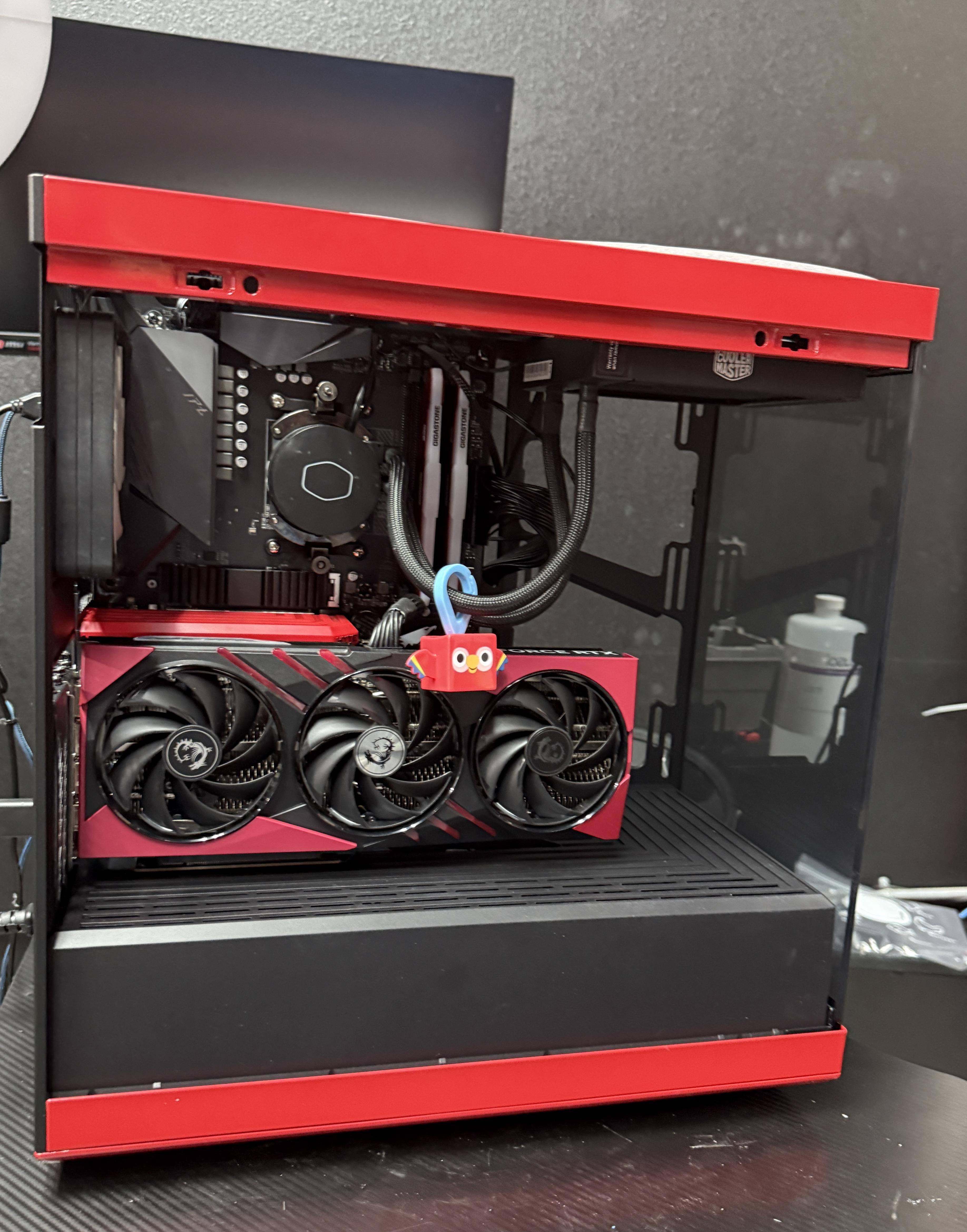

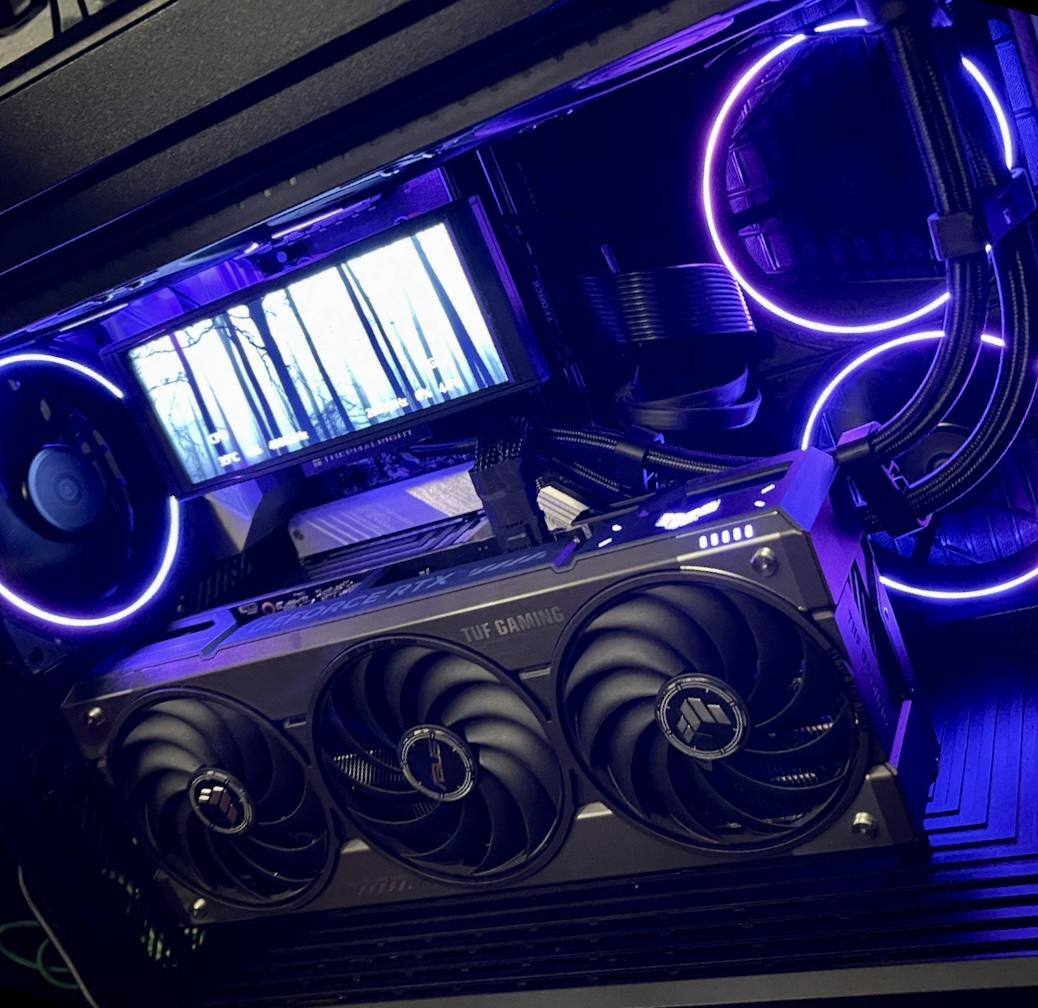

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Upgraded to Red Hyte for more space
Love the color and look! Way more space to work with and still have plenty room and slots to add more components in the future.
Posted by RamFam
- Rated 5 out of 5 stars
S Tier Case
Perfect for a build. Easy S tier for aesthetics. Super easy to build upon, as well. Plenty of space for cable management and components. Would highly recommend. Also huge win for vertical GPU mount
This review is from HYTE - Y40 ATX Mid-Tower PC Case - Black
Posted by BeardonHutch
- Rated 5 out of 5 stars
Great smaller ATX fish tank case
Its a great cade to work with that has plenty of cable management space for your build. Best thing to do will be to replace the fans it comes with since they are 3 pin and will be a little noisy.
Posted by Pete
