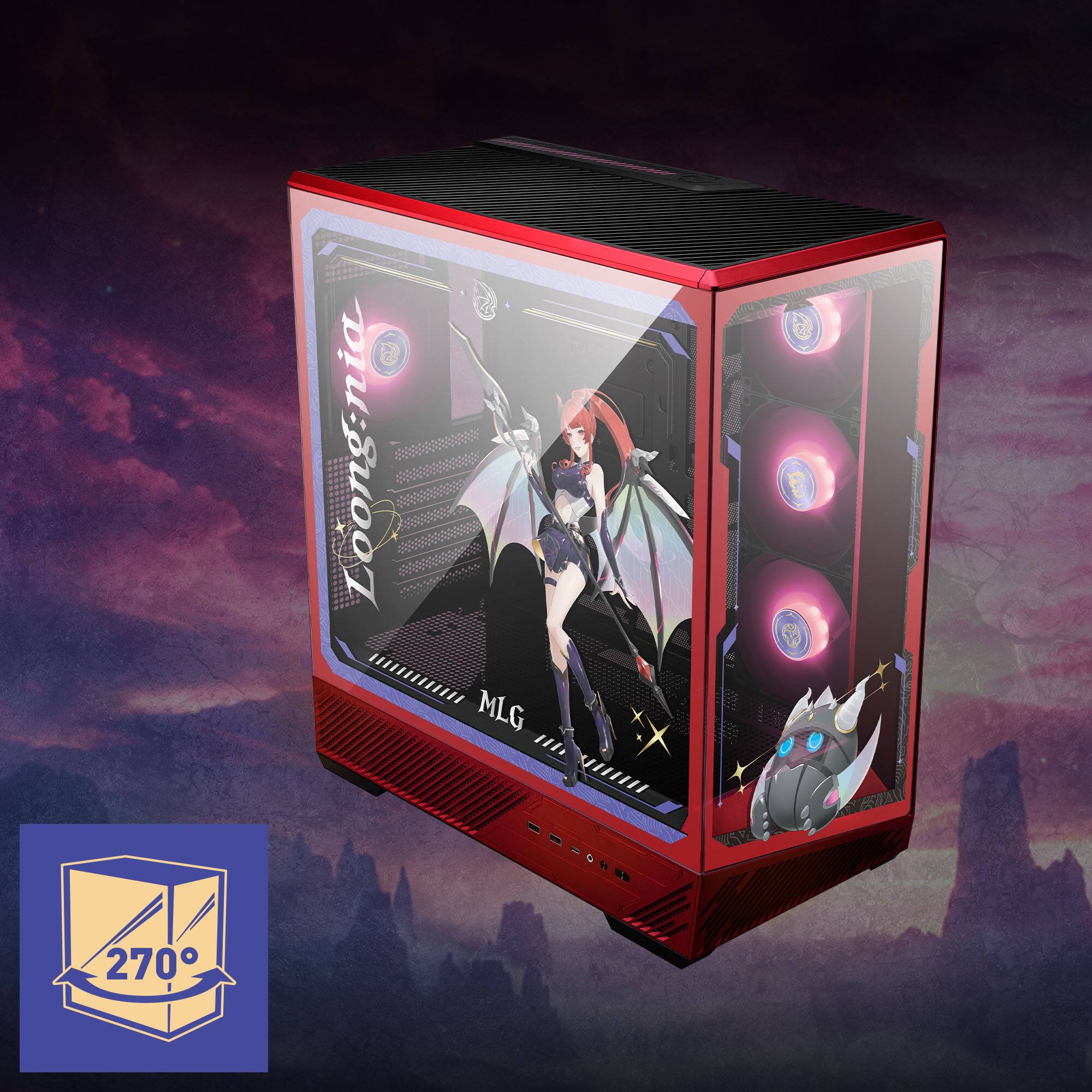

MSI - PANO 130R MLG EDITION ATX Mid-Tower PC Case - Black and Red
NZXT - Kraken 120mm Radiator CPU Liquid Cooler (1 x 120mm Aer P Fan) with RGB Display - Black$69.99$89.99
More Buying Options
Specifications
- Motherboard Form FactorATX, microATX, Mini-ITXMaximum GPU Length400 millimetersProduct Height18.11 inchesProduct Width9.25 inchesProduct Depth19.29 inchesWindow Panel(s)Side
- Key Specs
- Motherboard Form Factor: ATX, microATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 400 millimeters
- Product Height: 18.11 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.29 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Side
- Case Material: Plastic, Steel, Tempered glass
- General
- Brand: MSI
- Model Number: PANO 130R MLG EDITION
- Product Name: PANO 130R MLG EDITION ATX Mid-Tower PC Case
- Color: Black and Red
- Case Material: Plastic, Steel, Tempered glass
- Compatibility
- Motherboard Form Factor: ATX, microATX, Mini-ITX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 180 millimeters
- Maximum GPU Length: 400 millimeters
- Number of Expansion Slots: 7

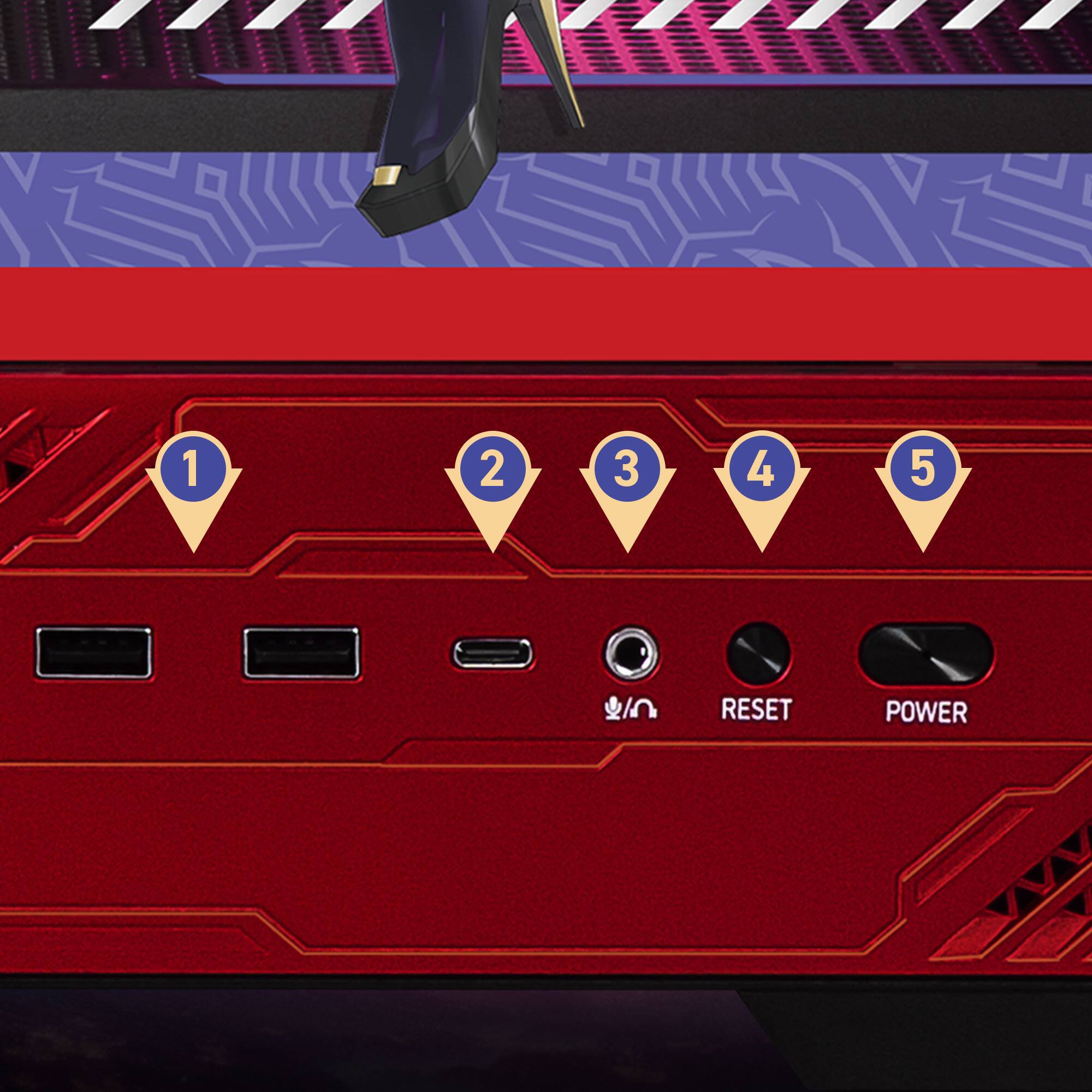

- Ports
- USB Port Location: Side
- Number of USB Ports (Total): 3
- USB Ports: 1 x USB-C 3.2, 2 x USB-A 3.2 (The number and type of USB ports the product has.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Dimensions
- Product Height: 18.11 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.29 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 294.18 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Side
- Customizable Case Lighting: false
- Lighting Type: None
- Cooling
- Maximum CPU Cooler Height: 165 millimeters
- Number of Fans Supported: 10
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Number of Fans Included: 4
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 824142439623
The MSI PANO 130R MLG Edition is a premium mid-tower PC case designed for gamers and PC enthusiasts who value both performance and style. Featuring a sleek panoramic glass design, it provides a stunning view of your components while ensuring excellent airflow for optimal cooling. With support for multiple radiator and fan configurations, the PANO 130R offers versatile cooling options to handle high-end gaming rigs and overclocked systems. It includes tool-less panels for easy installation, ample space for cable management, and compatibility with the latest GPUs and motherboards. Equipped with vibrant ARGB lighting and a clean, modern layout, this case is perfect for building a powerful and visually striking system.

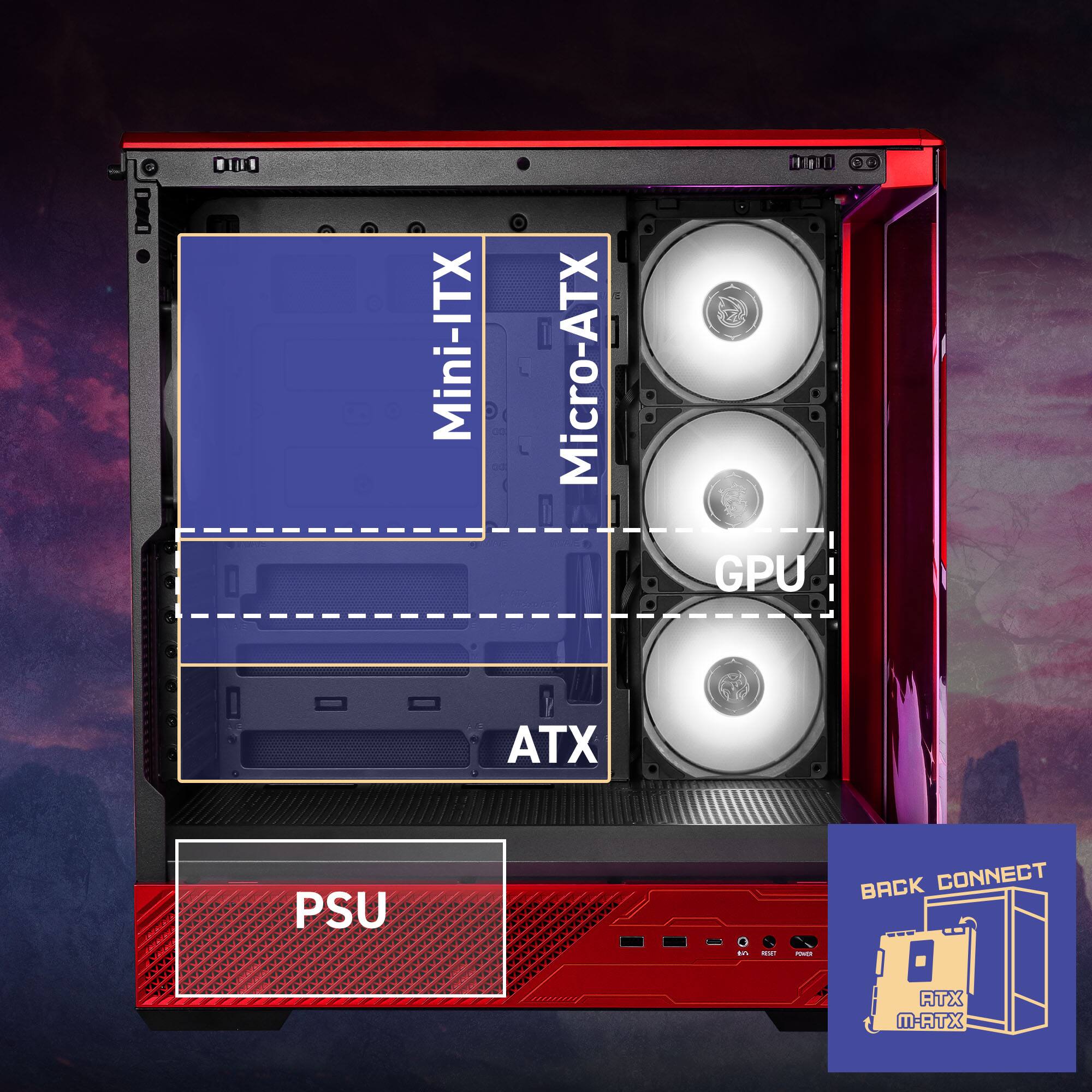

- Support Back-Connect Motherboard: Supporting ATX and Micro-ATX Back-connect PROJECT ZERO motherboards enables easy installation without the worry of forgetting to connect cables, which might otherwise require disassembling graphics cards and coolers.

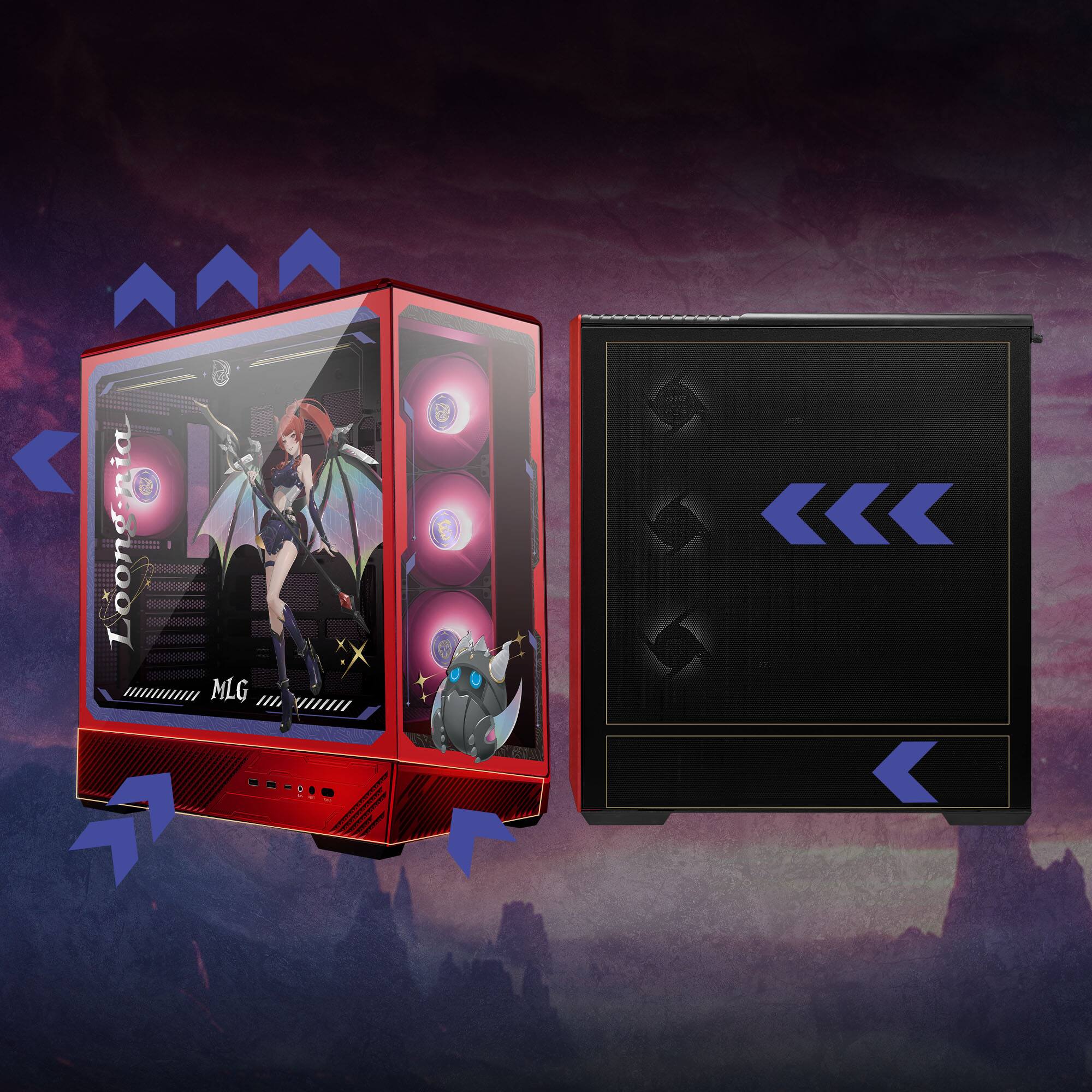

- Upgraded Airflow Layout: At the bottom, there‘s a 40 mm clearance for optimal airflow, offering various intake and exhaust configuration choices. Additionally, it supports the flexibility of mounting a 60mm radiator in a push-pull configuration, giving you the option to install it either on the side or bottom.

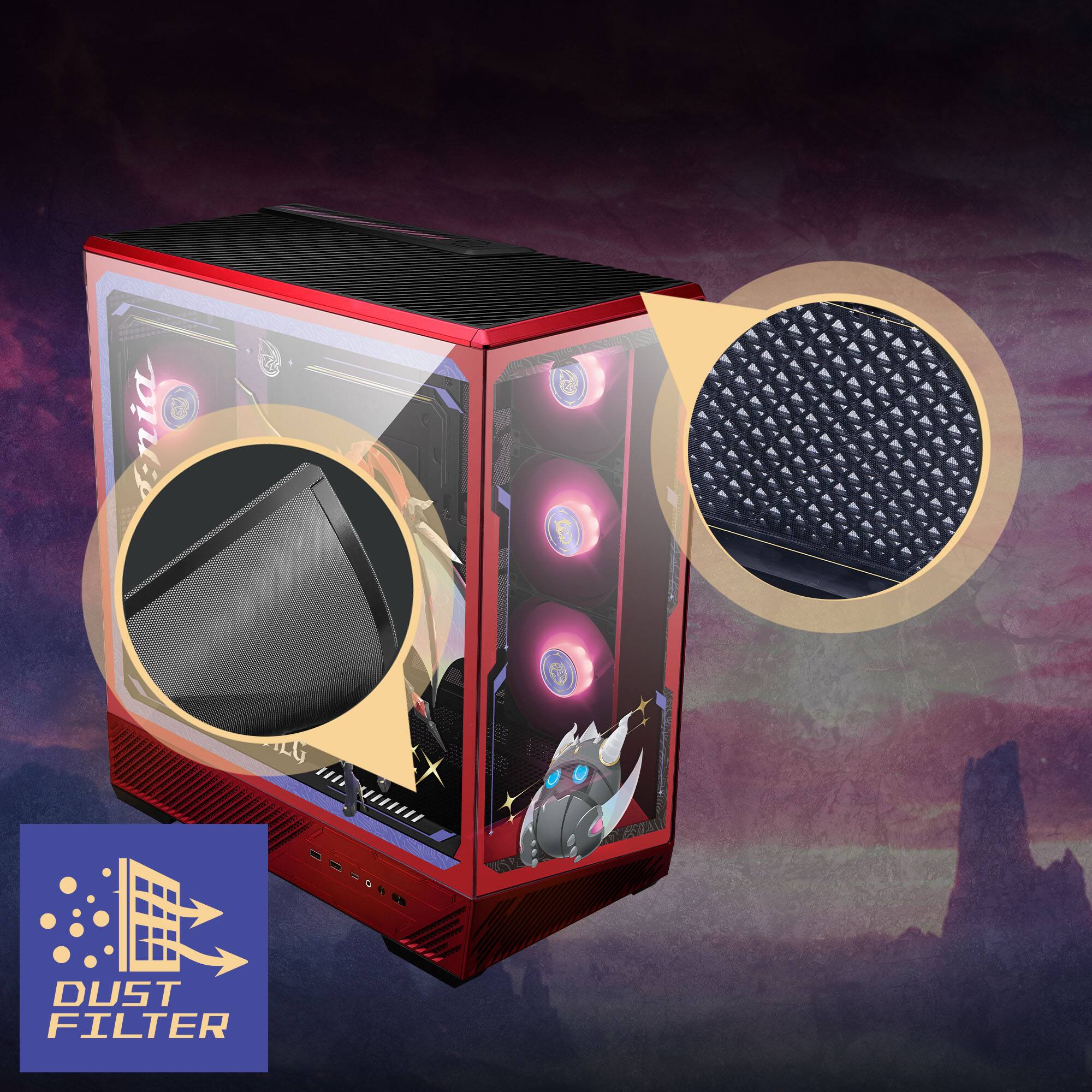

- Dust Filter: Magnetic top and removable bottom dust filters enhance airflow while keeping your system clean, protecting internal components from dust buildup

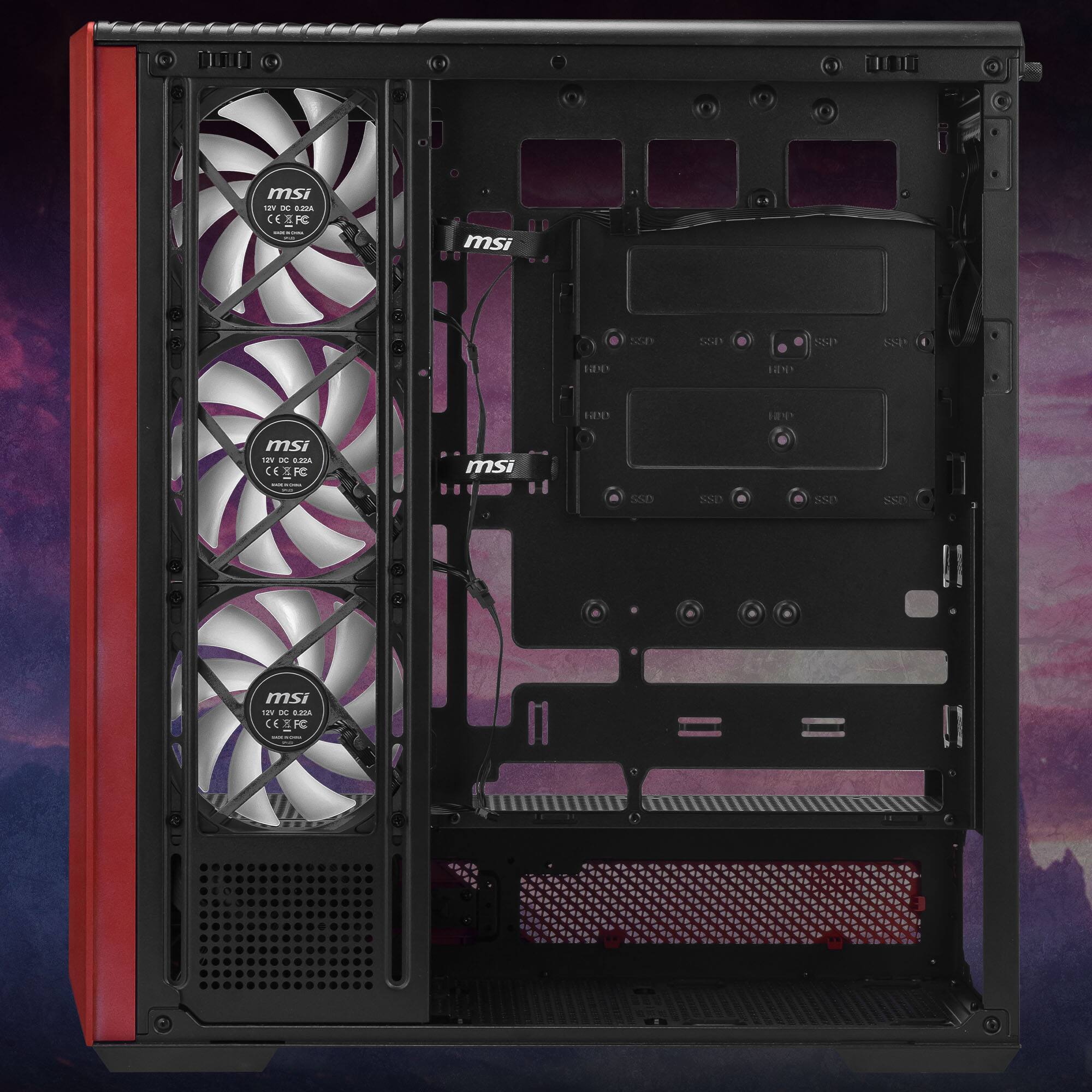

- Pre build with Reverse Blades Fan: installed reverse blade fans on the side allow the unobstructed display of the ARGB fan's beauty without interference.
- Support Back-Connect Motherboard: Supporting ATX and Micro-ATX Back-connect PROJECT ZERO motherboards enables easy installation without the worry of forgetting to connect cables, which might otherwise require disassembling graphics cards and coolers.
- Upgraded Airflow Layout: At the bottom, there‘s a 40 mm clearance for optimal airflow, offering various intake and exhaust configuration choices. Additionally, it supports the flexibility of mounting a 60mm radiator in a push-pull configuration, giving you the option to install it either on the side or bottom.
- Dust Filter: Magnetic top and removable bottom dust filters enhance airflow while keeping your system clean, protecting internal components from dust buildup
- Pre build with Reverse Blades Fan: installed reverse blade fans on the side allow the unobstructed display of the ARGB fan's beauty without interference.
Product Manuals
Q: Hello i was wondering what type of fans does this come with?
A: Hello jda24 - this tower comes with MSI fans and includes 1 x 120 mm ARGB Fan on the rear of the case and 3 x 120 mm ARGB Fan (Reverse Blade Fan) on the side.
