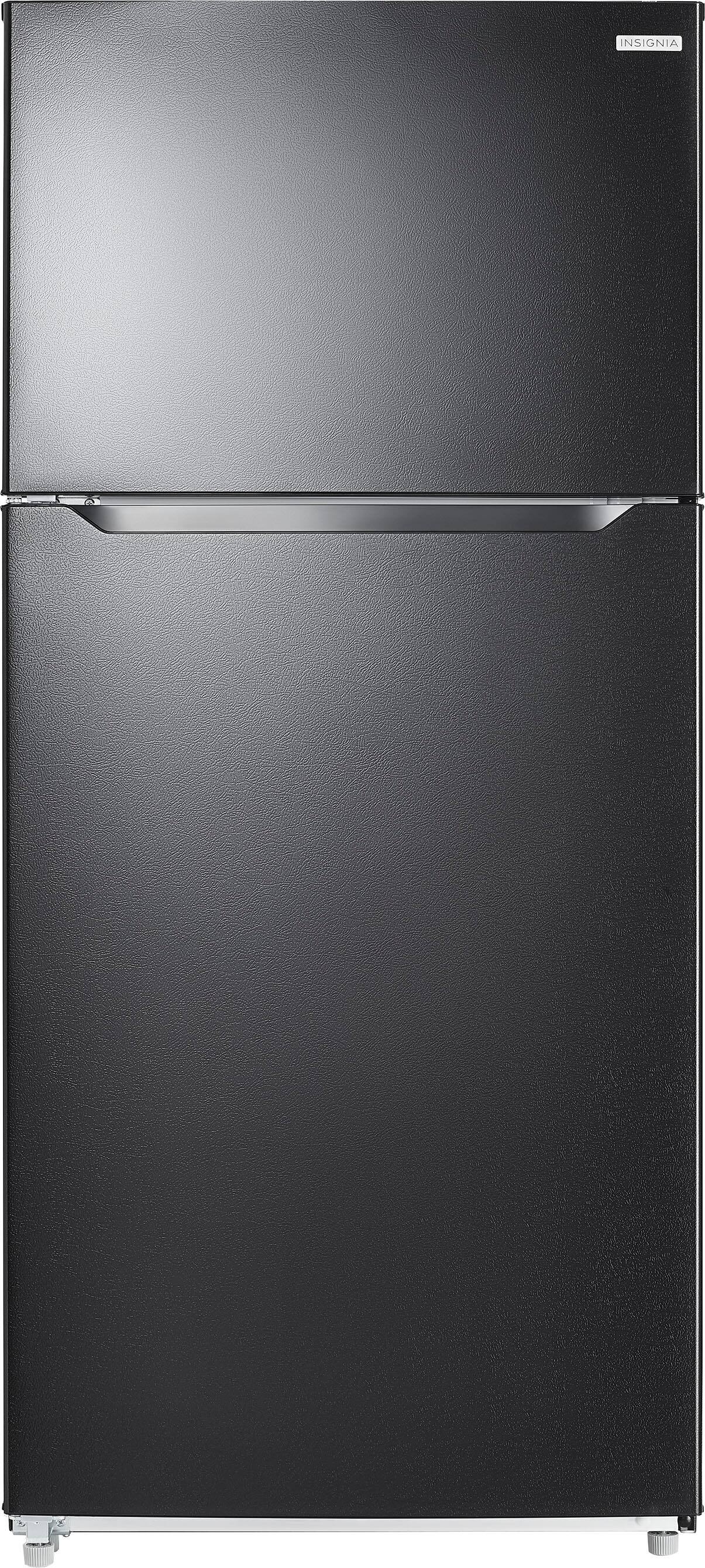

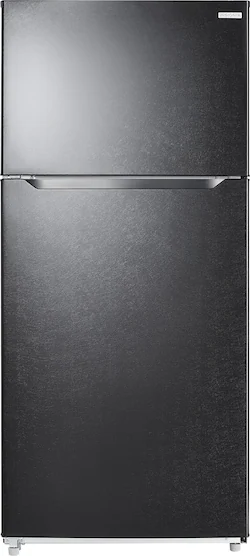

Insignia™ - 18 Cu. Ft. Top-Freezer Refrigerator - Black
Model: NS-RTM18BK8L
SKU: 6409849
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Black
- Product Height: 66 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 66 3/16 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 66 5/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 30 15/16 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 30 15/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 18 cubic feet
- Refrigerator Style: Top Freezer
- Lighting Type: LED
- Ice Maker: Optional
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Insignia™
- Model Number: NS-RTM18BK8L
- Product Name: 18 Cu. Ft. Top-Freezer Refrigerator
- Color: Black
- Color Finish: Black
- Side Panel Color: Black
- Dimensions
- Product Height: 66 5/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 9/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 30 15/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 66 3/16 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 66 5/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 31 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: false (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 30 15/16 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 30 15/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 27 13/16 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 60 11/16 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 171.96 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 78 5/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 37 9/16 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 34 15/16 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 18 cubic feet
- Refrigerator Capacity: 13.9 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 4.1 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Top Freezer
- Fingerprint Resistant: false
- Dual Evaporation: false (A cooling system that works to create a stable climate for the refrigerator and freezer separately. This ensures that each compartment is able to maintain a separate humidity and temperature level ideal for the respective stored items. Freezers tend to require lower humidity while refrigerators require higher humidity to keep foods fresher for longer.)
- Door-Open Alarm: false
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Display Type: None
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: true
- Hinge Setting: Reversible left/right
- Lighting Type: LED
- Ice & Water
- Ice Maker: Optional
- Compatible Ice Maker Model: NS-IMK20WH7
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: None
- Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 2
- Refrigerator Shelf Style: Adjustable, Removable
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true
- Deli Meat Drawer: false (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Top
- Freezer Door Type: Swing Door
- Freezer Shelf Material: Wire
- Freezer Interior Light: false
- Quick Freeze: false (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
- Filter Info
- Water Filtration: false
- Electrical
- Amperage: 1.1 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 362 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 43 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 600603265617
Who says your fridge can’t hold all your favorite foods and snacks? With the Insignia NS-RTM18BK8L 18 Cu. Ft. Top-Freezer Refrigerator, keep your delicious foods on hand and loads of snacks to satisfy those late-night cravings. With a separate top freezer compartment, you’ll have plenty of dedicated space to store your frozen treats and keep them organized on shelves or in the door trays. The fridge has three shelves to organize your food, with two that adjust to fit taller items. Door trays comfortably store your bottles and condiments, even 1-gallon jugs, and the humidity-controlled crisper drawers keep fruits and vegetables fresh. The refrigerator is also internally lit so you can find items easily. With a black color that compliments any kitchen, this fridge looks good while keeping all your food nice and cold.
- 18 cu. ft. capacity: Provides enough space for all your essentials and much more.
- Versatile placement: A freestanding design with reversible doors provides flexible placement options, door hinges default placement is on the left.
- Separate top freezer: Separate freezer compartment with a removable shelf and two door trays store frozen snacks, entrees and more.
- Optimal fridge storage: Three glass shelves (one fixed and two adjustable), two humidity-controlled crisper drawers, a middle drawer and two door trays in the refrigerator compartment help organize your items and keep your foods fresh.
- Dairy compartment: Offers an ideal storage place for small dairy items such as cheese and butter.
- LED interior lighting: Illuminates the food in your refrigerator, making it easy to see the contents.
- Easy temperature control: Easily view or adjust refrigerator temperature to fit your personal preference.
- Frost-free design: Provides outstanding frost maintenance with no need for manual defrosting.
- Recessed handles: Creates a low-profile and understated look.
- Ice-maker ready: Accessorize your fridge with an optional automatic ice maker in the freezer compartment.
- Black color: Easy to clean and looks great in any kitchen, matching the rest of your appliances.
- 18 cu. ft. capacity: Provides enough space for all your essentials and much more.
- Versatile placement: A freestanding design with reversible doors provides flexible placement options, door hinges default placement is on the left.
- Separate top freezer: Separate freezer compartment with a removable shelf and two door trays store frozen snacks, entrees and more.
- Optimal fridge storage: Three glass shelves (one fixed and two adjustable), two humidity-controlled crisper drawers, a middle drawer and two door trays in the refrigerator compartment help organize your items and keep your foods fresh.
- Dairy compartment: Offers an ideal storage place for small dairy items such as cheese and butter.
- LED interior lighting: Illuminates the food in your refrigerator, making it easy to see the contents.
- Easy temperature control: Easily view or adjust refrigerator temperature to fit your personal preference.
- Frost-free design: Provides outstanding frost maintenance with no need for manual defrosting.
- Recessed handles: Creates a low-profile and understated look.
- Ice-maker ready: Accessorize your fridge with an optional automatic ice maker in the freezer compartment.
- Black color: Easy to clean and looks great in any kitchen, matching the rest of your appliances.
Whats Included
- Insignia™
- Hinge Kit
- User Guide
- Insignia™
- Hinge Kit
- User Guide
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: Does anybody know how to change the led light or where i can get a replacement ?
A: Hello Lala, Changing the interior LED light 1 Using a Phillips screwdriver, remove the screw securing the lamp cover, then remove the lamp cover. 2 Remove the LED light bulb from the lamp base, then install a new LED light bulb. 3 Reinstall the lamp cover with the screw you previously removed. Insignia Support Louise www.insigniaproducts.com/support
Q: What type of compressor does this have? And what are the surge watts and running watts?
A: Hi there, We used our own type of compressor on this model. Power requirements: 115 V~60 Hz - 180 W Gem Insignia Products
Q: Which direction does the doors open? Can I switch the direction that the door open?
A: Yes you can switch the way the door opens
Q: Can an icemaker be purchased separately and added? Which side does the door open on
A: Yes and either side
A: No, the cooling coils sit in the back of the freezer compartment. Rudson S.| Insignia Support. https://www.insigniaproducts.com/contact-us
A: We do not have the requested part at this time, in this case I can only advice you to look for a replacement on the open market, you can go to specialized stores online. Rudson S.| Insignia Support. https://www.insigniaproducts.com/contact-us
A: I saw that on the web site - but that was not my question #1. Did you read the numbers u posted??? depth is 66"??? dont think so! and what is 21/50ths???? Not trusting these numbers..... #2 - I was asking the depth with the door off.
