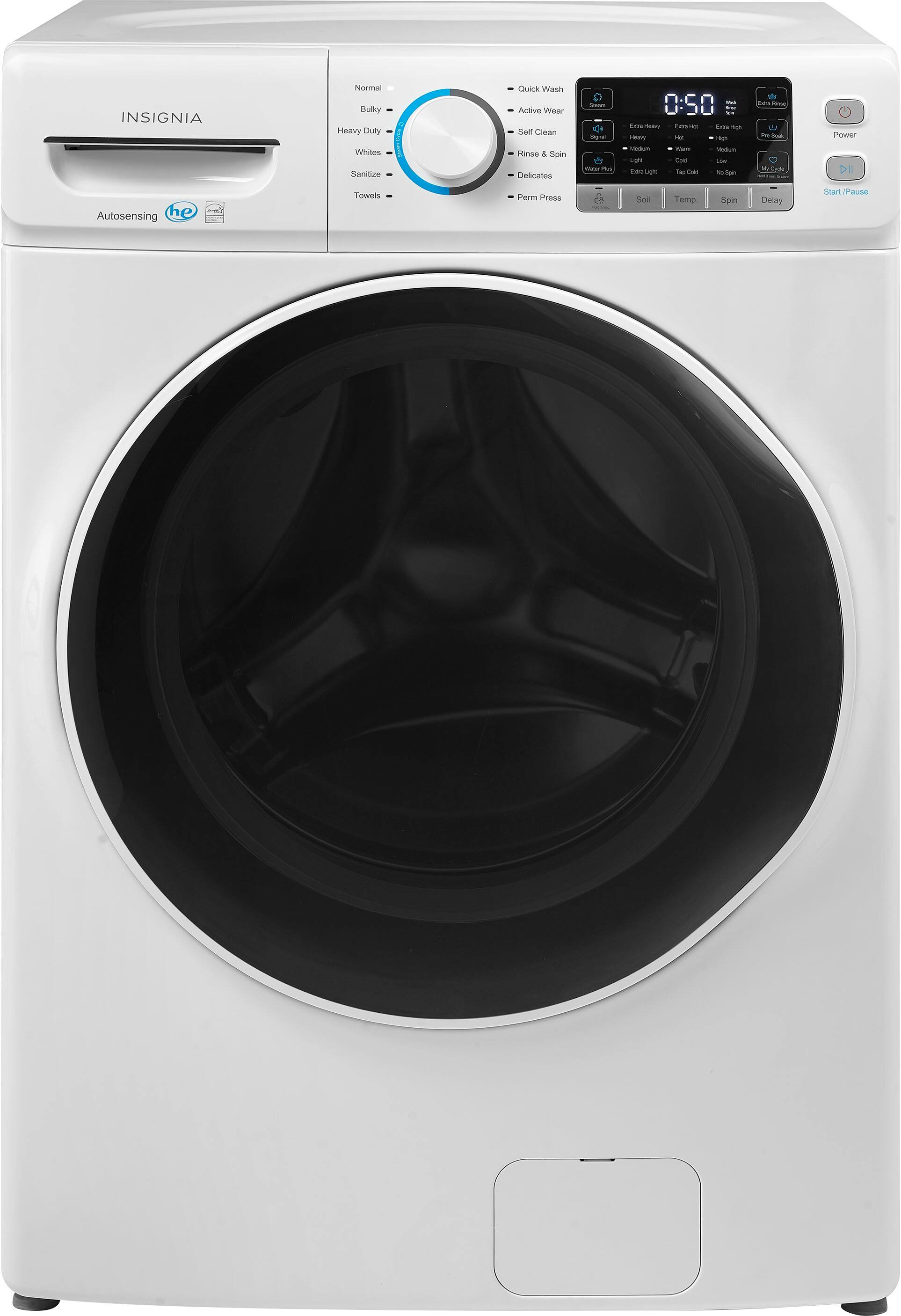

Insignia™ - 4.5 Cu. Ft. High-Efficiency Front Load Washer with ENERGY STAR Certification - White
Model: NS-FWM45W3
SKU: 6489658
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: White
- Product Height: 39 13/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 34 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 55 5/8 inches (Measurement from the back of the product to its front, with door fully open.)
- Capacity: 4.5 cubic feet
- High-Efficiency: true (Washers with this label feature technology meant to use less water. High Efficiency (HE) washers may also be larger in capacity. Using High Efficiency (HE) detergent in these washers is highly recommended as they are designed to be quick-dispersing and operate in low water conditions by producing less suds, requiring less detergent. Not using the recommended detergent can lead to additional rinse cycles and increased water usage.)
- Steam Function: true (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Washer Load Type: Front load
- Pedestal Model Compatibility: NS-FLWDPW3
- Matching Dryer Model Number: NS-FDRG80W3 & NS-FDRE80W3
- Stackable: false (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Insignia™
- Model Number: NS-FWM45W3
- Product Name: 4.5 Cu. Ft. High-Efficiency Front Load Washer with ENERGY STAR Certification
- Color: White
- Color Finish: White
- Dimensions
- Product Height: 39 13/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 34 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 55 5/8 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 216 pounds (The out of box weight of the item.)
- Capacity
- Capacity: 4.5 cubic feet
- Features
- High-Efficiency: true (Washers with this label feature technology meant to use less water. High Efficiency (HE) washers may also be larger in capacity. Using High Efficiency (HE) detergent in these washers is highly recommended as they are designed to be quick-dispersing and operate in low water conditions by producing less suds, requiring less detergent. Not using the recommended detergent can lead to additional rinse cycles and increased water usage.)
- Steam Function: true (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Antimicrobial Protection: false (The product includes protective features which are designed to eliminate or inhibit the growth of microorganisms.)
- Vibration Reduction: true (Additional features, such as sensors that adjust spin speeds or weights that counter unbalanced loads, help to minimize vibration for smoother, quieter operation.)
- Maximum Spin Speed: 1200 revolutions per minute (This is the maximum spin speed of the tub in the final cycle. Higher revolutions per minute (RPM) will remove the water out of the clothes more quickly and effectively which can reduce drying time.)
- Out-Of-Balance Detection: true
- Internal Water Heater: true
- Fingerprint Resistant: false
- Automatic Temperature Control: true (This feature regulates hot and cold temperatures of the water or air within the appliance in order to keep them in the optimal range for each cycle.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Time-Remaining Display: true
- Interior Light(s): false
- Bleach Dispenser: true
- Fabric Softener Dispenser: true
- Pre-Wash Detergent Dispenser: false
- Detergent Dispenser Type: Single load (Single load dispensers hold enough liquid detergent for a single cycle and must be refilled after each use. A multiple load dispenser holds enough for multiple cycles before it is necessary to refill the detergent. The exact number of cycles completed before refilling will vary as machines with multiple load dispensers will calculate and dispense detergent automatically based on load size and other user preferences such as concentration level.)
- Detergent Form: Liquid, Powder
- Design
- Washer Load Type: Front load
- Reversible Door Hinge: false
- Control Type: Button, Dial
- Tub/Drum Material: Stainless steel
- Window: true
- Adjustable Leveling Legs: true (Legs can be adjusted accordingly to ensure that your appliance sits level, even on uneven ground.)
- Cycle Specifications
- Number of Wash/Rinse Cycles: 12
- Wash/Rinse Cycles: 12
- Number of Temperature Settings: 5
- Temperature Settings: 5
- Number of Spin Speeds: 5
- Soil Levels: 5 (Washers with the option to select the soil level will employ different wash cycles to optimally clean the respective load. Most have three options: light, normal, or heavy.)
- Compatibility
- Pedestal Available: true
- Pedestal Model Compatibility: NS-FLWDPW3
- Matching Dryer Available: true
- Matching Dryer Model Number: NS-FDRG80W3 & NS-FDRE80W3
- Stackable: false (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Fill Hoses Included: false
- Drain Hose Included: true
- Electrical Specification
- Estimated Annual Electricity Use: 110 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 15 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 10 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- ANSI Certified: false (Meets the requirements of the American National Standards Institute.)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- NSF Listed: false (Meets the National Sanitation Foundation's standards for public health protection.)
- AAFA Certified: false (Meets the requirements and standards set by the Asthma and Allergy Foundation of America (AAFA) for used by those with asthma and allergies.)
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- Display Type: LED
- UPC: 600603286414
Make laundry simple with the Insignia NS-FWM45W3 4.5 Cu. Ft. High-Efficiency Front Load Washer. With 12 wash cycles and 5 temperature levels, you have the power to fully customize your washing experience. Thoroughly clean delicate items such as silk fabrics to bulky comforters and everything in-between. You can even choose to use steam cleaning for several cycle options. An automatic lid lock prevents the lid from opening while the washer motor is in motion and automatic water level control fills the washer with the necessary water for each individual load. Keep your children safe by selecting the child lock on the washer and never worry about the machine operating without an adult. Available matching dryer models make this the perfect set for any home. Keep your laundry frustrations low and options high by fulfilling your every washing need.
- 4.5 cu. ft. capacity: Provides enough space to wash sizeable loads while remaining a high-efficiency washer.
- Easy to operate: LED screen and knob cycle selector make it easy to control.
- 12 wash cycles: Choose from Normal, Bulky, Heady Duty, Whites, Sanitize, Towels, Quick Wash, Delicates, Perm Press. Active Wear, Self Clean and Rinse & Spin.
- 5 temperature levels: Select the best temperature to wash your clothes.
- Door lock: Door will lock when the washer starts and can't be opened until motor has stopped and water level is under the bottom of door seal.
- Automatic water level control: A water level sensor determines the ideal water level for each load.
- Child lock: Protects children in your home by locking the control panel and washer functions until disabled with the keypad.
- Detergent, bleach and fabric softener dispensers: Special dispensers release contents throughout the wash cycle. The adjustable dispenser works with powder or HE liquid detergent to help measure the right amount for 1-3x concentrations. See your HE detergent for information on concentration levels.
- Pre-soak function: Lets your heavily soiled laundry sit in water and detergent before going into the wash cycle, ensuring a deep clean.
- Saves frequently used settings: My Cycle saves your favorite cycle settings (wash cycle, soil level, spin speed and wash temperature) to quickly start a load.
- See-through window: Allows you to check on the status of your load at any time.
- Energy Star Certified: Helps keep your electricity bill lower.
- Matching dryer options: NS-FDRE80W3 & NS-FDRG80W3 models.
- 4.5 cu. ft. capacity: Provides enough space to wash sizeable loads while remaining a high-efficiency washer.
- Easy to operate: LED screen and knob cycle selector make it easy to control.
- 12 wash cycles: Choose from Normal, Bulky, Heady Duty, Whites, Sanitize, Towels, Quick Wash, Delicates, Perm Press. Active Wear, Self Clean and Rinse & Spin.
- 5 temperature levels: Select the best temperature to wash your clothes.
- Door lock: Door will lock when the washer starts and can't be opened until motor has stopped and water level is under the bottom of door seal.
- Automatic water level control: A water level sensor determines the ideal water level for each load.
- Child lock: Protects children in your home by locking the control panel and washer functions until disabled with the keypad.
- Detergent, bleach and fabric softener dispensers: Special dispensers release contents throughout the wash cycle. The adjustable dispenser works with powder or HE liquid detergent to help measure the right amount for 1-3x concentrations. See your HE detergent for information on concentration levels.
- Pre-soak function: Lets your heavily soiled laundry sit in water and detergent before going into the wash cycle, ensuring a deep clean.
- Saves frequently used settings: My Cycle saves your favorite cycle settings (wash cycle, soil level, spin speed and wash temperature) to quickly start a load.
- See-through window: Allows you to check on the status of your load at any time.
- Energy Star Certified: Helps keep your electricity bill lower.
- Matching dryer options: NS-FDRE80W3 & NS-FDRG80W3 models.
Whats Included
- Insignia 4.5 Cu. Ft. High-Efficiency Front Load Washer
- Cable tie
- Drain hose guide
- Inlet hose screen washers (2)
- Insignia 4.5 Cu. Ft. High-Efficiency Front Load Washer
- Cable tie
- Drain hose guide
- Inlet hose screen washers (2)
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
A: The unit is manufactured by Midea.
Q: Which way does the door open? I need right to left
A: If you are facing machine it opens on the left side
A: I stacked an electric dryer on top, although the holes are very different for the existing stacking kit I had so I had to be resourceful and figure out another way I took 2 inch industrial Velcro strips and went around the entire square top. It may not be approved by the manufacturer, but it was a fraction of the cost, and it doesn’t move at all!!!!
A: Yes,it is coming with hose,and installation,Hose is 30.00.
Q: So is it belt driven or direct drive .. last 2 questions are kind of contradictive 🙃
A: Direct drive.
A: Yes.
Q: How long does the drive belt last
A: Not very long.
Q: Is this a direct drive washer?
A: Yes
