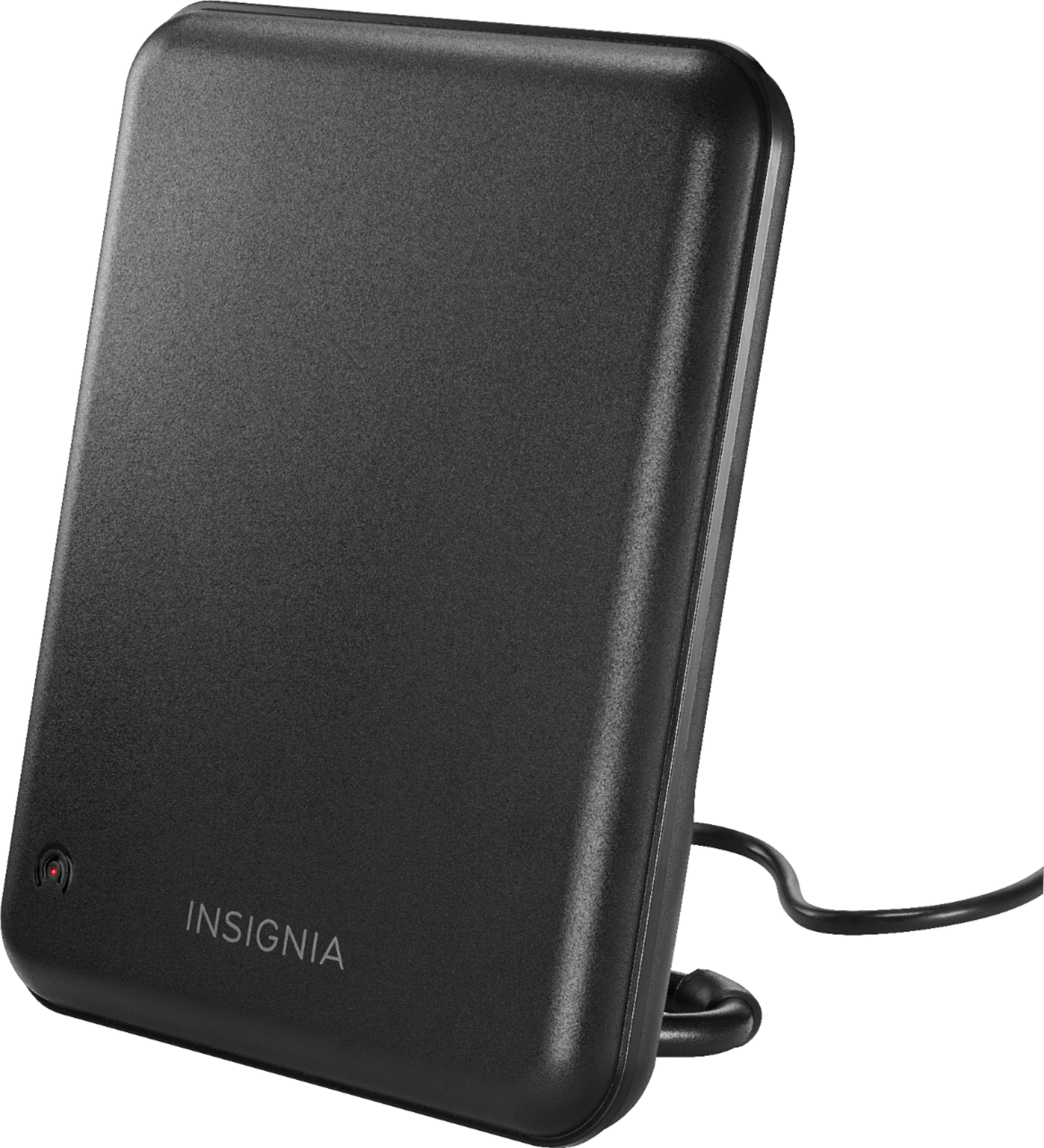

Insignia™ - AM/FM Amplified Indoor Plate Radio Antenna - Black
- Key Specs
- Antenna Type: Amplified Antenna
- Indoor or Outdoor Use: Indoor Antenna (Indicates the appropriate environment product was designed to be used in.)
- Maximum Operating Range: 50 miles
- General
- Brand: Insignia™
- Model Number: NS-ANT20FM
- Product Name: AM/FM Amplified Indoor Plate Radio Antenna
- Color: Black
- Design
- Antenna Type: Amplified Antenna
- Indoor or Outdoor Use: Indoor Antenna (Indicates the appropriate environment product was designed to be used in.)
- Form Factor: Plate (The size, arrangement, and physical configuration of the product.)
- Performance
- Maximum Operating Range: 50 miles
- Channel Reception: AM, FM
- Features
- Product Type: AM/FM antenna
- Connectivity
- Compatibility: Universal
- Dimensions
- Product Height: 6.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 0.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.82 pounds (The out of box weight of the item.)
- Included
- Hardware Included: true
- Coaxial Cable Included: true
- Warranty
- Warranty - Parts: 1 Year
- Warranty - Labor: 1 Year
- Other
- UPC: 600603253515
Enjoy strong, stable signals with this Insignia AM/FM amplified radio antenna. The high-gain amplifier extends the receiving range for better sound quality, while a weighted nonslip base easily stays in position after placement. This Insignia AM/FM amplified radio antenna features a compact design and a quick setup guide for easy installation.
- Works with most AM/FM antenna inputs: Maximizes reception and audio quality.
- Designed to receive AM/FM radio broadcasts: Including HD radio broadcasts.
- 50-mile range*: The high-gain amplifier enhances receiving range and sound quality.
- Weighted nonslip base: Enables easy placement.
- 6' antenna cable with balun adapter: Provides multiple options to connect to your radio.
Whats Included
- Insignia AM/FM Amplified Indoor Plate Radio Antenna
- Power adapter
- Balun adapter
- Tabletop stand
- Quick setup guide
Product Manuals
A: I live in the mountains and tried this unit, all it did for me is boost static. My tuner is a 25 plus year old Pioneer with 250 watt output, one of the first Pioneers with Dolby Digital.
Q: How far can this get radio stations. Can it get an FM signal from 70 miles away?
A: I live on the south side of Norman and my Bose radio still wont pick up the OKC stations on the N side of OKC. So, maybe 25 miles? It did improve reception on the closer stations.
Q: Doesn’t seem to work on my Yamaha receiver ... is the RED light in the front indicate anything?
A: I tried one on my old Pioneer receiver and it only boosts the sound and static. I went back to the old antenna.
A: Shelf is fine. Just needs to reach system.
Q: Does this antenna work with a Bose radio?
A: The 75 ohm connection doesn’t fit with the Bose sound wave connection. The connection is too big. The flange is too big. Looking for an adapter now.
Q: What is the red light on the front for? I can’t find it in the quick start guide.
A: Just means it’s on
A: This requires a coaxial cable port and is powered which means you need a 12-volt power inverter to AC (they are available and plug into your cigarette lighter or similar 12-volt DC power port). Some new cars are equipped with these already built in- I know the newer Ford F-150 is equipped this way. As to- if it would work- I don't know. The antenna to radio connection might be a problem.
Q: Is this a high frequency antenna?
A: AM/FM bands.
