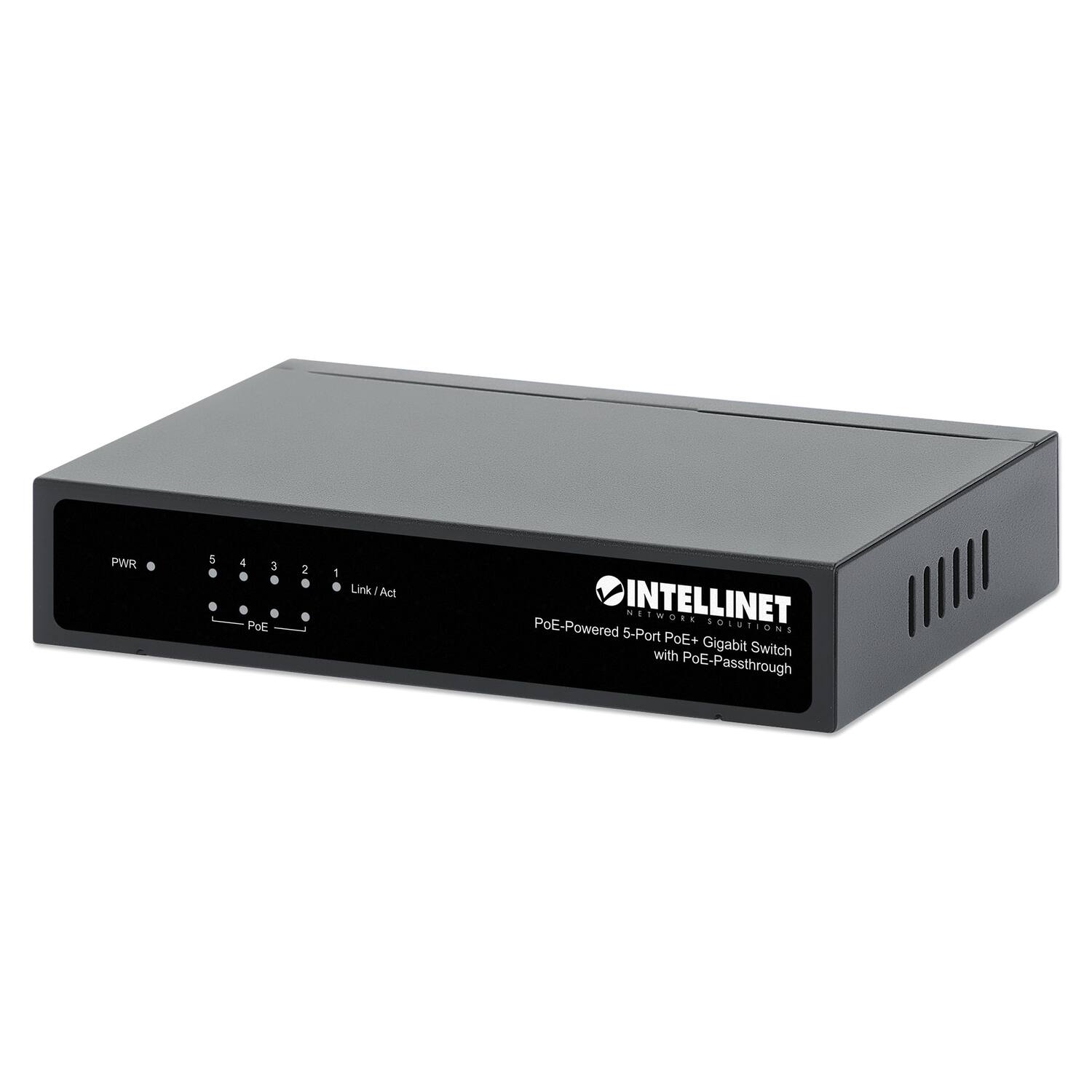

Intellinet - 68-Watt PoE-Powered 5-Port Gigabit Switch with PoE-Passthrough
Specifications
- Maximum Data Speed1000 megabits per secondNumber of LAN Ports5
- Key Specs
- Maximum Data Speed: 1000 megabits per second
- Number of LAN Ports: 5 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Intellinet
- Product Name: 68-Watt PoE-Powered 5-Port Gigabit Switch with PoE-Passthrough
- Speed
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Dimensions
- Product Height: 1.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 3.07 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 3.07 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.6 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Other
- UPC: 766623561082
The Intellinet Network Solutions® PoE-Powered 5-Port Gigabit Switch with PoE Passthrough is designed to take power from a PoE switch and pass both data and electrical power to several PoE-compatible devices via standard CAT-5E or CAT-6 network cables. Equipped with 5 Gigabit Ethernet ports, this switch can power up to 4 wireless LAN access points and bridges, VoIP phones, or IP video cameras, draw its own power from the PoE switch it is connected to, and deliver network speeds of up to 1,000 Mbps. When you connect the PD port (port 1) to a PoE+ enabled IEEE 802.3af/at compliant PoE switch, the Intellinet Network Solutions PoE Passthrough Switch uses some of the electric current to power itself and passes the available surplus power to up to 4 PoE edge devices, such as VoIP phones, allowing you to realize the full potential of each of the PSE ports in your data center. The Intellinet Network Solutions® PoE Passthrough Switch supports the IEEE 802.3at protocol and is designed to inject up to 25 watts of power per port. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), the use of an Intellinet Network Solutions PoE/PoE+ Splitter (sold separately) is suggested. Equipped with 5 auto-sensing 10/100/1,000 Mbps RJ45 Gigabit Ethernet ports, the Intellinet Network Solutions® PoE Switch with PoE Passthrough with its 10 Gbps switch fabric provides plenty of performance for your computers and other networking devices.
- PoE Passthrough: Receives power from a PoE injector or switch and powers up to 4 PoE devices while extending connection distance to 656 ft (200 m)
- Gigabit Speed: Features 5 auto-sensing 10/100/1000 Mbps RJ45 ports for fast network speeds up to 1,000 Mbps
- Flexible Power Options: Can be powered via PoE or included AC adapter, supporting a total power budget of up to 68 watts
- Power Budget Management: Delivers up to 17 watts per port with AC power and 6.5 watts per port when powered by PD input
- Energy Efficient: Includes Green Ethernet technology that adjusts power based on cable length and deactivates unused ports
Whats Included
- PoE-Powered 5-Port Gigabit Switch with PoE-Passthrough, Power adapter, Power cable, Instructions
Product Manuals
Compare similar products
The Intellinet Network Solutions® PoE-Powered 5-Port Gigabit Switch with PoE Passthrough is designed to take power from a PoE switch and pass both data and electrical power to several PoE-compatible devices via standard CAT-5E or CAT-6 network cables. Equipped with 5 Gigabit Ethernet ports, this switch can power up to 4 wireless LAN access points and bridges, VoIP phones, or IP video cameras, draw its own power from the PoE switch it is connected to, and deliver network speeds of up to 1,000 Mbps. When you connect the PD port (port 1) to a PoE+ enabled IEEE 802.3af/at compliant PoE switch, the Intellinet Network Solutions PoE Passthrough Switch uses some of the electric current to power itself and passes the available surplus power to up to 4 PoE edge devices, such as VoIP phones, allowing you to realize the full potential of each of the PSE ports in your data center. The Intellinet Network Solutions® PoE Passthrough Switch supports the IEEE 802.3at protocol and is designed to inject up to 25 watts of power per port. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), the use of an Intellinet Network Solutions PoE/PoE+ Splitter (sold separately) is suggested. Equipped with 5 auto-sensing 10/100/1,000 Mbps RJ45 Gigabit Ethernet ports, the Intellinet Network Solutions® PoE Switch with PoE Passthrough with its 10 Gbps switch fabric provides plenty of performance for your computers and other networking devices.
