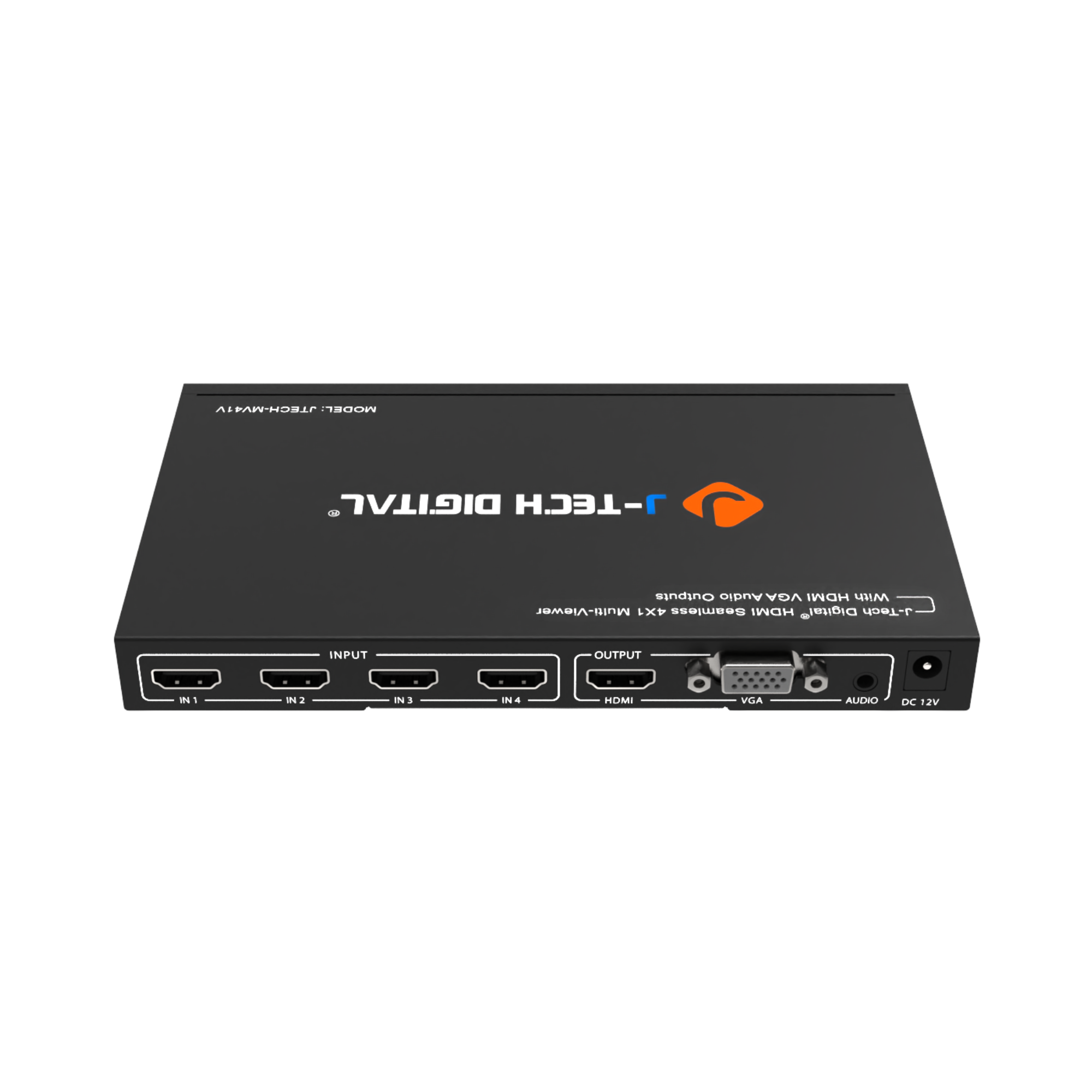

J-Tech Digital - 1080P 60Hz 4x1 Multiviewer with HDMI and VGA Outputs - Black
J-Tech Digital - 1080P 60Hz 4x1 Multiviewer with HDMI and VGA Outputs - Black
$7.99 shipping to
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-MV41V
- Product Name: J-Tech Digital 1080P 60Hz 4x1 Multiviewer with HDMI and VGA Outputs
- Color: Black
- Features
- Selector Switch Box Type: HDMI Switch
- Powered: true
- Indicator Lights: true
- Maximum Supported Resolution (Video Passthrough): 1080p (Full HD) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Surround Sound Supported: Dolby Digital, Dolby Audio (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Connectivity
- Input(s): 4 x HDMI
- Number of Inputs: 4

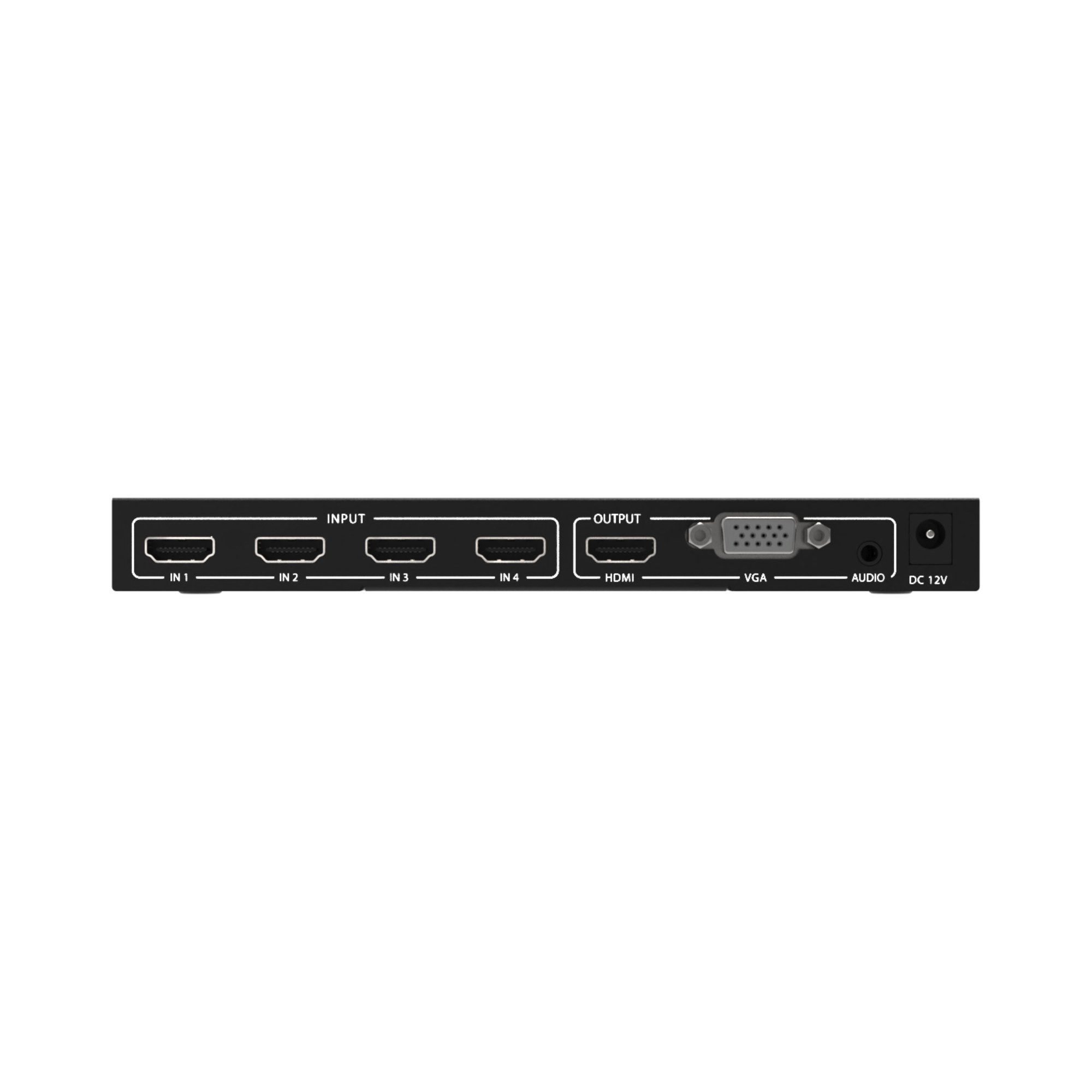

- Output(s): 1 x HDMI, 1 x VGA
- Number of Outputs: 2
- Dimensions
- Product Height: 0.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 850001567268
The JTECH-MV41V is a high performance 4x1 Quad Multi-Viewer with seamless switching. It can display 4 full HD 1080p input sources on one HDMI and one VGA screen simultaneously with zero latency. This device also has five different viewing modes, allowing you to display 2, or all 4 of your HDMI input sources at once in different layouts. This switch also gives you the ability to rearrange the layout of your video sources, allowing you to set your sources within any of the quadrants, in all of the available display modes.
- 4x1 Multiviewer - 4 Inputs For HDMI Devices: Reduce the mess of cables and switch between 4 HDMI source devices to your display for seamless transitions between cable, game consoles, Blu-ray and more

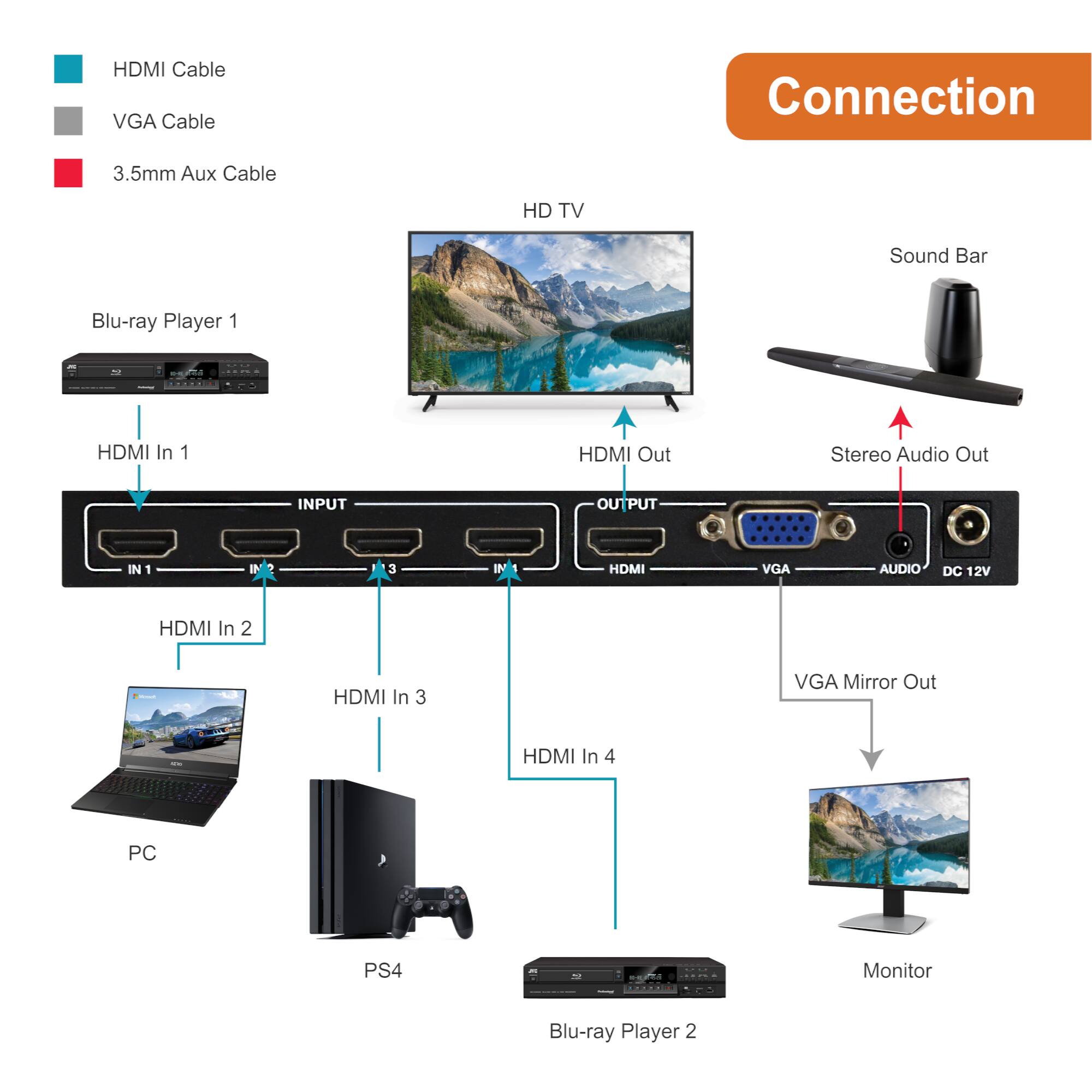

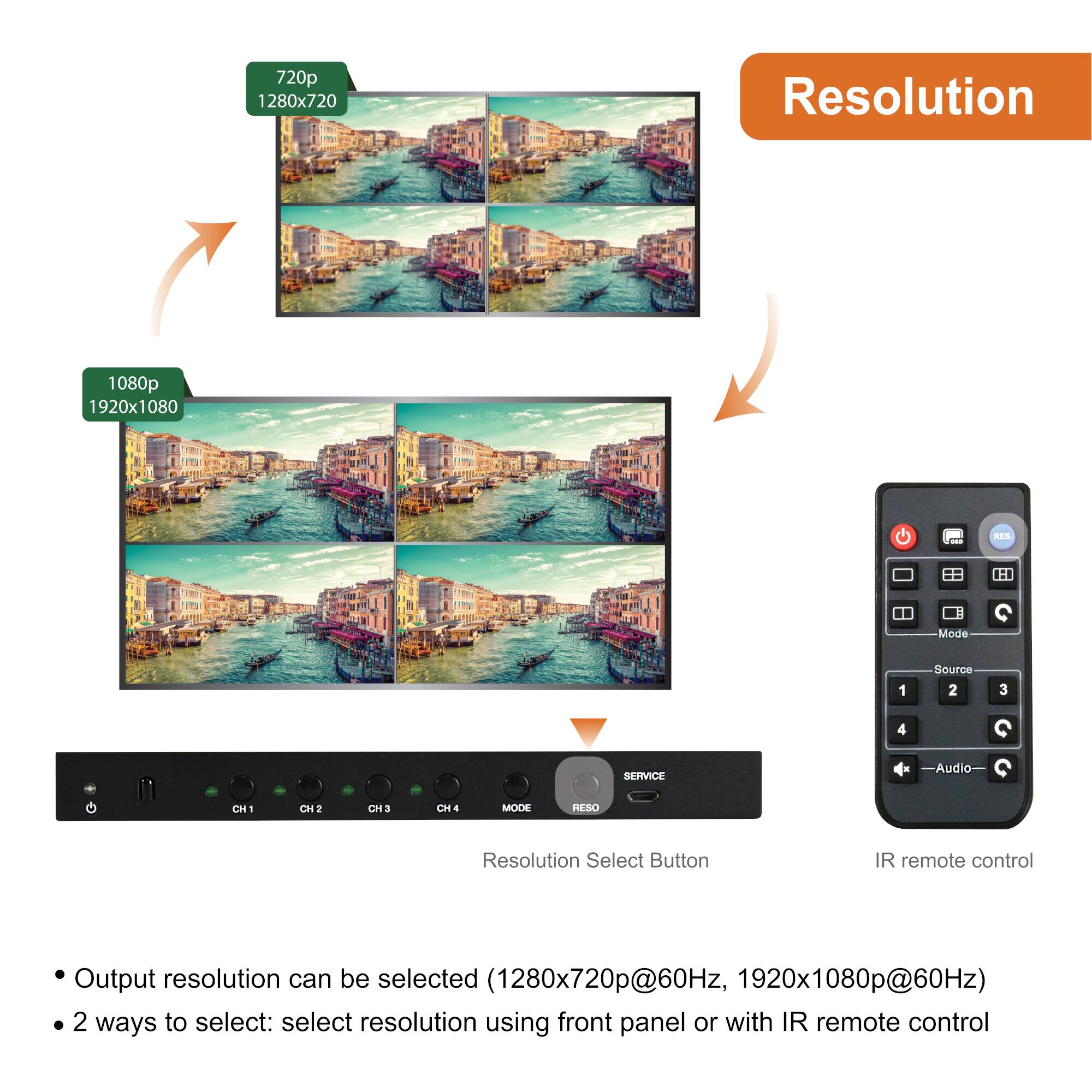

- Simultaneous HDMI & VGA Outputs: Utilize both the HDMI and VGA output to connect simultaneously to an HDMI display and a VGA display, with 0 latency between both videos. Experience HD video with the following supported resolutions: 1080p@60Hz, 720p@60Hz, 480p@60Hz

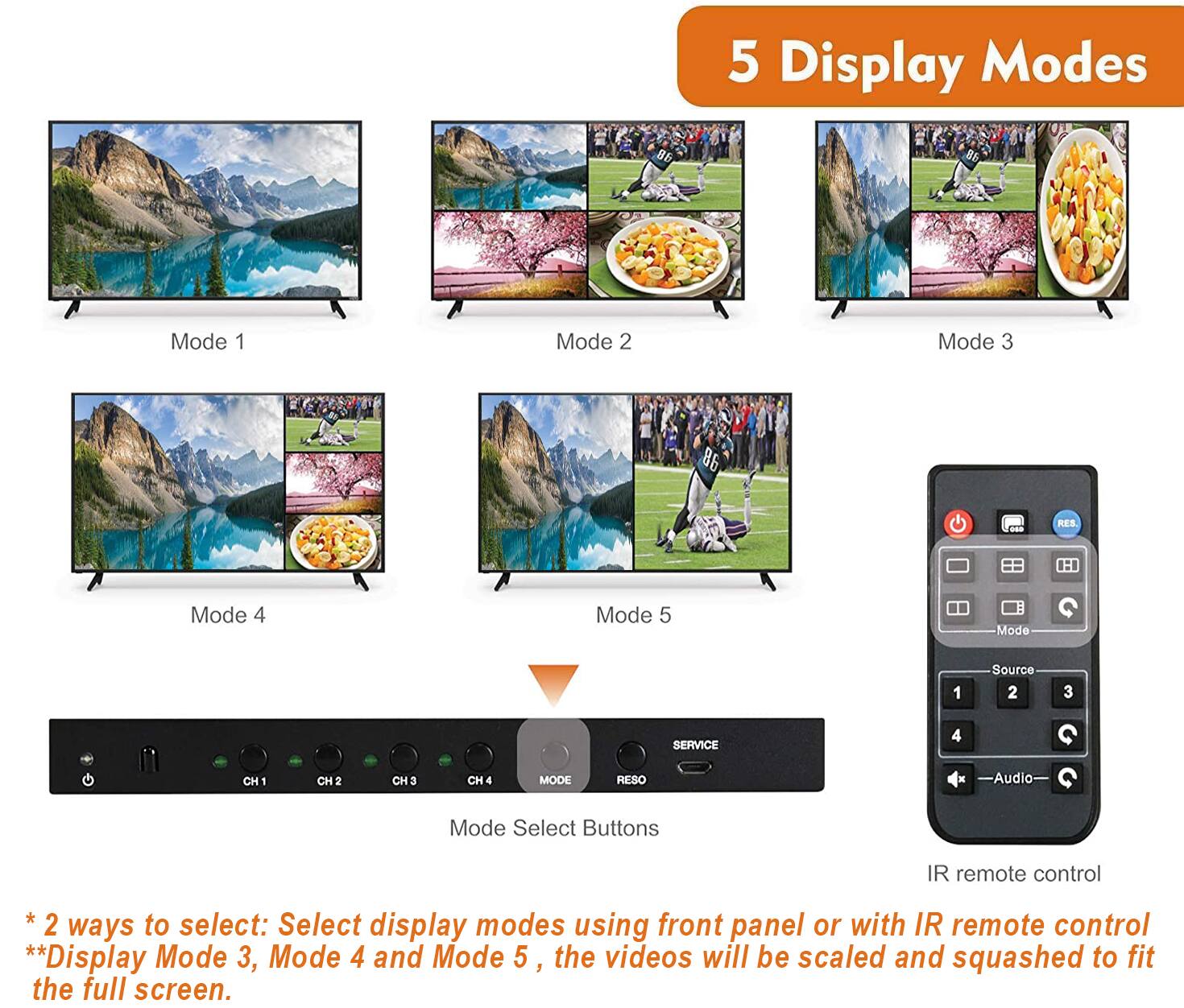

- 5 Different Display Modes: This switch offers multiple ways to watch your source devices, allowing you to display 1 device, 2 devices, or all 4 devices at the same time
- Custom Multi-view Layout Control: Rearrange any of your HDMI video sources to any of the quadrants, to set the layout to your liking in all of the featured multi-view modes
- 4x1 Multiviewer - 4 Inputs For HDMI Devices: Reduce the mess of cables and switch between 4 HDMI source devices to your display for seamless transitions between cable, game consoles, Blu-ray and more
- Simultaneous HDMI & VGA Outputs: Utilize both the HDMI and VGA output to connect simultaneously to an HDMI display and a VGA display, with 0 latency between both videos. Experience HD video with the following supported resolutions: 1080p@60Hz, 720p@60Hz, 480p@60Hz
- 5 Different Display Modes: This switch offers multiple ways to watch your source devices, allowing you to display 1 device, 2 devices, or all 4 devices at the same time
- Custom Multi-view Layout Control: Rearrange any of your HDMI video sources to any of the quadrants, to set the layout to your liking in all of the featured multi-view modes
Whats Included
- Multiviewer, Remote Control, Power Adapter, Mounting Kit, User Manual
- Multiviewer, Remote Control, Power Adapter, Mounting Kit, User Manual
Product Manuals
