J-Tech Digital - 1080P 60Hz HDMI Extender Balun Over Coax with Daisy Chain Function (900ft.) - Black
J-Tech Digital - 1080P 60Hz HDMI Extender Balun Over Coax with Daisy Chain Function (900ft.) - Black
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-EXC900
- Product Name: J-Tech Digital 1080P 60Hz HDMI Extender Balun Over Coax with Daisy Chain Function (900ft.)
- Color: Black
- Features
- Maximum Video Resolution: 1080p (Maximum resolution refers to the highest number of pixels that a screen can process and display. Higher resolution signals produce more detailed video.)
- Maximum Supported Resolution (Video Passthrough): 1080p (Full HD) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Powered: true
- Connectivity
- Wireless: false
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Maximum Transmission Range: 900 feet

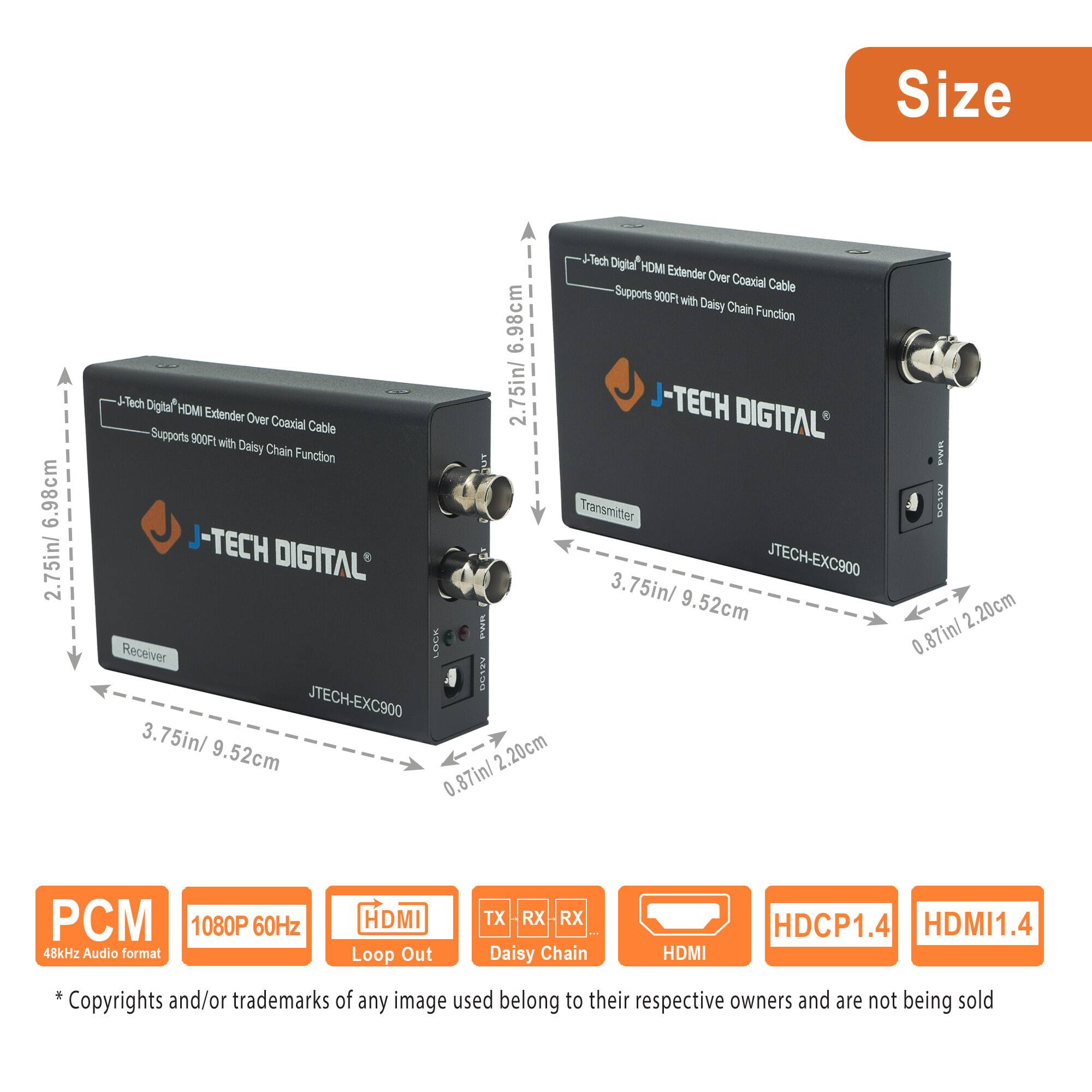

- Dimensions
- Product Height: 2.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 3.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 0.87 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058920744
The J-Tech Digital JTECH-EXC900 HDMI over coax extender is designed to extend an HDMI 1.4 source signal up to 900 feet over RG6 | RG7 | RG11 coaxial cable. With the device’s strong resistance to interference and excellent image quality, the JTECH-EXC900 HDMI over coax extender can be used in a wide array of applications including CCTV, digital signage and residential signal distribution.
- HDMI Over RG6 / RG7 / RG11 Coax: Transmit 1080p signals over RG6, RG7 or RG11 coaxial cables! Perfect for distributing security DVR, CCTV or any HDMI signal throughout your home or business
- 900ft. Transmission Distance: Extend HDMI signals over 900 feet away via RG6, RG7 or RG11 coaxial cable! Using 75-ohm connectors and Belden 1694a cable users can transmit HDMI source signals over 900 feet away with zero signal loss or latency

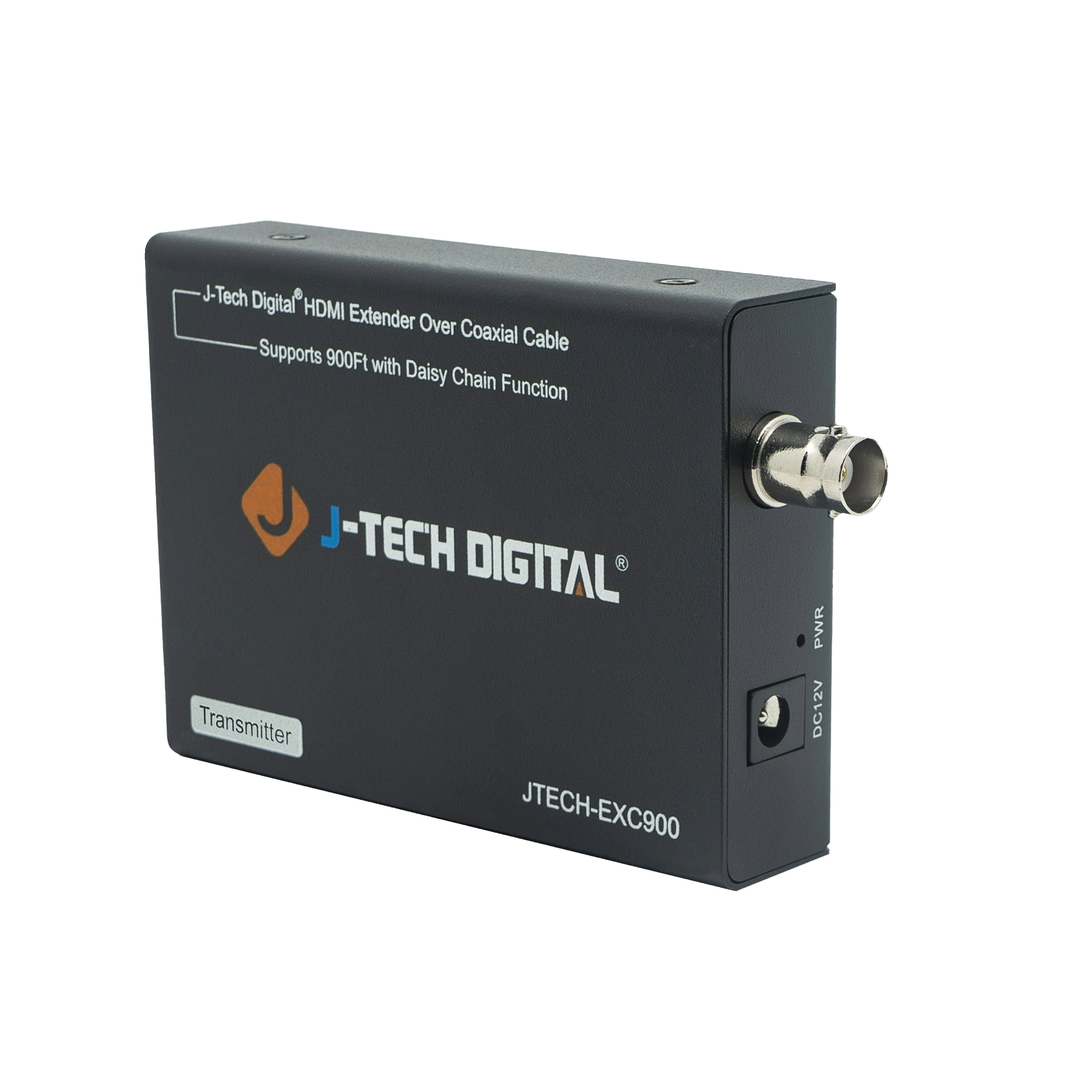

- Local HDMI Loop-Out: Simultaneously split AND extend your HDMI signal with the JTECH-EXC90 transmitter’s HDMI loop output port. Perfect for splitting an HDMI signal at your source device to a local TV while simultaneously extending over coax cable to a remote TV

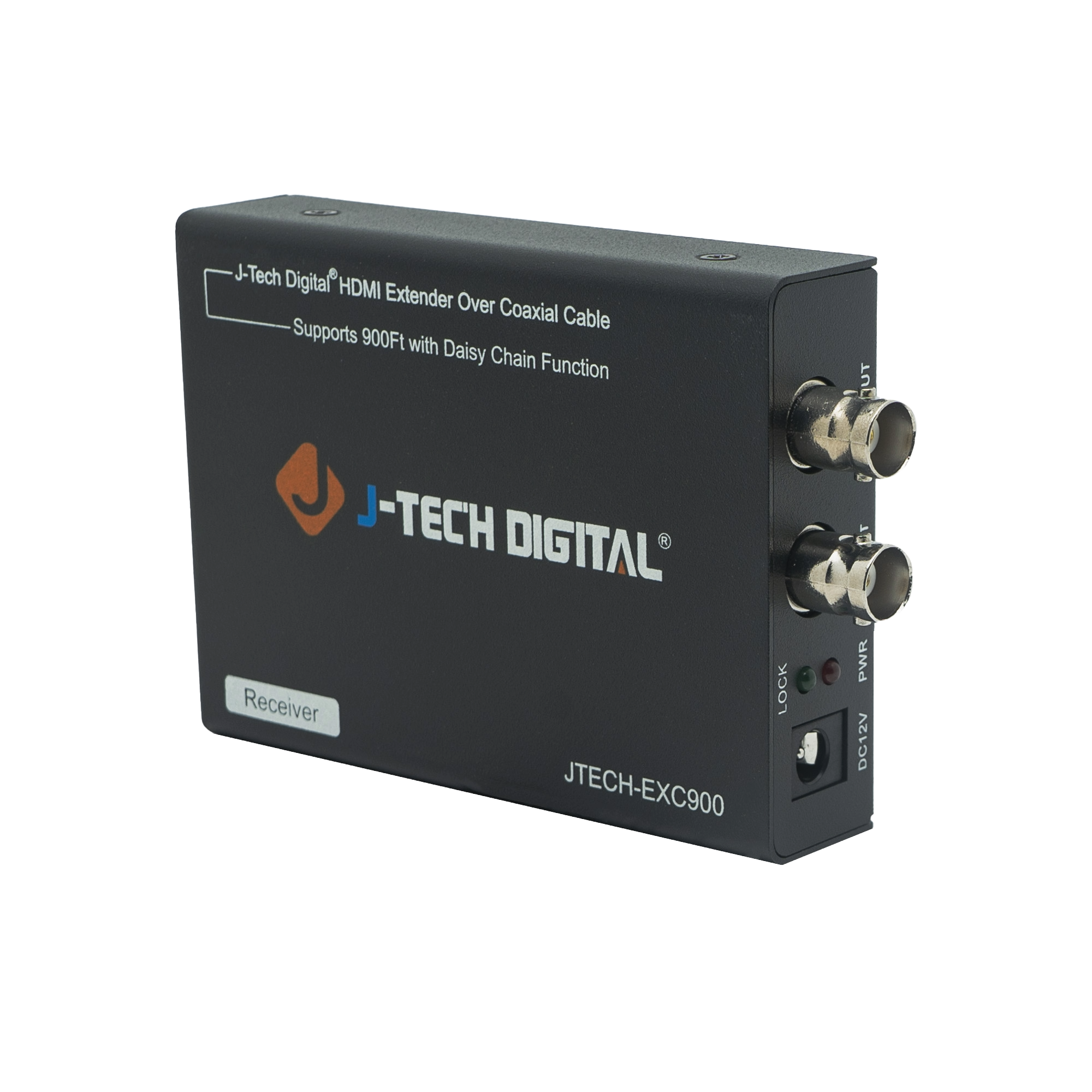

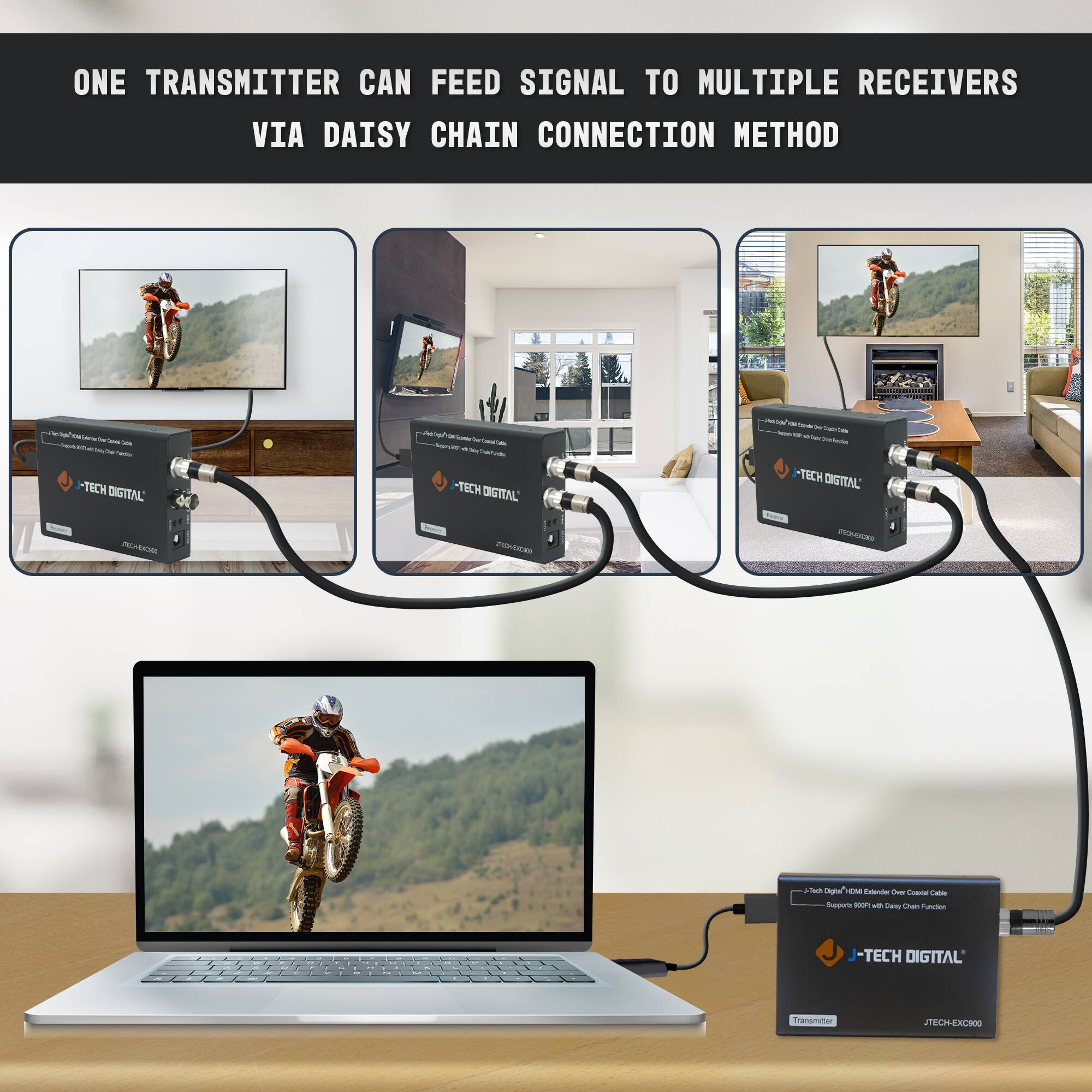

- Daisy Chain Coaxial Output: Use the JTECH-EXC900 HDMI over coax receiver’s daisy chain coax output to connect additional receivers that also display your original HDMI source signal. Perfect for digital signage and hospitality applications
Whats Included

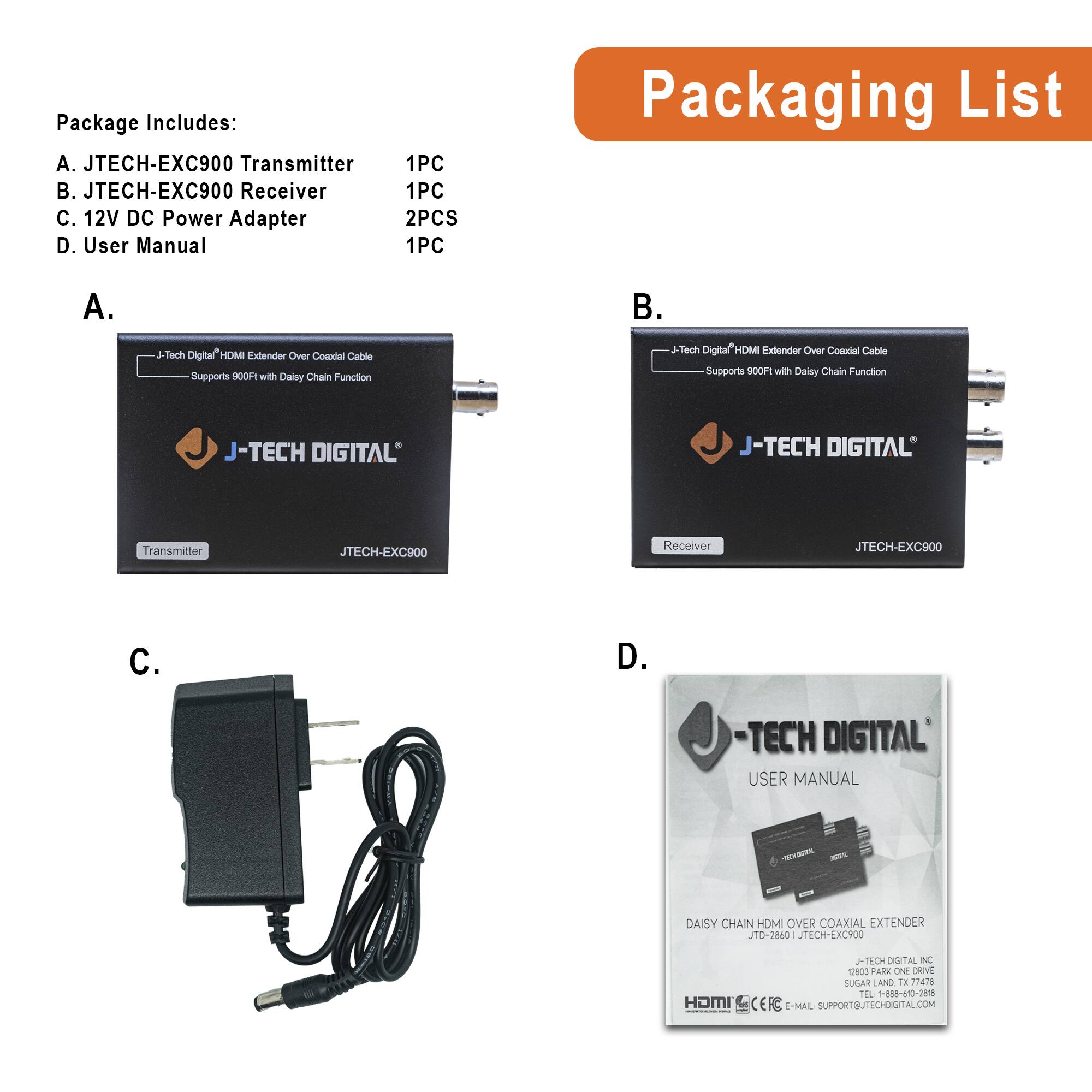

- Transmitter, Receiver, Power Adapter, User Manual
