J-Tech Digital - 14-in-1 USB-C to HDMI Triple Display Docking Station – Up to 4K 60Hz - Black
J-Tech Digital - 14-in-1 USB-C to HDMI Triple Display Docking Station – Up to 4K 60Hz - Black
Related Item
About This Item
- Key Specs
- Maximum Number of Displays Supported: 3
- Maximum Supported Resolution: 4K (2160p)
- Number of DisplayPort Outputs (Total): 0
- Number of Thunderbolt Ports (Total): 2
- General
- Brand: J-Tech Digital
- Model Number: JTECH-UHDOCK-MST
- Product Name: 14-in-1 USB-C to HDMI Triple Display Docking Station – Up to 4K 60Hz
- Color: Black
- Display
- Maximum Number of Displays Supported: 3
- Maximum Supported Resolution: 4K (2160p)
- Maximum Supported Refresh Rate: 60Hz (The number of frames per second the device can support, expressed as a frequency. Higher rates help produce smooth, seamless pictures.)
- Ports
- Display Connector(s): Display connection via USB port (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 0
- Number of HDMI Ports (Total): 3
- Number of Thunderbolt Ports (Total): 2
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number Of Ethernet Ports: 1
- Number of USB Ports (Total): 6
- USB Ports: 2 x USB-A 2.0, 2 x USB-A 3.0, 2 x USB-C (The number and type of USB ports the product has.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Memory Card Slot: true
- Memory Card Type: Secure Digital Extended Capacity (SDXC)
- Power
- Powered: true
- Power Supply Included: true
- Maximum Input Power: 150 watts (The maximum amount of power allowed to come into the device.)
- Compatibility
- System Requirements: Windows 7/8/8.1/10, MacOS 10.10.x and above (The software that a product must have for it to be able to integrate with another product.)
- Brand Compatibility: Universal
- Model Compatibility: Universal
- Dimensions
- Product Height: 7.8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 3.5 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 0.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.5 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058922427

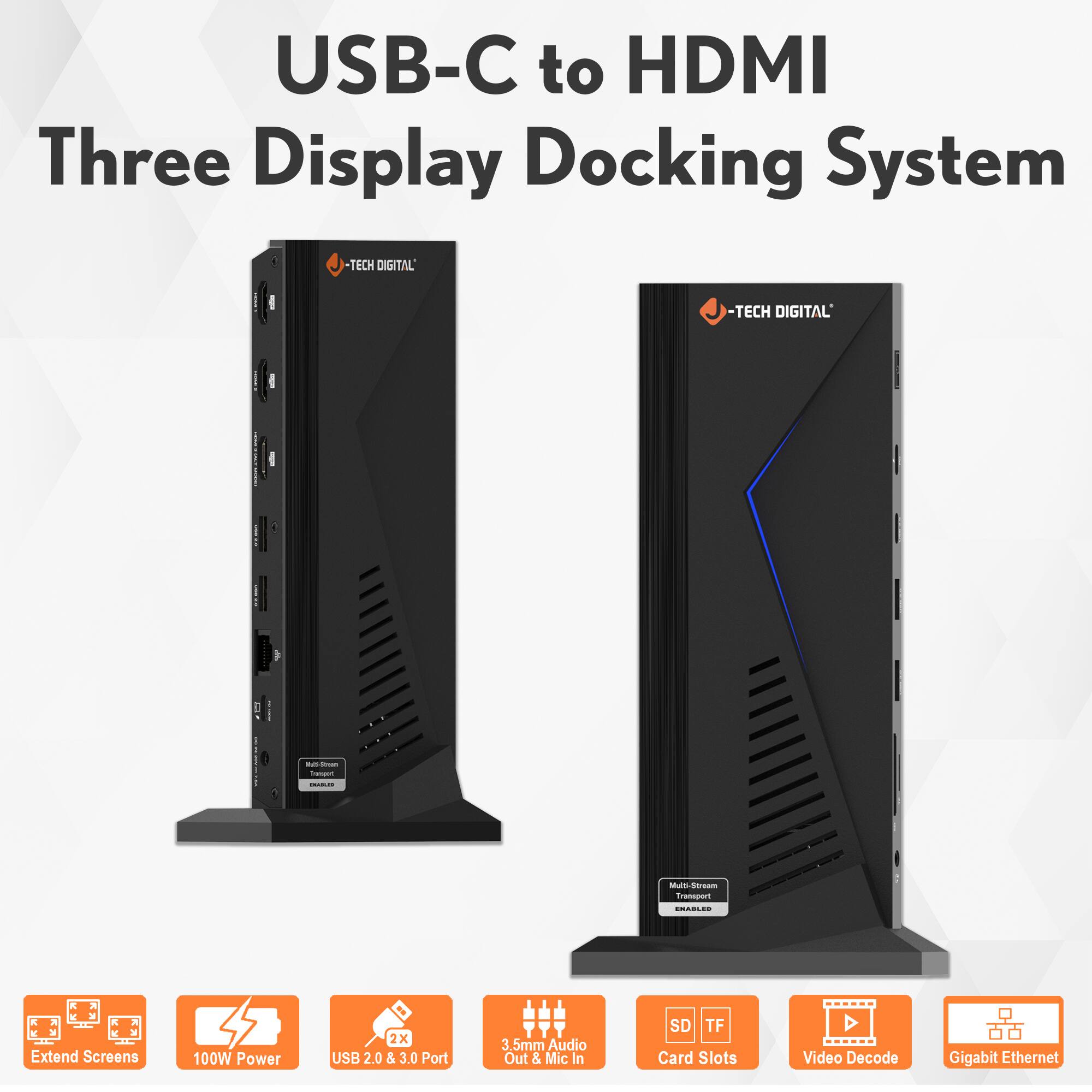

Upgrade your workspace with this powerful and easy-to-use 14-in-1 docking station. It’s perfect for turning your laptop into a full desktop setup—connect to triple monitors (including 4K at 60Hz), transfer files in seconds with USB 3.0, plug into fast wired internet, and even charge your laptop with up to 100W power delivery using the included 150W adapter. There's also a 20W USB-C port for quickly charging your phone or other devices. With wide compatibility (USB-C, USB-A, Thunderbolt 3/4, USB 4) and support for both Windows and macOS, this dock is ready to handle whatever you throw at it. Whether you're working from home, at the office, or on the go, it's the all-in-one solution that keeps everything connected and powered up.

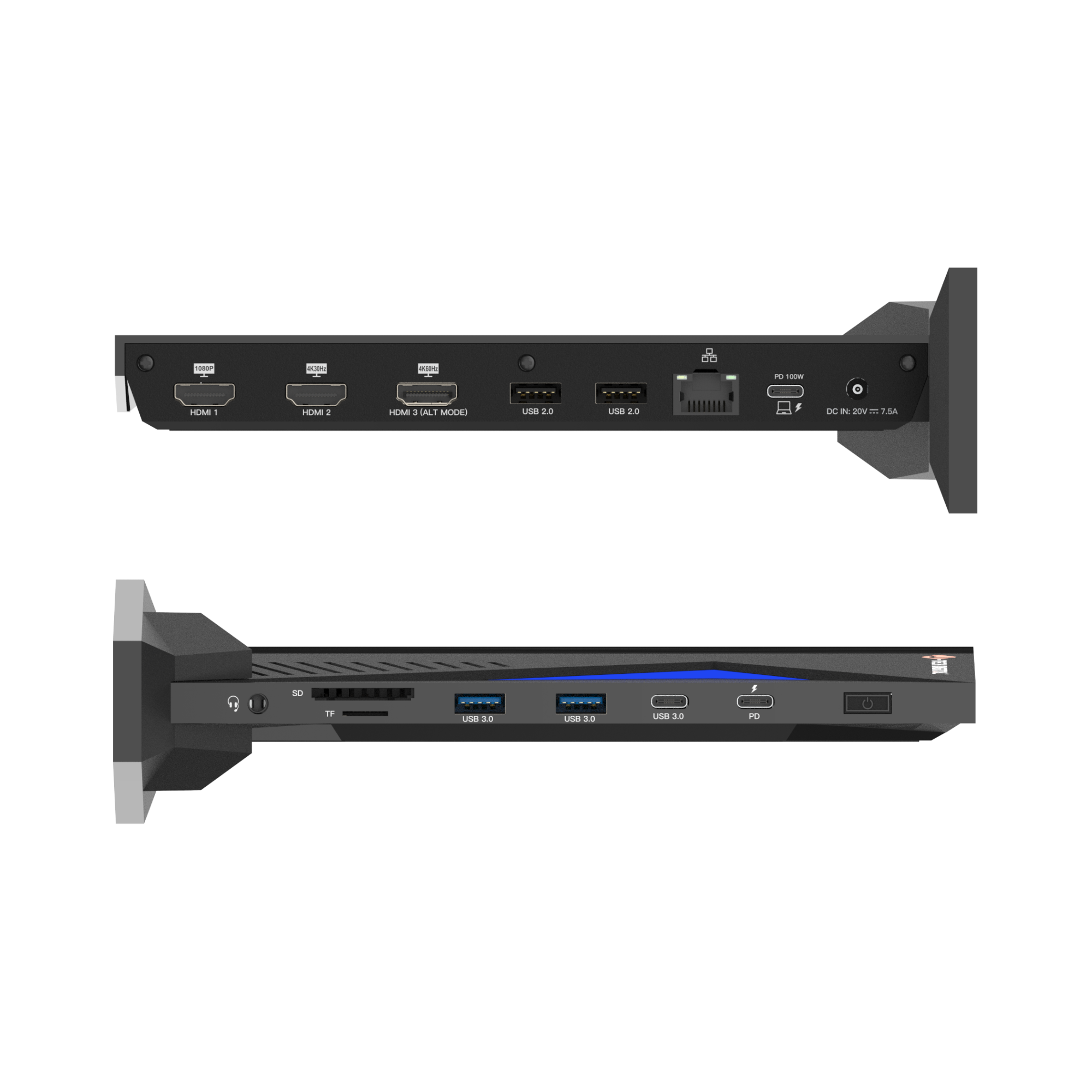

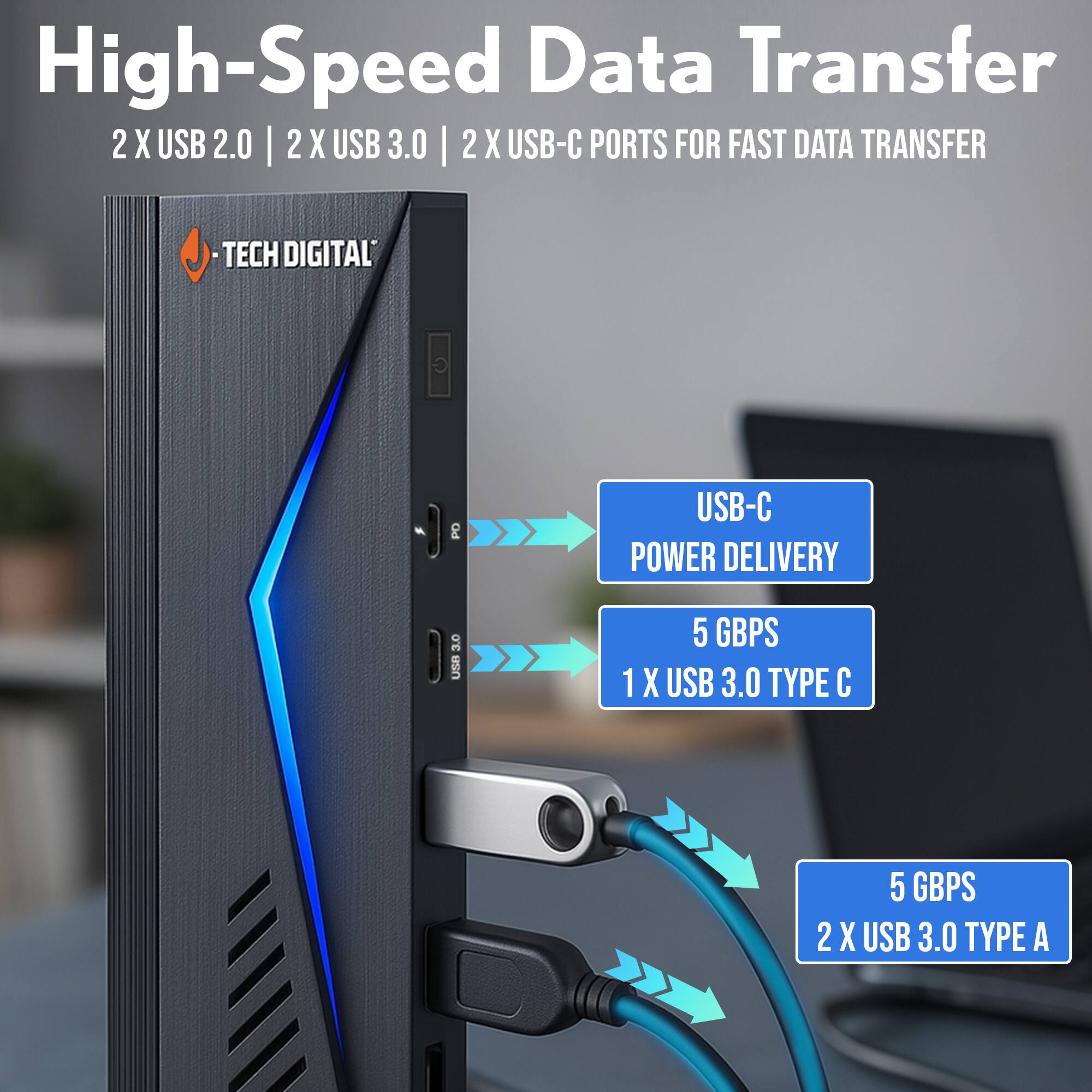

- Versatile 14-in-1 Docking Station: Connect your laptop to HDMI 4K displays at 60Hz and 30Hz, 1080p at 60Hz, USB-A 2.0 at 480Mbps, USB-A 3.0 at 5Gbps, USB-C 3.0 (Data Only), USB-C 3.0 with 20W PD Charging, Ethernet at 1Gbps, SD/TF at 104 MB/s, and a 3.5mm 4-Pole TRRS Headphone Jack for seamless integration with external devices. Achieve high-speed data transfers effortlessly.

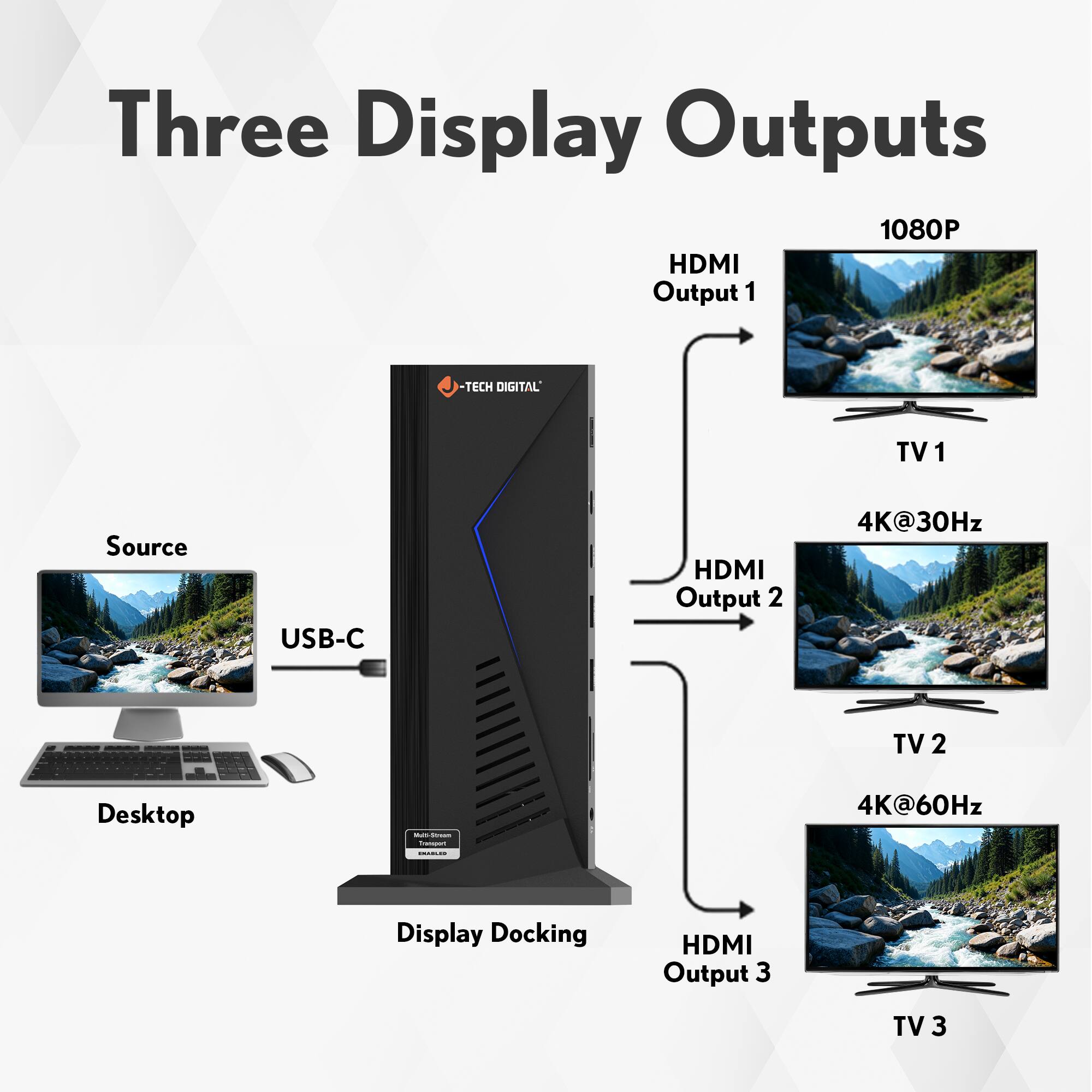

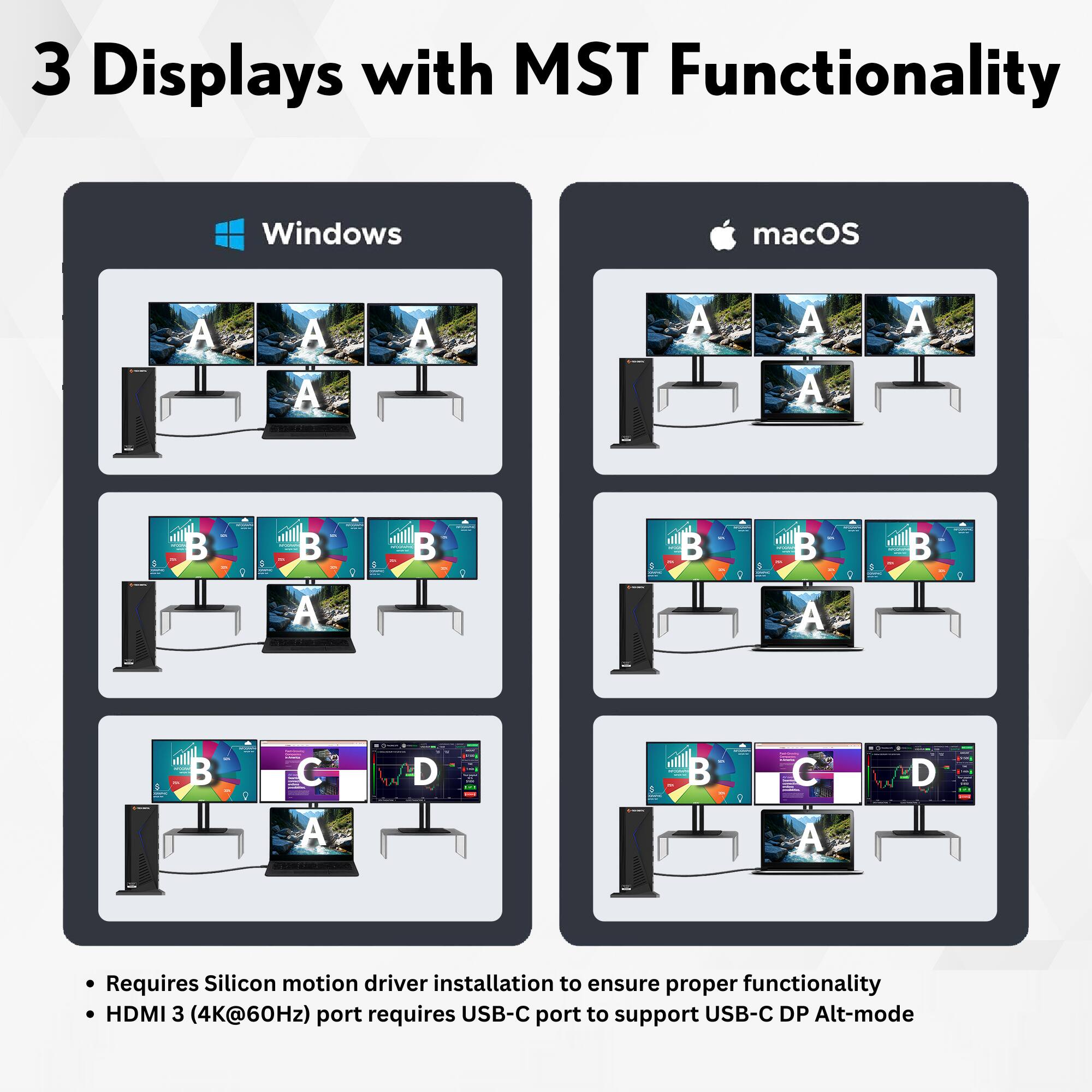

- Triple Display Support: Enjoy triple monitor support with HDMI 1080p at 60Hz, HDMI 4K at 30Hz (requires Silicon Motion Driver installation), and HDMI 4K at 60Hz (Plug and Play with DP Alt Mode).

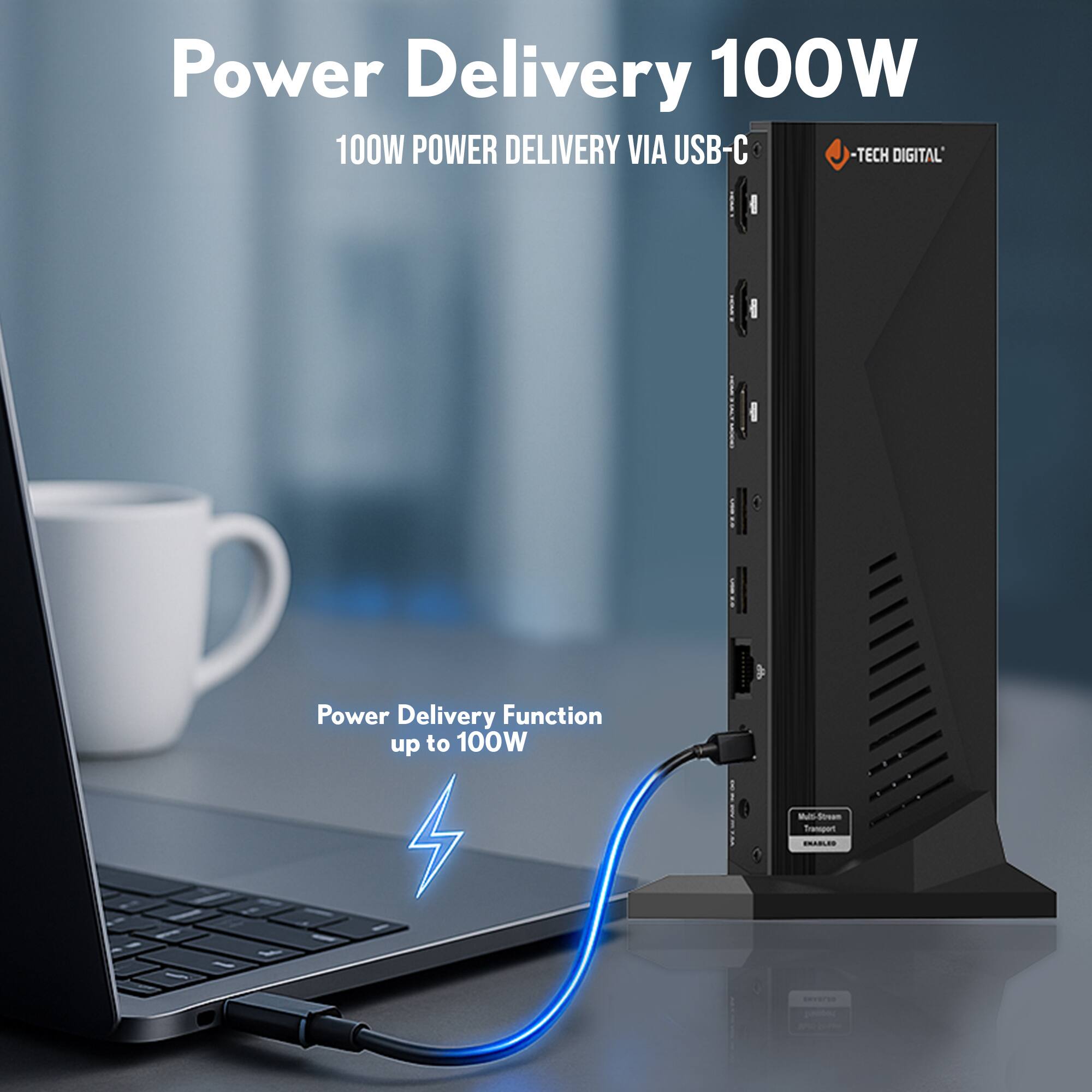

- 100W PD & 20W PD Fast Charging: Charge your laptop with up to 100W using the included 150W, 20V, 7.5A power adapter. The USB-C 3.0 PD port offers 20W of charging power for smartphones and other connected devices, ensuring comprehensive charging solutions.
- Wide Compatibility: Compatible with USB-C, USB-A, Thunderbolt 3/4, and USB 4 standard ports. Supports SST/MST for Windows 7/8/8.1/10 and above, and MacOS 10.10.x and above.
- Versatile 14-in-1 Docking Station: Connect your laptop to HDMI 4K displays at 60Hz and 30Hz, 1080p at 60Hz, USB-A 2.0 at 480Mbps, USB-A 3.0 at 5Gbps, USB-C 3.0 (Data Only), USB-C 3.0 with 20W PD Charging, Ethernet at 1Gbps, SD/TF at 104 MB/s, and a 3.5mm 4-Pole TRRS Headphone Jack for seamless integration with external devices. Achieve high-speed data transfers effortlessly.
- Triple Display Support: Enjoy triple monitor support with HDMI 1080p at 60Hz, HDMI 4K at 30Hz (requires Silicon Motion Driver installation), and HDMI 4K at 60Hz (Plug and Play with DP Alt Mode).
- 100W PD & 20W PD Fast Charging: Charge your laptop with up to 100W using the included 150W, 20V, 7.5A power adapter. The USB-C 3.0 PD port offers 20W of charging power for smartphones and other connected devices, ensuring comprehensive charging solutions.
- Wide Compatibility: Compatible with USB-C, USB-A, Thunderbolt 3/4, and USB 4 standard ports. Supports SST/MST for Windows 7/8/8.1/10 and above, and MacOS 10.10.x and above.

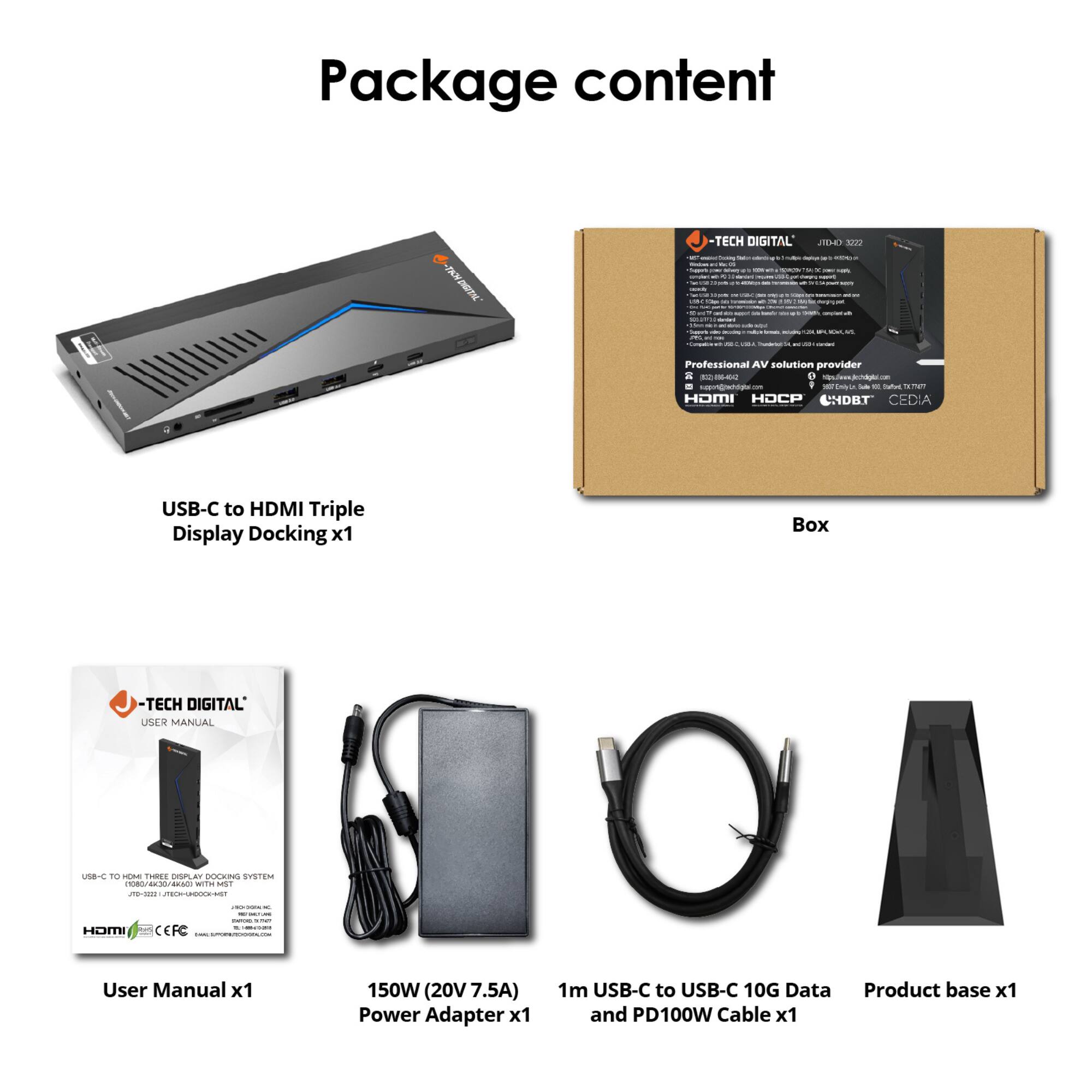

Whats Included
- Docking Station, Base Stand, USB-C Cable, User Manual
- Docking Station, Base Stand, USB-C Cable, User Manual
