J-Tech Digital - 4K 60Hz (4:2:0) HDBaseT HDMI Extender Balun Over Ethernet with PoC - Black
$7.99 shipping to
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-4K-EX-HDBaseT
- Product Name: J-Tech Digital 4K 60Hz (4:2:0) HDBaseT HDMI Extender Balun Over Ethernet with PoC
- Color: Black
- Features
- Maximum Video Resolution: 2160p (4K) (Maximum resolution refers to the highest number of pixels that a screen can process and display. Higher resolution signals produce more detailed video.)
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Powered: true
- Connectivity
- Wireless: false
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Maximum Transmission Range: 230 feet
- Dimensions
- Product Height: 1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 766150278545
J-Tech Digital 4K Ultra HD HDBaseT HDMI Extender Over Cat5e/6 Ethernet up to 230ft (1080P) 130ft (4K), Supports HDCP 2.2/1.4, RS232, Bi-Directional IR and PoC
- HDMI Extender Over Cat5e/6 Ethernet Cable: Extend 1080P up to 230 feet (70 meters) , 4K@60Hz (4:2:0) up to 130 feet (40 meters) over Cat5e/6 UTP cable. Supports 1080P 3D. The video is transmitted using uncompressed HDBaseT technology with this HDBaseT HDMI extender
- 4K@60Hz UHD Resolution Support: Also supports lower resolutions, such as 1080P, 720P, 576P, and 480P. HDMI 2.0 and HDCP 2.2 / 1.4 compliant
- Wide Digital Audio Format Compatibility: Supports digital audio formats, such as LPCM, DTS-HD, Dolby TrueHD, Dolby Digital, and more

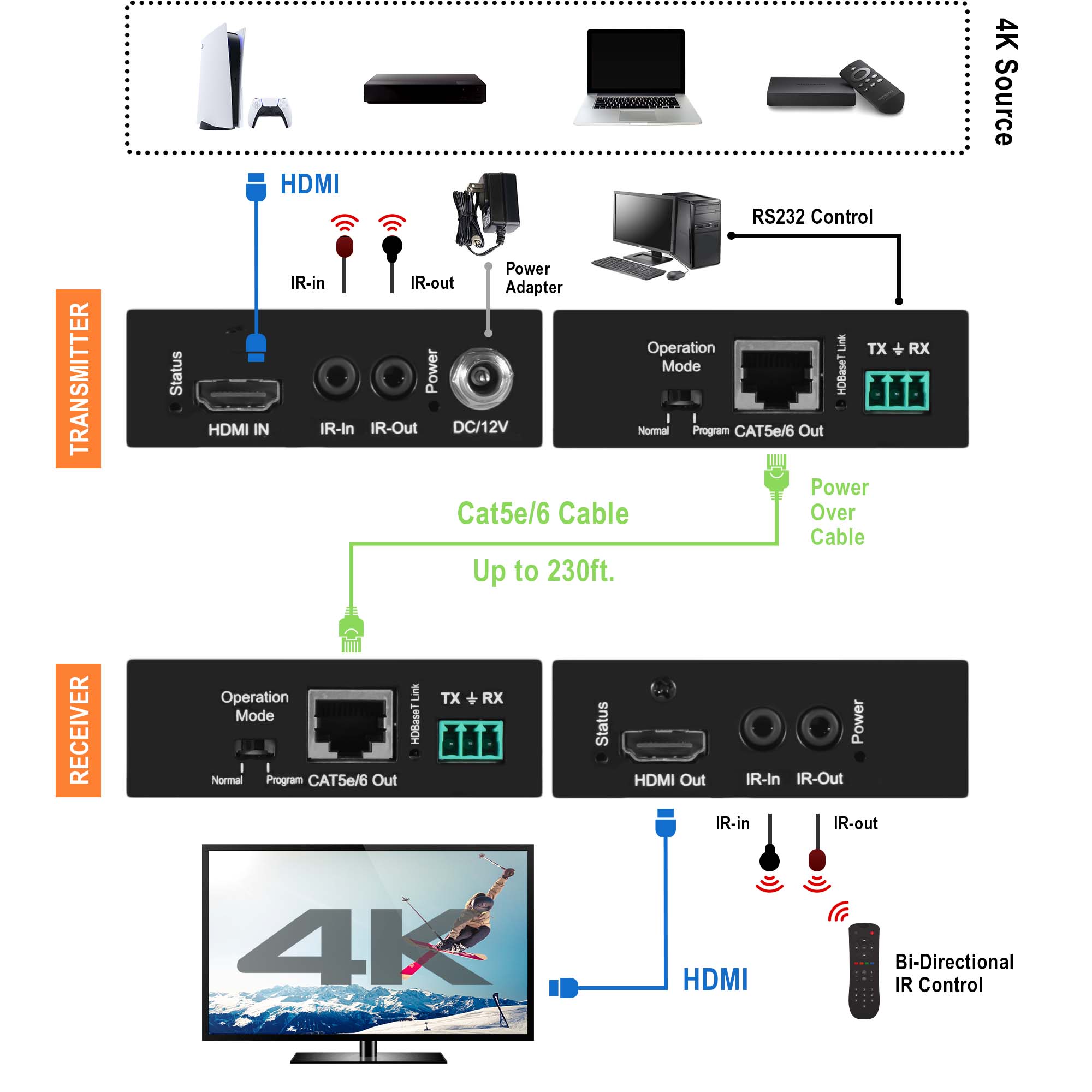

- Dual IR 20~60kHz Bi-Directional Extension: Extends IR signal from source to receiver or transmitter to receiver. Phoenix RS232 Port for firmware update or RS232 control signal transmission.
- For Better Performance: We suggest using solid COPPER ethernet cable with this product. For guaranteed optimal performance, use the J-Tech Digital Customized Ethernet Cable
- HDMI Extender Over Cat5e/6 Ethernet Cable: Extend 1080P up to 230 feet (70 meters) , 4K@60Hz (4:2:0) up to 130 feet (40 meters) over Cat5e/6 UTP cable. Supports 1080P 3D. The video is transmitted using uncompressed HDBaseT technology with this HDBaseT HDMI extender
- 4K@60Hz UHD Resolution Support: Also supports lower resolutions, such as 1080P, 720P, 576P, and 480P. HDMI 2.0 and HDCP 2.2 / 1.4 compliant
- Wide Digital Audio Format Compatibility: Supports digital audio formats, such as LPCM, DTS-HD, Dolby TrueHD, Dolby Digital, and more
- Dual IR 20~60kHz Bi-Directional Extension: Extends IR signal from source to receiver or transmitter to receiver. Phoenix RS232 Port for firmware update or RS232 control signal transmission.
- For Better Performance: We suggest using solid COPPER ethernet cable with this product. For guaranteed optimal performance, use the J-Tech Digital Customized Ethernet Cable

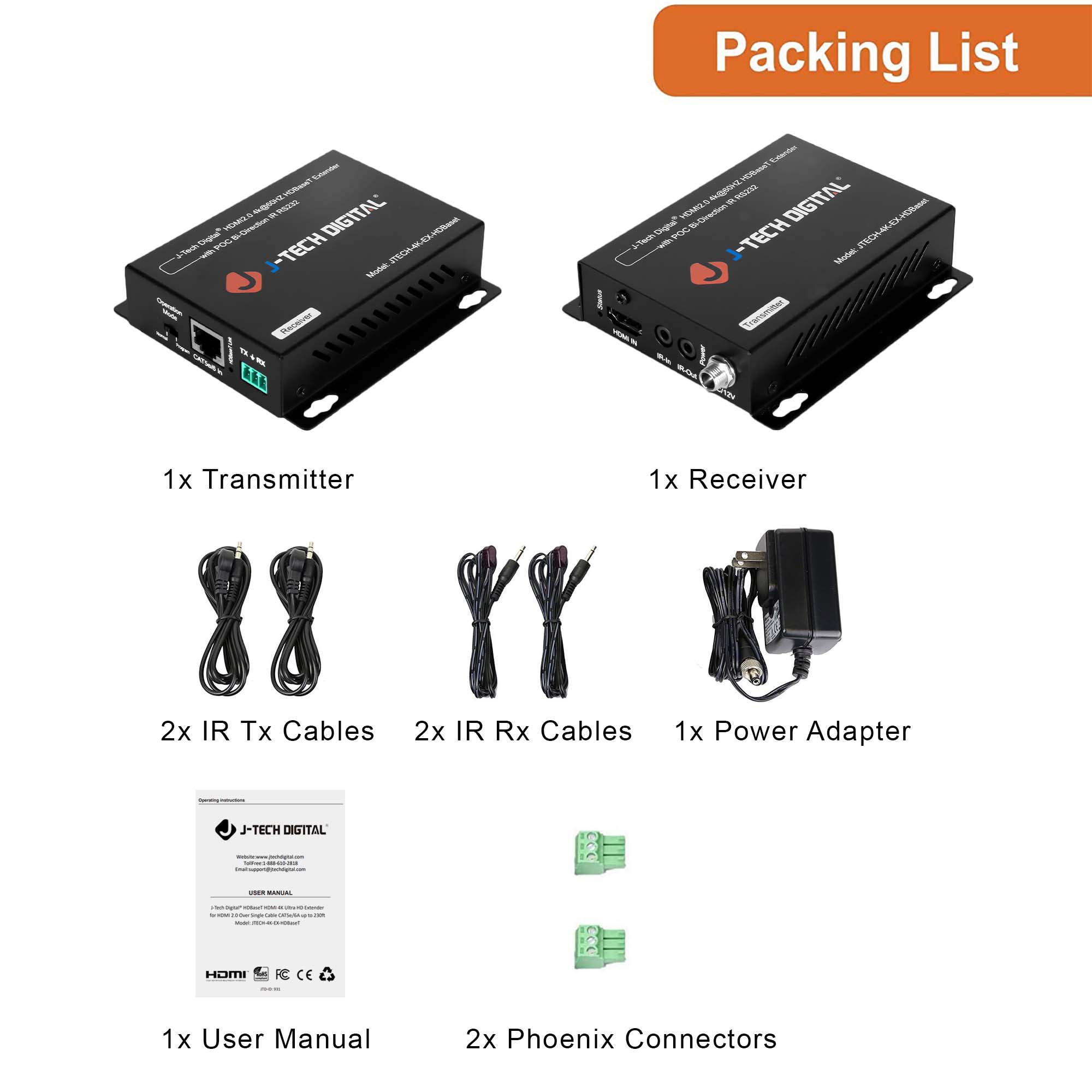

Whats Included

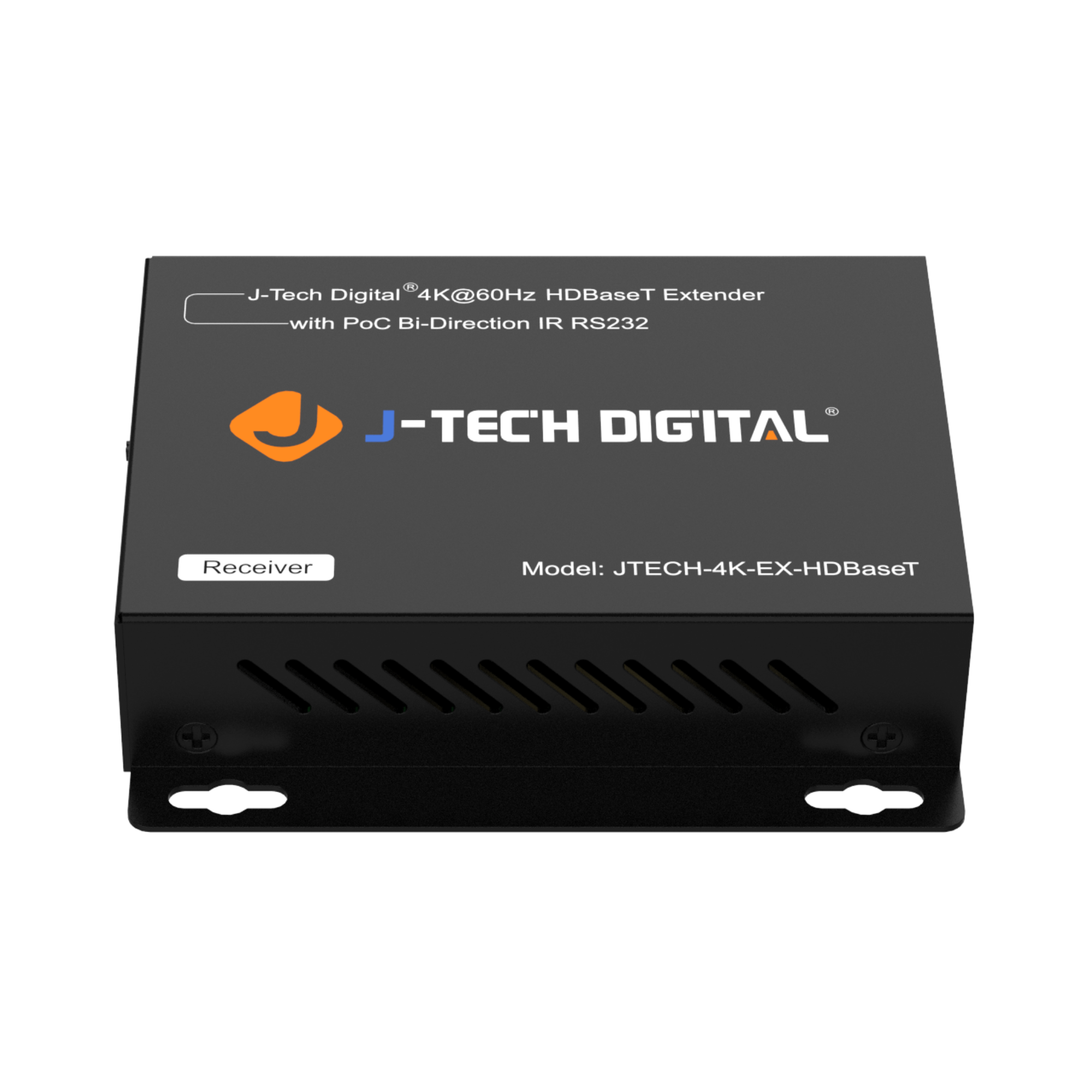

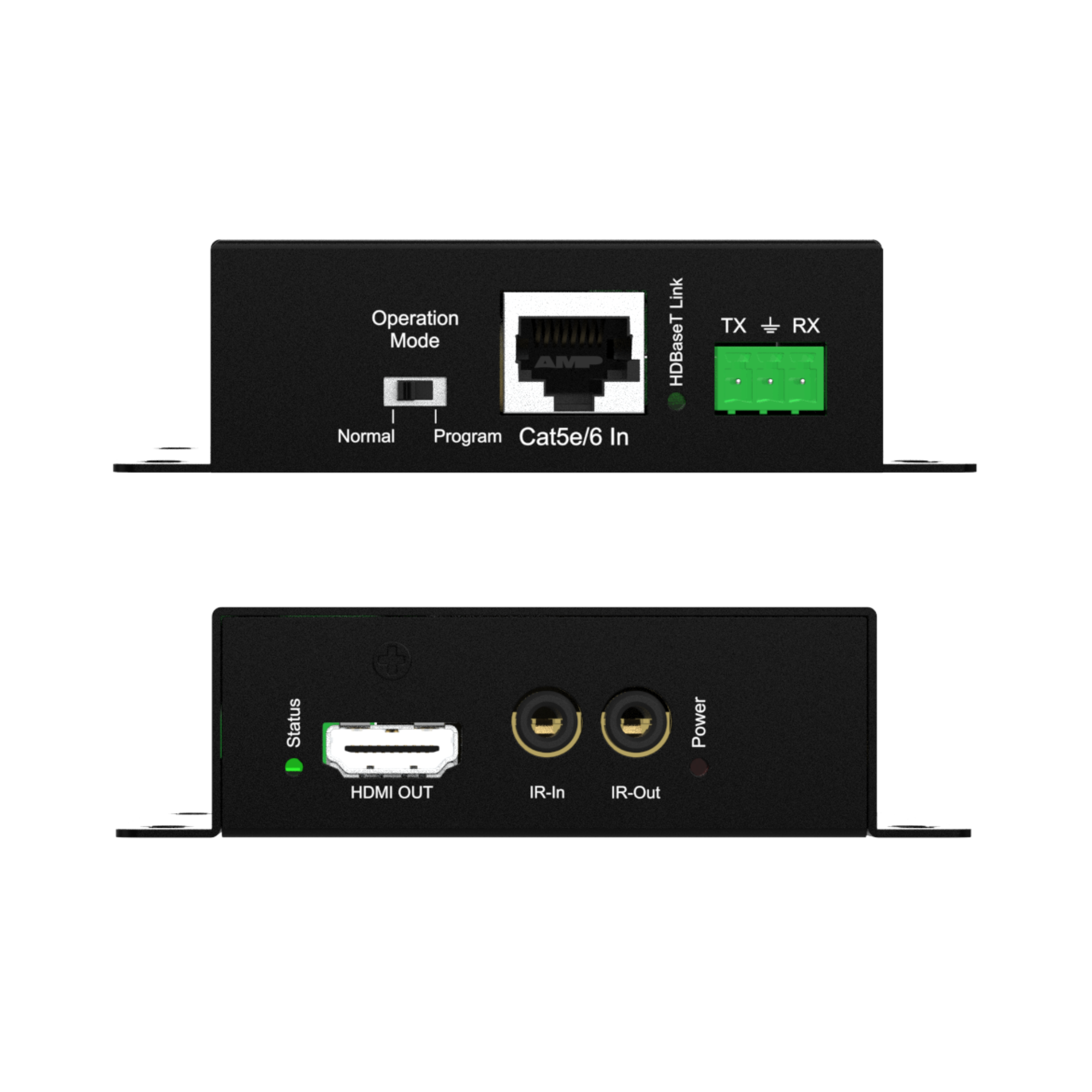

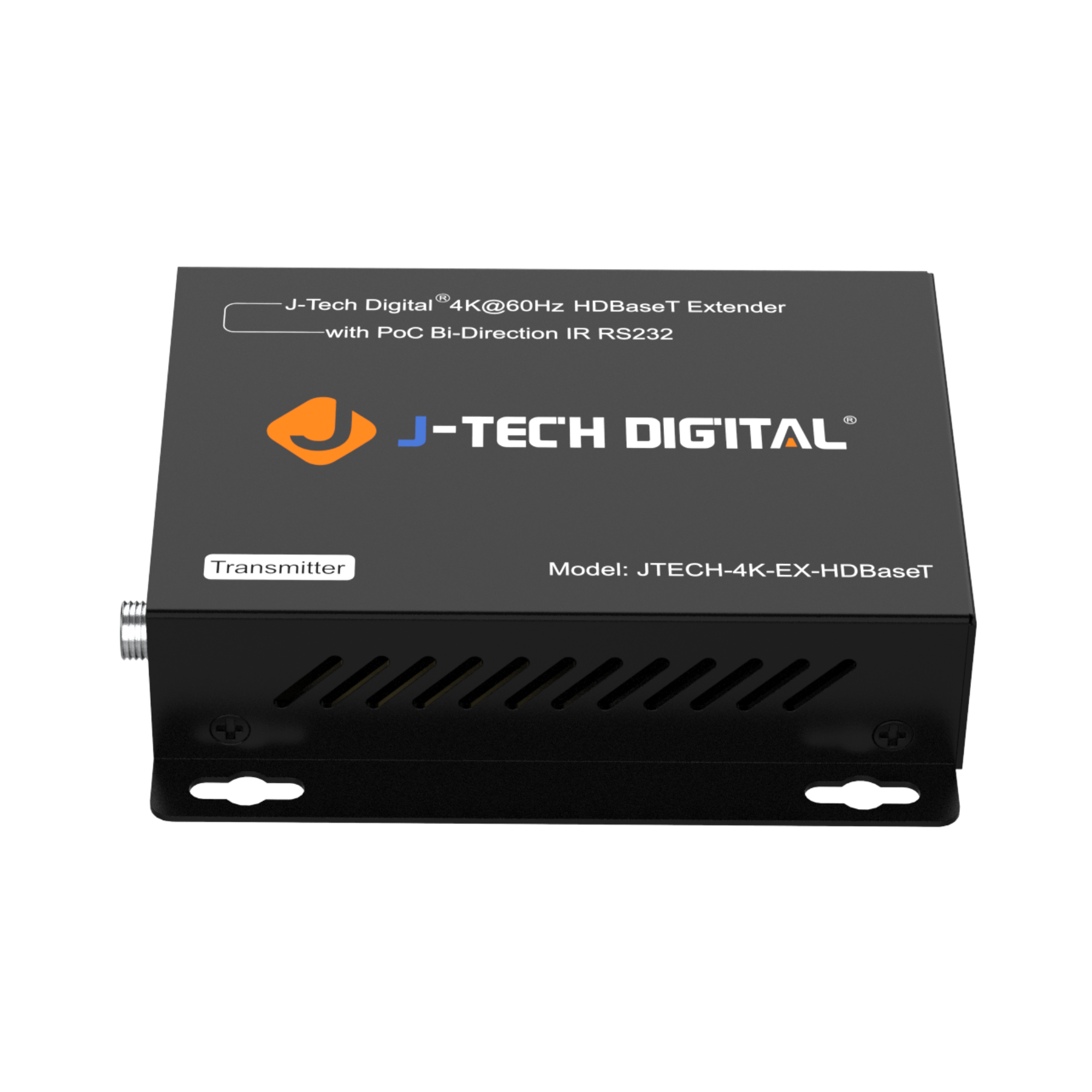

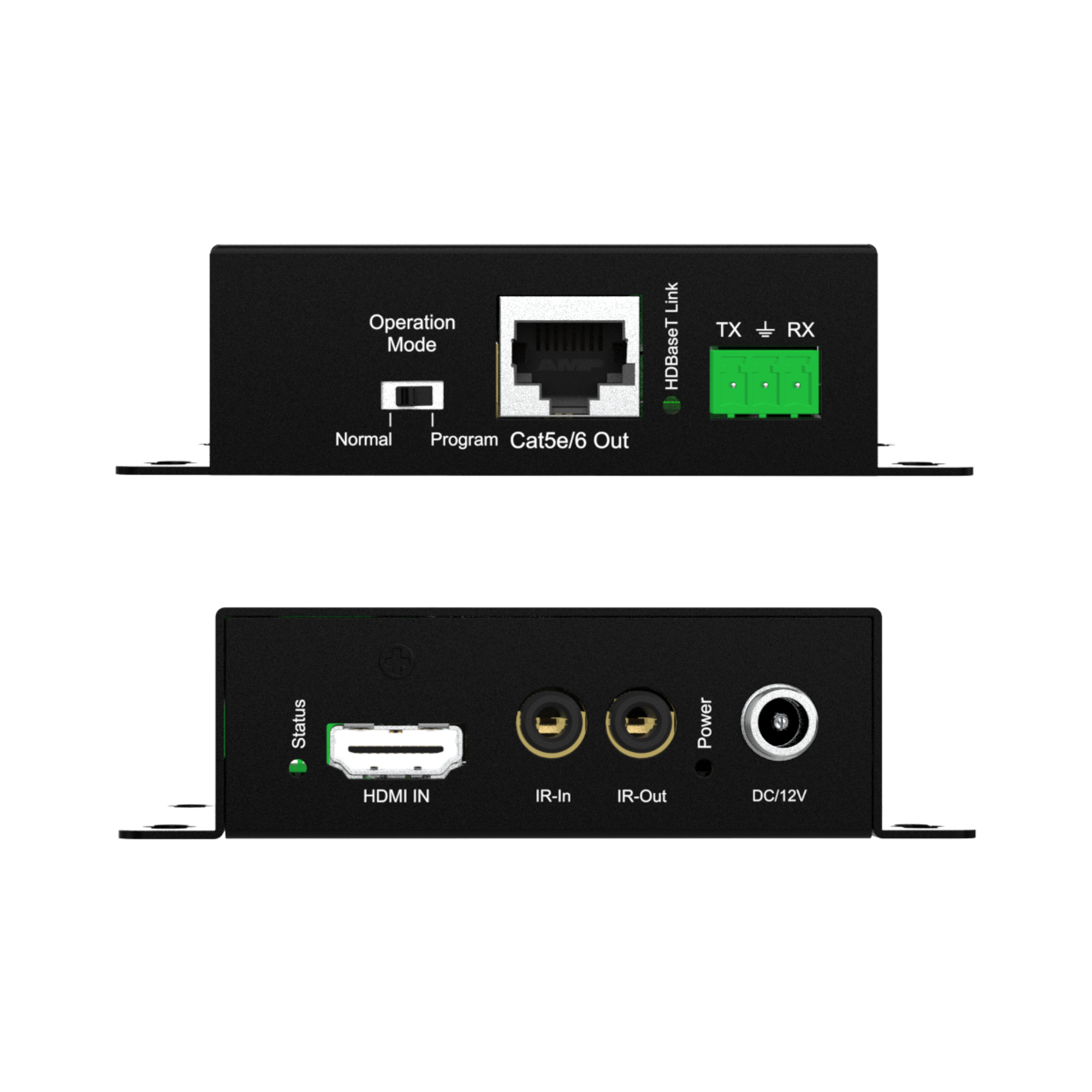

- Transmitter, Receiver, Power Adapters, User Manual, IR Cables
- Transmitter, Receiver, Power Adapters, User Manual, IR Cables
