J-Tech Digital - 4K 60Hz (4:4:4) HDBaseT HDMI Extender Balun Over Ethernet (394ft) - Black
J-Tech Digital - 4K 60Hz (4:4:4) HDBaseT HDMI Extender Balun Over Ethernet (394ft) - Black
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-UHDT150
- Product Name: J-Tech Digital 4K 60Hz (4:4:4) HDBaseT HDMI Extender Balun Over Ethernet (394ft)
- Color: Black
- Features
- Maximum Video Resolution: 2160p (4K) (Maximum resolution refers to the highest number of pixels that a screen can process and display. Higher resolution signals produce more detailed video.)
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Powered: true
- Connectivity
- Wireless: false
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Maximum Transmission Range: 492 feet

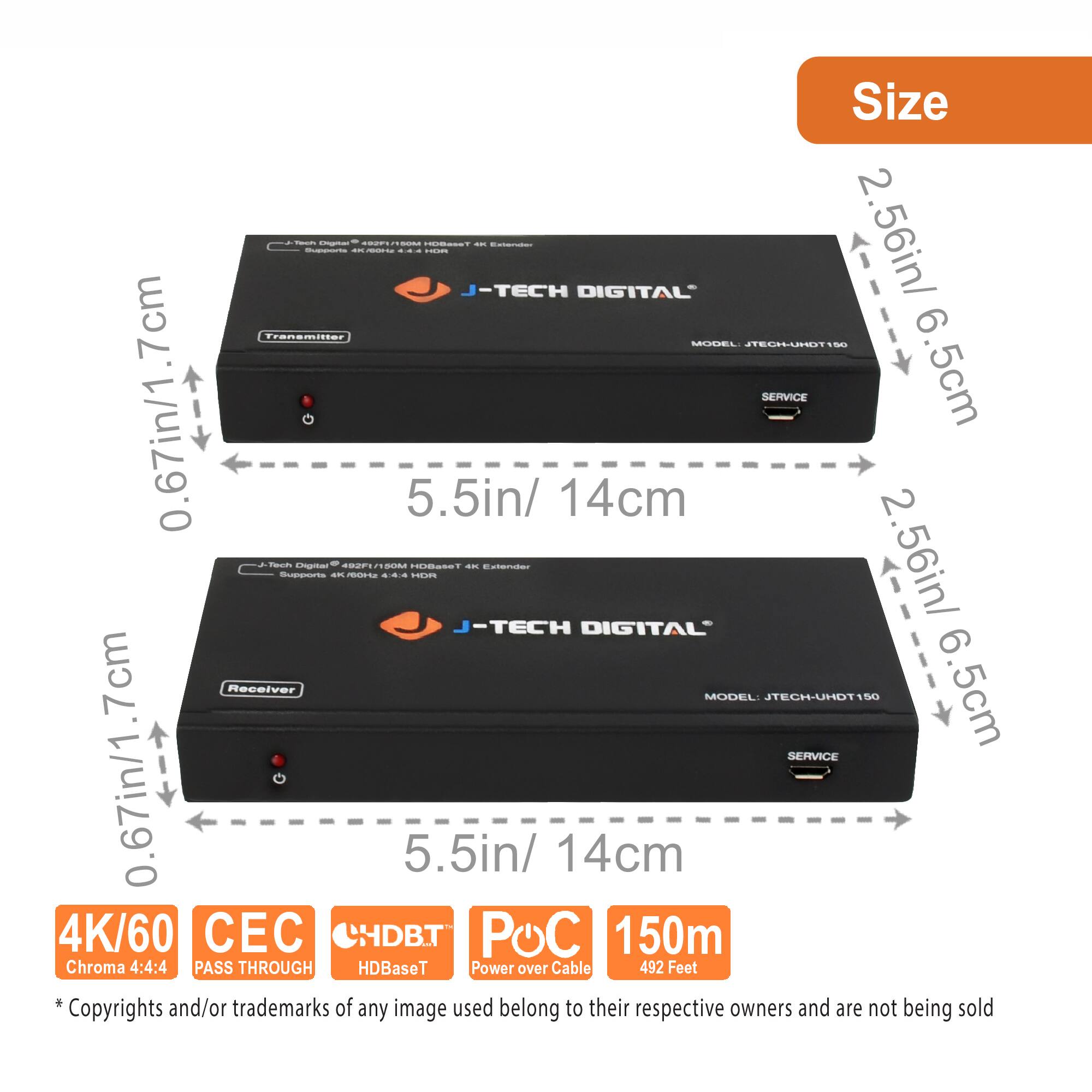

- Dimensions
- Product Height: 0.67 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.56 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 850001567893

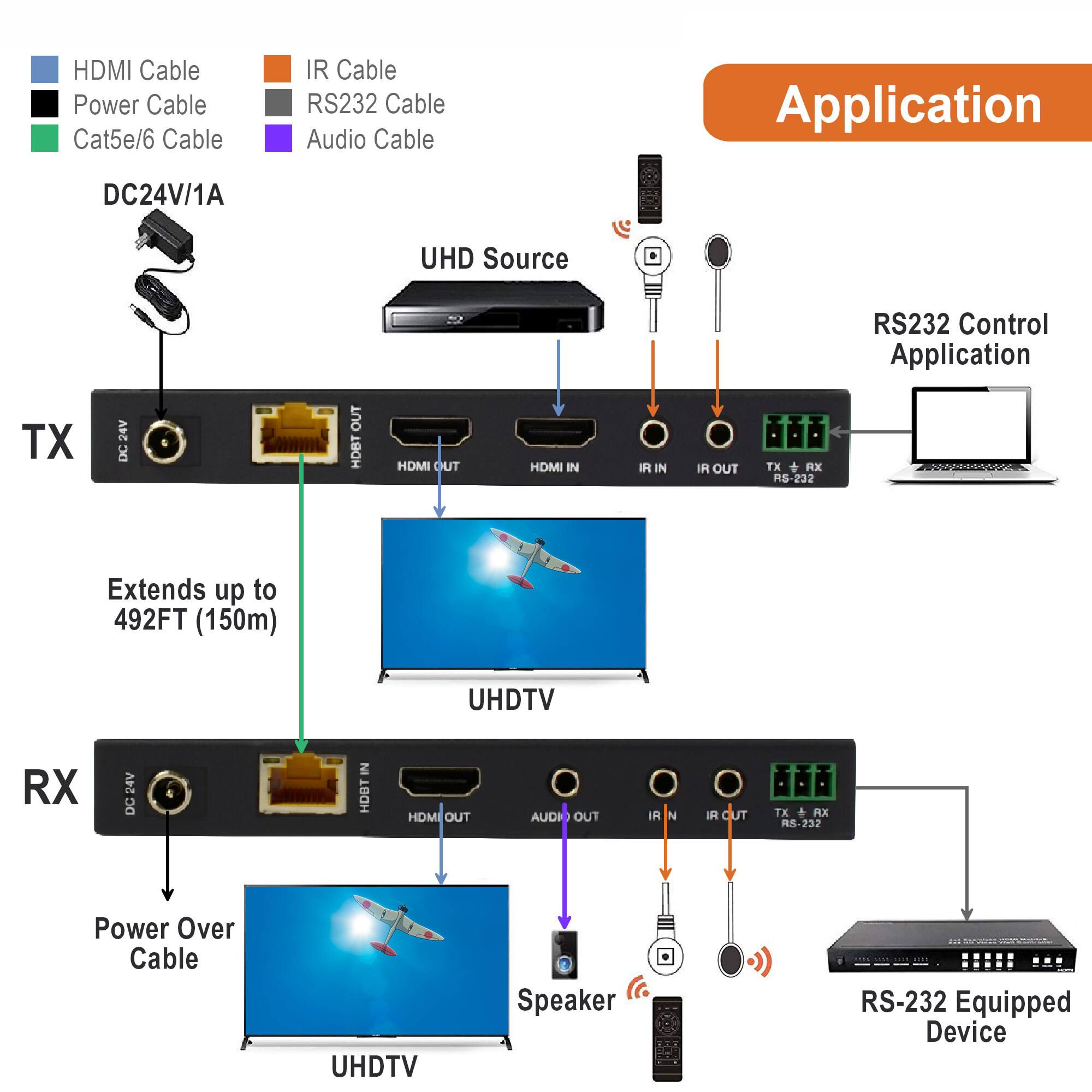

The JTECH-UHDT150 is a professional UHD 4K@60Hz 4:4:4 HDR HDMI over ethernet extender solution. Users can transmit a 4K 60Hz signal up to 394 feet away over a single Cat5e/Cat6 ethernet cable. The JTECH-UHDT150 transmitter features a local HDMI output port for splitting your source signal locally and extending an output to a remote display. Utilize the built-in PoC (Power over Cable) function and power both your transmitter and receiver from only one power adapter. Installation is simple, quick and easy. The JTECH-UHDT150 will pass your display’s EDID information to your connected source device so that any signal compatibility issues will be resolved before they even begin. Flexible and appropriate for any application, the UHDT150 supports the latest audio and video standards including – HDR | HDR-10 | Dolby Vision | Dolby Digital + | DTS-HD Master & Dolby TrueHD.

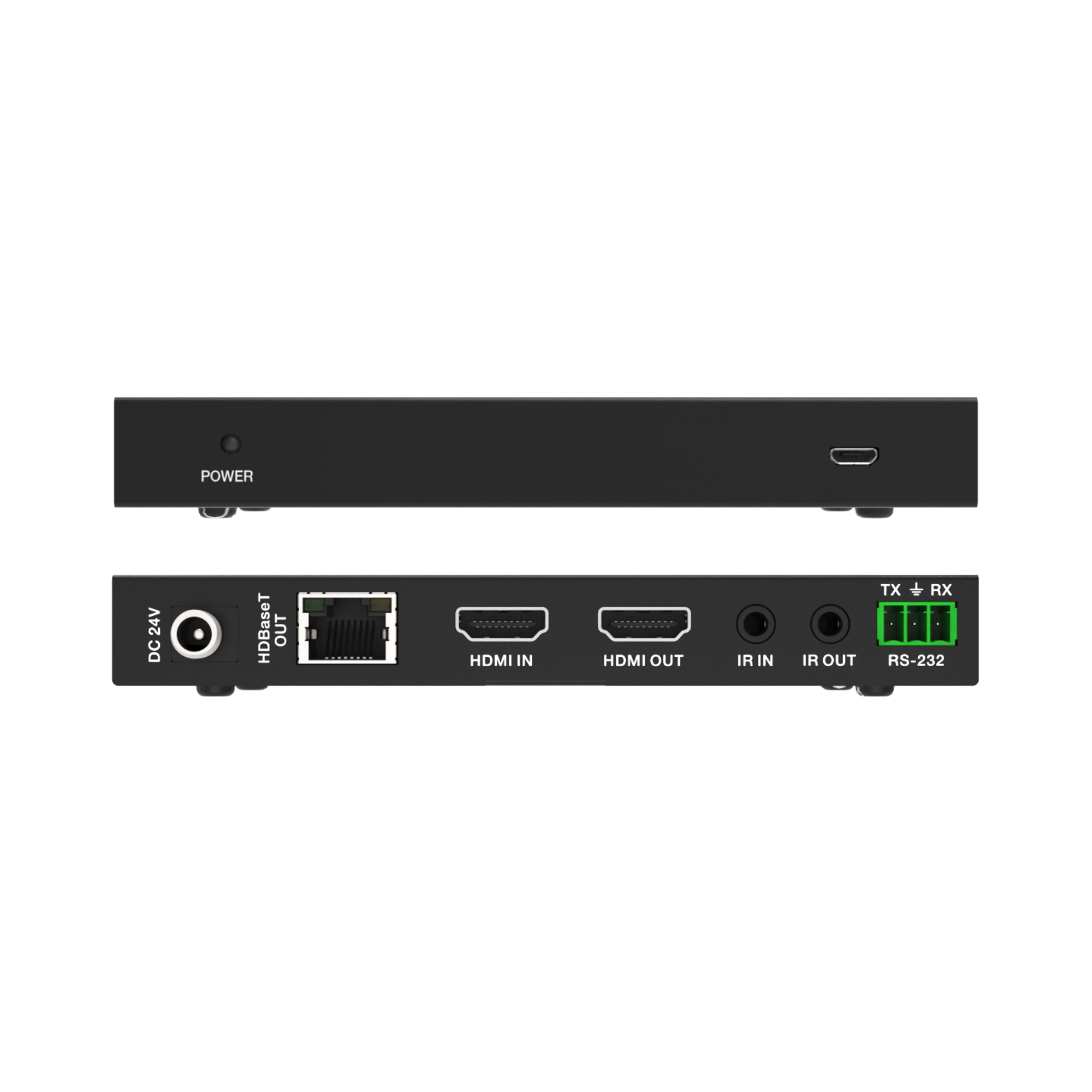

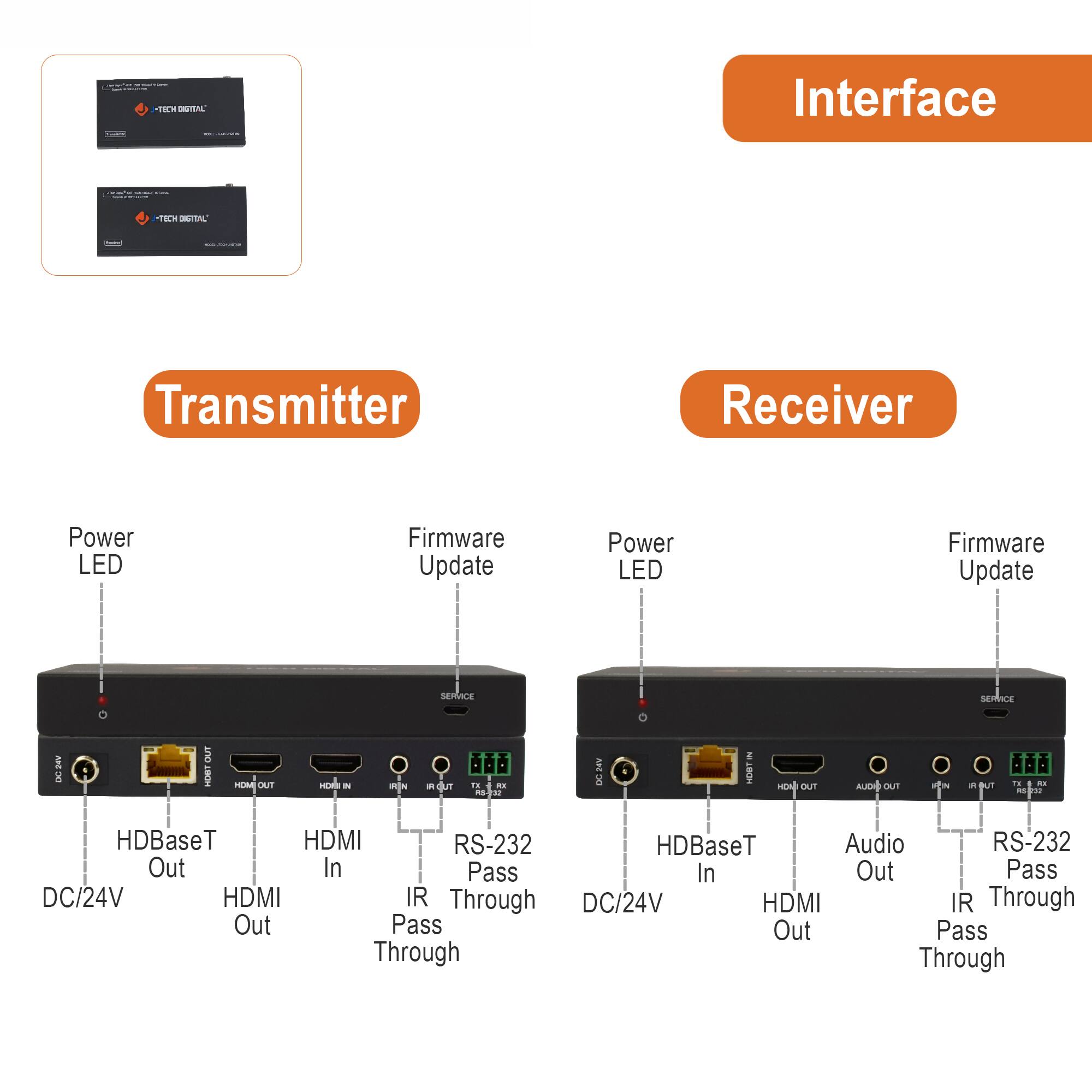

- Up To 4K@60Hz Resolution | Transmitter HDMI Loop-Out: Transmit 4K@60Hz 4:4:4 HDR HDMI Signals up to 394 ft. (120m) via this HDBaseT HDMI extender. Transmit 1080p up to 492 ft. (150m) over a single Cat5e/6 cable. Connect a display to the transmitter’s HDMI output port to view the signal being sent to the receiver

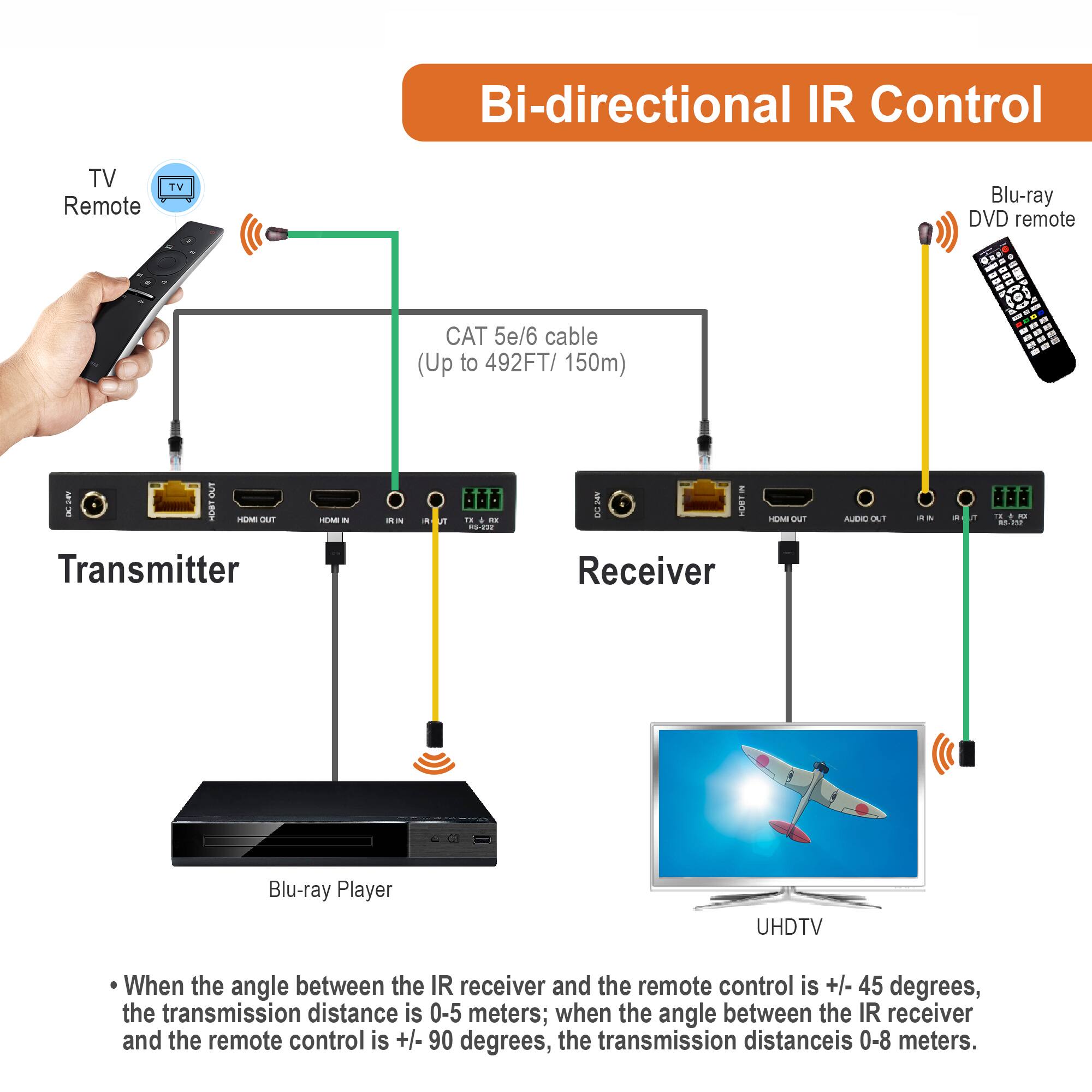

- Bi-Directional IR, CEC, RS232 Pass-Through: Control your source from your display/receiver side, or vice-versa via Bi-Directional IR. Pass RS-232 or CEC commands from source to display or from display to source via Bi-Directional CEC & Bi-Directional RS-232 pass-through
- Power over Cable & EDID Pass-Through: Take advantage of the Power over Cable feature and power both your transmitter and receiver from only one power adapter. Power adapter can be placed on either the transmitter or receiver side for maximum convenience. The JTECH-UHDT-150 passes your display’s EDID information to your source device so that you can avoid signal compatibility issues all together
- Dolby Vision & Dolby Digital+ Supported: Enjoy the latest digital content the way it was intended. JTECH-UHDT-150 supports 4K 60Hz 4:4:4 signals and HDR / HDR-10 / Dolby Vision metadata. Supported surround sound formats include Dolby TrueHD, DTS HD Master and Dolby Digital +
Whats Included

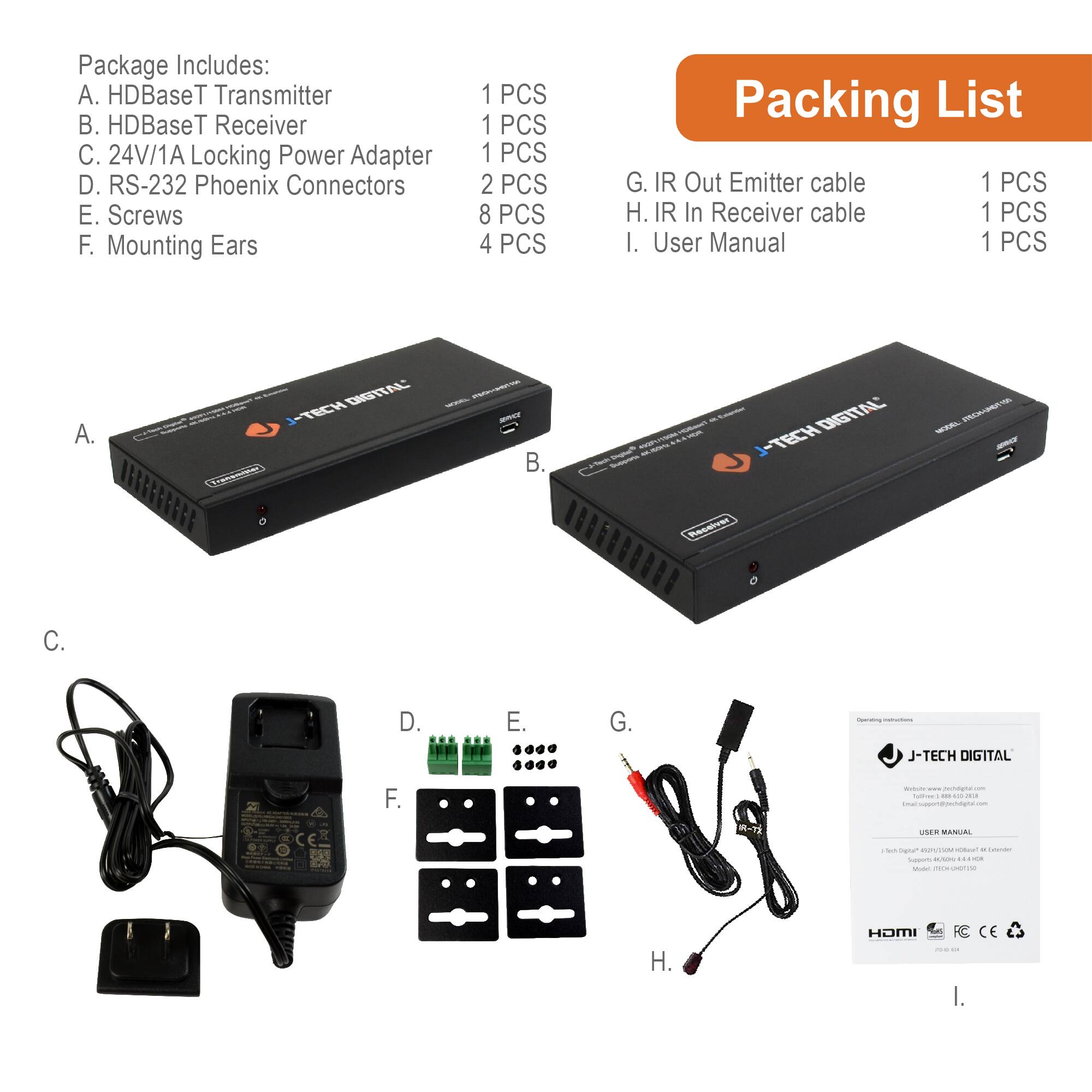

- Transmitter, Receiver, Power Adapter, User Manual, IR Cables
