J-Tech Digital - 4K 60Hz Multi Input HDMI VGA USB-C Presentation Switch with HDBaseT Extension - Black
Reviews coming soon
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-PS42B
- Product Name: J-Tech Digital 4K 60Hz Multi Input HDMI VGA USB-C Presentation Switch with HDBaseT Extension
- Color: Black
- Features
- Maximum Video Resolution: 2160p (4K) (Maximum resolution refers to the highest number of pixels that a screen can process and display. Higher resolution signals produce more detailed video.)
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Powered: true
- Connectivity
- Wireless: false
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Maximum Transmission Range: 130 feet
- Dimensions
- Product Height: 1.53 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5.39 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058920638
The J-Tech Digital JTECH-PS42B presentation switcher is the perfect AV solution for your conference room and meeting space. Connect HDMI, USB-C and VGA source devices to the presentation switch and share content with resolutions up to 4K@60Hz 4:4:4 HDR10. Share your content to two screens simultaneously via HDMI and HDBaseT outputs. Transmit your 4K signal up to 130 feet away via PoC (power over cable) HDBaseT. Embed analog audio from external devices or microphones and de-embed audio (digital or analog) so that you may route them to an external audio processor.

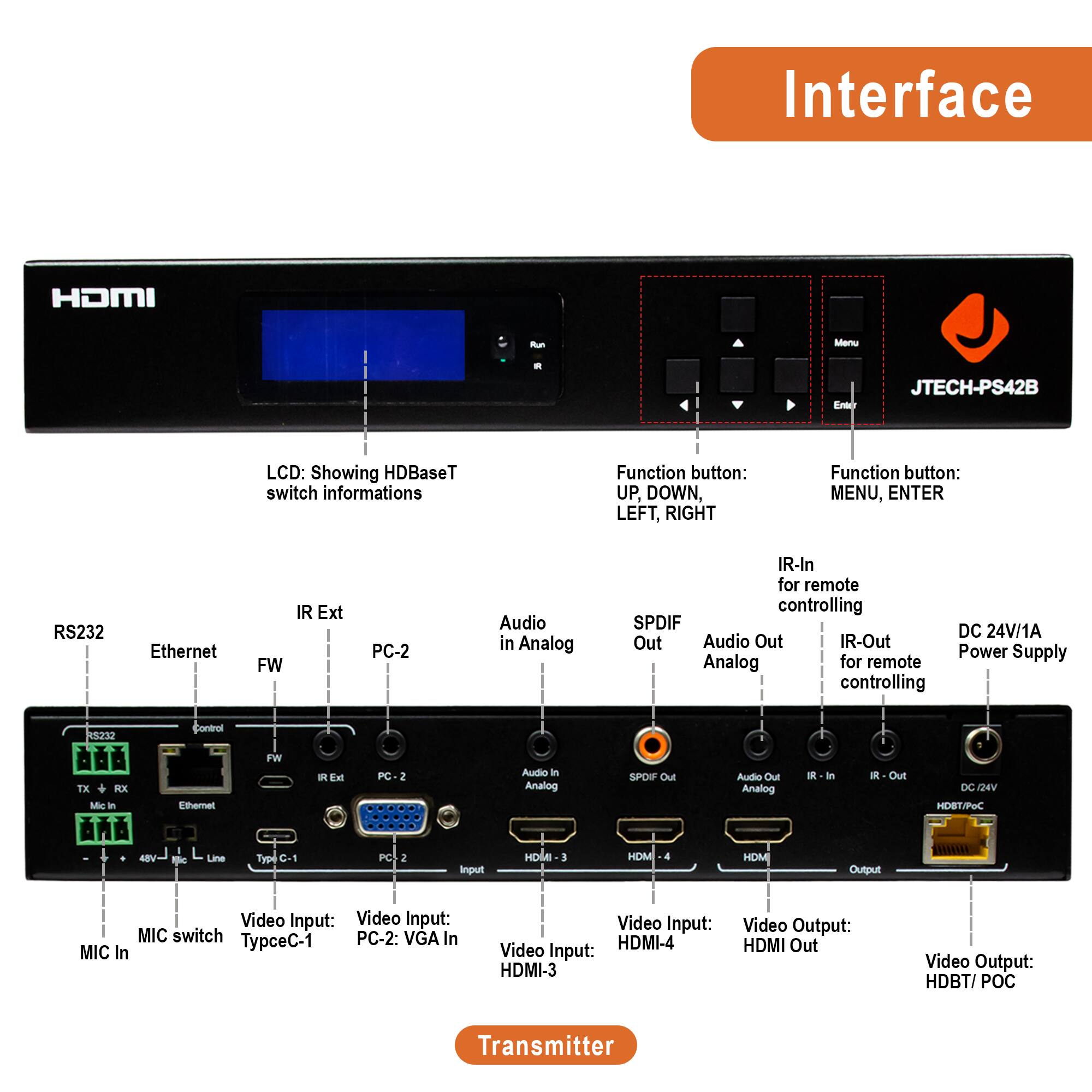

- HDMI + USB-C + VGA Input Ports: Connect HDMI, USB type C, and VGA source devices to your JTECH-PS42B presentation switch. Bring your own device and accommodate your guest’s needs by offering multiple input options
- Dual Output | HDMI + HDBaseT (130FT): Connect two 4K UHD HDMI displays simultaneously. The JTECH-PS42B switch features a local HDMI output and a PoC (Power Over Cable) HDBaseT output capable of extending a 4K 60Hz signal up to 130 FT away over CAT6
- BI-Directional IR & RS-232 Pass-Through: Transmit IR and RS-232 commands from source to display or display to source for flexible control options. Perfect for integrating into 3rd party control systems like Crestron
- Analog Embed | Analog De-Embed: Embed analog audio from external sources such as conference microphones into your signal and extract both digital and analog audio for routing audio to a separate processor device
Whats Included

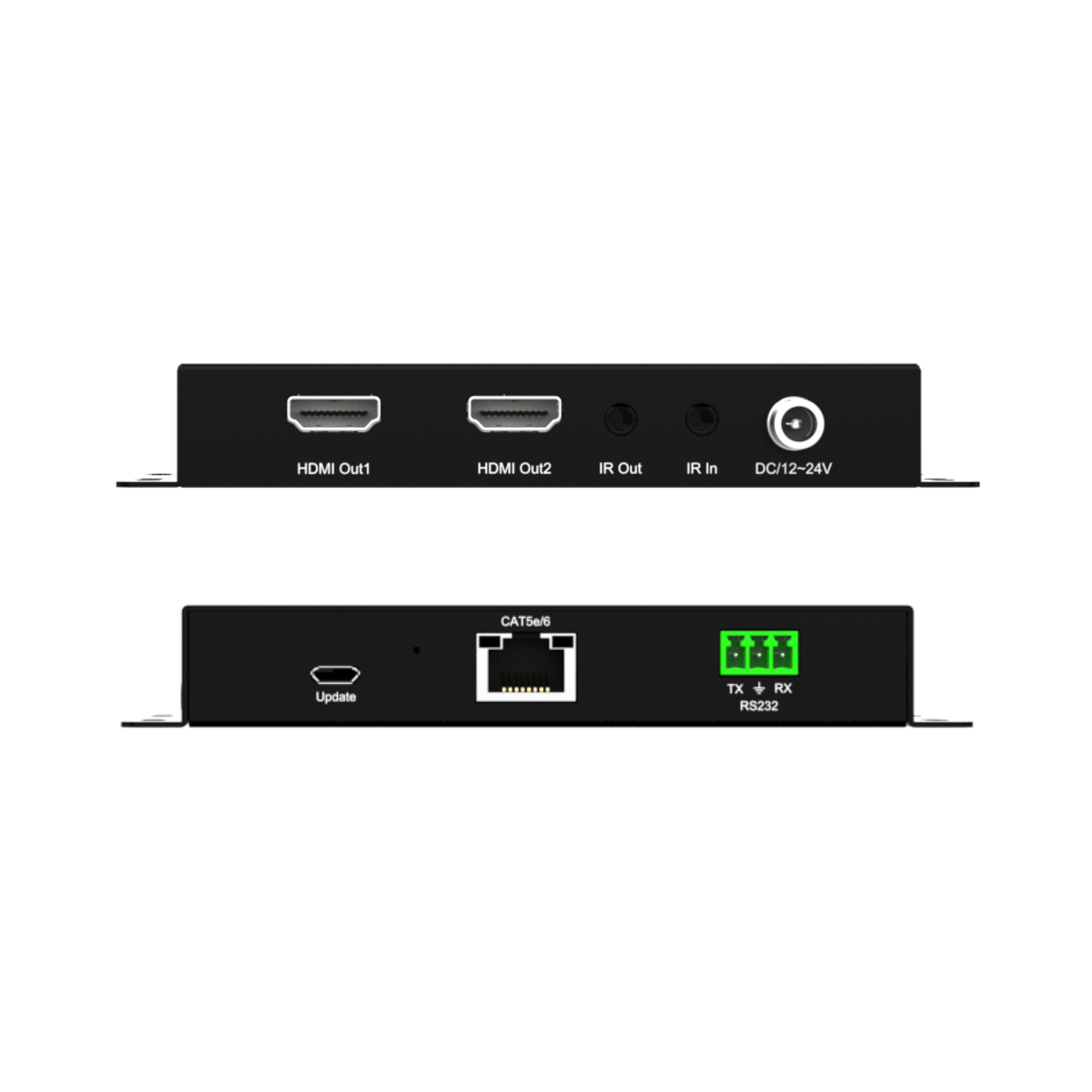

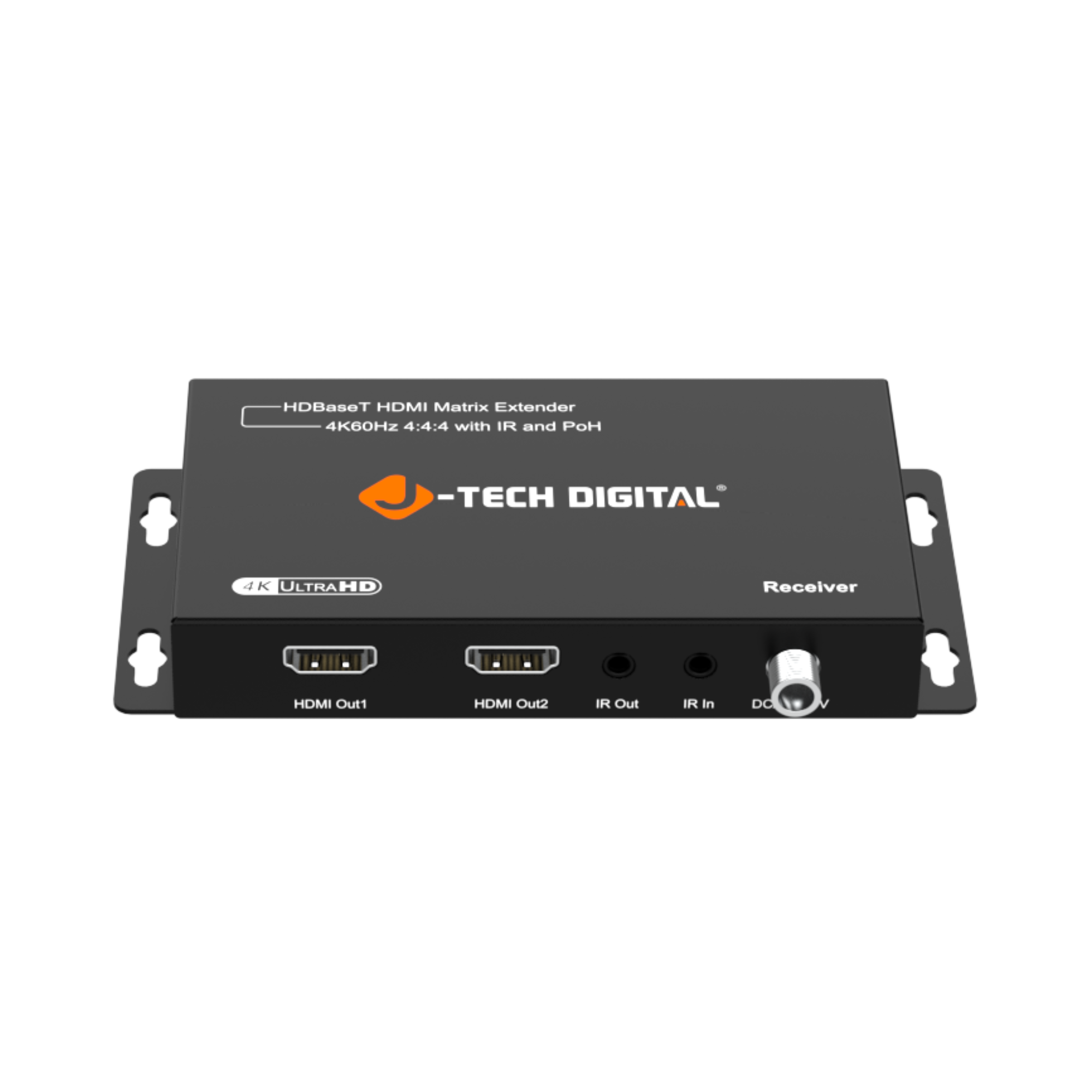

- Transmitter, Receiver, Power Adapters, User Manual, IR Cables
Product Manuals
Reviews
This product doesn't have any reviews yet.
Compare similar products
The J-Tech Digital JTECH-PS42B presentation switcher is the perfect AV solution for your conference room and meeting space. Connect HDMI, USB-C and VGA source devices to the presentation switch and share content with resolutions up to 4K@60Hz 4:4:4 HDR10. Share your content to two screens simultaneously via HDMI and HDBaseT outputs. Transmit your 4K signal up to 130 feet away via PoC (power over cable) HDBaseT. Embed analog audio from external devices or microphones and de-embed audio (digital or analog) so that you may route them to an external audio processor.
