J-Tech Digital - 6-Button AV Control Panel Wall Plate with PoE and RS232 Control - Black
$7.99 shipping to
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-P6
- Product Name: J-Tech Digital 6-Button AV Control Panel Wall Plate with PoE and RS232 Control
- Color: Black
- Connectivity
- Wireless: false

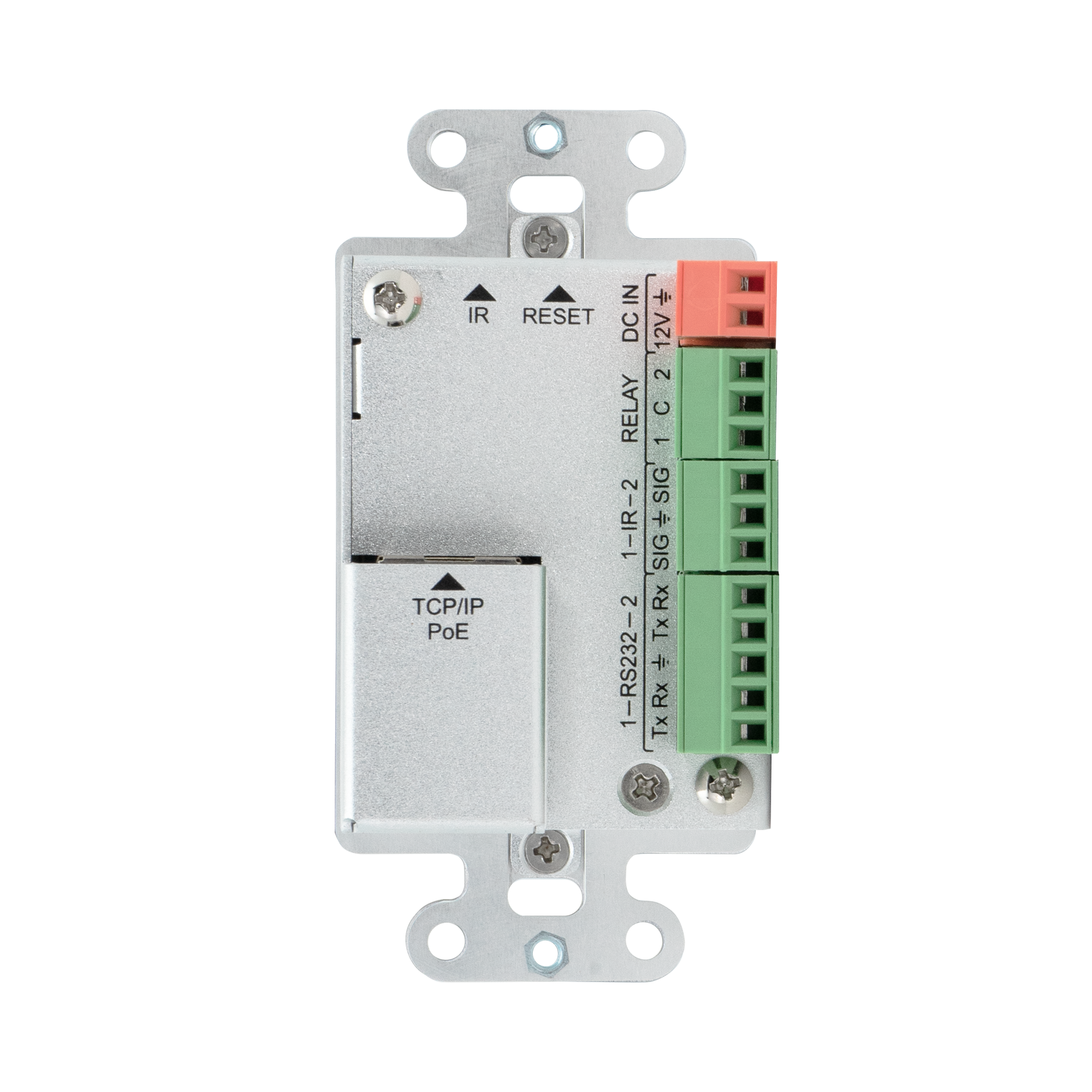

- Input(s): 1 x Serial (RS-232C)
- Output(s): 1 x Serial (RS-232C)
- Dimensions

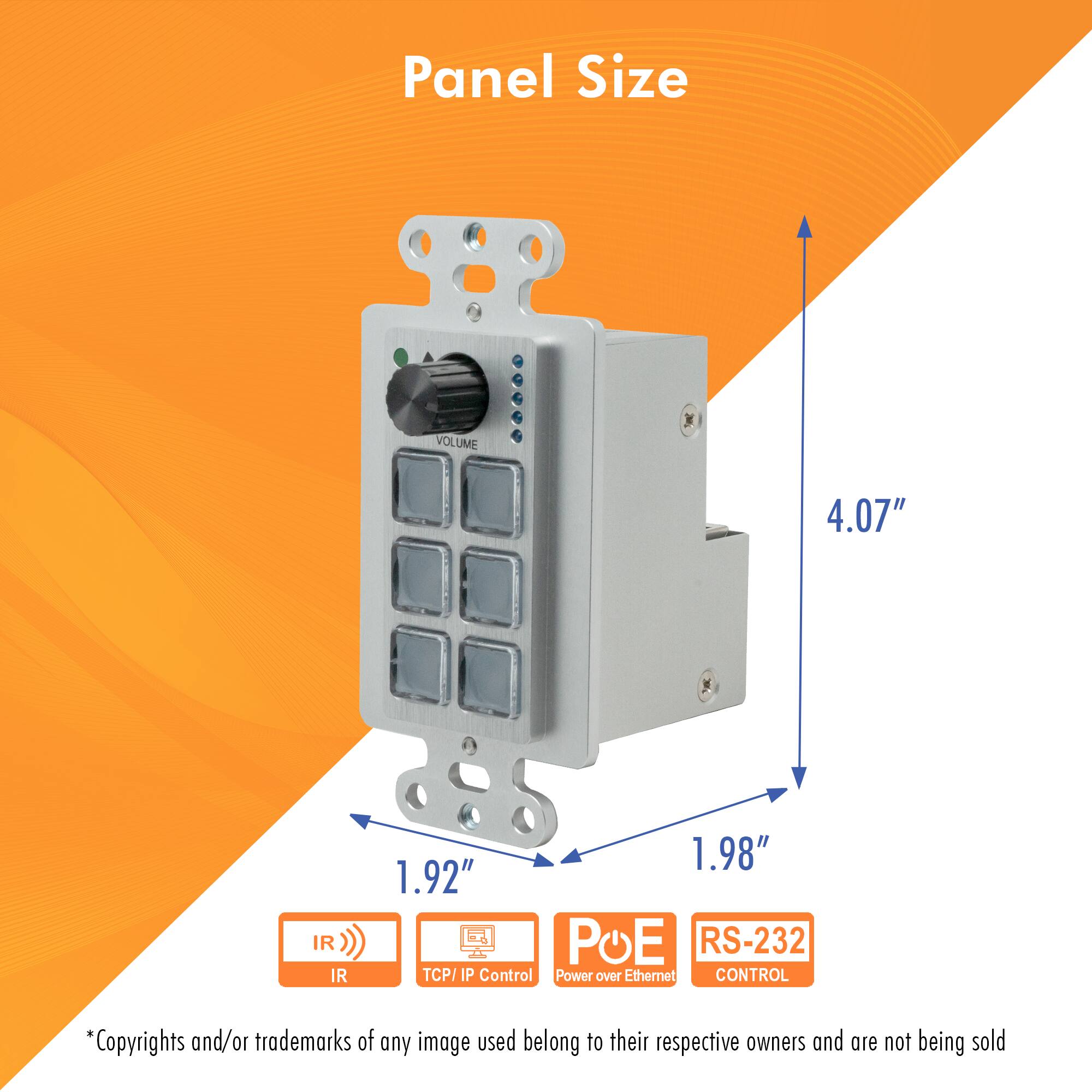

- Product Height: 4.07 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 1.96 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.98 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058921215
The JTD-P6 is a control panel wall plate that features 6 different customizable buttons that can be programmed to control your audio/video devices using IR, RS232, or Relay control. Additionally, the buttons can be combined, 1+2, 3+4, 5+6, to create 3 additional button actions. Users can utilize the control panel software, or the web-based interface to control the JTD-P6 for all of its functions.The control panel wall plate also comes with a built-in rotary knob for volume control that offers 5 different levels of volume adjustment, indicated by lights right next to the knob. This makes controlling volume on the fly hassle-free. With the JTD-P6, you can fully control compatible J-Tech Digital products, along with third-party devices, such as projectors, screens, TV’s etc. To download pre-configured drivers for J-Tech Digital products, please visit J-Tech’s website, or contact J-Tech Digital support team.

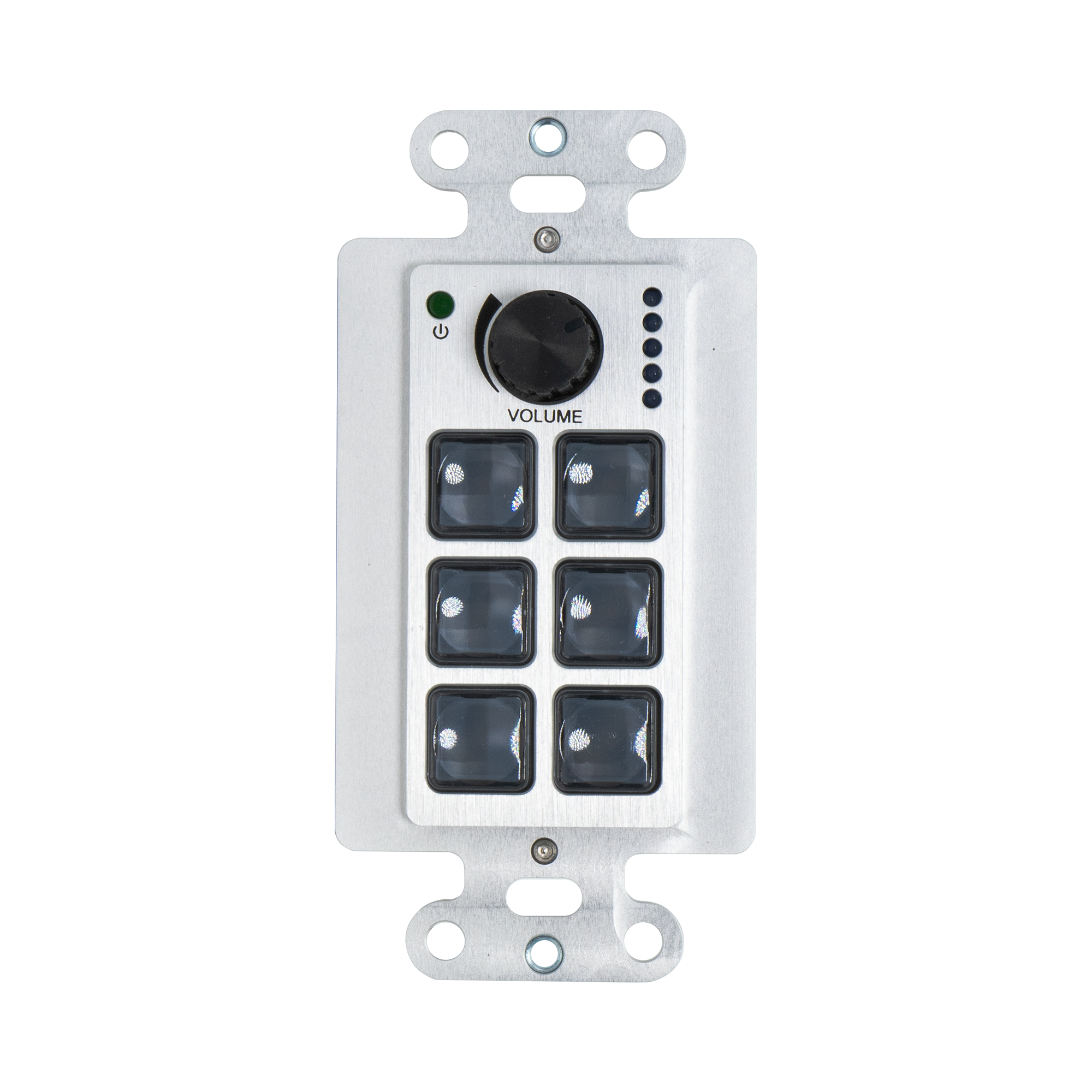

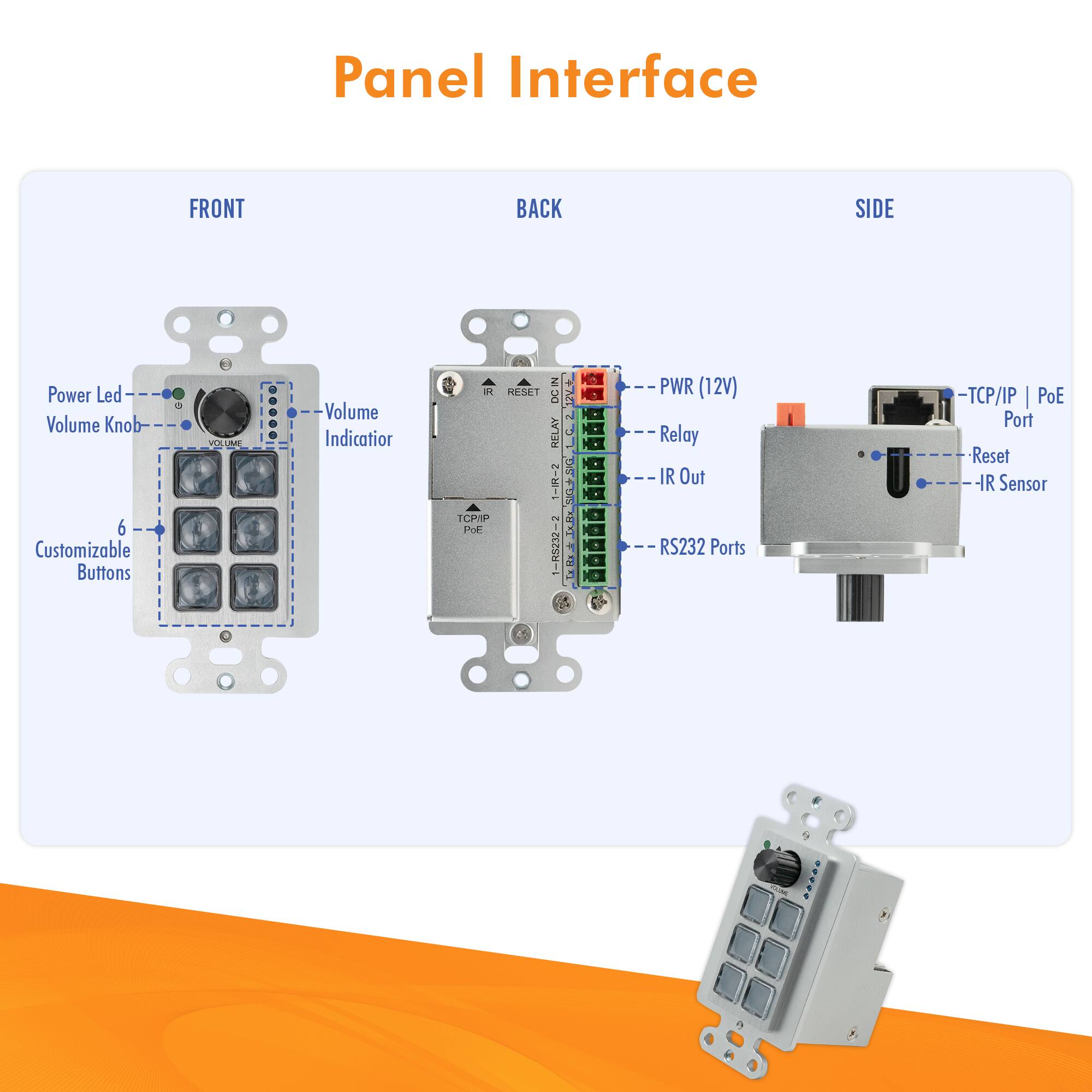

- 6 Customizable Control Buttons: Each of the 6 buttons can be individually programmed via the AV control panel software. Every button can send RS232 commands and IR code at the same time. Additionally, the buttons can be combined to create 3 additional button actions [1+2 | 3+4 | 5+6]
- Volume Knob w/ Indicator: Features a high-quality volume control knob helping adjust volume on the fly. 5 levels of volume level indicator lights will let users know the current volume level percentage. (1-19%, 20-39%, 40-59%, 60-79%, and 80-100%)

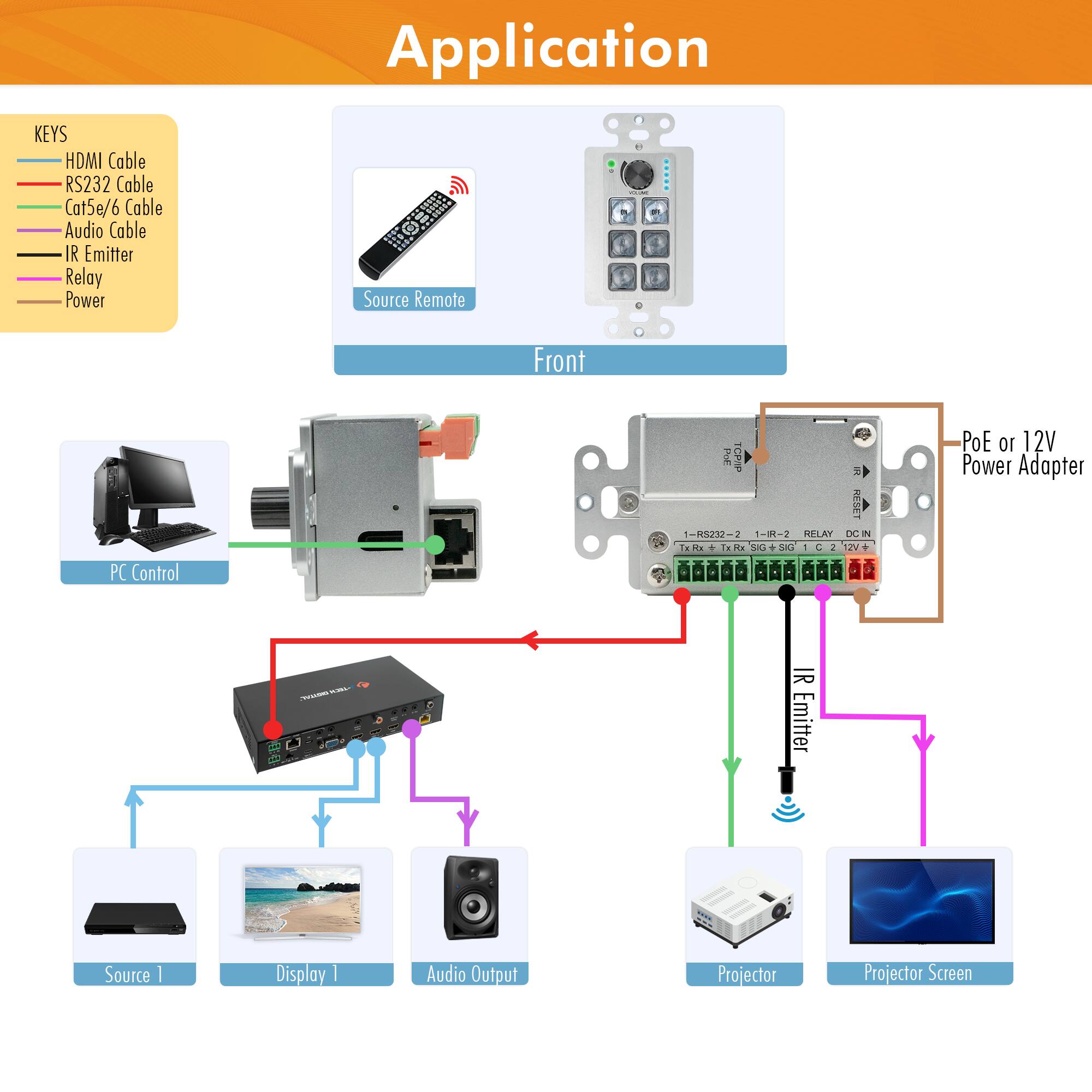

- Various Control Methods: Utilize IR, RS232, TCP/IP, and Relay control to fully control compatible matrix switchers, video-wall controllers, projectors, displays etc. Supports web-based interface to easily control the JTD-P6 for various functions

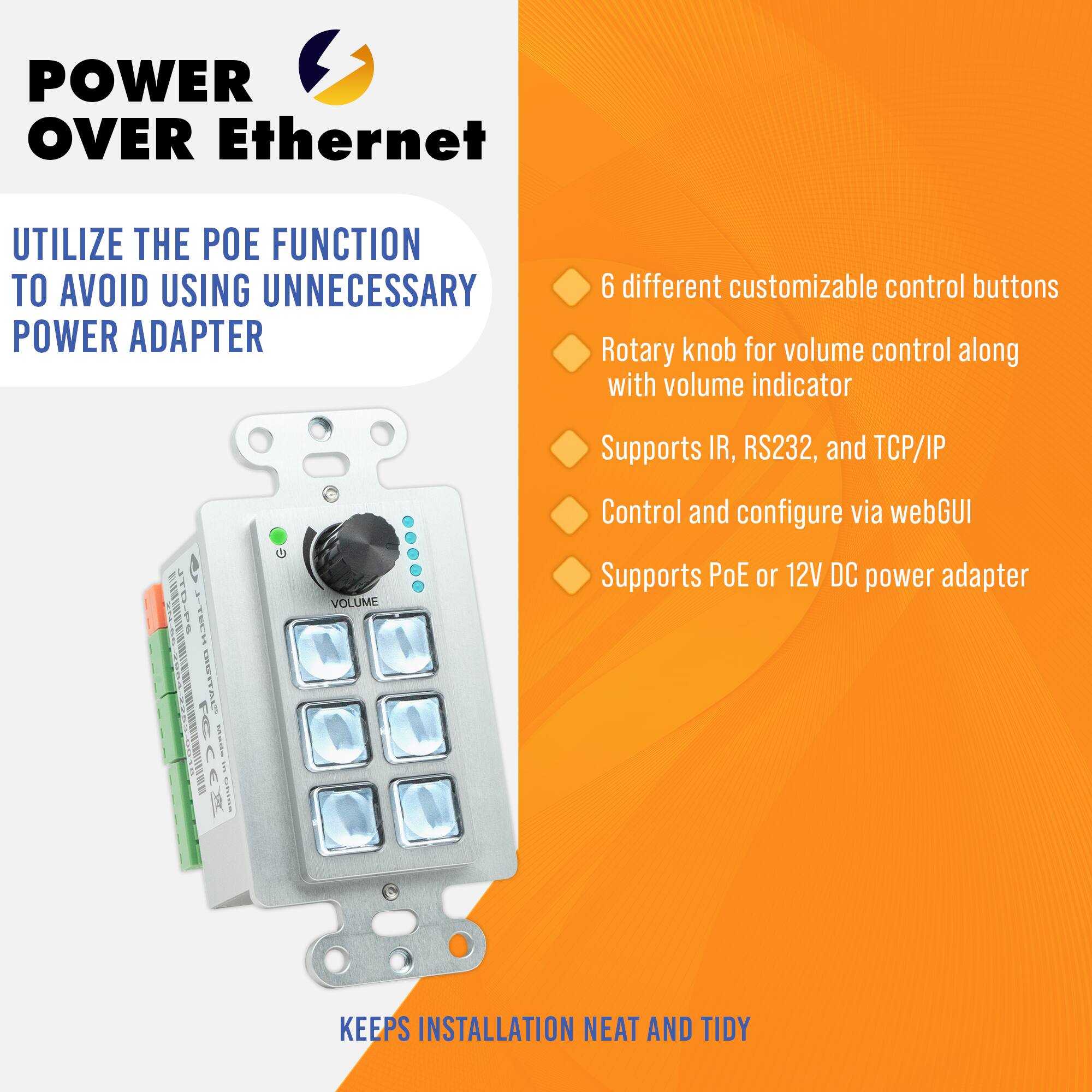

- Supports PoE Function: Choose between using the PoE function or 12DC power adapter to power the JTD-P6. Makes for an easy install, and comes with ready-made labels and button caps helping simplify controlling your devices
- 6 Customizable Control Buttons: Each of the 6 buttons can be individually programmed via the AV control panel software. Every button can send RS232 commands and IR code at the same time. Additionally, the buttons can be combined to create 3 additional button actions [1+2 | 3+4 | 5+6]
- Volume Knob w/ Indicator: Features a high-quality volume control knob helping adjust volume on the fly. 5 levels of volume level indicator lights will let users know the current volume level percentage. (1-19%, 20-39%, 40-59%, 60-79%, and 80-100%)
- Various Control Methods: Utilize IR, RS232, TCP/IP, and Relay control to fully control compatible matrix switchers, video-wall controllers, projectors, displays etc. Supports web-based interface to easily control the JTD-P6 for various functions
- Supports PoE Function: Choose between using the PoE function or 12DC power adapter to power the JTD-P6. Makes for an easy install, and comes with ready-made labels and button caps helping simplify controlling your devices
Whats Included

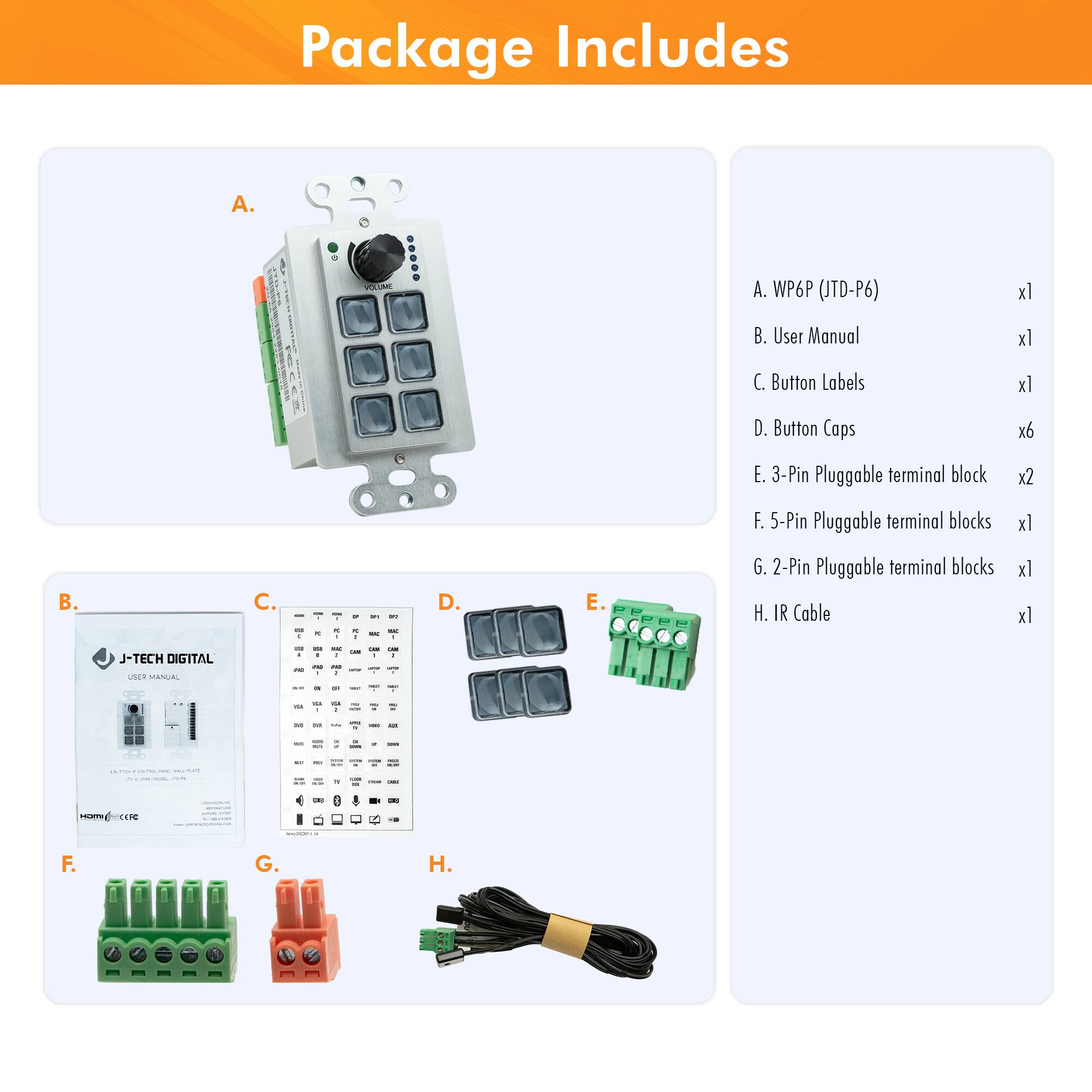

- Wall Plate Control Panel, User Manual, Pluggable Terminal Blocks, IR Cable, Button Caps & Labels
- Wall Plate Control Panel, User Manual, Pluggable Terminal Blocks, IR Cable, Button Caps & Labels
