J-Tech Digital - 8-Button AV Control Panel Wall Plate with RS232 and IR Control - Silver
$7.99 shipping to
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-P8
- Product Name: J-Tech Digital 8-Button AV Control Panel Wall Plate with RS232 and IR Control (Silver)
- Color: Silver
- Features
- Powered: true
- Connectivity
- Wireless: false
- Input(s): 1 x Serial (RS-232C)
- Output(s): 1 x Serial (RS-232C)
- Dimensions

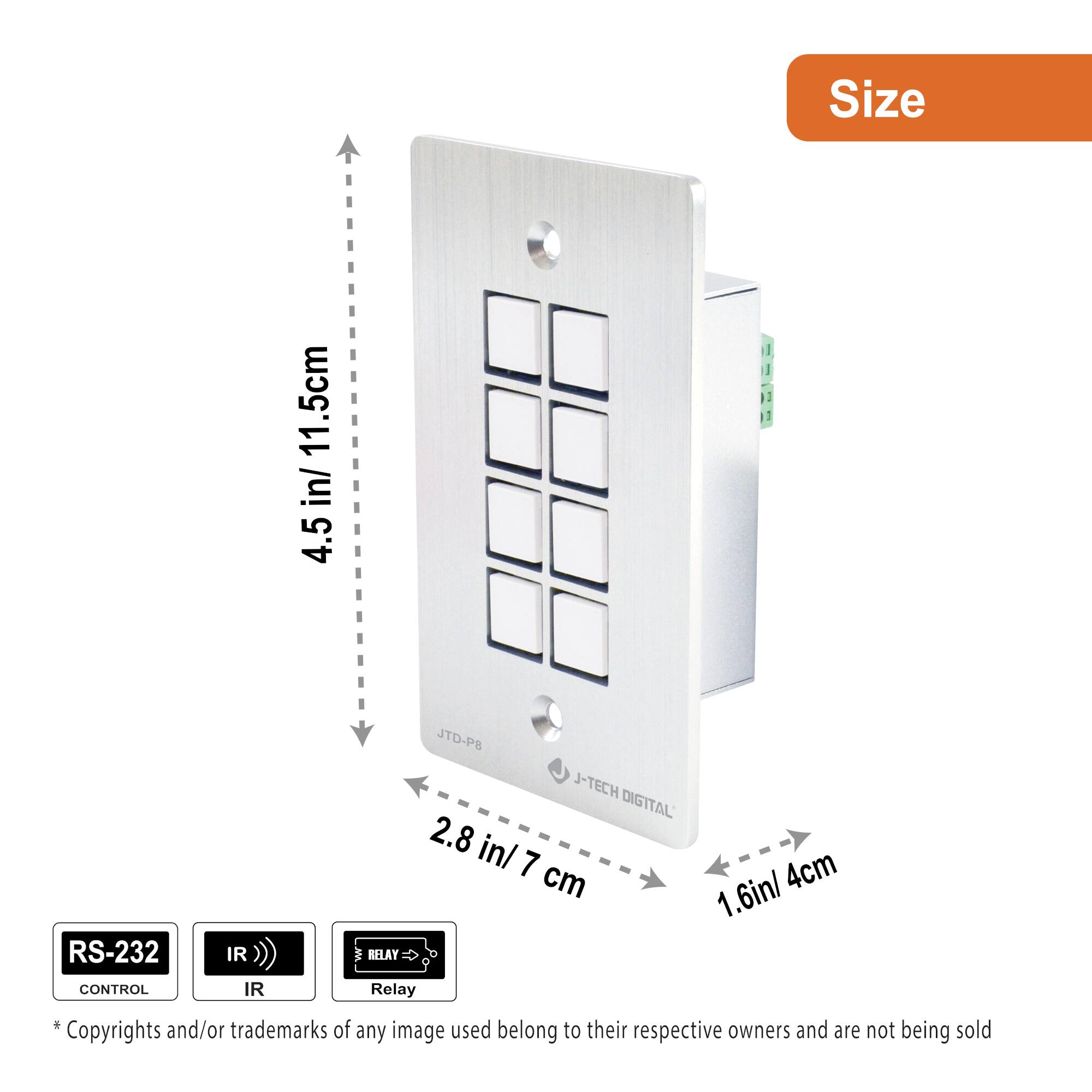

- Product Height: 4.48 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 2.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 850001567176

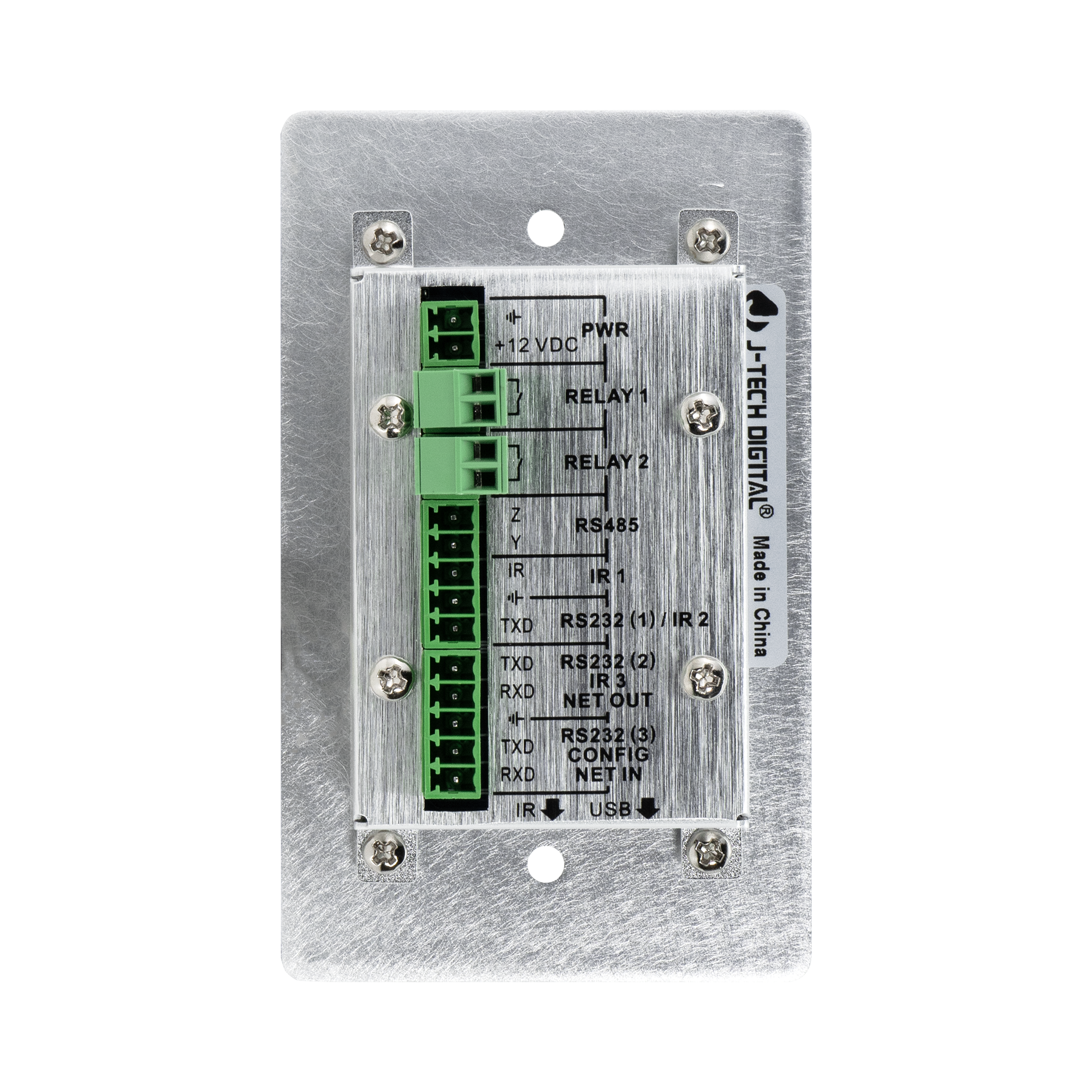

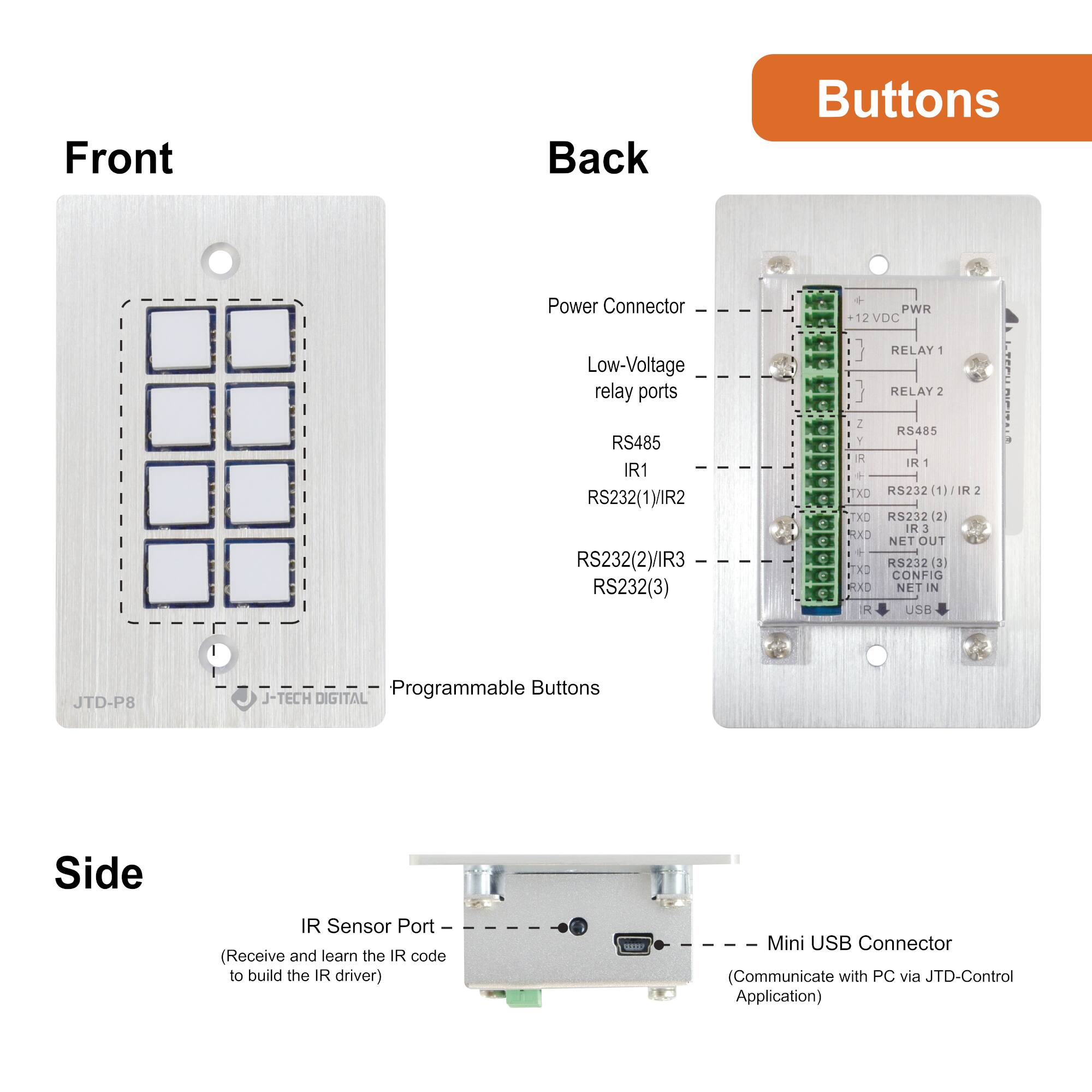

The JTECH-P8 is a programmable control panel that is designed to control your audio/video devices using infrared (IR), RS-232, RS-485, and relay communication. Every button on the wall plate is programmable and works either individually or together. This programmable control panel consists of 3x RS232, 1x RS485, 3x IR, 2x relays, and 1x mini USB interface for easy, one-touch programming. The RS-232 (1) and IR (2) share the same port and cannot be used at the same time. Also, RS232 (2) and IR (3) share the same port and cannot be used at the same time. With this unit you can fully control our products as well as third-party devices such as projectors, screens, TVs, etc. To download pre-configured drivers and RS-232 commands for the device you wish to control, visit J-Tech Digital's website or contact J-Tech Digital's support team.

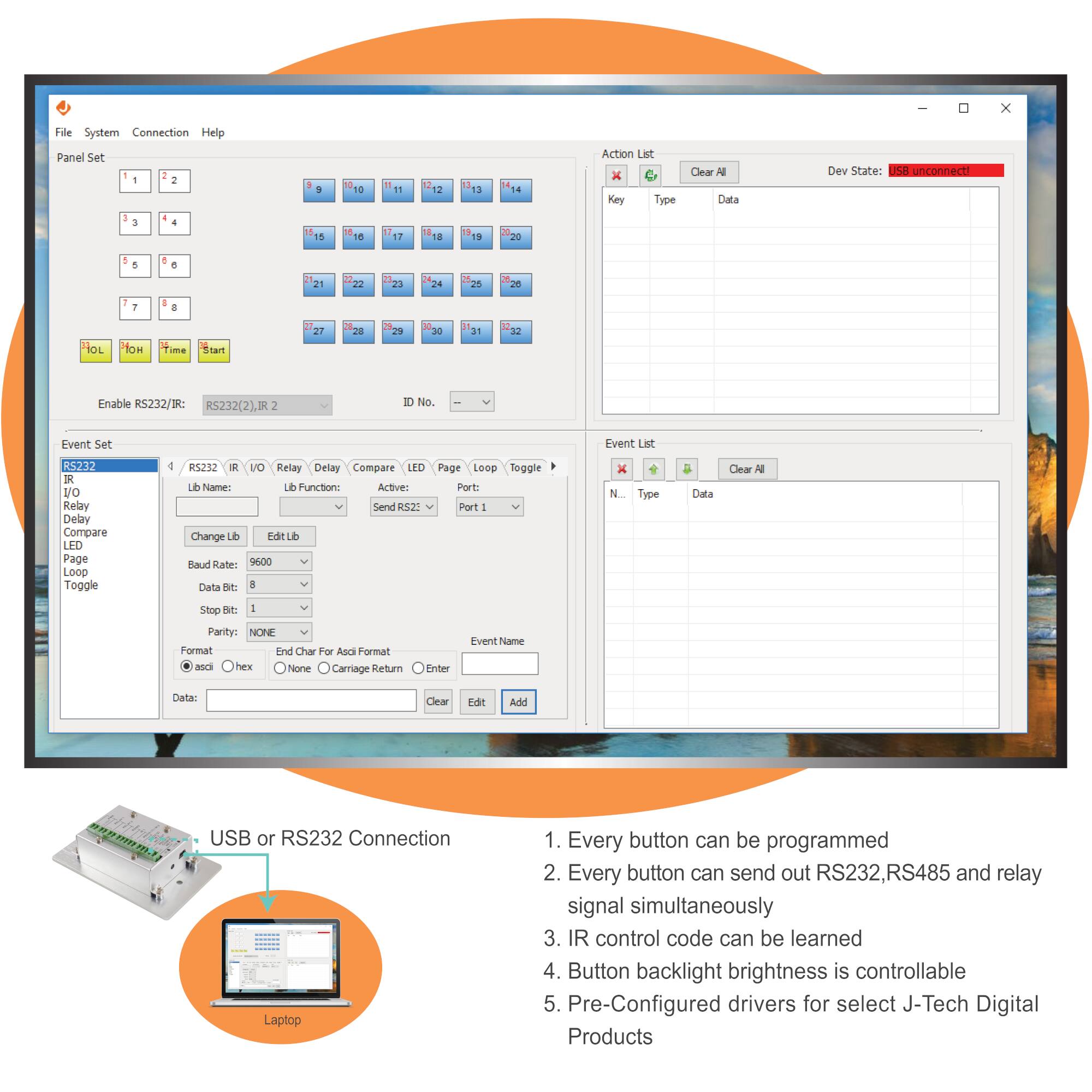

- Programmable Buttons: Each of the 8 buttons can be individually programmed through mini USB or IR learning via the provided PC software (available download through our website). The buttons can be programmed to work independently or as part of a group based on user preference

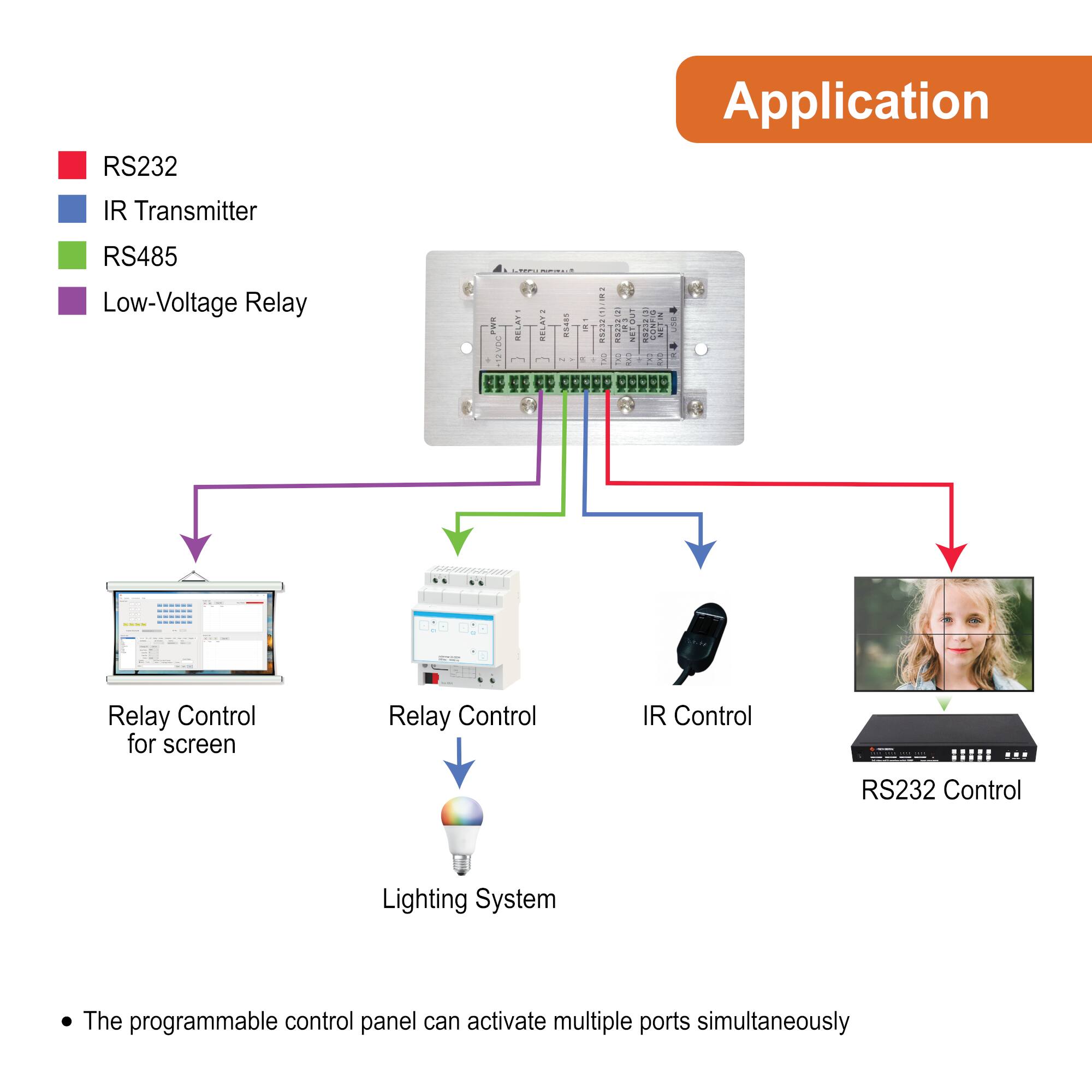

- Control End Devices: Use the control panel to send bi-directional commands to compliant devices via RS-232, RS-458, IR, and relay. Third-party devices such as projectors, screens, and TVs can also be controlled
- Compatible w/ J-Tech Digital Brand Products: Integrate this control panel wall plate system with our manageable devices including our HDMI matrices, switches, and multi-viewers
- Backlit Buttons w/ Ready-Made Labels: Identify each button on your control panel using one of the many included ready-made labels to simplify controlling your devices, making them easy to understand and operate. Some of the included label titles are: on, off, up, down, and more
- Programmable Buttons: Each of the 8 buttons can be individually programmed through mini USB or IR learning via the provided PC software (available download through our website). The buttons can be programmed to work independently or as part of a group based on user preference
- Control End Devices: Use the control panel to send bi-directional commands to compliant devices via RS-232, RS-458, IR, and relay. Third-party devices such as projectors, screens, and TVs can also be controlled
- Compatible w/ J-Tech Digital Brand Products: Integrate this control panel wall plate system with our manageable devices including our HDMI matrices, switches, and multi-viewers
- Backlit Buttons w/ Ready-Made Labels: Identify each button on your control panel using one of the many included ready-made labels to simplify controlling your devices, making them easy to understand and operate. Some of the included label titles are: on, off, up, down, and more

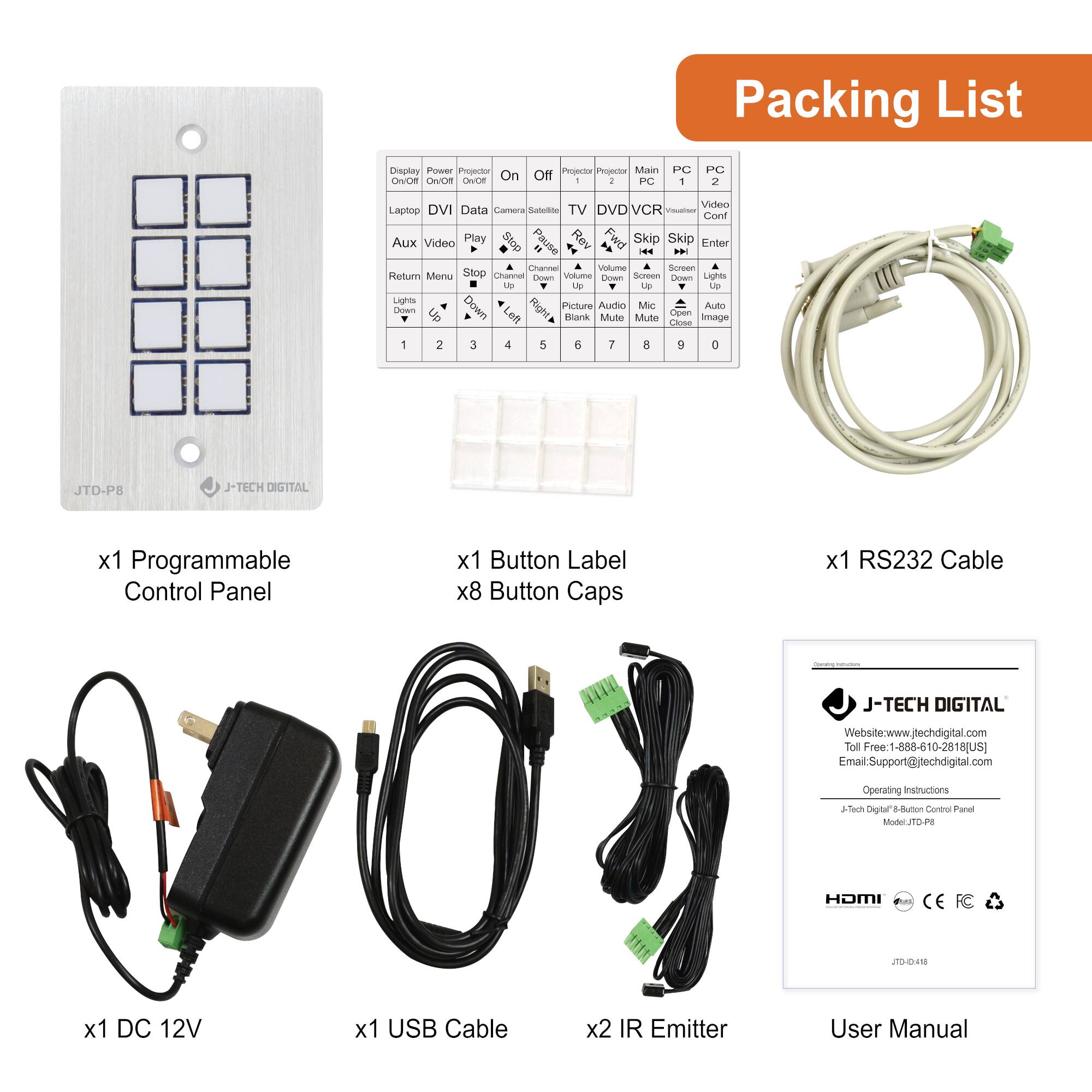

Whats Included
- Control Panel, Power Adapter, IR Cables, USB Cable, User Manual, RS232 Cable, Button Caps & Labels
- Control Panel, Power Adapter, IR Cables, USB Cable, User Manual, RS232 Cable, Button Caps & Labels
