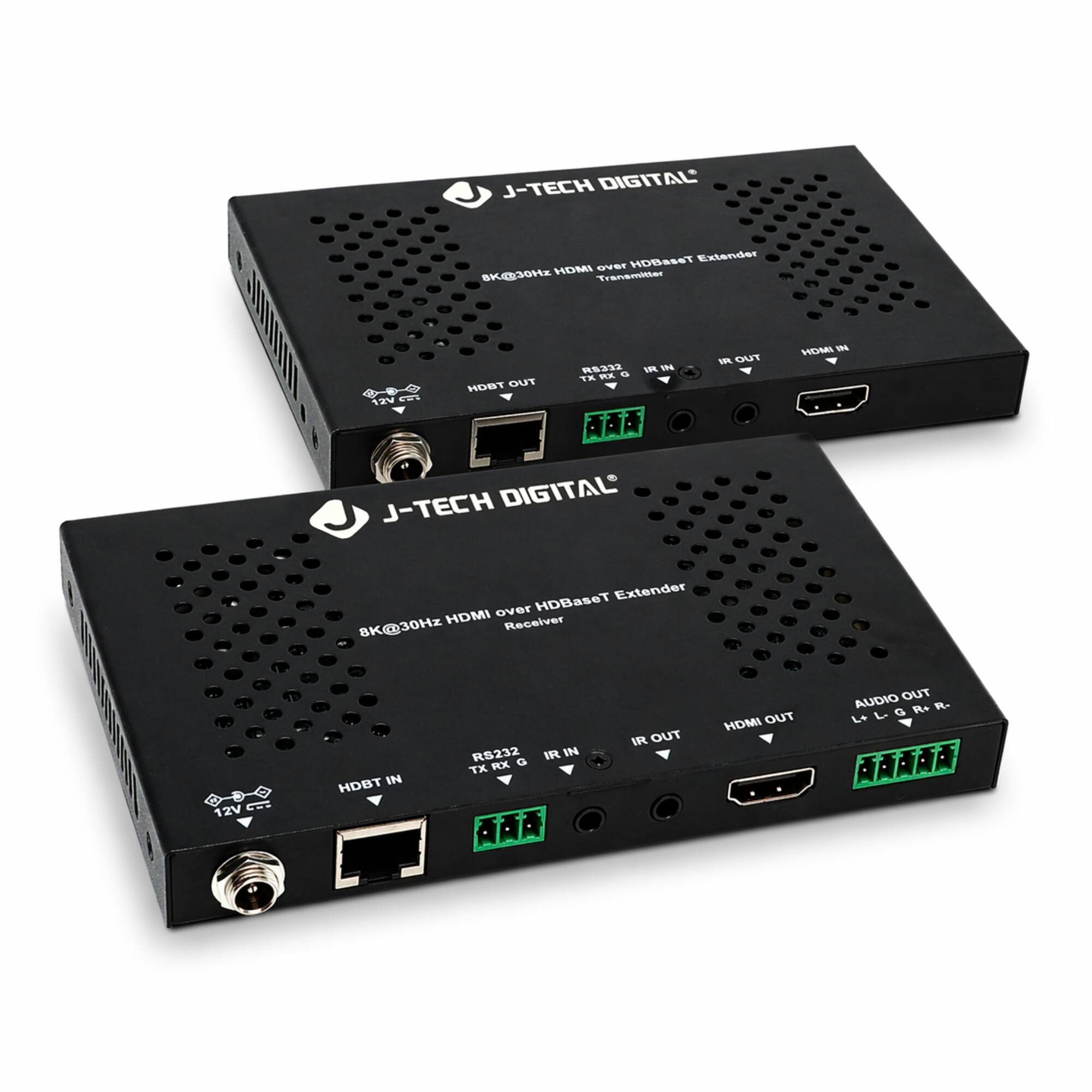

J-Tech Digital - 8K 30Hz HDMI over HDBaseT Extender with PoC - Black
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-EX8K30-35M
- Product Name: J-Tech Digital 8K 30Hz HDMI over HDBaseT Extender with PoC
- Color: Black
- Features
- Maximum Video Resolution: 2160p (4K) (Maximum resolution refers to the highest number of pixels that a screen can process and display. Higher resolution signals produce more detailed video.)
- Maximum Supported Resolution (Video Passthrough): 4320p (8K) @ 30 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Powered: true
- Connectivity
- Wireless: false
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Maximum Transmission Range: 131 feet
- Warranty
- Warranty - Parts: 1 year
- Other
- UPC: 810058923097

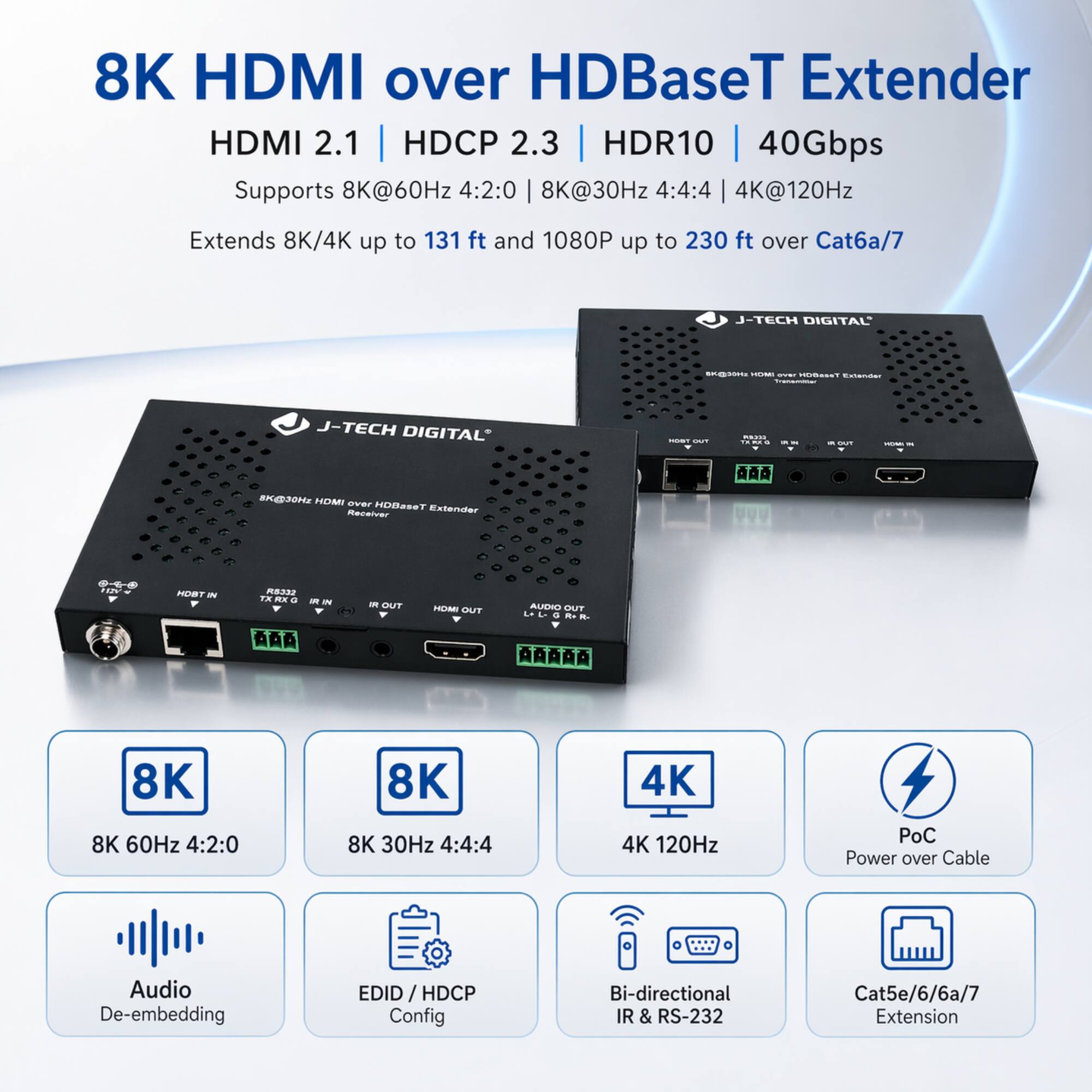

The J-Tech Digital JTECH-EX8K30-35M 8K HDMI extender delivers high performance HDMI 2.1 signal extension with support for up to 8K@60Hz 4:2:0, 8K@30Hz 4:4:4, and 4K@120Hz, along with HDR10 and HDCP 2.3 for superior video quality and compatibility. Extend HDMI signals up to 131ft over Cat6a or Cat7 and 115ft over Cat5e or Cat6, with up to 230ft for 1080P, making it ideal for long distance AV setups. This HDMI extender also features bidirectional IR and RS232 pass through for flexible control, audio de embedding output for external sound systems, and built in DIP switch configuration for EDID and HDCP management. With Power over Cable support, a single power adapter can power both units for a clean and efficient installation.

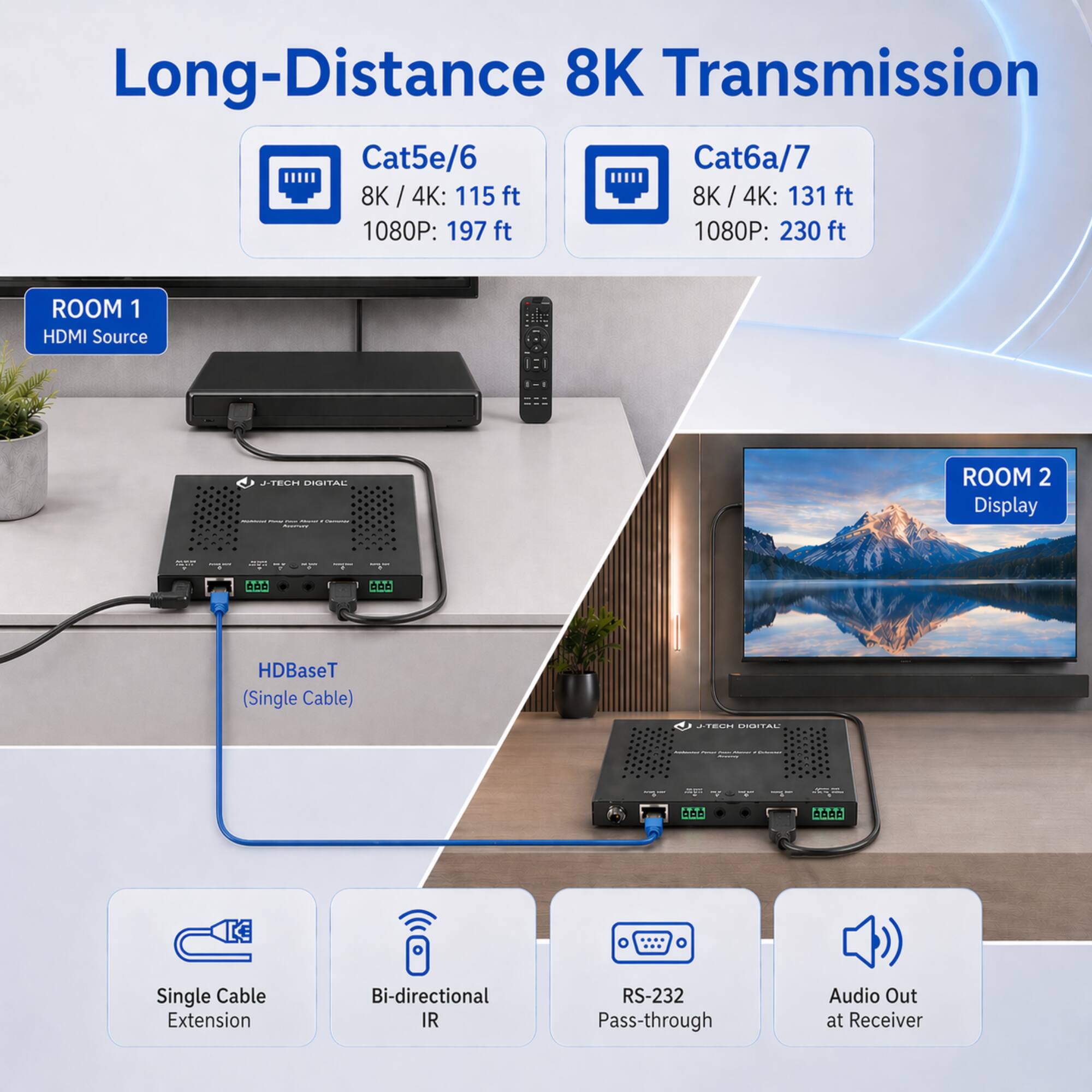

- Long Distance HDMI Extender over Cat Cable: Extend 8K and 4K HDMI signals up to 131ft over Cat6a or Cat7 and 115ft over Cat5e or Cat6, with up to 230ft for 1080P transmission
- 8K HDMI 2.1 Ultra HD Performance: Supports up to 8K@60Hz 4:2:0, 8K@30Hz 4:4:4, and 4K@120Hz with HDR10 and HDCP 2.3 for high quality video and broad device compatibility

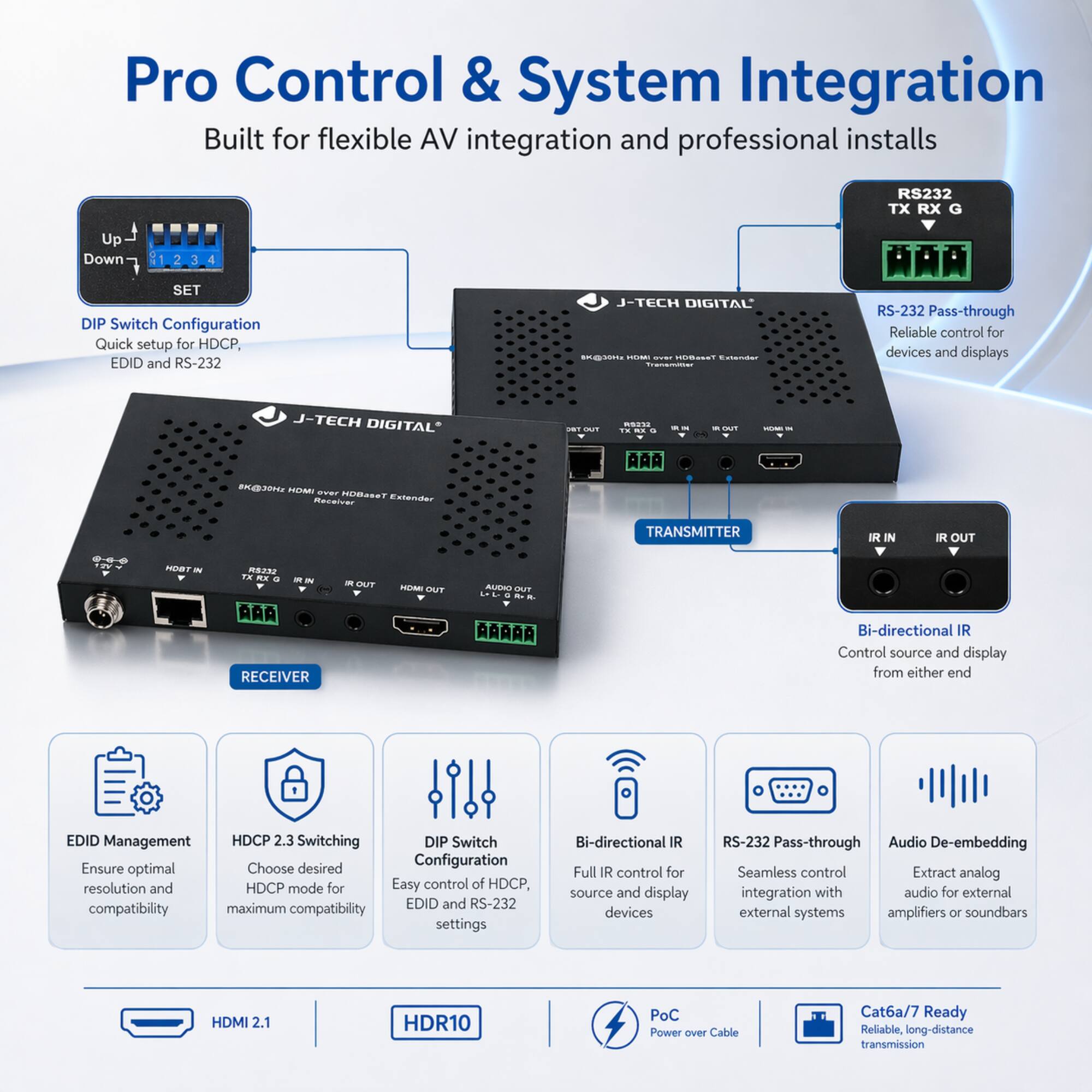

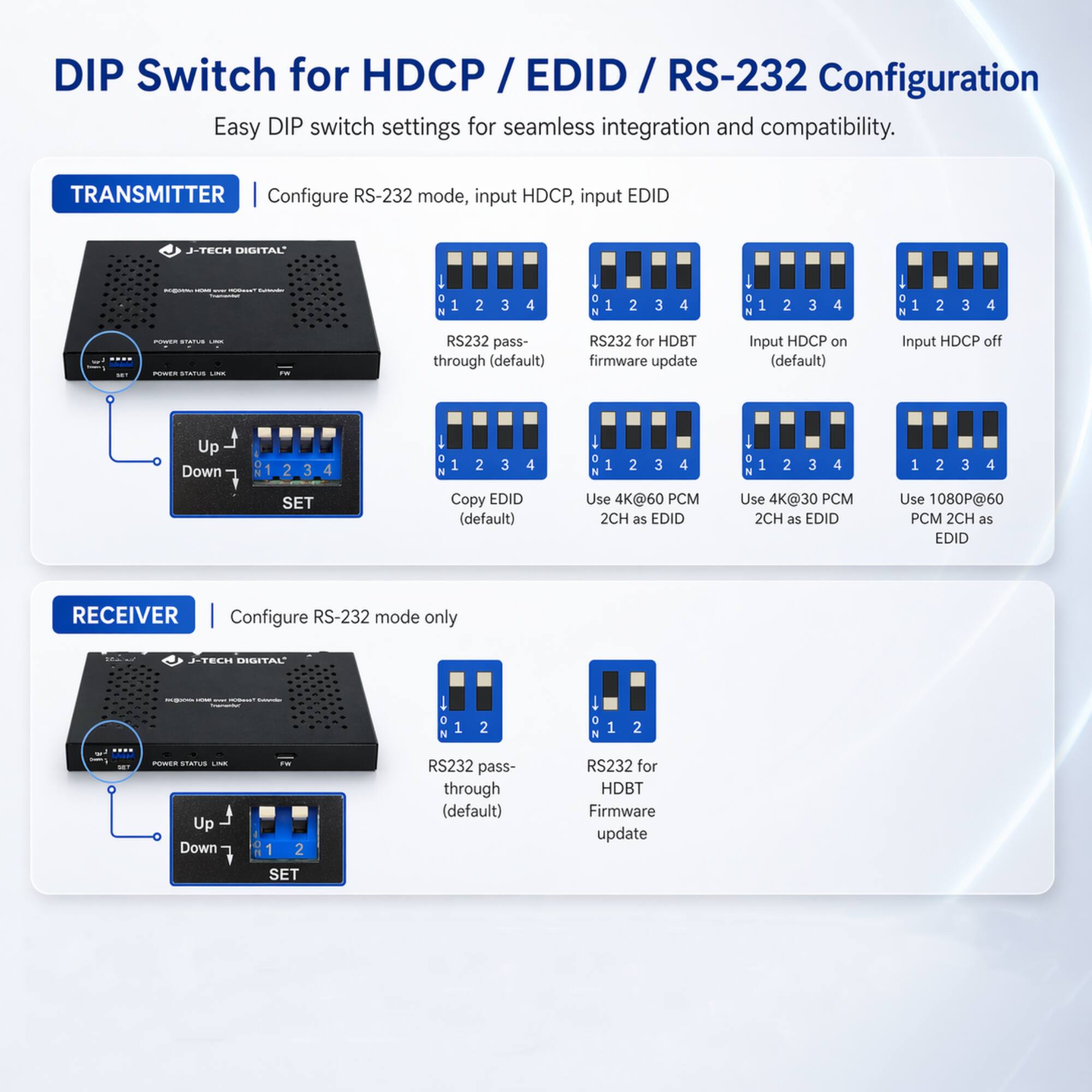

- IR RS232 Control and Audio Output: Supports bi directional IR and RS232 pass through, audio de embedding output, and EDID and HDCP configuration via built in DIP switches
- Power over Cable Easy Installation: Bidirectional PoC allows a single power adapter to power both transmitter and receiver for a clean, simple HDMI extender setup
Whats Included

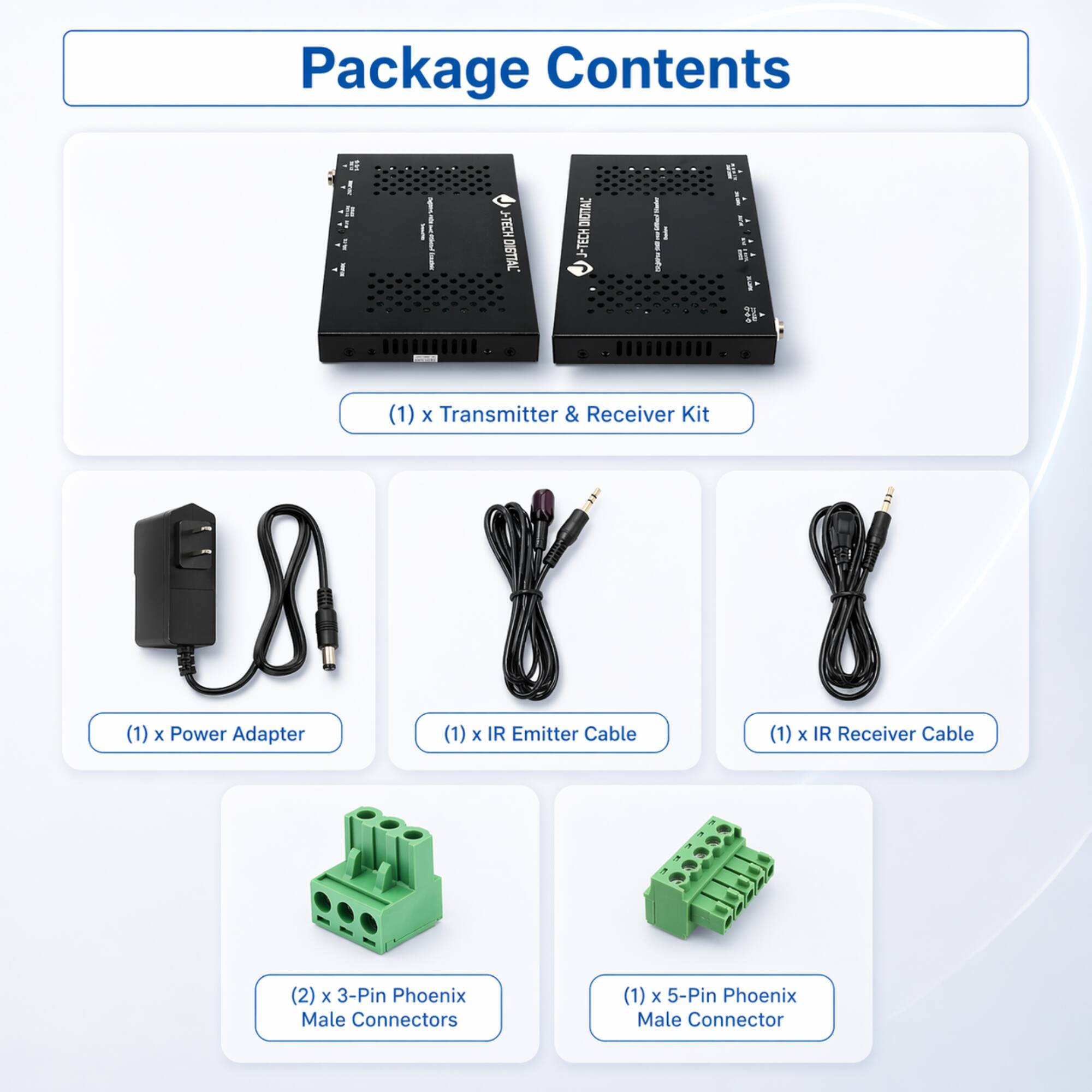

- Power Adapter, IR Cables, Mounting Brackets, Phoenix Connectors
Product Manuals
Reviews
This product doesn't have any reviews yet.
