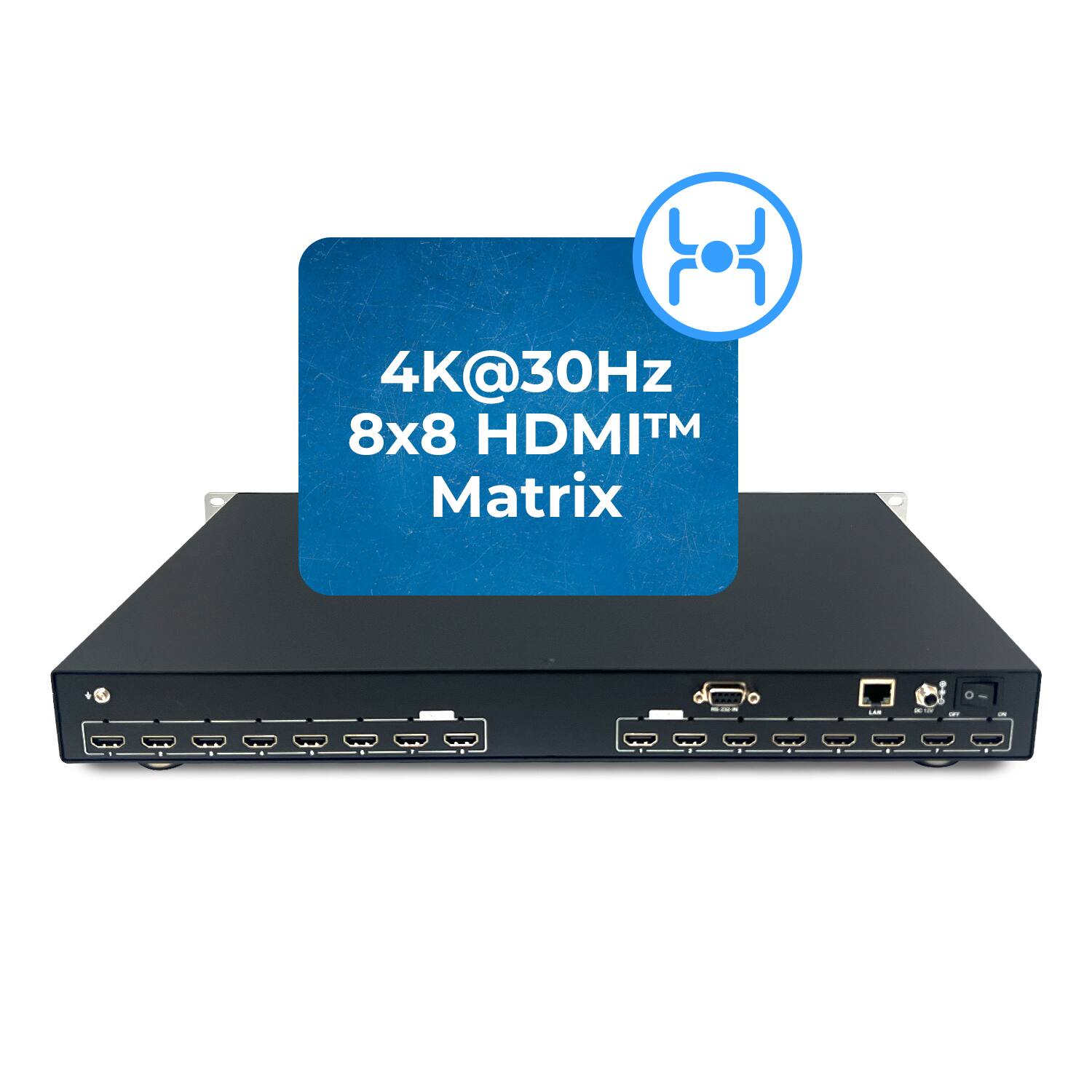

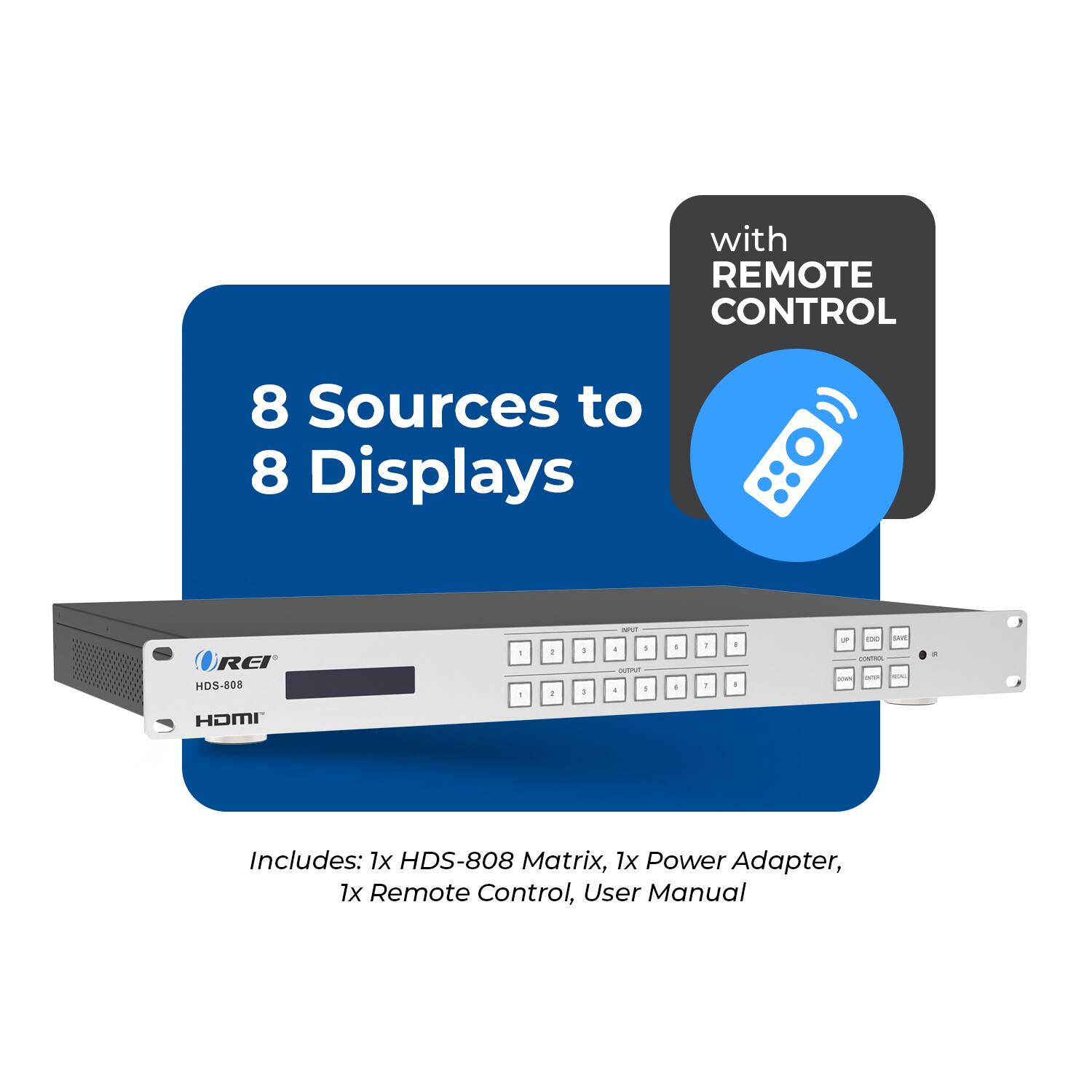

Orei - 4K@30Hz 8x8 HDMI™ Matrix - (HDS-808) - Black
About This Item
- General
- Brand: Orei
- Model Number: HDS-808
- Product Name: 4K@30Hz 8x8 HDMI™ Matrix - (HDS-808)
- Color: Black
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Dimensions

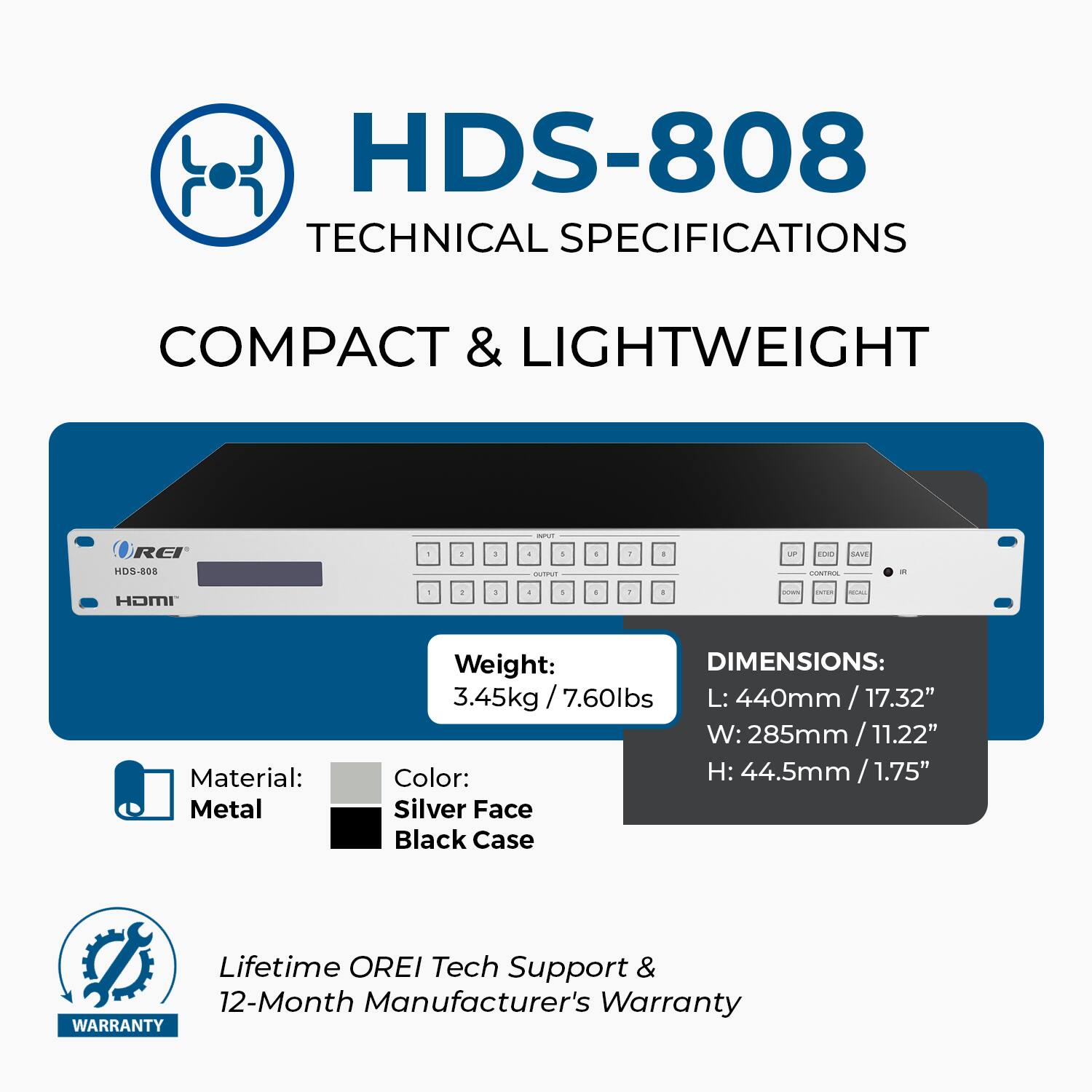

- Product Height: 1.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11.22 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17.32 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 810162900212

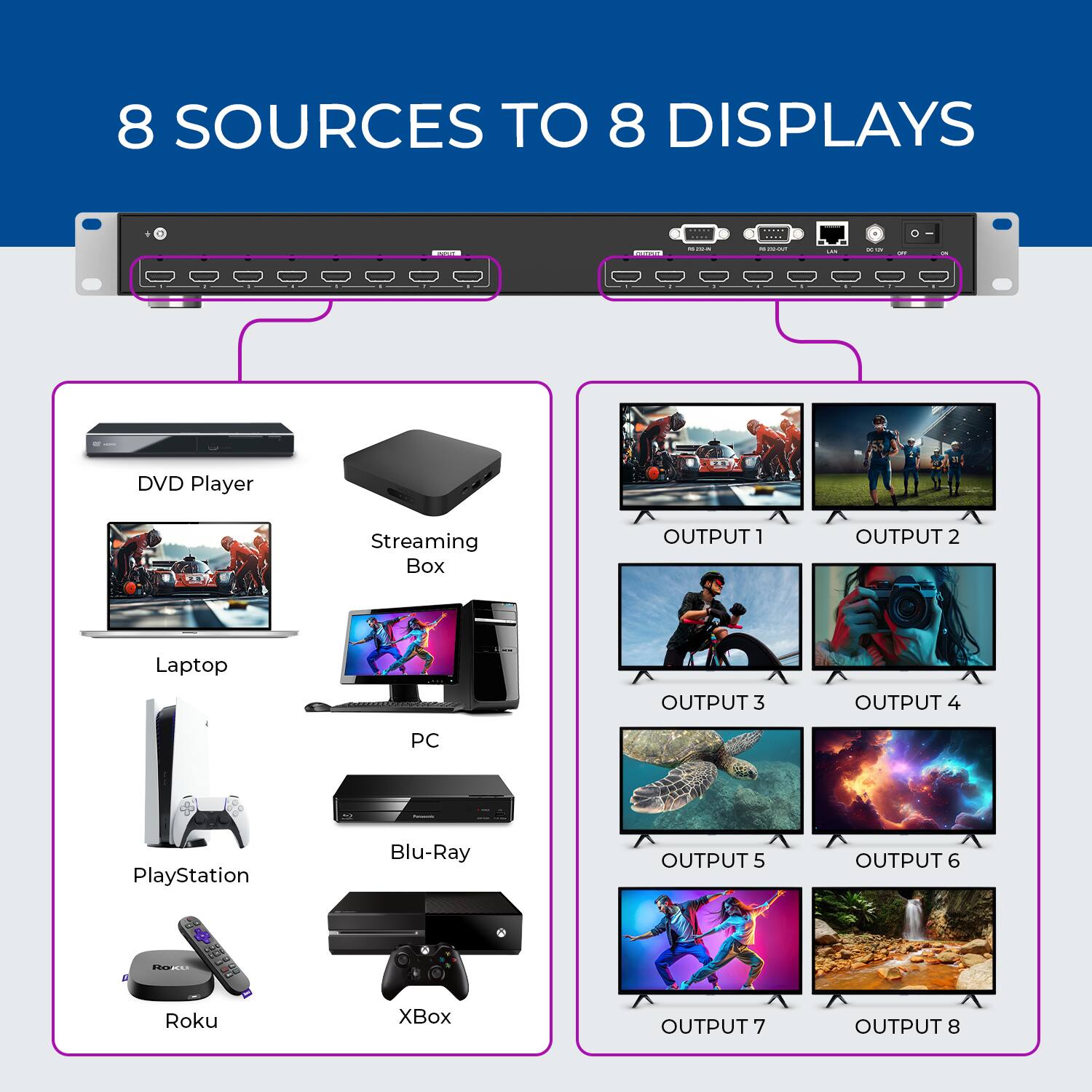

The HDS-808 8x8 HDMI Matrix Switch is a versatile solution for routing video and audio from eight sources to eight displays via HDMI. Compliant with HDMI 1.4 and HDCP 2.2, it supports 10.2 Gbps bandwidth and resolutions up to 4K@30Hz. Each output can downscale from 4K to 1080p as needed. The matrix accommodates various audio formats, including LPCM 2/5.1/7.1CH, Dolby Digital, Dolby Atmos, DTS-HD Master Audio, and DTS: X. It also allows preset saving to save routing configurations and recall them easily whenever needed. The unit is rack-mountable, which makes it perfect for any personal or commercial setup.

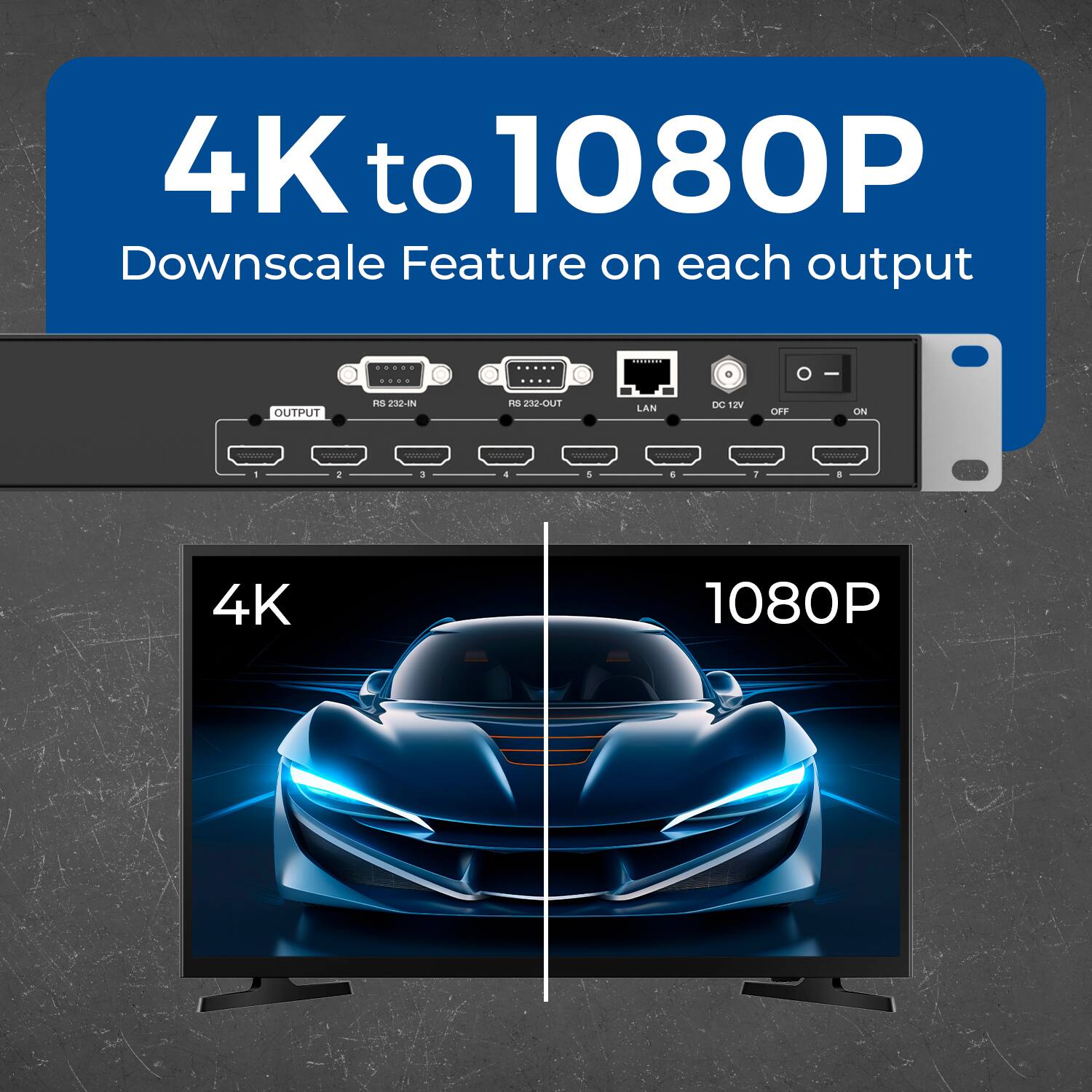

- OREI HDS-808 : 4K 8x8 HDMI Matrix, EDID, Downscale: 4K to 1080p Downscale on each output
- OREI HDS-808 : 4K 8x8 HDMI Matrix, EDID, Downscale: 4K to 1080p Downscale on each output
- OREI HDS-808 : 4K 8x8 HDMI Matrix, EDID, Downscale: 4K to 1080p Downscale on each output
Q: Does it have a web controller interface
A: undefined
Reviews
This product doesn't have any reviews yet.
