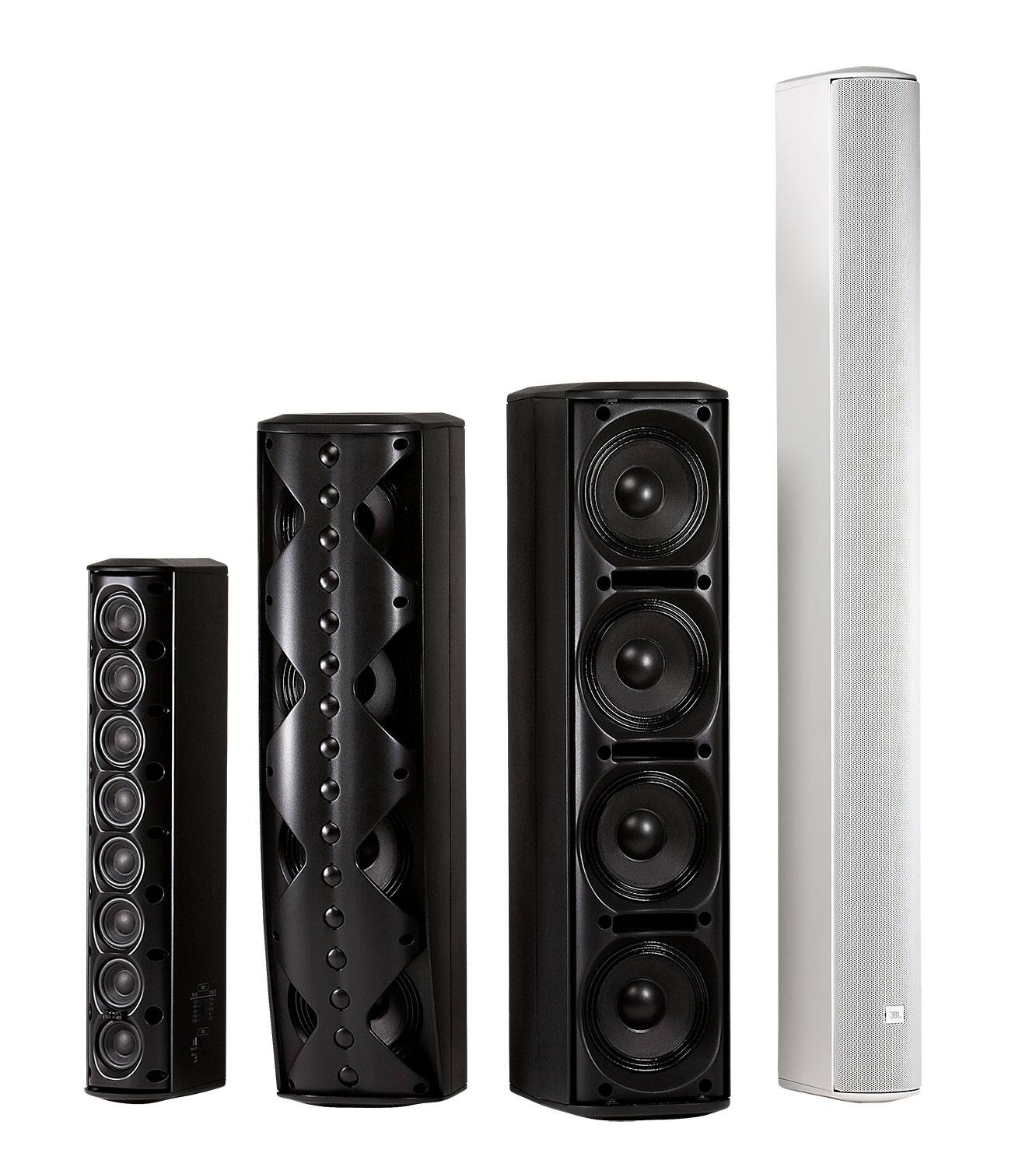

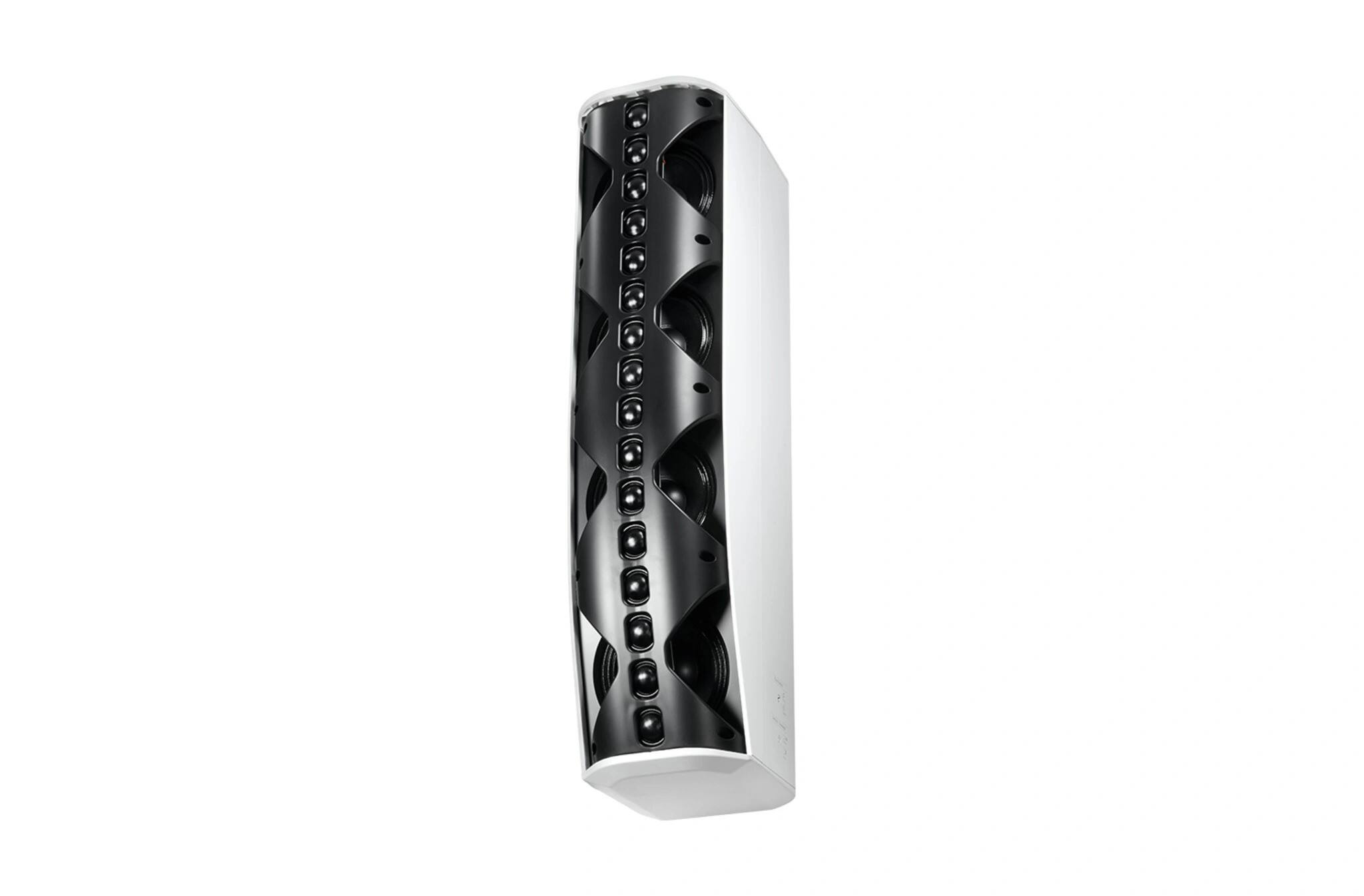

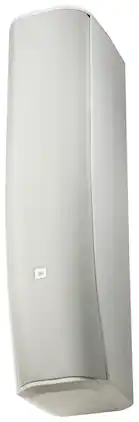

JBL - CBT70J Constant Beamwidth Technology Two-Way Line Array Column Speaker, Wall Mount-Each - White
Specifications
- Speaker TypeSatellite, In-WallRMS Power500 watts
- Key Specs
- Speaker Type: Satellite, In-Wall
- RMS Power: 500 watts (The maximum amount of continuous power the device is able to handle.)
- General
- Brand: JBL
- Model Number: CBT 70J-1-WH
- Product Name: CBT70J Constant Beamwidth Technology Two-Way Line Array Column Speaker, Wall Mount-Each
- Color: White
- Audio
- Speaker Type: Satellite, In-Wall
- RMS Power: 500 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 2000 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 60 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Number of Speakers: 20
- Number of Tweeters: 16
- Tweeter Size: 1 inches
- Number of Woofers: 4
- Woofer Size: 5 inches
- Connectivity
- Speaker Connectivity: Wired
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Audio Only Inputs: No audio only inputs
- Network Connector(s): No network connectors
- Speaker Wire Connection Type: Banana Jack/Screw Terminals
- Features
- Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 27.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 9.3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 21 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 050036904223
The CBT 70J-1, with Constant Beamwidth Technology, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers. The CBT 70J-1 combines Constant Beamwidth Technology with a physical J-shaped curving, resulting in a very well controlled progressive line array with asymmetrical vertical coverage. The asymmetrical coverage produces a higher concentration of sound with a tighter pattern from the upper half of the array and a lower concentration of sound with a broader vertical pattern from the lower half of the array.

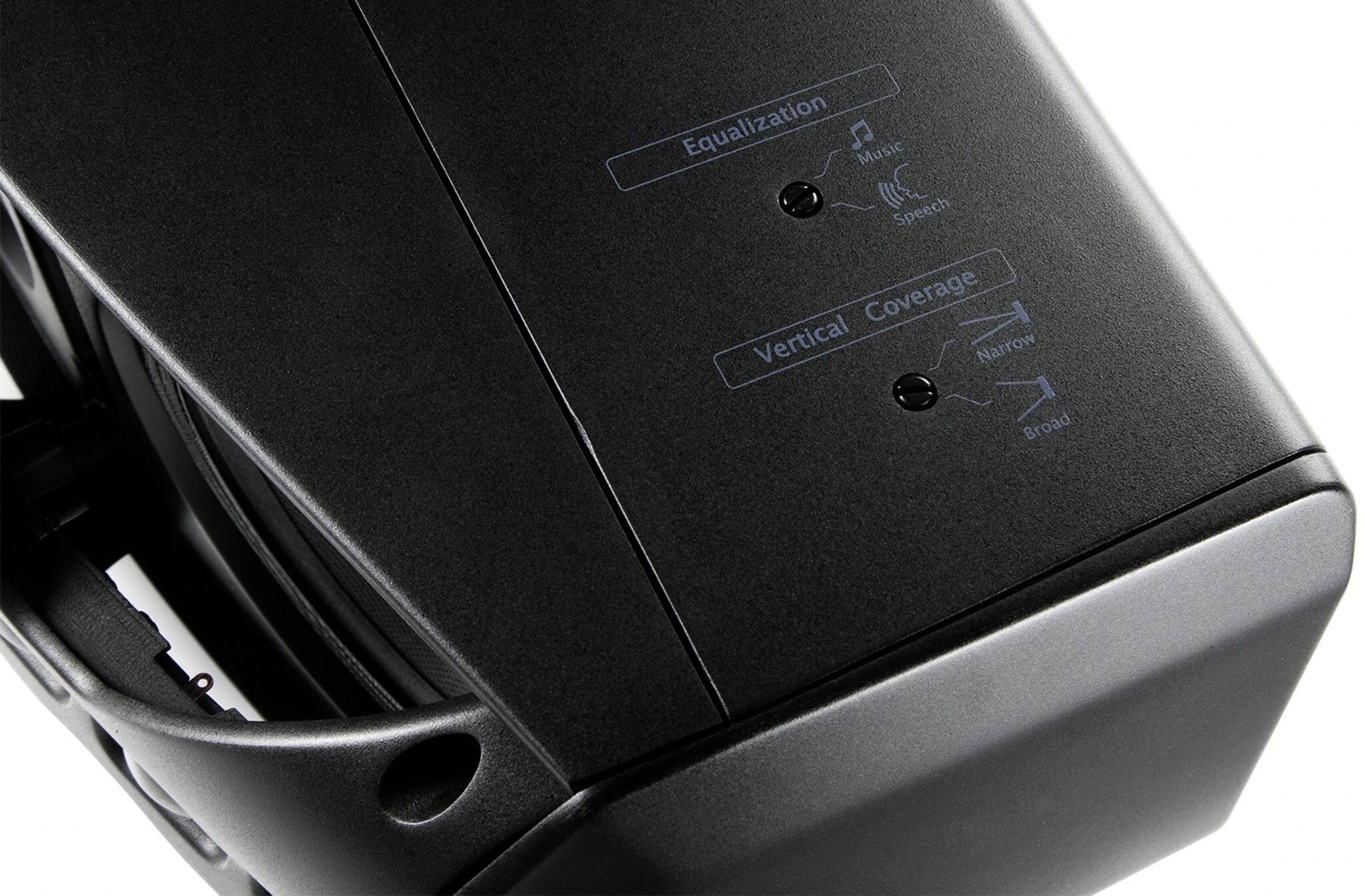

- Adjustable Coverage to Fit the Application: The innovative coverage adjustability allows switching between broad and narrow vertical coverage settings to allow matching the coverage and throw requirements of the application. Coverage can be easily switched in-venue with the speaker already installed. This innovation allows a single loudspeaker model to excel in an extremely wide variety of project types.
- User Variable Voicing: The voicing can be set to match the application through a Music/Speech switch. The Music setting provides flat frequency response, while the Speech setting produces a mid-range presence boost to provide clear, intelligible speech even at the longest throw distances, along with increased midrange sensitivity for higher midrange maximum output capability
- Low Frequency Drivers: The low frequency drivers are lightweight dual magnet neodymium motors with 38 mm (1.5 in) diameter voice coils. The dual magnet system provides maximum flux in a compact package. The magnet structure is magnetically shielded and the pole tips are magnetically saturated for lower flux modulation and minimum distortion. The 16 mm (0.63 in) long coil provides high linear drive and high power handling in a compact driver.
- High Frequency Drivers: The high frequency driver features a dual magnet neodymium structure for maximum sensitivity. The tweeter is encased for weather resistance. The drivers are magnetically shielded to allow close placement CRT monitors.
- SonicGuard: Dynamic SonicGuard protection on the high frequency section minimizes distortion at high drive levels by limiting driver excursion dynamically. This maximizes music clarity and speech intelligibility at high drive levels while protecting the drivers from damage due to occasional overpowering.
- Bracketry: A swivel (pan) / tilt wall-mount bracket is included, plus ten M6 inserts on the back panel fit the spacing of common third-party mounting brackets, or can be utilized to suspend the speaker using forged shoulder steel eyebolts or swivel mounting rings, providing installation versatility.
- Weather Resistant with optional panel cover: CBT 70J-1 can be installed either indoors or outdoors. IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant. The drivers are weather-treated, the fiberglass reinforced ABS cabinet is excellent for outdoor applications, external screws are stainless steel and the painted aluminum grille resists rusting in the harshest conditions.
- Mounting Bracket: Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming
- Adjustable Coverage to Fit the Application: The innovative coverage adjustability allows switching between broad and narrow vertical coverage settings to allow matching the coverage and throw requirements of the application. Coverage can be easily switched in-venue with the speaker already installed. This innovation allows a single loudspeaker model to excel in an extremely wide variety of project types.
- User Variable Voicing: The voicing can be set to match the application through a Music/Speech switch. The Music setting provides flat frequency response, while the Speech setting produces a mid-range presence boost to provide clear, intelligible speech even at the longest throw distances, along with increased midrange sensitivity for higher midrange maximum output capability
- Low Frequency Drivers: The low frequency drivers are lightweight dual magnet neodymium motors with 38 mm (1.5 in) diameter voice coils. The dual magnet system provides maximum flux in a compact package. The magnet structure is magnetically shielded and the pole tips are magnetically saturated for lower flux modulation and minimum distortion. The 16 mm (0.63 in) long coil provides high linear drive and high power handling in a compact driver.
- High Frequency Drivers: The high frequency driver features a dual magnet neodymium structure for maximum sensitivity. The tweeter is encased for weather resistance. The drivers are magnetically shielded to allow close placement CRT monitors.
- SonicGuard: Dynamic SonicGuard protection on the high frequency section minimizes distortion at high drive levels by limiting driver excursion dynamically. This maximizes music clarity and speech intelligibility at high drive levels while protecting the drivers from damage due to occasional overpowering.
- Bracketry: A swivel (pan) / tilt wall-mount bracket is included, plus ten M6 inserts on the back panel fit the spacing of common third-party mounting brackets, or can be utilized to suspend the speaker using forged shoulder steel eyebolts or swivel mounting rings, providing installation versatility.
- Weather Resistant with optional panel cover: CBT 70J-1 can be installed either indoors or outdoors. IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant. The drivers are weather-treated, the fiberglass reinforced ABS cabinet is excellent for outdoor applications, external screws are stainless steel and the painted aluminum grille resists rusting in the harshest conditions.
- Mounting Bracket: Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming
Whats Included
- 1 Speaker
- 1 Wall bracket
- 1 Speaker
- 1 Wall bracket
Q: What is the lowest frequency this speaker can produce?
A: The minimum frequency response for this speaker is 60 hertz.
Q: Does this speaker have any features to protect against distortion?
A: Yes, the SonicGuard™ feature dynamically limits driver excursion to minimize distortion at high drive levels.
Q: Can this speaker be used outdoors?
A: Yes, the CBT 70J-1 speaker is weather-resistant and can be used both indoors and outdoors.
Q: How is the speaker's voicing adjusted?
A: The speaker's voicing can be adjusted using the Music/Speech switch.
Q: What type of mounting options are available for this speaker?
A: This speaker includes a swivel (pan)/tilt wall mount bracket. Additionally, it has ten M6 inserts on the back panel that are compatible with common third-party mounting brackets or can be used for suspension with forged shoulder steel eyebolts or swivel mounting rings.
Q: What size are the tweeters in this speaker?
A: The tweeters in this speaker are 1 inch in size.
