JBL - Control HST Wall Mount Wide-Coverage Speaker with 5-1/4" LF, Dual Tweeters and HST Technology™, 8 Ohm and 70V/100V - Black
Related Item
Specifications
- Speaker TypeSatellite, LandscapeRMS Power100 watts
- Key Specs
- Speaker Type: Satellite, Landscape
- RMS Power: 100 watts (The maximum amount of continuous power the device is able to handle.)
- General
- Brand: JBL
- Model Number: CONTROL HST
- Product Name: Control HST Wall Mount Wide-Coverage Speaker with 5-1/4" LF, Dual Tweeters and HST Technology™, 8 Ohm and 70V/100V
- Color: Black
- Audio
- Speaker Type: Satellite, Landscape
- RMS Power: 100 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 400 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 68 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 18 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 88 decibels
- Number of Speakers: 1
- Number of Tweeters: 2
- Tweeter Size: 0.75 inches
- Number of Woofers: 1
- Woofer Size: 5.25 inches
- Connectivity
- Speaker Connectivity: Wired
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Audio Only Inputs: No audio only inputs
- Network Connector(s): No network connectors
- Speaker Wire Connection Type: Binding posts
- Features
- Indoor Or Outdoor Use: Indoor and outdoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 10.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 14.25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 8 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 691991000775
The JBL Control HST speaker uses Hemispherical Soundfield Technology™ to provide wide, consistent audio coverage and minimize wall reflection issues that distort sound. It's design includes a wall-facing woofer and splayed tweeters, enabling full-range sound from a single speaker across large areas, reducing the number needed and cutting system costs.
- HST Hemispherical Soundfield Technology™: Provides extremely wide horizontal coverage that approaches 180°, covering a greater area with fewer speakers. Reduces the primary wall reflection, resulting in a flat frequency response and consistent sound character at all listening positions.
- Components: : 5-1/4" CMMD woofer and two splayed ¾" fluid-cooled tweeters
- Power handling: 100 Watt power handling in direct 8Ω setting, plus built-in 60 Watt 70V/100V multi-tap transformer
- IP54 Environmental rating: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray.

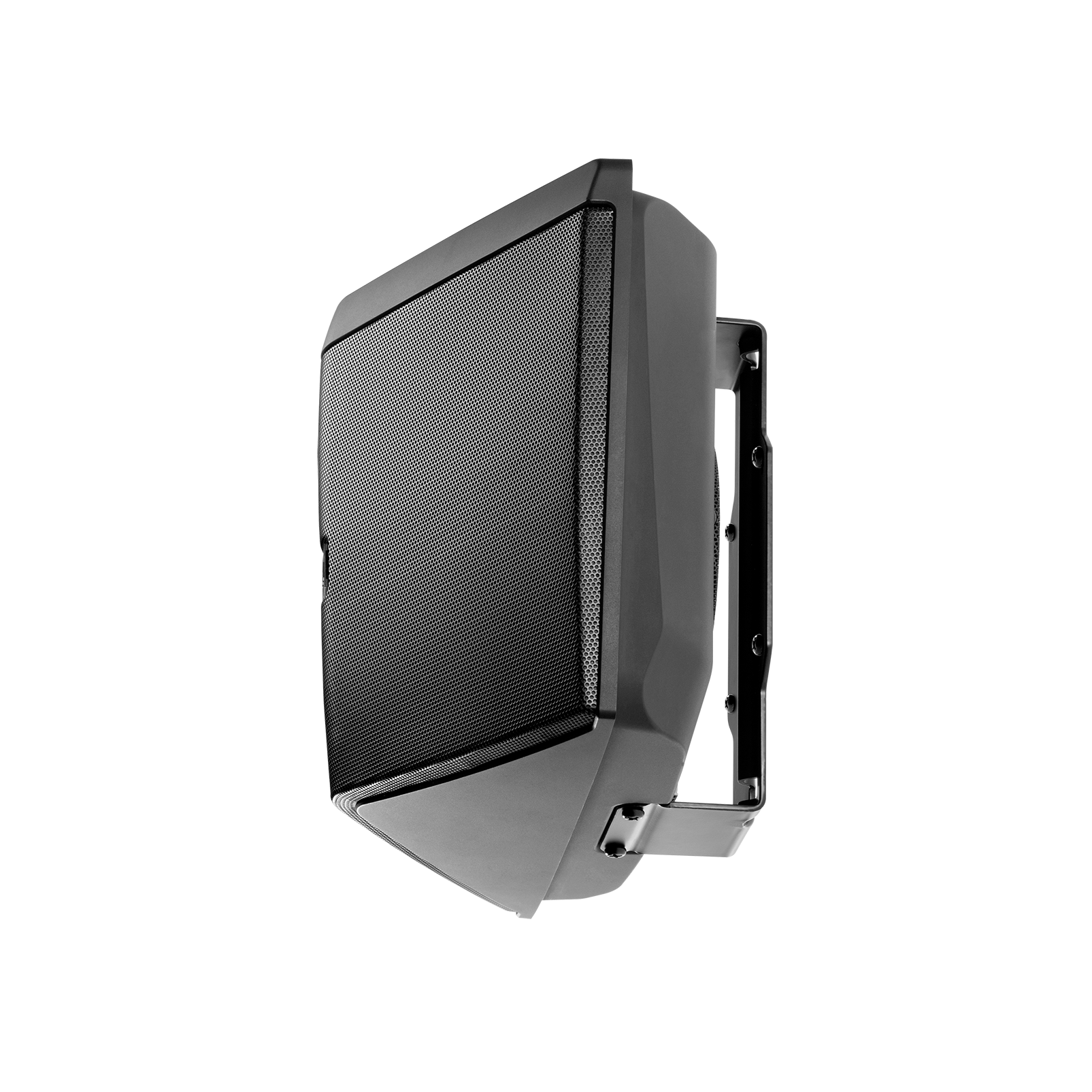

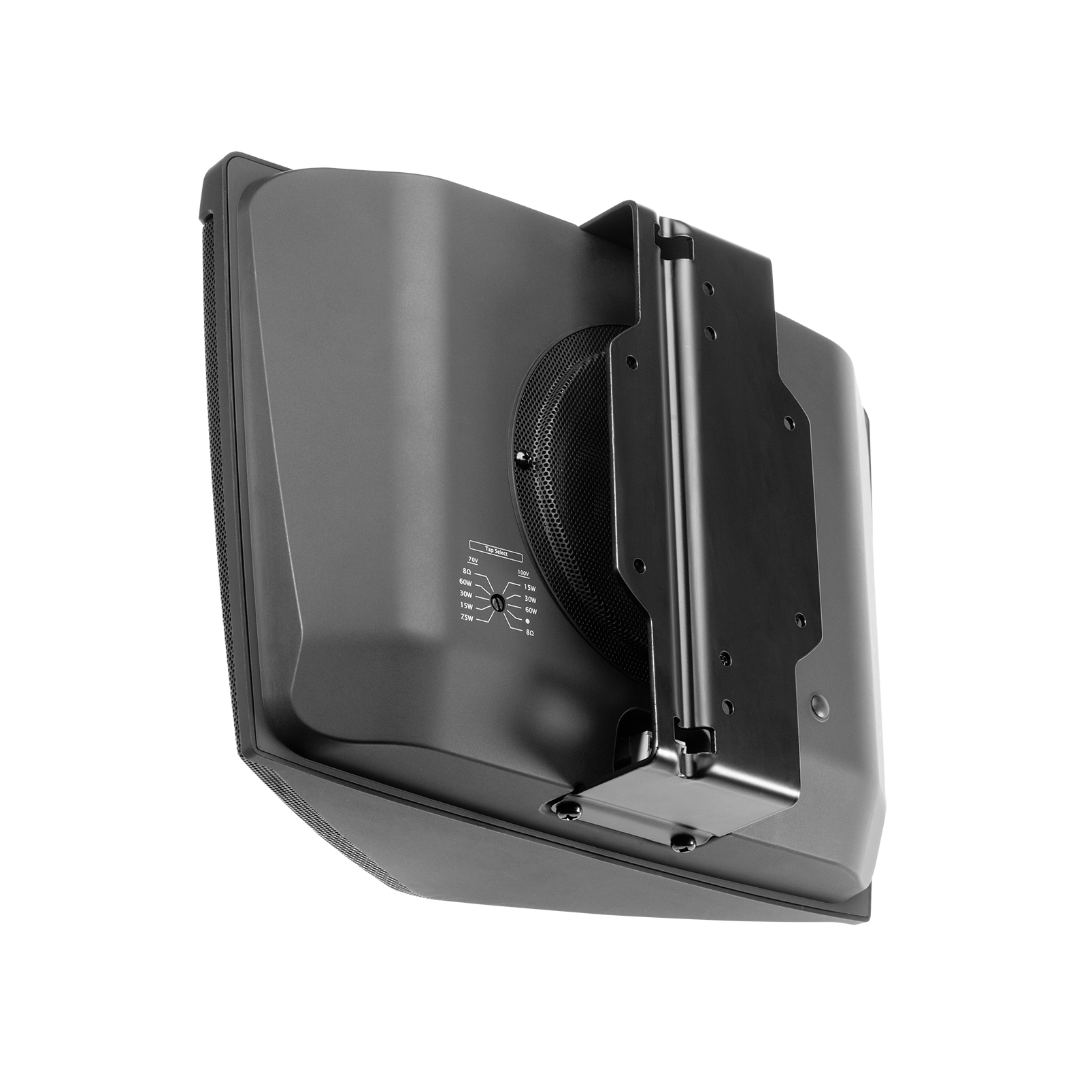

- U-Bracket: A heavy-duty weather-capable zinc-rich, thick powder coated U-bracket is included. The speaker must be installed on its U-bracket for proper spacing to the wall. Do not mount the speaker directly in the corner of a room or onto a pole. It requires a wall surface in order to work properly.
- System Power: 100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs
- Terminals: Removable locking euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max. wire 12 AWG (2.5 mm2 ).

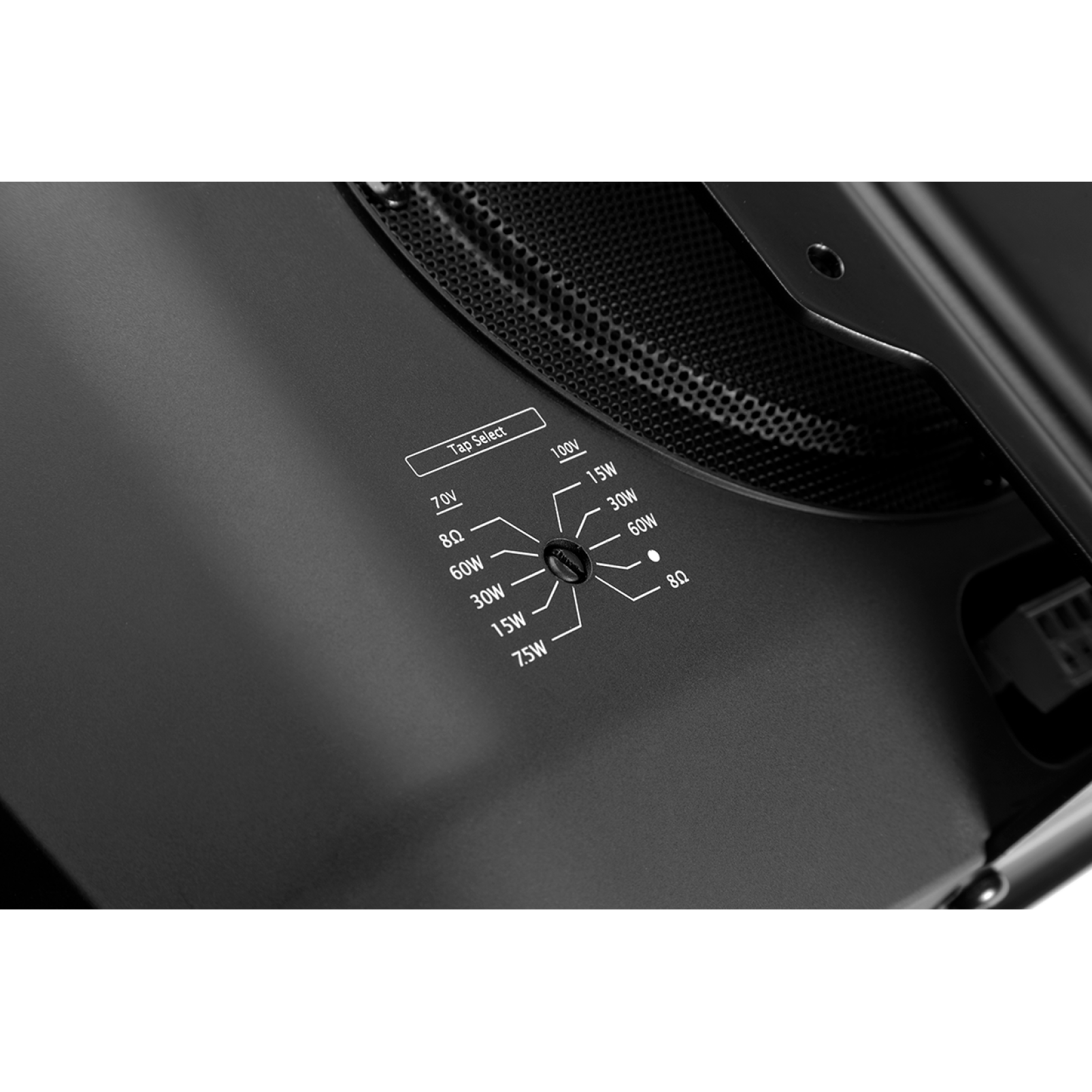

- Transformer Taps:: 70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W
- HST Hemispherical Soundfield Technology™: Provides extremely wide horizontal coverage that approaches 180°, covering a greater area with fewer speakers. Reduces the primary wall reflection, resulting in a flat frequency response and consistent sound character at all listening positions.
- Components: : 5-1/4" CMMD woofer and two splayed ¾" fluid-cooled tweeters
- Power handling: 100 Watt power handling in direct 8Ω setting, plus built-in 60 Watt 70V/100V multi-tap transformer
- IP54 Environmental rating: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray.
- U-Bracket: A heavy-duty weather-capable zinc-rich, thick powder coated U-bracket is included. The speaker must be installed on its U-bracket for proper spacing to the wall. Do not mount the speaker directly in the corner of a room or onto a pole. It requires a wall surface in order to work properly.
- System Power: 100 W (400 W peak), 2 hrs. 75 W (300 W peak), 100 hrs
- Terminals: Removable locking euro-block 4-pin connector with screw-down terminals for bare wire. Two pins for input and two pins for parallel loop-thru. Max. wire 12 AWG (2.5 mm2 ).
- Transformer Taps:: 70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W
Whats Included
- 1 Speaker
- U-Bracket
- 1 Speaker
- U-Bracket
Product Manuals
