JBL - MA510 75W 5.2ch Bluetooth and WiFi Capable HDR 8K Ultra HD Compatible AV Receiver - White
Color
White
Rocketfish™ - 30' 16 Gauge Pure Copper Speaker Wire - Clear$24.99
More Buying Options
Related Item
Specifications
- Continuous Watts x Channel @ Ohms75W x 2ch @ 8ohms, 75W x 5ch @ 8ohmsMaximum Watts x Channel @ Ohms75W x 2ch @ 8 ohms, 75W x 5ch @ 8 ohms.Number of Channels5.2Number of Audio Zones1Audio Only Inputs1 x Coaxial digital audio, 1 x Optical digital audio, 1 x Analog audio, 1 x Analog audioAudio/Video Inputs4 x HDMI 2.1
- Key Specs
- Continuous Watts x Channel @ Ohms: 75W x 2ch @ 8ohms, 75W x 5ch @ 8ohms
- Maximum Watts x Channel @ Ohms: 75W x 2ch @ 8 ohms, 75W x 5ch @ 8 ohms. (This is the maximum load the speaker, subwoofer or amp can drive.)
- Number of Channels: 5.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)

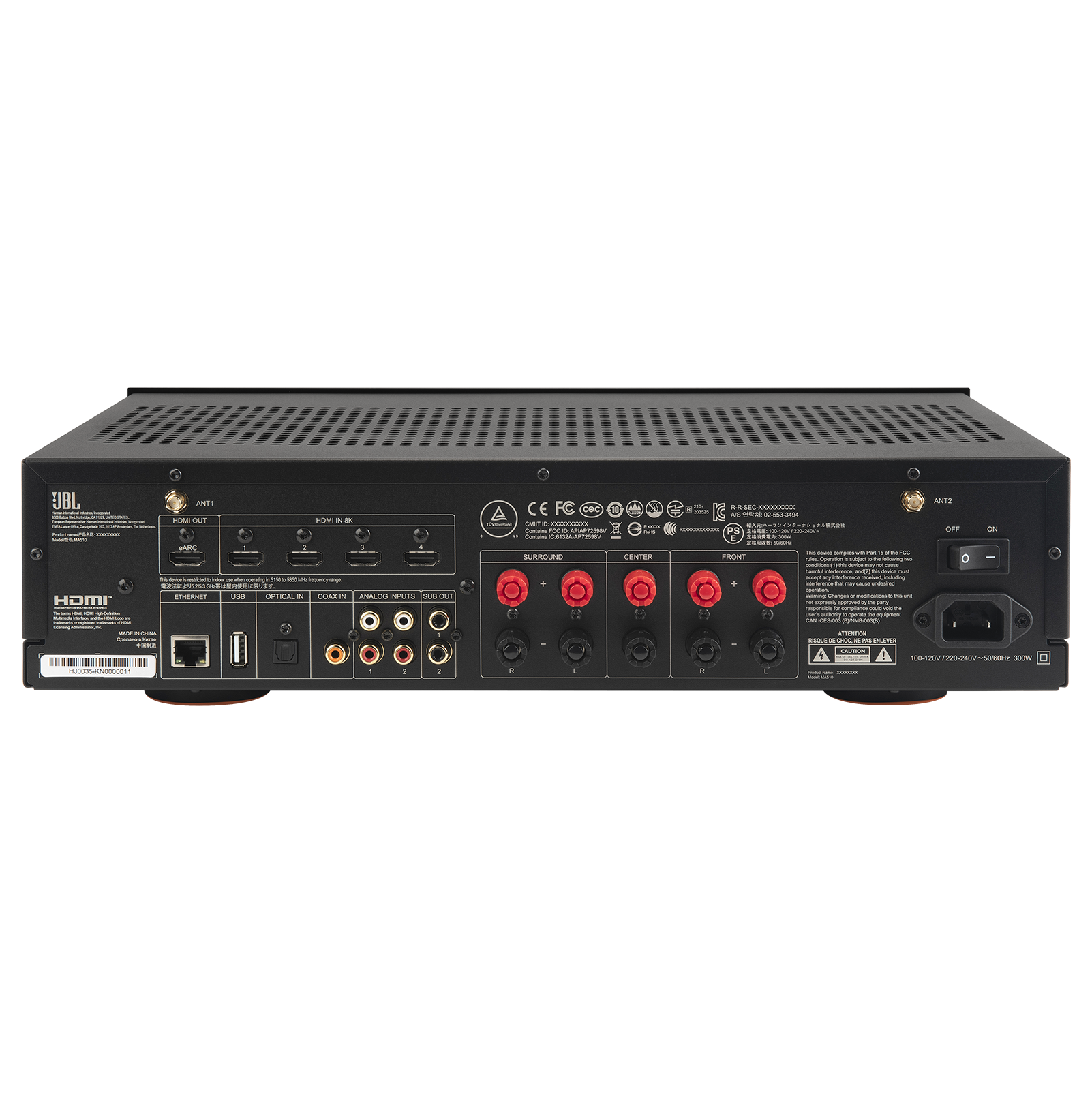

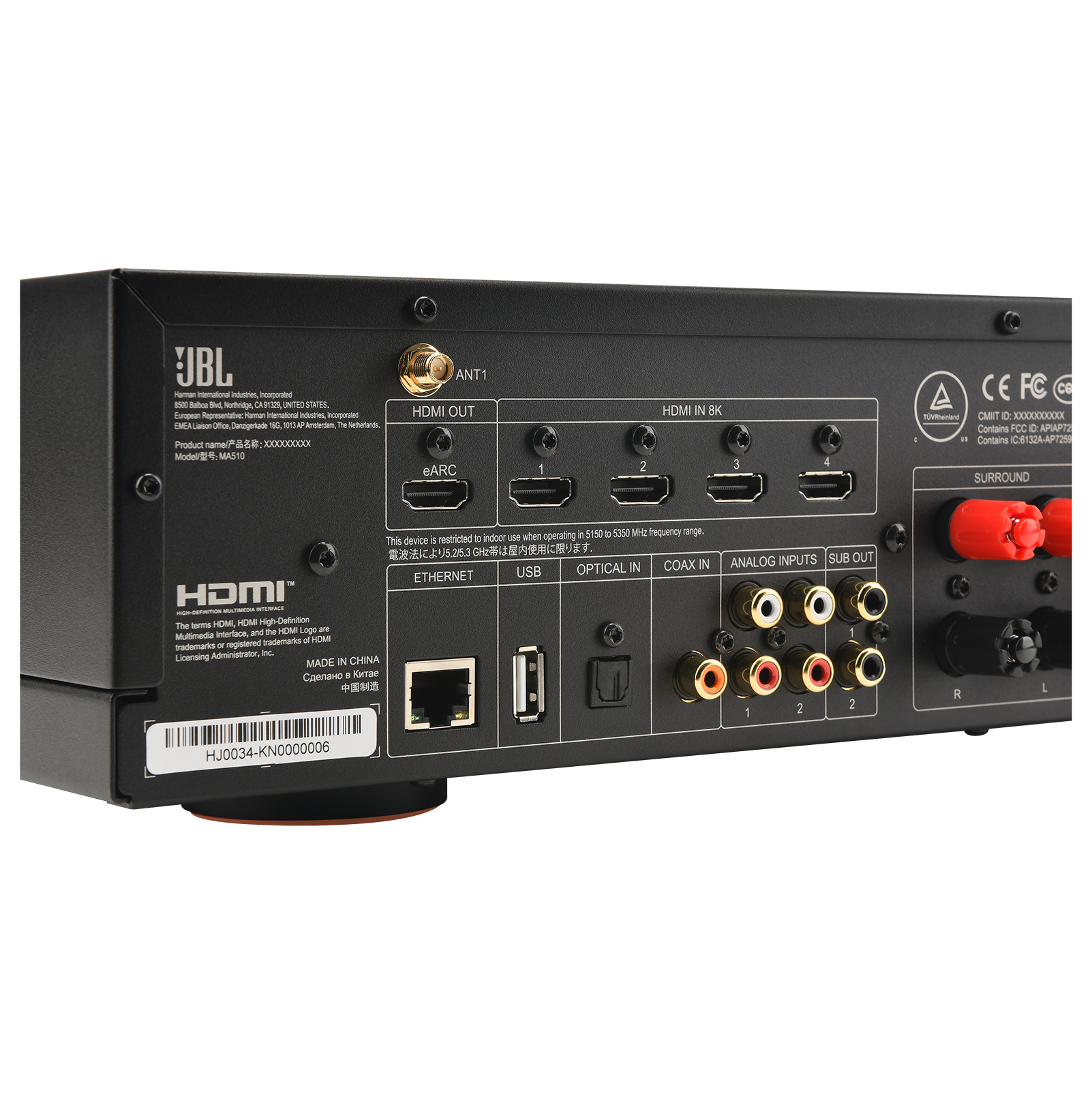

- Audio Only Inputs: 1 x Coaxial digital audio, 1 x Optical digital audio, 1 x Analog audio, 1 x Analog audio
- Audio/Video Inputs: 4 x HDMI 2.1 (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Video Pass-through: HDR, 2160 (4K) (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Maximum Supported Resolution (Video Passthrough): 4320p (8K) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Audio/Video Outputs: 2 x HDMI (The number and type of HDMI outputs the product has.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Works With: Amazon Alexa, Google Home, Apple Home, SmartThings, Nest, Ring (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: Amazon Alexa, Google Assistant (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: JBL
- Model Number: JBLMA510WHTAM
- Product Name: MA510 75W 5.2ch Bluetooth and WiFi Capable HDR 8K Ultra HD Compatible AV Receiver
- Color: White
- Audio
- Continuous Watts x Channel @ Ohms: 75W x 2ch @ 8ohms, 75W x 5ch @ 8ohms
- Maximum Watts x Channel @ Ohms: 75W x 2ch @ 8 ohms, 75W x 5ch @ 8 ohms. (This is the maximum load the speaker, subwoofer or amp can drive.)
- Number of Channels: 5.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- High Resolution Audio: true (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Number of Audio Zone Source Outputs: 1 (Multiple source outputs from the receiver mean different speakers are able to receive different sound sources from the receiver or preamp/processor. For every output, a different sound source can be accessed simultaneously in different zones. For example, two source outputs could be a streaming media player in one room and a Blu-ray player in another.)
- Surround Sound Supported: Dolby Digital, DTS (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Maximum Sampling Rate Supported: 24-bit/192kHz. (Generally, the higher the sampling rate, the greater the quality of audio and/or video.)
- Speaker A/B Switching: false (Allows a user to select between one of two sets of primary speakers.)
- Supported File Formats: MPS, MPEG4-AAC, WMA, ALAC, FLAC, PCM, WAV, AIFF
- DSP Modes: up to 24-bit/192kHz (Available sound modes that alter how the audio is processed and played back. A common example is a mode that allows stereo audio to be played on all available surround sound speakers, creating a simulated surround sound effect.)
- Equalizer: true (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- Tuner Type(s): Internet

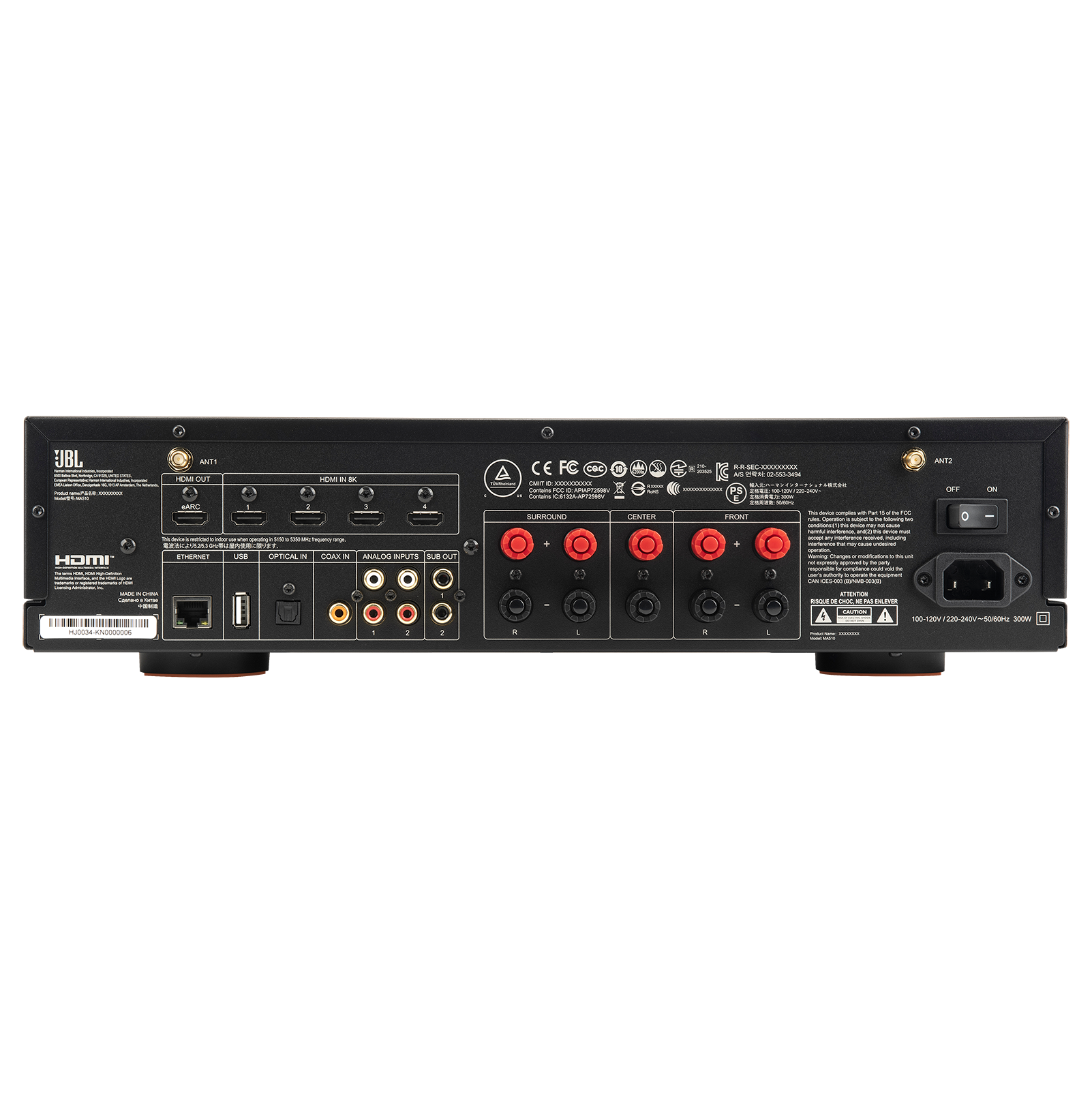

- Inputs
- Audio Only Inputs: 1 x Coaxial digital audio, 1 x Optical digital audio, 1 x Analog audio, 1 x Analog audio
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Audio/Video Inputs: 4 x HDMI 2.1 (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Front Facing Inputs: 1 x HDMI Input
- Number of HDMI Inputs (Total): 4
- Number of USB Inputs: 1
- Video
- Video Pass-through: HDR, 2160 (4K) (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Maximum Supported Resolution (Video Passthrough): 4320p (8K) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- High Dynamic Range Format: HDR 10, Dolby Vision (There are a few HDR formats that tell the TV or other HDR-compatible product how to best utilize its capabilities to display HDR content. HDR technology can support one or multiple formats, each with various benefits to picture quality.)
- Outputs
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Audio/Video Outputs: 2 x HDMI (The number and type of HDMI outputs the product has.)

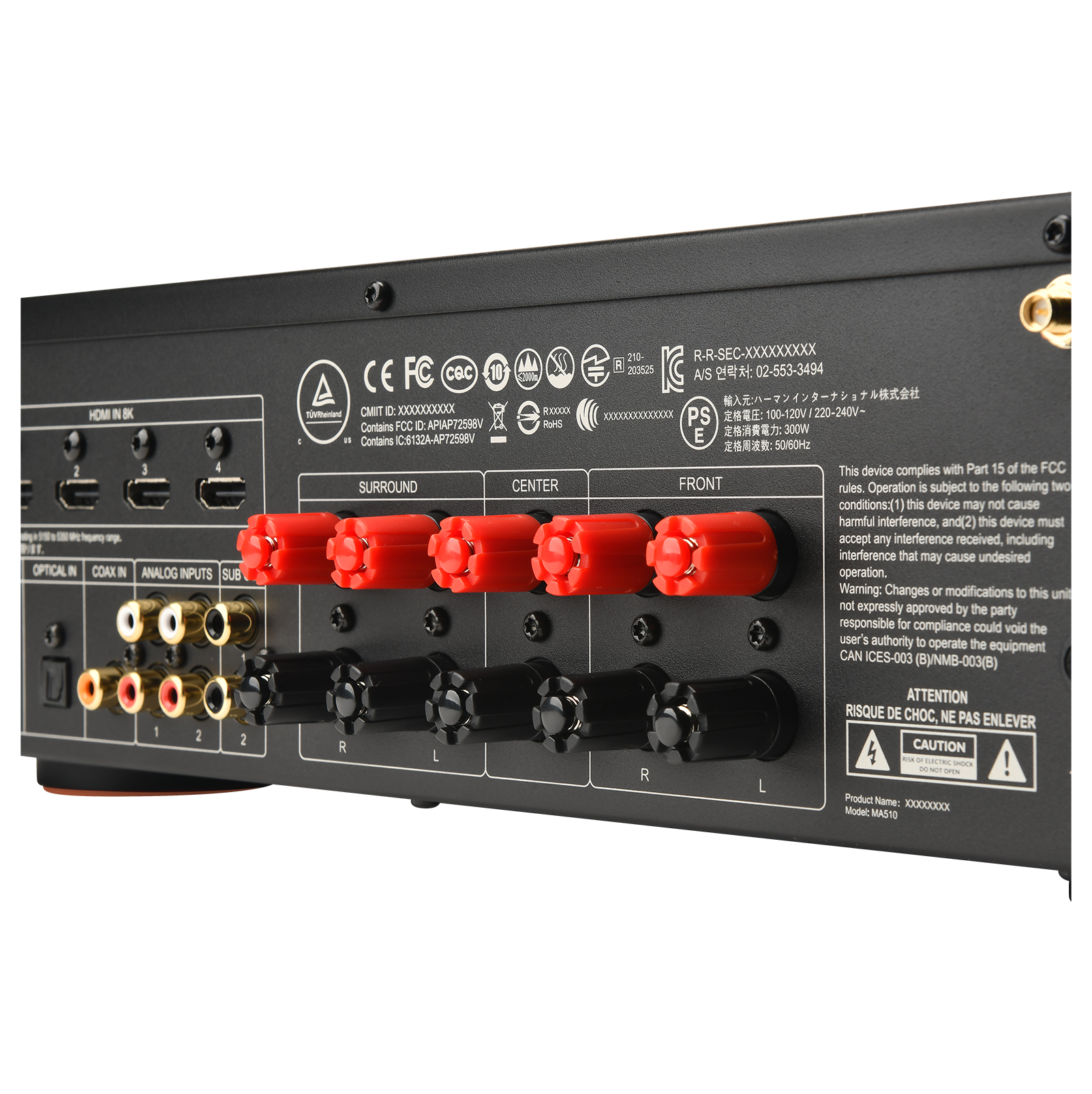

- Speaker Connection Type: Banana Jack/Screw Terminals
- Number of HDMI Outputs (Total): 2
- Headphone Jack: false (The device features an interface that allows for the connection of headphones.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Featured Streaming Services: Apple Music, Spotify (Streaming services and other programs are available on this device. Keep in mind, there may be more services supported than just those shown here.)
- Auto Calibration: true (Home theater systems and receivers with an autocalibration function can automatically determine basic settings like speaker volume, crossover point, equalization, and more.)
- Digital Content Protection: HDCP 2.3 (High-bandwidth Digital Content Protection (HDCP) is designed to prevent copying of digital audio and video content as it travels across connections. Newer versions of HDCP support more connection types, increase security, and resolve weaknesses of previous versions.)
- Remote Control Included: true
- Connectivity
- Wireless Multi-Room Audio: true (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Multi-Room Technology: Apple AirPlay, Google Cast (Proprietary technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- IP Control: false (Allows electronic devices to be controlled over a home network via a web-based interface. Typically refers to devices not traditionally controlled in this manner, such as A/V receivers.)
- Compatibility
- Works With: Amazon Alexa, Google Home, Apple Home, SmartThings, Nest, Ring (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: Amazon Alexa, Google Assistant (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Dimensions
- Product Height: 4.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 12 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 050036400312
The JBL MA510 is an AV Receiver that delivers spectacular realism with 8K HDMI specifications for a supreme home cinema experience. Seamlessly integrate your smart TV or projector with 4 HDMI inputs and 1 output, plus eARC. With native 5-channel decoding of Dolby and DTS formats, the MA510 can deliver incredible cinema experiences. It is designed with a passion for music and movies, bringing both to life with true high fidelity. Additional music content can be accessed via Bluetooth and network streaming. The MA510 features five channels of low noise Class D amplification for real world power to all channels.
- Stunning audio and video performance: High-performance 5.2-channel AV receiver that delivers stunning realism with the latest 4K video for the ultimate home cinema experience

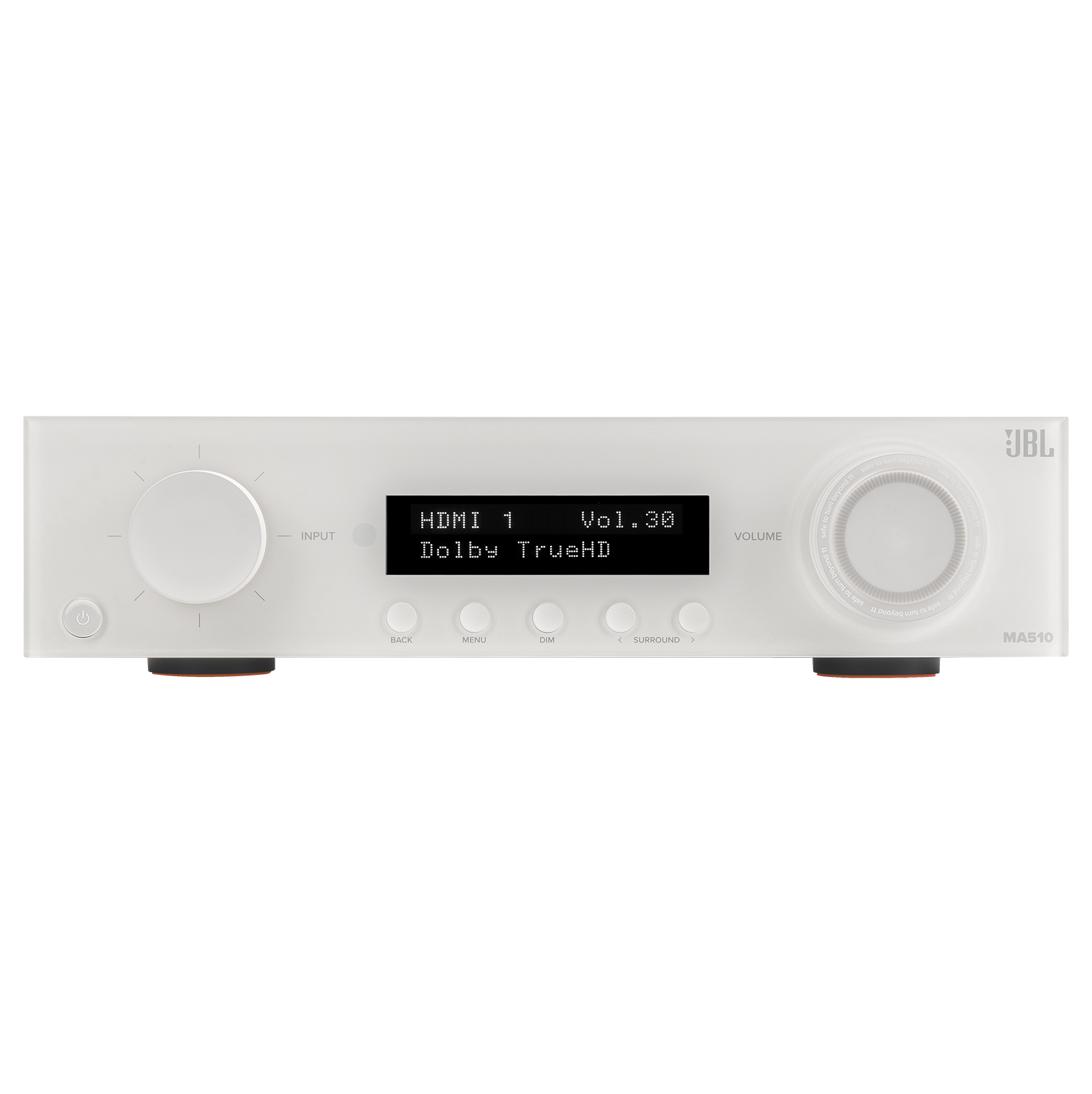

- Intuitive setup with a minimalist modern design: Seamless integration with smart TVs, gaming consoles,streaming, cable boxes and more with 4 HDMI inputs and 1 output plus eARC
- High-performance immersive surround sound: Native 5-channel decoding of Dolby and DTS formats.
- Bring both music and movies to life with true high fidelity: Designed with a passion for music and movies, bringing both to life with true high fidelity.
- Bluetooth and network streaming: Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast).

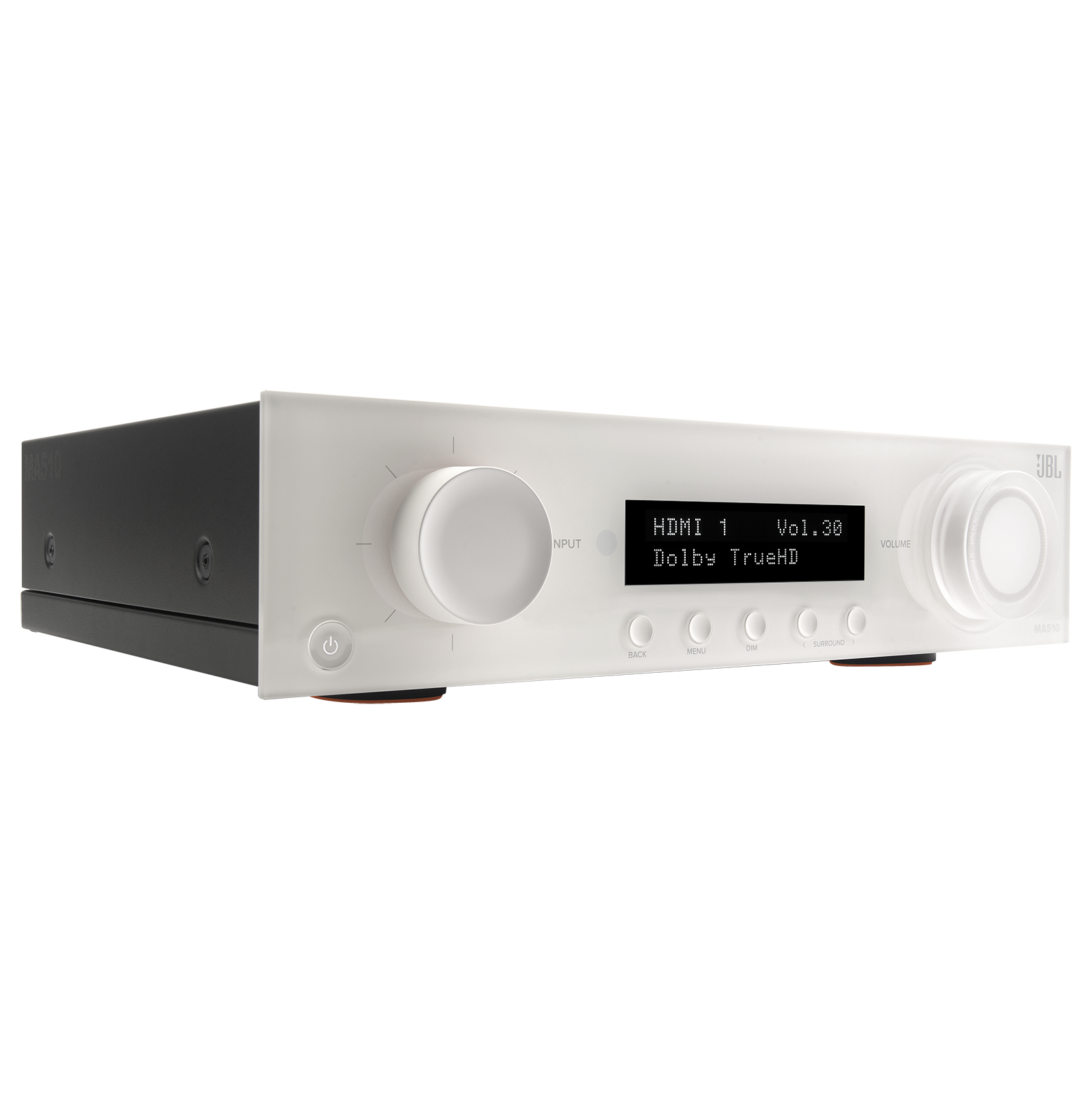

- On-screen setup and operation: On-screen display for easy system setup and operation (via HDMI).

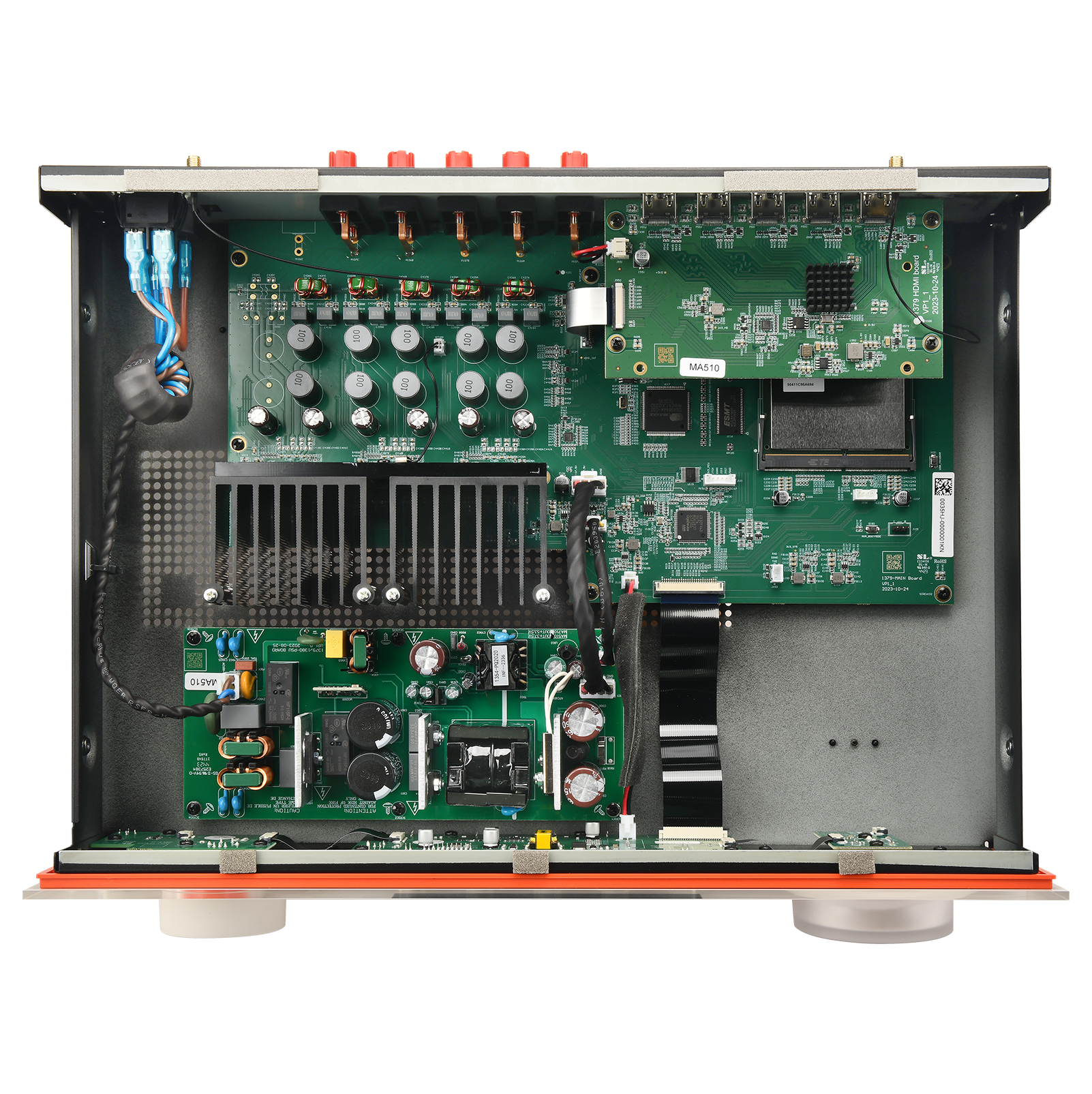

- Powerful amplification: Five channels of low noise Class D amplification for real world power to all channels.
- EZ Set EQ: EZ Set EQ provides easy-to-use room equalization for optimized sound quality.
- Stunning audio and video performance: High-performance 5.2-channel AV receiver that delivers stunning realism with the latest 4K video for the ultimate home cinema experience
- Intuitive setup with a minimalist modern design: Seamless integration with smart TVs, gaming consoles,streaming, cable boxes and more with 4 HDMI inputs and 1 output plus eARC
- High-performance immersive surround sound: Native 5-channel decoding of Dolby and DTS formats.
- Bring both music and movies to life with true high fidelity: Designed with a passion for music and movies, bringing both to life with true high fidelity.
- Bluetooth and network streaming: Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast).
- On-screen setup and operation: On-screen display for easy system setup and operation (via HDMI).
- Powerful amplification: Five channels of low noise Class D amplification for real world power to all channels.
- EZ Set EQ: EZ Set EQ provides easy-to-use room equalization for optimized sound quality.
Whats Included

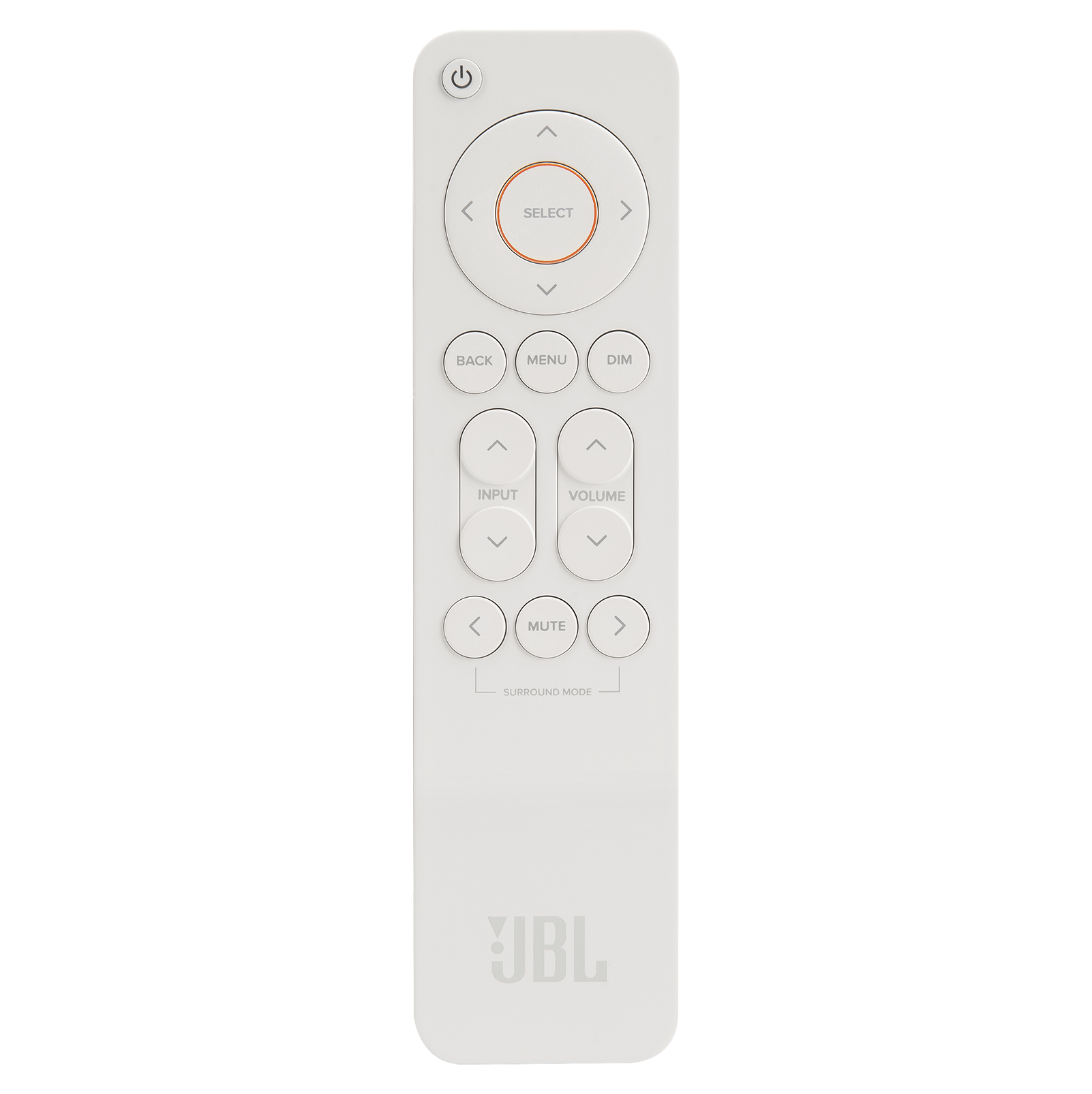

- 1 x IR Remote, 2 x AAA Batteries
- 1 x Bluetooth Antenna, 1 x Power Cord
- 1 x WiFi Antenna
- 1 x IR Remote, 2 x AAA Batteries
- 1 x Bluetooth Antenna, 1 x Power Cord
- 1 x WiFi Antenna
Q: How many HDMI inputs does the receiver have?
A: The receiver has four HDMI inputs.
Q: What is the maximum supported resolution for video passthrough?
A: The maximum supported resolution for video passthrough is 4320p (8K) at 60 Hz.
Q: What is the power output of the receiver per channel?
A: The MA510 receiver can output 75 watts per channel.
Q: Can the receiver be controlled using an app?
A: This receiver is app compatible.
Q: What is the weight of the receiver?
A: The product weight is 12 pounds.
Q: Does the receiver support Dolby Digital surround sound?
A: The MA510 receiver does support Dolby Digital surround sound.
Q: What are the dimensions of the receiver?
A: The product width is 17 inches, the product height is 4.3 inches, and the product depth is 13.7 inches.
Q: Can this be mounted vertical behind a tv
A: Thanks for your question. For further assistance with your inquiry regarding JBL MA510, please contact our Luxury Customer Support at 888-691-4171.
Compare similar products
The JBL MA510 is an AV Receiver that delivers spectacular realism with 8K HDMI specifications for a supreme home cinema experience. Seamlessly integrate your smart TV or projector with 4 HDMI inputs and 1 output, plus eARC. With native 5-channel decoding of Dolby and DTS formats, the MA510 can deliver incredible cinema experiences. It is designed with a passion for music and movies, bringing both to life with true high fidelity. Additional music content can be accessed via Bluetooth and network streaming. The MA510 features five channels of low noise Class D amplification for real world power to all channels.
Escape the everyday with spatial surround-sound From easy Bluetooth wireless streaming to the heart-pounding thrills of Dolby Atmos and DTS:X soundtracks, the TX-SR494 deepens enjoyment of daily life with great sound and smart features. Seven channels of high-current power give you freedom to choose a speaker layout that suits. Dolby Atmos Height Virtualizer* or DTS Virtual:X place sound overhead or behind if you don’t want height or surround speakers and both Dolby Surround and DTS Neural:X are on board. Rear surrounds, bi-amped front speakers, or Powered Zone B audio are also an option. AccuEQ with subwoofer EQ and AccuReflex for 5.2.2-ch Dolby Atmos-enabled systems clarify sound in any space. As the heart of your home theater, the TX-SR494 has HDMI terminals supporting HDR and 4K/60p video, while the GUI with OSD over HDMI, Zone B pre-/line-out, and Vocal Enhancer function make this receiver a joy to use as well as hear.
The JBL MA7100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 7-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 2 outputs, plus eARC. Designed with a passion for music and movies, the MA7100HP brings both to life with true high fidelity. The MA7100HP features seven channels of low-noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Taking performance to the next level, the MA7100HP comes “Dirac Live Ready” for automatic room correction, assuring audiophile-quality sonics and allows integrators and power-users to optimize the system to their personal room acoustics. Featuring a secondary HDMI video output and audio Zone, content can also be made available in a secondary location. In addition to physical controls, the MA7100HP allows for IP control for third party control system integration.
The JBL MA310 is an AV Receiver that delivers extraordinary performance with 4K HDMI specifications for a supreme home cinema experience. Seamlessly integrate your smart TV or projector with 4 HDMI inputs and 1 output, plus ARC. With native 5-channel decoding of Dolby and DTS formats, the MA310 can deliver incredible cinema experiences. It is designed with a passion for music and movies, bringing both to life with true high fidelity. Additional music content can be accessed via Bluetooth. The MA310 features five channels of low noise Class D amplification for real world power to all channels.
| Pros for JBL - MA510 75W 5.2ch Bluetooth and WiFi Capable HDR 8K Ultra HD Compatible AV Receiver - White | |||
|---|---|---|---|
| Sound Quality, Ease of use, Power, Bluetooth, Size | Sound Quality, Ease of use, Power, Setup, Price | Sound Quality, HDMI | There were no pros for this product— |
| Cons for JBL - MA510 75W 5.2ch Bluetooth and WiFi Capable HDR 8K Ultra HD Compatible AV Receiver - White | |||
| User Interface | Overheating, Volume | There were no cons for this product— | There were no cons for this product— |
Specs
Reviews
Customers are saying
Customers are impressed with the MA510's sound quality, citing its excellent performance and crisp audio. The ease of setup and use, along with the convenient Bluetooth and Wi-Fi connectivity, are also frequently praised. Many appreciate the ample power provided by the receiver, sufficient for powering various speaker systems. The user-friendly setup process, aided by the JBL app, further enhances the overall positive user experience.

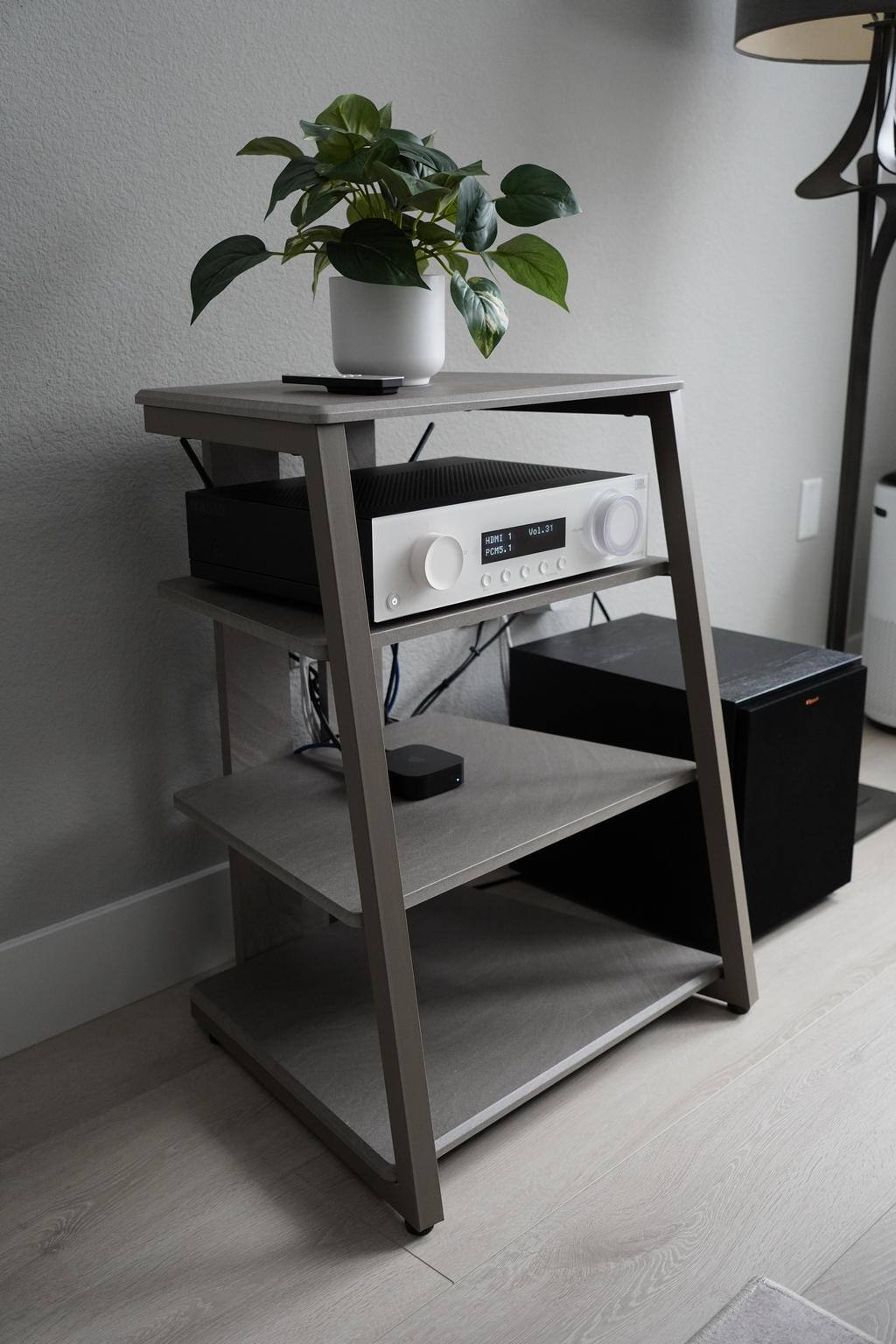

Customer Images
