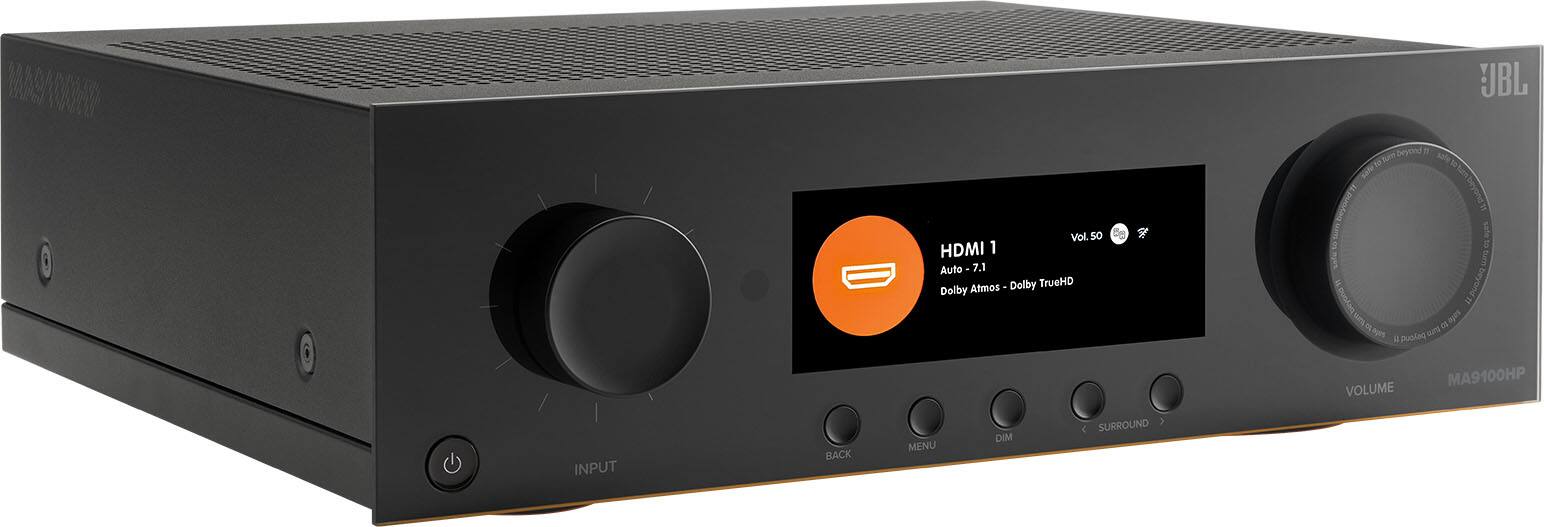

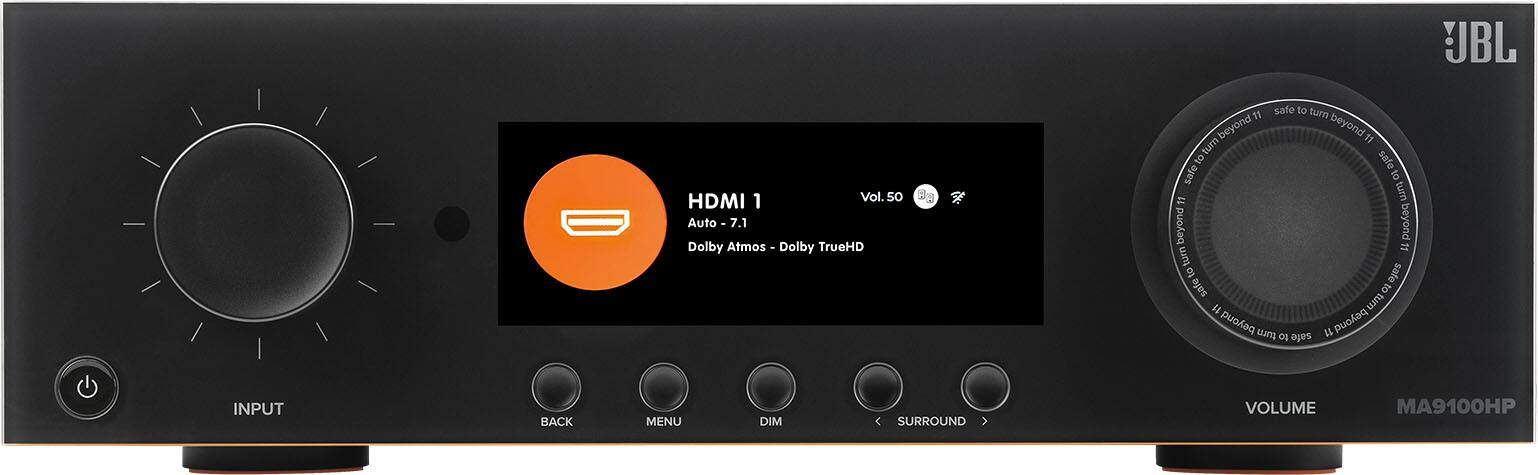

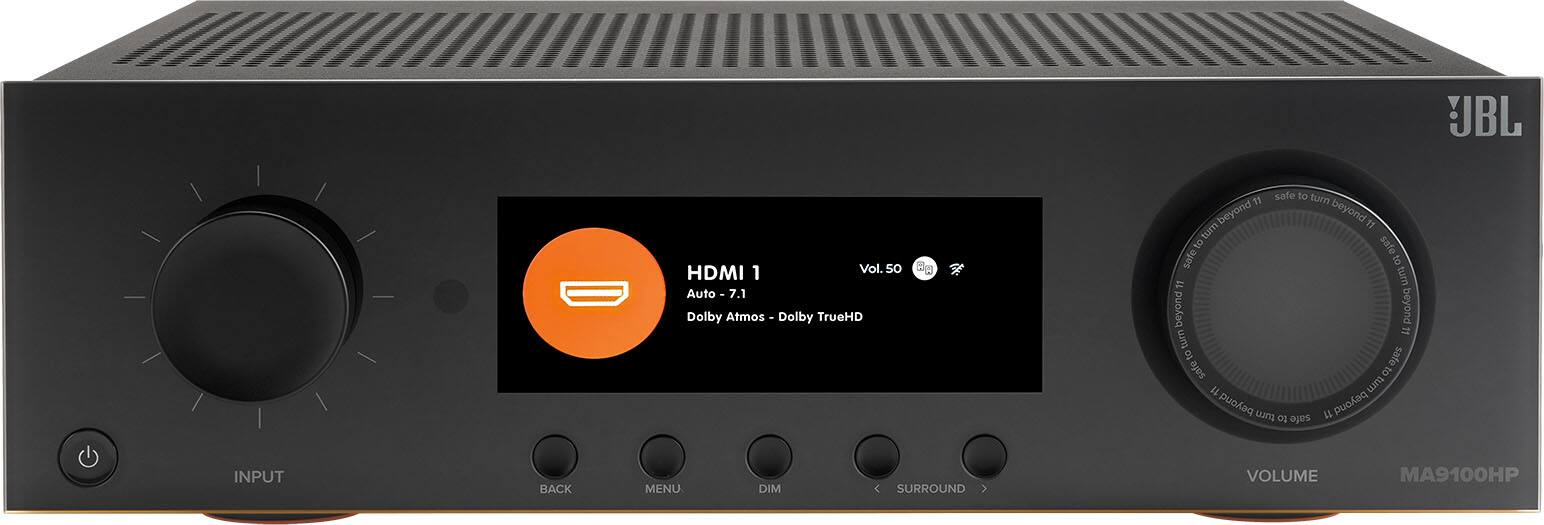

JBL - MA9100HP 9.2ch. 8K High Performance AV Home Theater Receiver - Black
JBL - MA9100HP 9.2ch. 8K High Performance AV Home Theater Receiver - Black
Color
BlackMore Buying Options
Related Item
Specifications
- Continuous Watts x Channel @ Ohms140W x 2ch @ 8ohmsMaximum Watts x Channel @ Ohms140W x 2ch @ 8ohmsNumber of Channels9.2Number of Audio Zones2Audio Only Inputs1 x Coaxial digital audio, 1 x Optical digital audio, 1 x Analog audio, 1 x Analog audio, 1 x PhonoAudio/Video Inputs3 x HDMI 2.1, 3 x HDMI 2.0
- Key Specs
- Continuous Watts x Channel @ Ohms: 140W x 2ch @ 8ohms
- Maximum Watts x Channel @ Ohms: 140W x 2ch @ 8ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Number of Channels: 9.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 2 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Audio Only Inputs: 1 x Coaxial digital audio, 1 x Optical digital audio, 1 x Analog audio, 1 x Analog audio, 1 x Phono
- Audio/Video Inputs: 3 x HDMI 2.1, 3 x HDMI 2.0 (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Video Pass-through: HDR, 2160 (4K) (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Maximum Supported Resolution (Video Passthrough): 4320p (8K) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Audio/Video Outputs: 2 x HDMI (The number and type of HDMI outputs the product has.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Works With: Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: Google Assistant (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: JBL
- Model Number: JBLMA9100HPBLKAM
- Product Name: MA9100HP 9.2ch. 8K High Performance AV Home Theater Receiver
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 140W x 2ch @ 8ohms
- Maximum Watts x Channel @ Ohms: 140W x 2ch @ 8ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Number of Channels: 9.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 2 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Number of Audio Zone Source Outputs: 2 (Multiple source outputs from the receiver mean different speakers are able to receive different sound sources from the receiver or preamp/processor. For every output, a different sound source can be accessed simultaneously in different zones. For example, two source outputs could be a streaming media player in one room and a Blu-ray player in another.)
- Surround Sound Supported: Dolby Atmos, DTS:X (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Speaker A/B Switching: false (Allows a user to select between one of two sets of primary speakers.)
- Supported File Formats: MPS, MPEG4-AAC, WMA, ALAC, FLAC, PCM, WAV, AIFF
- DSP Modes: up to 24-bit/192kHz (Available sound modes that alter how the audio is processed and played back. A common example is a mode that allows stereo audio to be played on all available surround sound speakers, creating a simulated surround sound effect.)
- Equalizer: true (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- Tuner Type(s): Internet
- Inputs

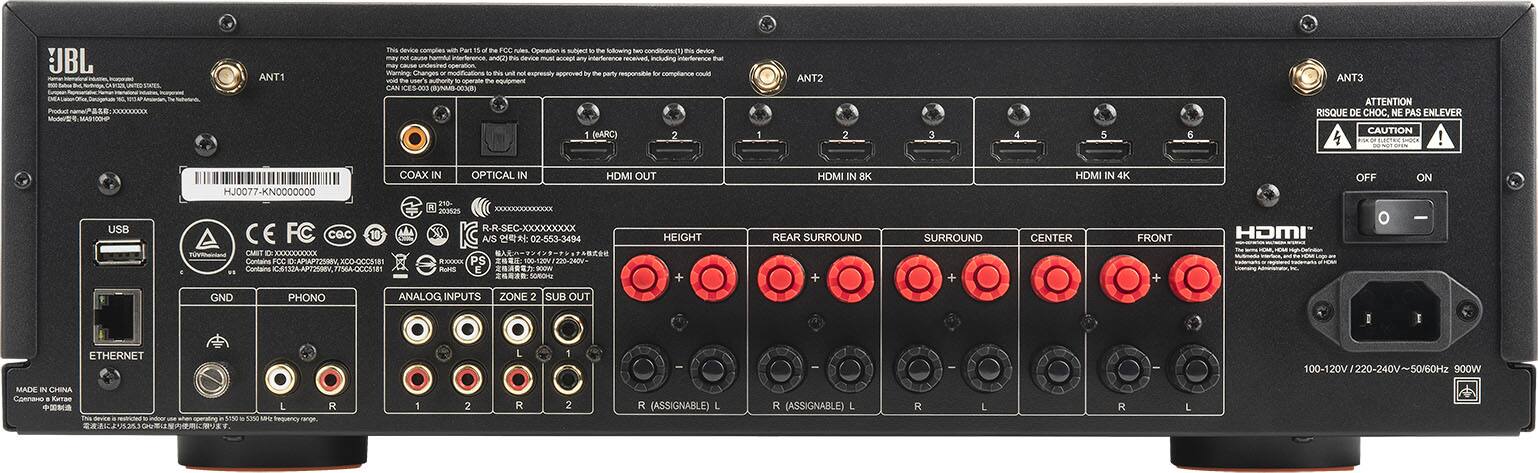

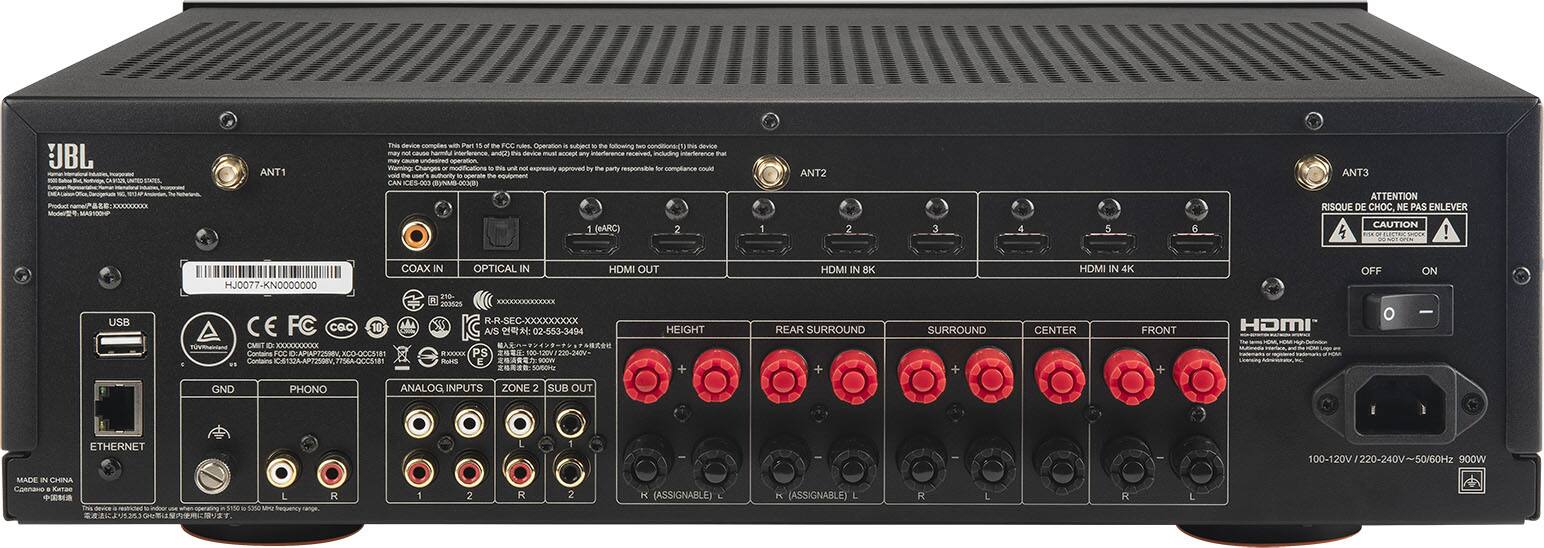

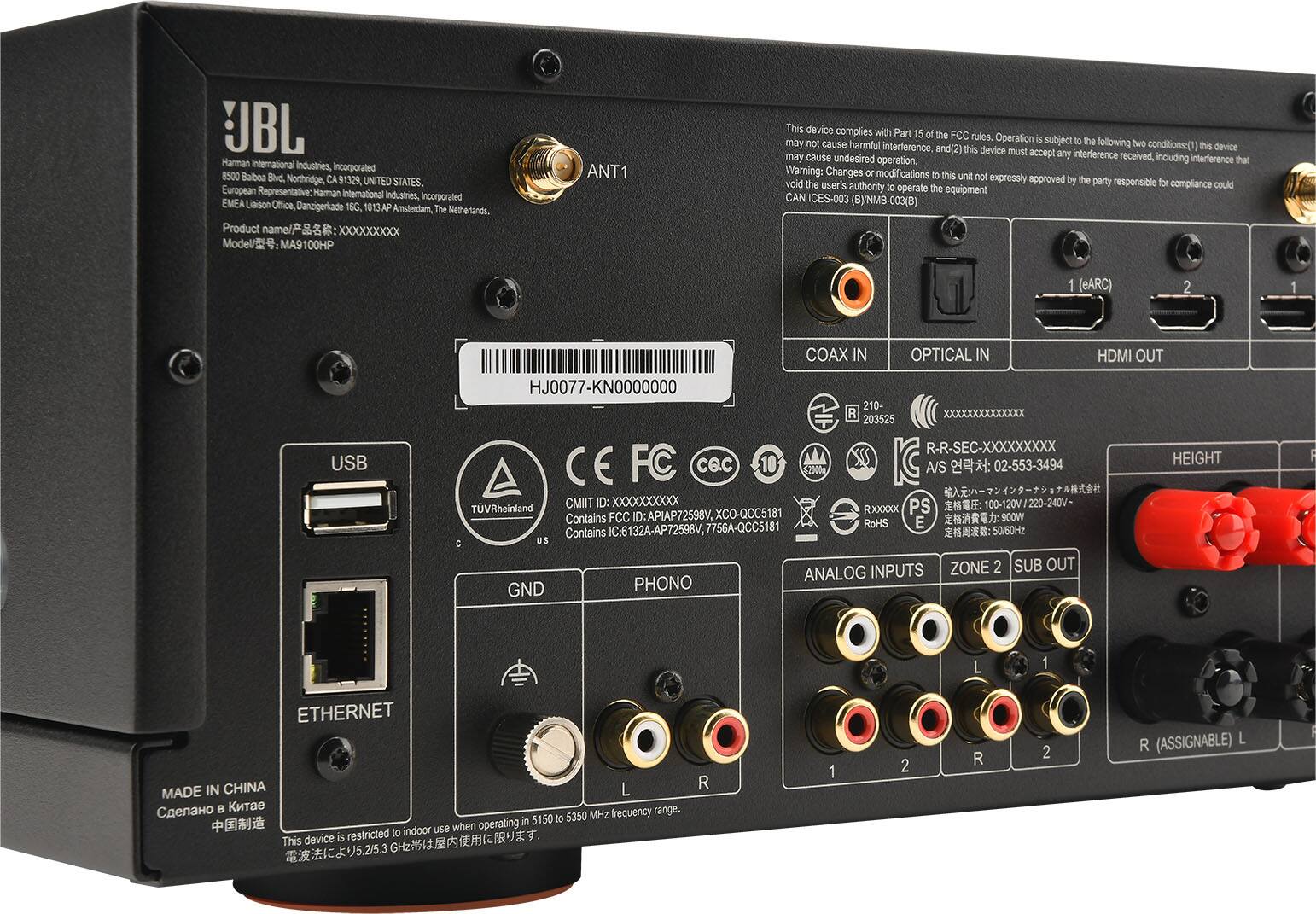

- Audio Only Inputs: 1 x Coaxial digital audio, 1 x Optical digital audio, 1 x Analog audio, 1 x Analog audio, 1 x Phono
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Audio/Video Inputs: 3 x HDMI 2.1, 3 x HDMI 2.0 (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN
- Number of HDMI Inputs (Total): 6
- Number of USB Inputs: 1
- Video
- Video Pass-through: HDR, 2160 (4K) (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- Maximum Supported Resolution (Video Passthrough): 4320p (8K) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- High Dynamic Range Format: Dolby Vision (There are a few HDR formats that tell the TV or other HDR-compatible product how to best utilize its capabilities to display HDR content. HDR technology can support one or multiple formats, each with various benefits to picture quality.)
- Outputs
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Audio/Video Outputs: 2 x HDMI (The number and type of HDMI outputs the product has.)

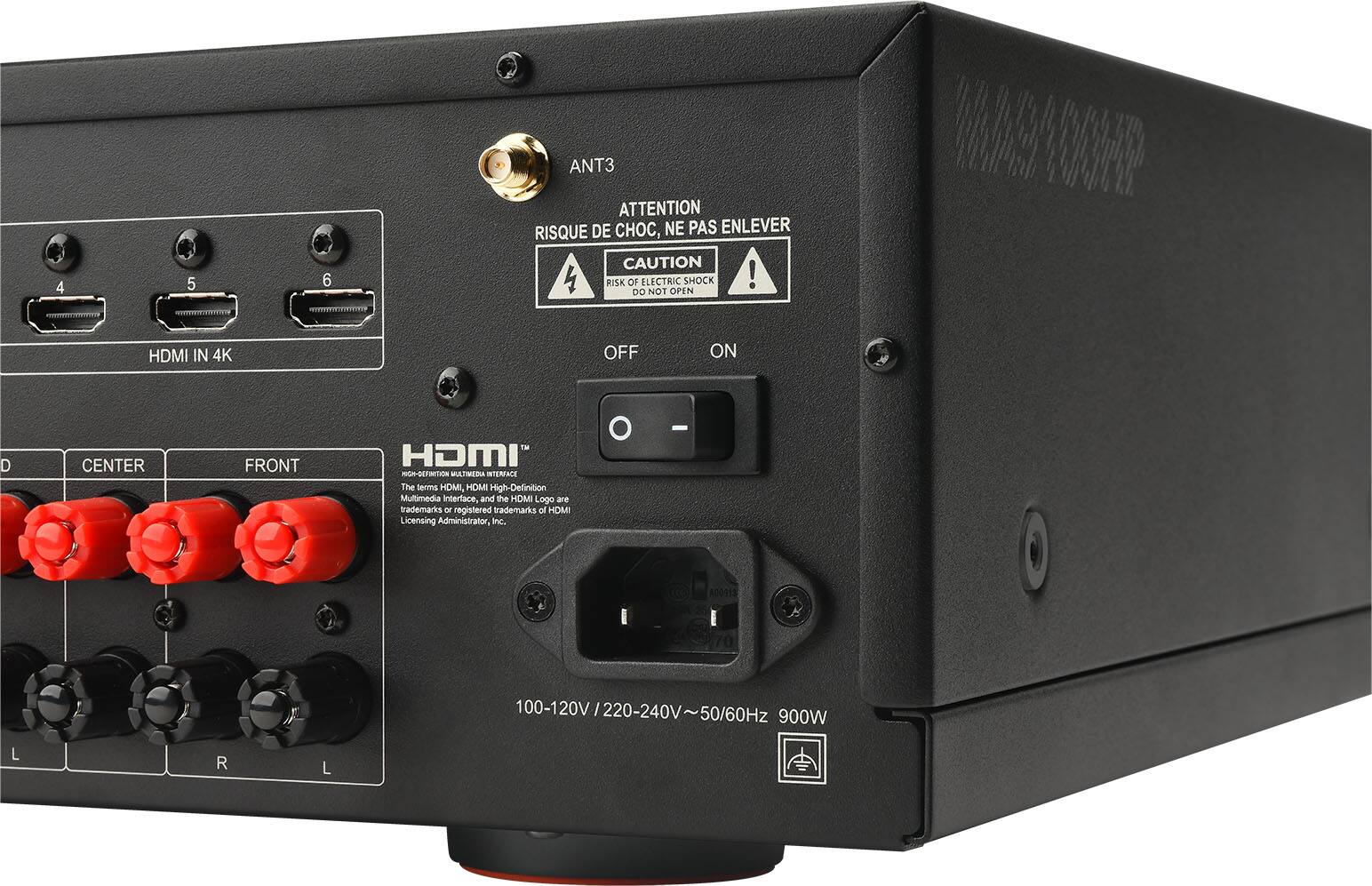

- Speaker Connection Type: Banana Jack/Screw Terminals
- Number of HDMI Outputs (Total): 2
- Headphone Jack: false (The device features an interface that allows for the connection of headphones.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Featured Streaming Services: Apple Music, Spotify (Streaming services and other programs are available on this device. Keep in mind, there may be more services supported than just those shown here.)
- Auto Calibration: true (Home theater systems and receivers with an autocalibration function can automatically determine basic settings like speaker volume, crossover point, equalization, and more.)
- Digital Content Protection: HDCP 2.3 (High-bandwidth Digital Content Protection (HDCP) is designed to prevent copying of digital audio and video content as it travels across connections. Newer versions of HDCP support more connection types, increase security, and resolve weaknesses of previous versions.)
- Remote Control Included: true
- Connectivity
- Wireless Multi-Room Audio: true (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Multi-Room Technology: Apple AirPlay, Google Cast (Proprietary technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- IP Control: true (Allows electronic devices to be controlled over a home network via a web-based interface. Typically refers to devices not traditionally controlled in this manner, such as A/V receivers.)
- Compatibility
- Works With: Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: Google Assistant (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Dimensions
- Product Height: 5.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.6 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 16.8 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 050036400749
The JBL MA9100HP is a high-performance AV Receiver that delivers stunning realism with the latest 8K HDMI specifications and native 9-channel decoding of immersive audio from Dolby Atmos and DTS:X for the ultimate home cinema experience. Seamlessly integrate your smart TV or projector with 6 HDMI inputs and 2 outputs, plus eARC. It is designed with a passion for music and movies, bringing both to life with true high fidelity. The MA9100HP features nine channels of low noise Class D amplification for real world power to all channels. In addition to the onboard Moving Magnet phono input for connecting a turntable, additional music content can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive. Taking performance to the next level, the MA9100HP comes “Dirac Live Ready” for automatic room correction, assuring audiophile-quality sonics and allowing integrators and power-users to optimize the system to their personal room acoustics. Featuring a secondary HDMI video output and audio Zone, content can be made available in a secondary location. In addition to physical controls, the MA9100HP allows for IP control for third party control system integration.
- Stunning audio and video performance: High-performance 9.2-channel AV receiver that delivers stunning realism with the latest 8K video for the ultimate home cinema experience
- Intuitive setup with a minimalist modern design: Seamless integration with smart TVs, gaming consoles,streaming, cable boxes and more with 6 HDMI inputs and 2 outputs plus eARC
- High-performance immersive surround sound: Dolby Atmos and DTS:X decoding, supports up to 9.1 or 7.1.2 or 5.1.4 channel configurations.
- Bluetooth and network streaming: Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast).
- Enjoy your record collection: Moving magnet phono input for connecting a turntable.

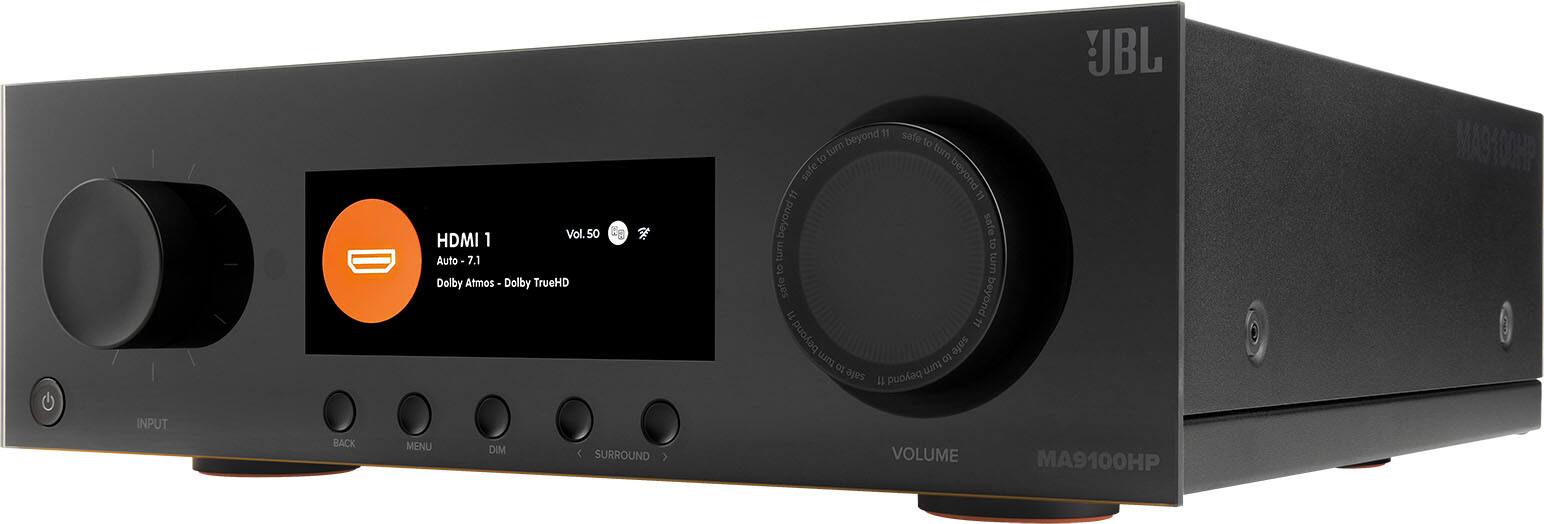

- On-screen setup and operation: On-screen display for easy system setup and operation (via HDMI)

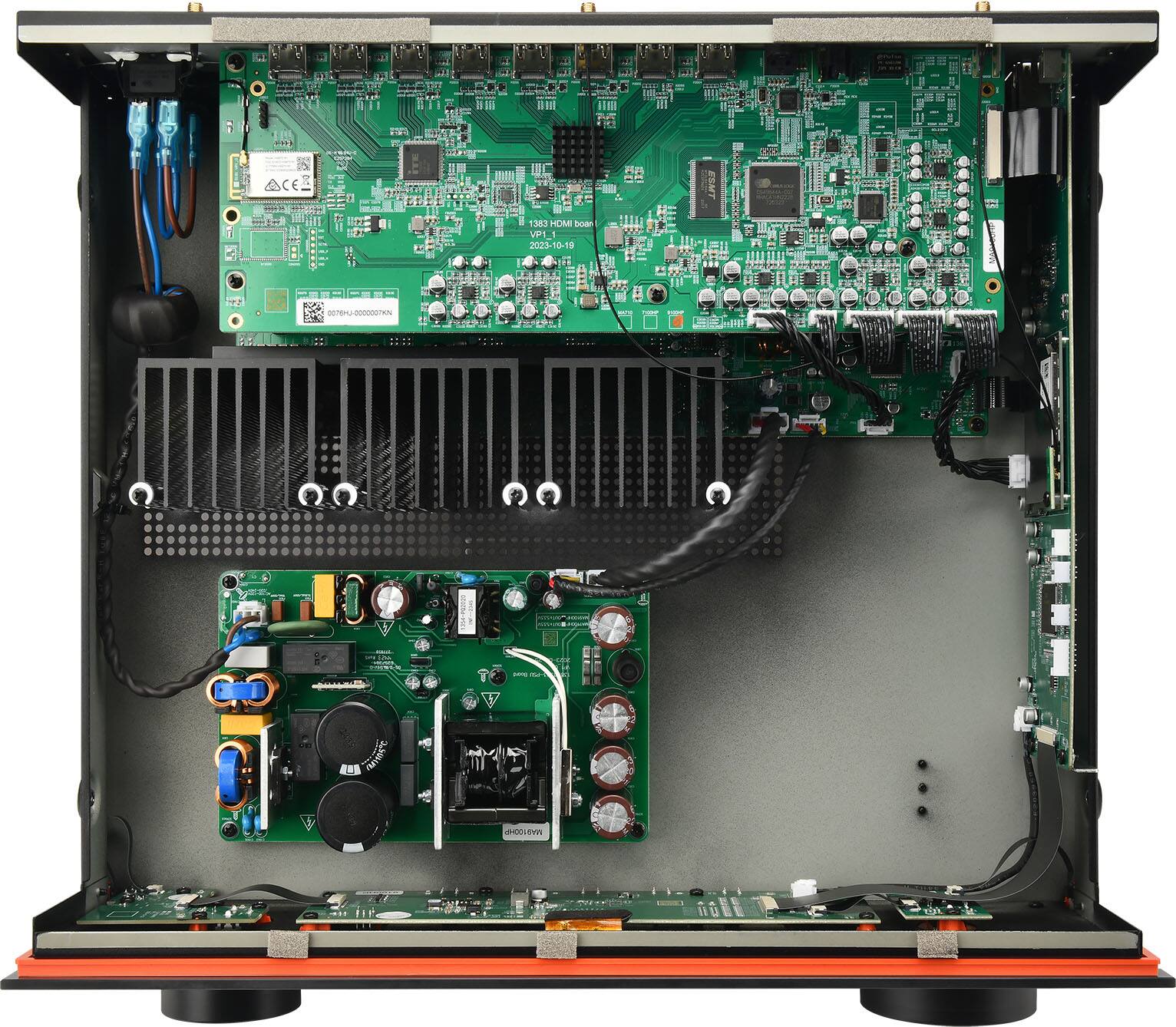

- Powerful amplification: Seven channels of low noise Class D amplification for real world power to all channels.
- EZ Set EQ: EZ Set EQ provides easy-to-use room equalization for optimized sound quality.
- Ready for Dirac Live room correction: Comes Dirac Live Ready, fully prepared to run Dirac Live – the worlds most advanced room correction software. Purchase a license to activate Dirac Live at www.dirac.com/online-store/
Whats Included

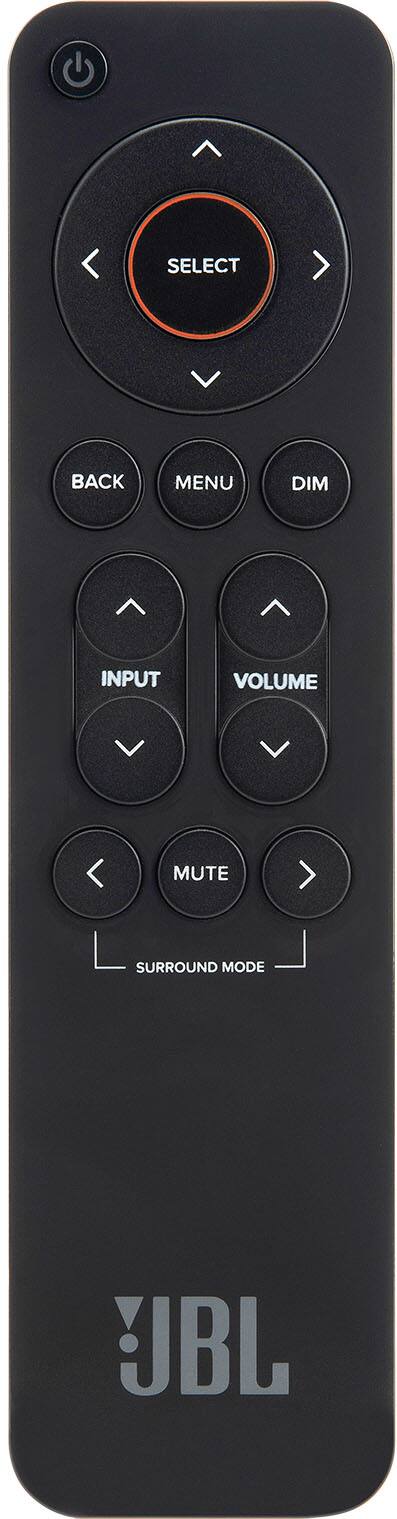

- 1 x IR Remote, 2 x AAA Batteries
- 1 x Bluetooth Antenna, 1 x Power Cord
- 2 x WiFi Antenna
Q: What streaming services are integrated into the receiver?
A: This receiver offers Apple Airplay2, Google Chromecast, and Bluetooth AptX Adaptive for streaming.
Q: What is the maximum supported resolution for video passthrough?
A: The maximum supported resolution for video passthrough is 4320p (8K) at 60 Hz.
Q: Can the receiver be used with a turntable?
A: The MA9100HP receiver features a Moving Magnet phono input that can be used to connect a turntable.
Q: How many channels of amplification does the receiver have?
A: The MA9100HP features nine channels of low noise Class D amplification.
Q: Does the receiver support Dolby Atmos?
A: The JBL MA9100HP receiver supports Dolby Atmos for an immersive home cinema experience.
