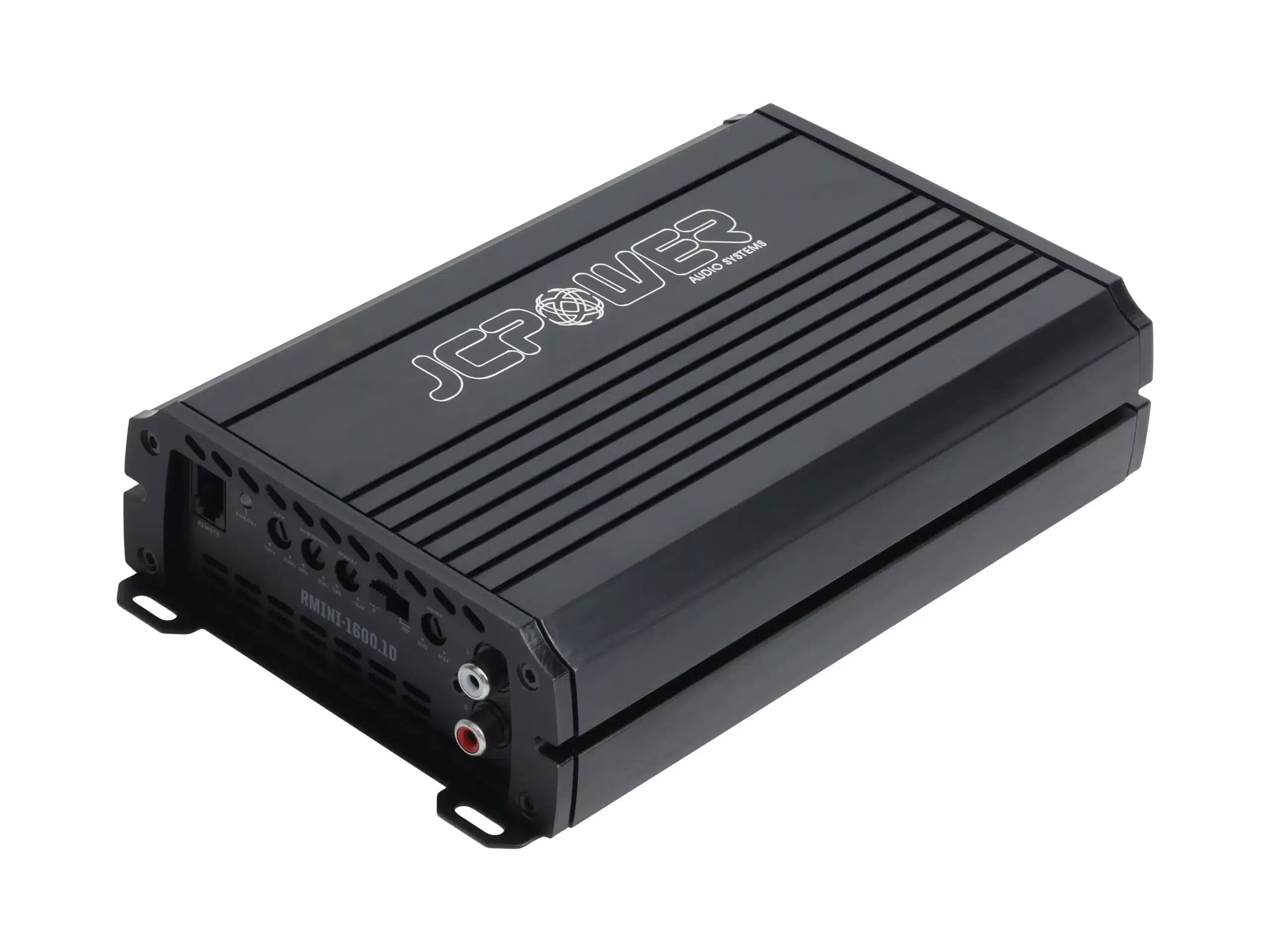

JCPower Audio Systems - RMINI-Series 1600 Watt Compact Monoblock Amplifier - Black
JCPower Audio Systems - RMINI-Series 1600 Watt Compact Monoblock Amplifier - Black
FREE shipping to
Specifications
- Continuous Watts x Channel @ Ohms420 Watts x 1 @ 4 ohms, 700 Watts x 1 @ 2 ohms, 1020 Watts x 1 ohmAmplifier ClassDNumber Of Channels1Bass BoostVariableBridgeableNoLow-Pass CrossoverVariable
- Key Specs
- Continuous Watts x Channel @ Ohms: 420 Watts x 1 @ 4 ohms, 700 Watts x 1 @ 2 ohms, 1020 Watts x 1 ohm
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: false (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: JCPower Audio Systems
- Model Number: RMINI-1600.1D
- Product Name: RMINI-Series 1600 Watt Compact Monoblock Amplifier
- Color: Black
- Mounting Hardware Included: true
- Audio Power
- Continuous Watts x Channel @ Ohms: 420 Watts x 1 @ 4 ohms, 700 Watts x 1 @ 2 ohms, 1020 Watts x 1 ohm
- Total Power Handling Maximum: 1600 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.5 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.3 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 90 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: true (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Remote Control Included: Bass
- Marine: false
- Fan Cooled: true
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Speaker-Level Inputs: false (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Dimensions
- Product Height: 1.86 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.11 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 4 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Other
- UPC: 618528024219
The JCPower RMINI-1600.1D is a powerful Monoblock Class D amplifier engineered for enthusiasts who demand strong, reliable performance from a compact source. This mini amplifier for subwoofer systems is an excellent choice for achieving a stealth upgrade for your car audio, as its dimensions allow it to be easily concealed.
- Superior Power and Efficiency: This mono Class D amplifier delivers high-efficiency power with up to 1020W RMS at 1 ohm, 700W RMS at 2 ohms, and 420W RMS at 4 ohms, providing strong, clean output across a wide range of subwoofer configurations.
- Compact Size and Stealth Installation: With its compact dimensions (8.11″ L x 5.0″ W x 1.86″ H), the RMINI-1600.1D is designed to fit in many compact or reduced spaces. This makes it a great choice for people who want to hide their amplifiers, enabling a truly stealth upgrade for their car audio system.
- Efficient Class D Technology: This compact Class D amplifier uses high-efficiency Class D technology to minimize wasted energy and deliver more power to your speakers for louder, cleaner bass.
- Key Features:: This amplifier delivers up to 1020W RMS at 1 ohm and features full crossover control with adjustable low-pass and subsonic filters, along with an included remote controller for convenient bass adjustment.
Whats Included
- RMINI-1600.1D Monoblock Amplifier, Remote Control, Remote Control Wire, Mounting Screws
