Jensen - JA1CH Class-D Mono Amplifier | 1000W Peak | Efficient Compact Design | Bridegeable - Black
Related Item
Specifications
- Continuous Watts x Channel @ Ohms240 Watts RMS x 1 channels @ 4 ohms (bridged)Maximum Watts x Channel @ Ohms600 Watts RMS x 1 channels @ 4 OhmsAmplifier ClassDNumber Of Channels1Bass BoostNoneBridgeableNo
- Key Specs
- Continuous Watts x Channel @ Ohms: 240 Watts RMS x 1 channels @ 4 ohms (bridged)
- Maximum Watts x Channel @ Ohms: 600 Watts RMS x 1 channels @ 4 Ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: Jensen
- Model Number: JA1CH
- Product Name: Jensen JA1CH Class-D Mono Amplifier | 1000W Peak | Efficient Compact Design | Bridegeable
- Color: Black
- Mounting Hardware Included: true
- Audio Power
- Continuous Watts x Channel @ Ohms: 240 Watts RMS x 1 channels @ 4 ohms (bridged)
- Total Power Handling RMS: 600 watts
- Watts Per Channel RMS: 240 watts
- Maximum Watts x Channel @ Ohms: 600 Watts RMS x 1 channels @ 4 Ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling Maximum: 1000 watts
- Watts Per Channel Maximum: 1000 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.15 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.15 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 90 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: true (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Marine: false
- Fan Cooled: true
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Dimensions
- Product Height: 10 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 5 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: None
- Other
- UPC: 827204121771
JENSEN JA1CH Class-D Mono Amplifier Car Audio | 1000 Watts Peak Power | Efficient Compact Design | Bridegeable
- CLASS-D MONO AMPLIFIER: The 1 channel configuration is engineered for high-performance sound, designed to enhance any audio system with robust power output and efficient use of space. With its Class-D technology, the amplifier is highly efficient and compact, making it an ideal addition to any car audio setup.
- CLASS-D EFFICIENT DESIGN: Produces 1,000 Watts peak power, 240 Watts RMS x 1 channel @ 4 ohms , 400 Watts RMS x 1 channel @ 2 ohms, and 600 Watts RMS x 1 channel @ 1 ohm.
- LOW PASS CROSSOVER & BASS BOOST: When constructing your Jensen mono amplifier, we added a low pass variable crossover plus a variable bass boost at 45Hz.
- SHORT CIRCUIT PROTECTION: Given the vast amounts of dynamic power in your mono amplifier we built-in a thermal DC offset safety protection.

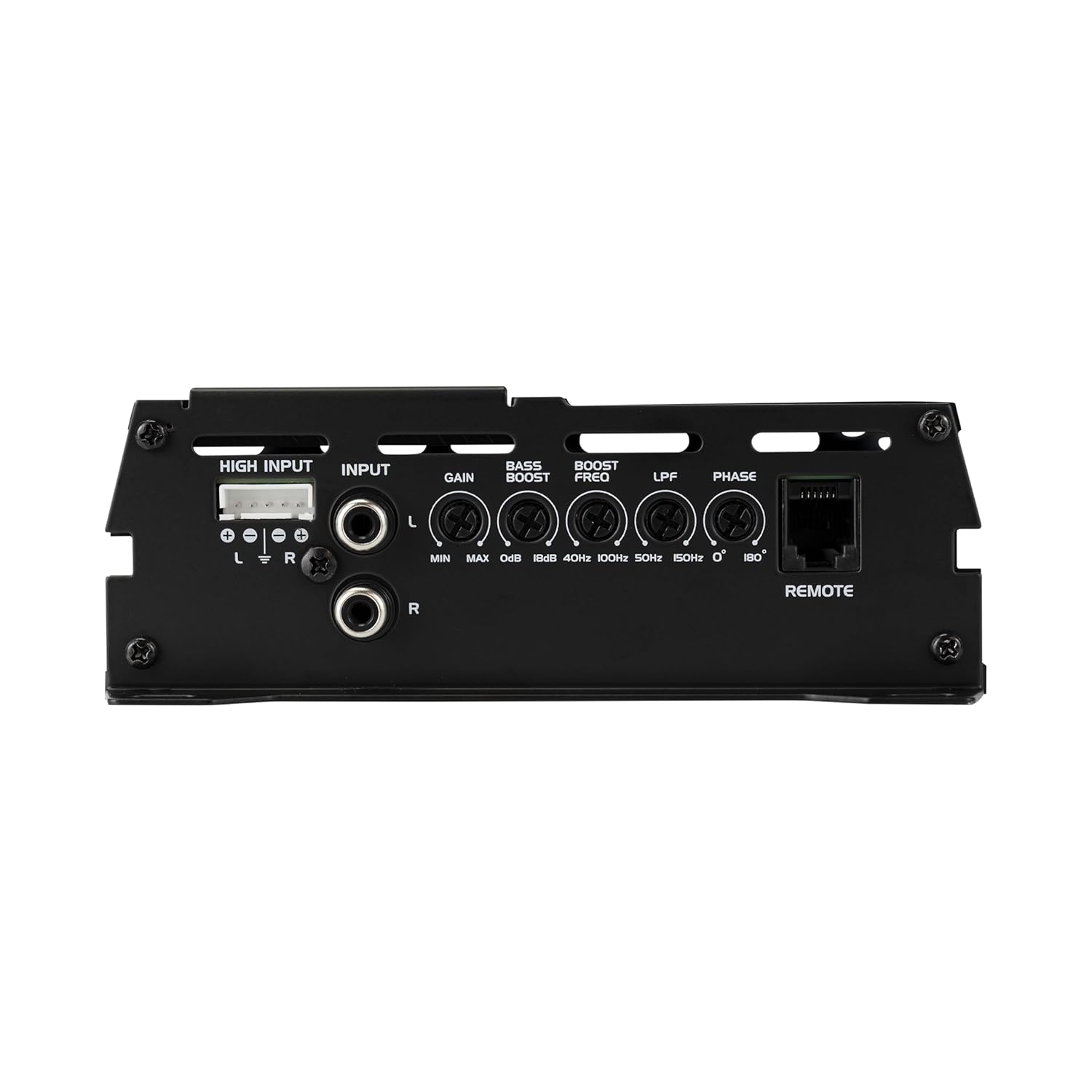

- ADDITIONAL FEATURES INCLUDE: Adjustable bass boost at 40Hz, high level input (speaker wire), low level input (RCA), adjustable low pass crossover.
Whats Included
- JA1CH
