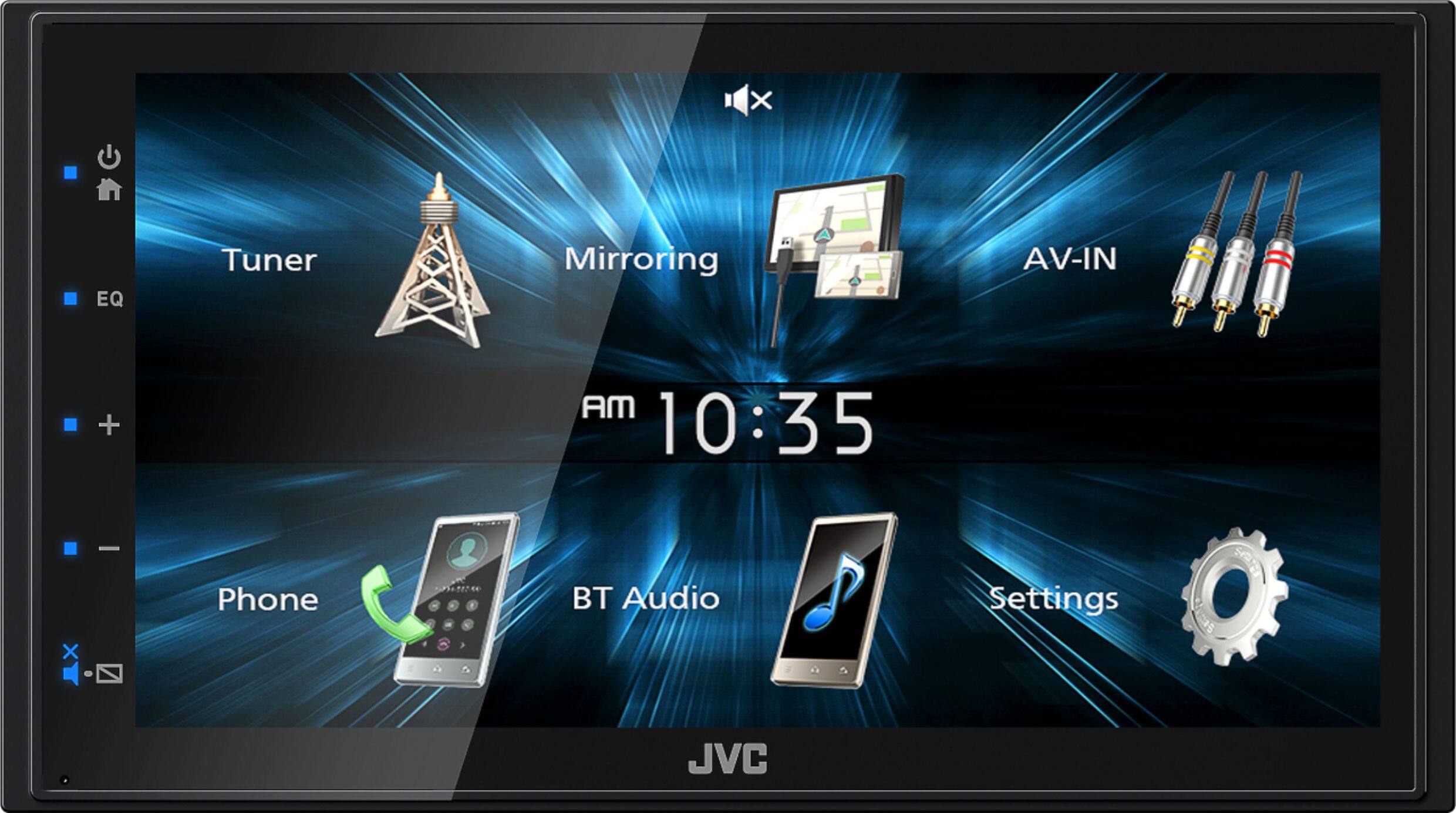

JVC - 6.8" - Bluetooth - Digital Media Receiver - Black
- Key Specs
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Steering Wheel Control Compatible: true
- Tuner Type(s): AM/FM
- CD Player: false
- Screen Size: 6.8 inches (Size of the screen, measured diagonally from corner to corner.)
- Integrated GPS: false
- General
- Brand: JVC
- Model Number: KW-M150BT
- Product Name: 6.8" - Bluetooth - Digital Media Receiver
- Color: Black
- Audio
- Watts Per Channel: 45 watts
- RMS Power: 16 watts (The maximum amount of continuous power the device is able to handle.)
- Number Of Channels: 4
- Compatibility
- Mount Style: Double DIN
- Shortened Depth: true (A depth typically less than 80% less of the standard car stereo or head unit depth of 7".)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Mobile Operating System Compatibility: Apple iOS, Android
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Number of Camera Inputs: 1
- Steering Wheel Control Compatible: true
- Tuner
- Tuner Type(s): AM/FM
- Number Of Station Presets: 30
- Players
- CD Player: false
- DVD Player: false
- Features
- Hands-Free Calling: true
- External Microphone: Included
- Remote Control Included: false
- EQ Presets: true
- Display
- Screen Size: 6.8 inches (Size of the screen, measured diagonally from corner to corner.)
- Screen Type: LCD
- Touch Screen: true (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- Touch Screen Type: Capacitive
- Display Color: Blue
- Faceplate Style: Fixed
- GPS
- Integrated GPS: false
- Dimensions
- Product Height: 4.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 2.65 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 046838080197
Geek Squad® installation is strongly recommended for this product. Please visit your local Best Buy store for details.
- Tap into your device's music library: Bluetooth connectivity and USB port allow you to connect your device and play music.
- USB mirroring for Android: Allows to seamlessly display your Android phone on the JVC screen via USB. Touch control is supported from both screen and smartphone.
- MPEG-1, MPEG-2, WAV, WMA, AAC and other playback formats: Offer versatile listening options.
- 6.8" capacitive touchscreen: Provides high image clarity and allows for easier functioning with lighter contact and greater accuracy.
- Connect your receiver to devices and speakers: Receiver features USB port, camera connector, composite video input, composite video output and subwoofer output.
- Back Up camera input: Allows to add optional back up camera for additional safety. When car is in reverse see the rear surroundings on your screen
- Tuner with 30 presets: Lets you navigate your favorite stations easily.
- Customize how your audio sounds: Use the customizable EQ to get the perfect audio quality for your music.
- Shallow chassis: Reduced depth offers a lightweight construction and facilitates easier installation.
- Tap into your device's music library: Bluetooth connectivity and USB port allow you to connect your device and play music.
- USB mirroring for Android: Allows to seamlessly display your Android phone on the JVC screen via USB. Touch control is supported from both screen and smartphone.
- MPEG-1, MPEG-2, WAV, WMA, AAC and other playback formats: Offer versatile listening options.
- 6.8" capacitive touchscreen: Provides high image clarity and allows for easier functioning with lighter contact and greater accuracy.
- Connect your receiver to devices and speakers: Receiver features USB port, camera connector, composite video input, composite video output and subwoofer output.
- Back Up camera input: Allows to add optional back up camera for additional safety. When car is in reverse see the rear surroundings on your screen
- Tuner with 30 presets: Lets you navigate your favorite stations easily.
- Customize how your audio sounds: Use the customizable EQ to get the perfect audio quality for your music.
- Shallow chassis: Reduced depth offers a lightweight construction and facilitates easier installation.
Whats Included
- 2 Radio removal tools and trim-ring removal tool
- 6 Pan-head and 6 Flat-head ISO-mount screws
- 6.5' Light-green parking brake wire (pre-installed)
- JVC 6.8" - Bluetooth - Digital Media Receiver
- Microphone with bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- Power harness
- Quick start guide
- Sleeve (attached), trim ring
- Speaker harness
- Warranty card
- 2 Radio removal tools and trim-ring removal tool
- 6 Pan-head and 6 Flat-head ISO-mount screws
- 6.5' Light-green parking brake wire (pre-installed)
- JVC 6.8" - Bluetooth - Digital Media Receiver
- Microphone with bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- Power harness
- Quick start guide
- Sleeve (attached), trim ring
- Speaker harness
- Warranty card
A: This unit does not have Android Auto. Android Mirroring is different. With the JVC mirroring app installed on your Android device, you'll see a mirror image of your smartphone's screen on the JVC's display. Touch control is supported from both screen and smartphone.
Q: Do i need mounting kit to install
A: Thanks for your question. In all likelihood yes you will need an install kit, and you will need one that is specific to your vehicle. Making the install even easier is the use of a wiring harness that is designed for your car. Having both the kit and the wiring harness will make your install seamless and give you the performance and look of an advanced OEM system. If doing that is not for you, Best Buy offers free installation. (You need to pay for kit and harness) Not only do you get a lifetime warranty on the workmanship, but they will even remove the new radio and put back the old one when you sell your car...FREE....!
Q: Does this unit have an integrated gps system?
A: No but you can mirror your android. If you have an apple you're in better luck it works better with apple as far as maps and texts go.
A: Our installation was free but it was tricky to find a best buy near us that would do it. We ended up finding one somewhat near by, but it wasn't our local one that we normally go to. It wasn't even our first, second, or third choice. It was still worth it to not have to do it ourselves. When you are purchasing it I believe it gives you the list of locations nearby that would do the installation. You type in your ZIP code and expand the search parameters as needed. I will say you do have to purchase an install kit as well, so that adds another hundred or so to the price depending on your setup. We purchased one but they didn't end up needing all of the parts so we were able to return some. That was nice.
Q: Can I add a rear view camera to this
A: YES! We did works great
A: There is no back up camera included. It is however camera capable.
A: No in mirrors the nav on your phone and puts it on the display
A: You need a steering wheel harness and steering wheel interface to access the steering wheel controls. The microphone should have came with the unit. You install it by your sun visor. I returned this unit due to the sound. This is the absolute worst sounding car stereo. It sounded worst than the factory unit. The sound drops out on local radio stations also. Best buy let me upgrade to a better unit. Much happier with the Pioneer.
