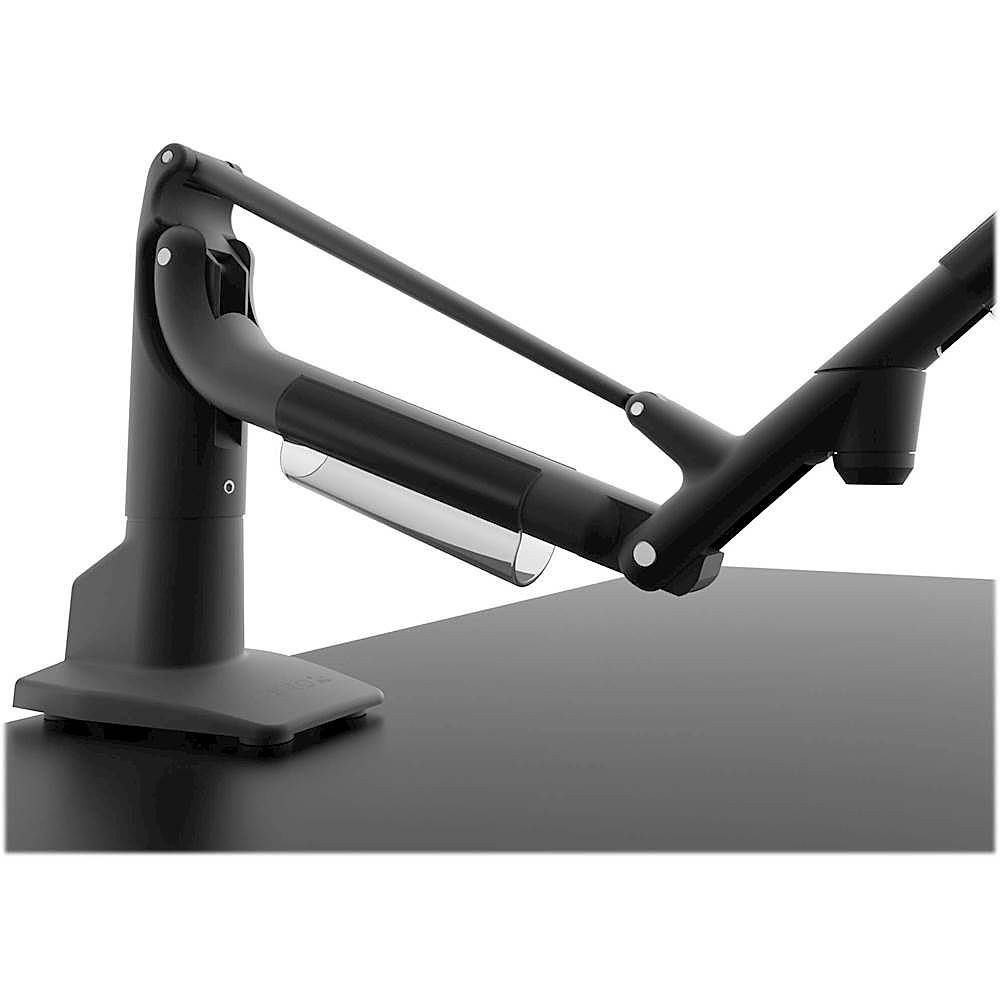

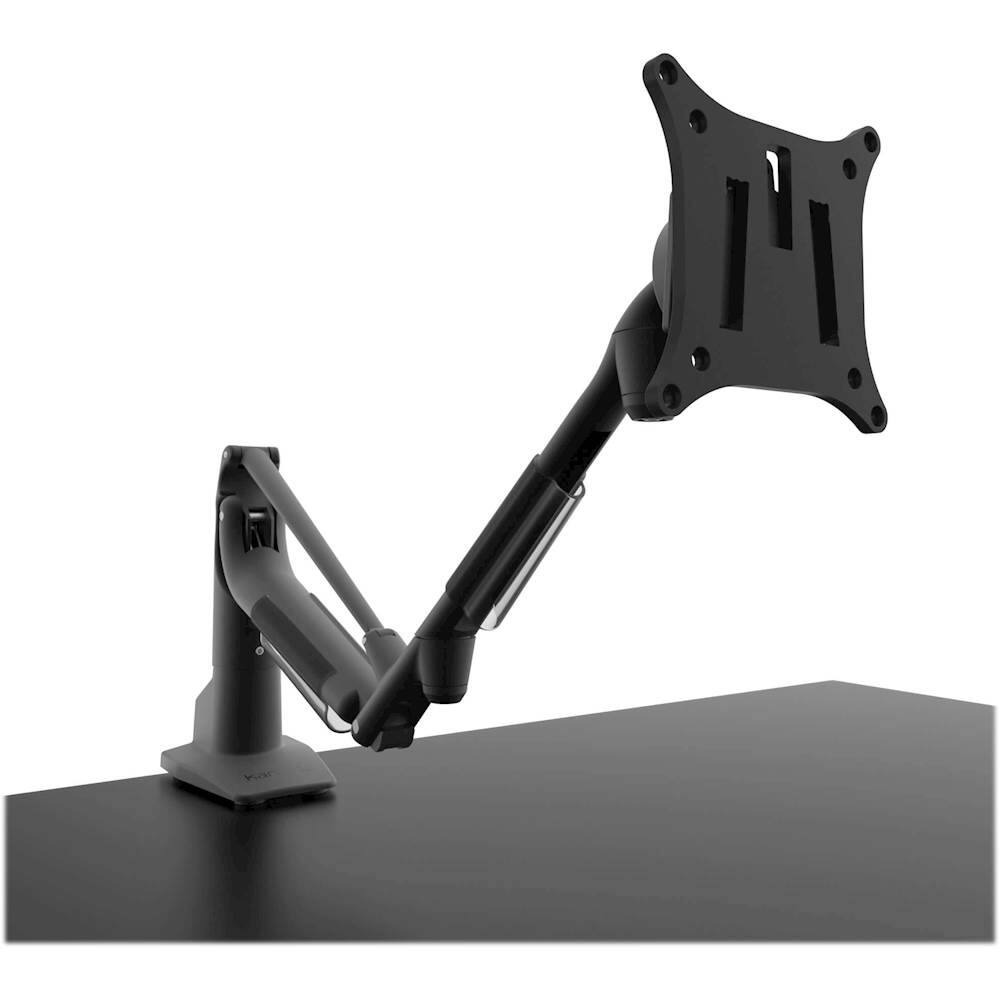

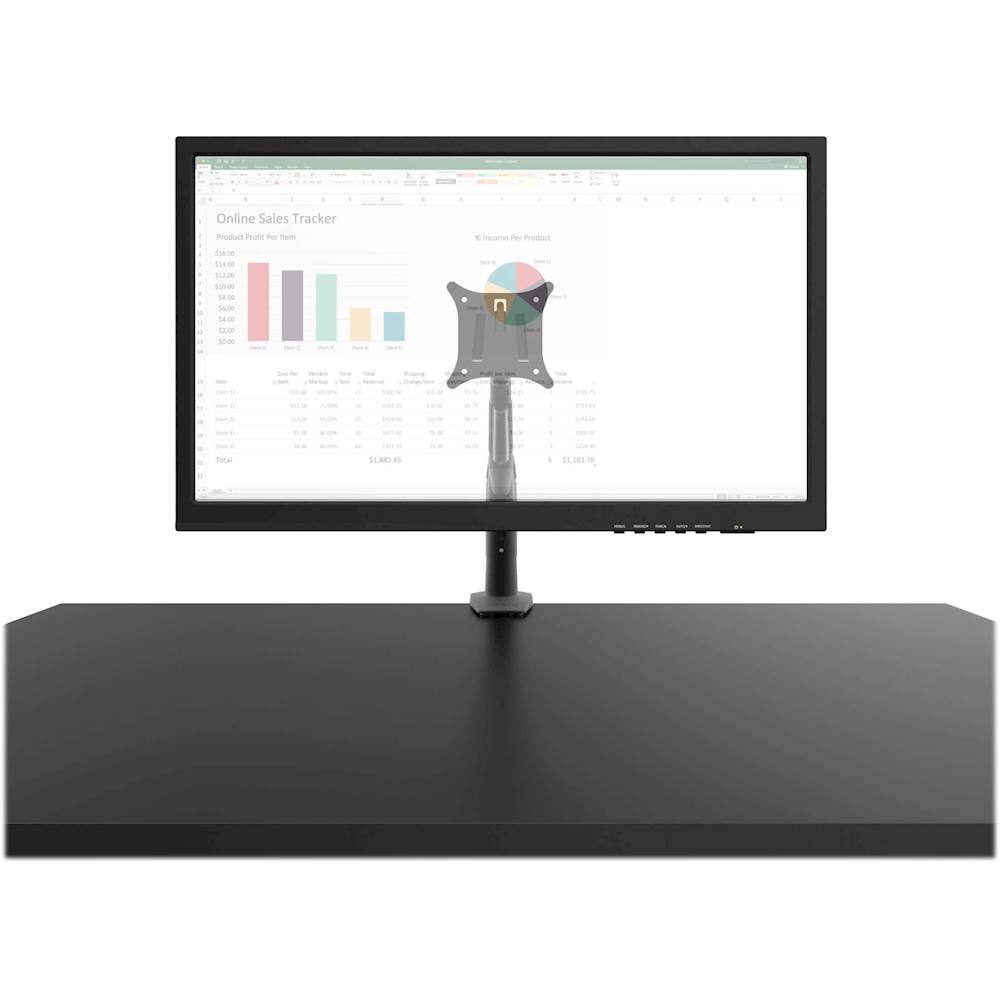

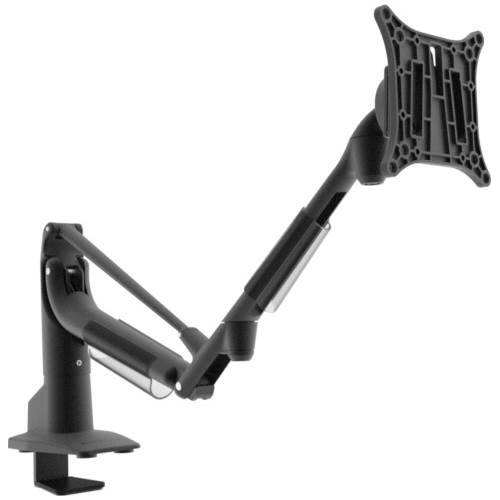

Kanto - DMS Series Desktop Monitor Mount - Black
- General
- Brand: Kanto
- Model Number: DMS1000
- Product Name: DMS Series Desktop Monitor Mount
- Color: Black
- Assembly Required: Yes
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Arm, Tilting, Swiveling, Rotating
- Tilt: ±25° (Angles upward or downward for customized viewing and/or accessibility.)
- Rotation: 360° (Orientation can be rotated for customized viewing and/or accessibility.)
- Number of Monitors Supported: 1
- Compatibility
- Maximum Weight Capacity: 16.5 pounds (The maximum load that can be supported by the product.)
- Compatibility: Most flat-panel monitors from 17" to 32" with VESA sizes of 75 x 75 and 100 x 100
- Mount Location: Desktop
- Maximum Television Size: 32 inches
- VESA Wall Mount Standard: 100mm x 100mm, 75mm x 75mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 6.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 7.1 pounds (The out of box weight of the item.)
- Included
- Hardware Included: true
- Material
- Mount Material: Aluminum
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 800152718057
Find the ideal angle to view your screen with this Kanto desktop monitor mount. The detachable base and clamping mechanism let you attach your device firmly to any surface edge up to 2 inches thick, and the cable management clips keep your work area free of clutter. This Kanto desktop monitor mount is easy to adjust without tools.
- Compatible with most flat-panel monitors from 17" to 32": Designed for any desk edge or grommet hole up to 2" thick, the mount supports monitors weighing from 3.3 lbs. to 16.5 lbs., with common VESA sizes of 75 x 75 or 100 x 100.
- Gas shock system: Allows you to make height adjustments with minimal effort. Freely raise or lower your screen to improve line of sight and reduce neck strain.
- Unlimited positions: The mount features four points of rotation, so you can easily swivel your monitor 360°, tilt it 25° up and down, and rotate it into portrait or landscape orientation.
- Cable management: To keep your desktop clutter-free, use the provided cable management clips to conveniently route your cables.
- Easy installation: The base of the mount can be detached from its support arm and secured entirely from the top of your desk.
- Compatible with most flat-panel monitors from 17" to 32": Designed for any desk edge or grommet hole up to 2" thick, the mount supports monitors weighing from 3.3 lbs. to 16.5 lbs., with common VESA sizes of 75 x 75 or 100 x 100.
- Gas shock system: Allows you to make height adjustments with minimal effort. Freely raise or lower your screen to improve line of sight and reduce neck strain.
- Unlimited positions: The mount features four points of rotation, so you can easily swivel your monitor 360°, tilt it 25° up and down, and rotate it into portrait or landscape orientation.
- Cable management: To keep your desktop clutter-free, use the provided cable management clips to conveniently route your cables.
- Easy installation: The base of the mount can be detached from its support arm and secured entirely from the top of your desk.
Whats Included
- Kanto DMS Series Desktop Monitor Mount
- Mounting hardware
- Assembly manual
- Kanto DMS Series Desktop Monitor Mount
- Mounting hardware
- Assembly manual
A: The DMS1000 extends 23.3" from the base to the back of the monitor, at full extension and is designed for monitors from 17" to 32" weighing 3.3 lb to 16.5 lb. Please email us directly if you have any other questions and we'll be happy to help.
Q: Is the weight capacity really as low as 16.5lbs? I'm looking to mount a 34" that's 16.8lb.
A: It PROBABLY can handle a little more than the advertised weight. I have a 28" monitor in the mid-range of weight and I had to dial the tension way down. The "weakest" point of the setup will be the ball joint at the back of the mounting plate. If it's going to fail from weight, that's where it will happen.
Q: Does this desk mount work with iMac 2019?
A: If you could please email us directly at [email protected] and pass along your iMac's full model number and we'll be happy to determine compatibility for you.
A: Inquizitor, The maximum weight capacity of the DMS1000 is 16.5 lbs and the weight of your monitor without the stand is 16.9 lbs meaning it's just out of range of the mount. Our DM1000 would work but it is not a gas strut mount. Feel free to contact us directly using the support button on our website if you have any additional questions, thanks.
A: If you have the monitor on the desk at a low or moderate level on its own stand, this would work. I've raised my monitor about 2 feet off my desk with this mount.
