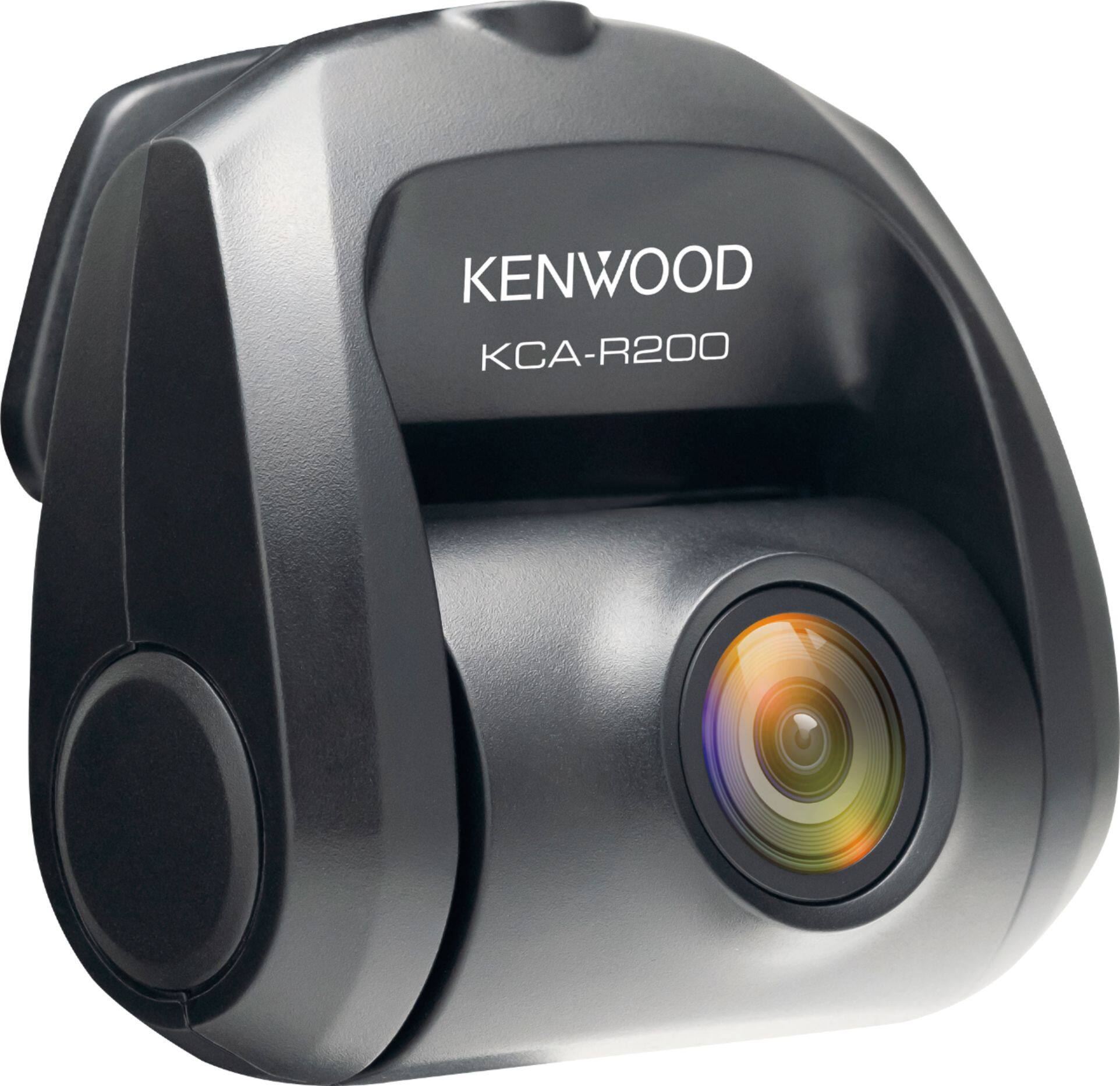

Kenwood - KCA-R200 Rear Add-On Dashboard Camera - Black
- Key Specs
- Field of View: 161 degrees
- G-Sensor: false
- Recording Resolution: 2560 x 1440 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Compatibility: Kenwood DRV-A601W Dash Cam
- Wi-Fi Built-in: false (Able to connect directly to a wireless network without the use of an adapter.)
- Camera Mounting Location: Adhesive
- Vehicle Camera Type: Back-up
- General
- Brand: Kenwood
- Model Number: KCA-R200
- Product Name: KCA-R200 Rear Add-On Dashboard Camera
- Color: Black
- Vehicle Camera Type: Back-up
- Recording & Playback
- Field of View: 161 degrees
- G-Sensor: false
- Recording Resolution: 2560 x 1440 (Refers to the number of pixels, both horizontally and vertically, used to capture video. The higher the resolution the finer the video detail that can be seen.)
- Frame Rate: 30 frames per second (The frequency at which consecutive images can be captured. The higher the frame rate, the more detail that can be captured.)
- Loop-Cycle Recording: No
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Camera Power Source: Dash camera
- Expandable Memory Compatibility: None
- Recording Feature: true
- Compatibility
- Compatibility: Kenwood DRV-A601W Dash Cam
- Wi-Fi Built-in: false (Able to connect directly to a wireless network without the use of an adapter.)
- Display
- Screen Included: false
- Mounting
- Camera Mounting Location: Adhesive
- Mount Included: true
- Mount Type: Adhesive
- Input
- Number Of Auxiliary Inputs: 0
- Number of USB Port(s): 0
- Dimensions
- Product Height: 2.63 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 2.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.44 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.74 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 019048228901
Upgrade your in-car recording system to capture footage from behind your vehicle with this Kenwood add-on rear camera. The wide-angle lens features a 1/2.8" CMOS sensor to record clear 30 fps video in quad HD resolution. This Kenwood add-on rear camera includes a 26-foot connecting cable and 3M tape mounting bracket for easy installation.
- Compatible with Kenwood DRV-A601W dash cameras: For use with your existing device.
- 1/2.8" CMOS image sensor: Provides crisp and detailed images.
- 161° diagonal viewing angle: 129° horizontal and 66° vertical viewing angles offer a wide field of vision, so you can clearly see what's behind your vehicle.
- 3M tape mounting bracket with 180° adjustability: Allows setting up the camera at the desired angle.
- Quad HD recording: In Dual Camera mode, maximum recording resolution is 2560 x 1440 Wide Quad HD. The rear camera can be turned off in menu setting to enable front camera 4K recording.
- Built-in WDR technology: Easily records clear images in dark or well-lit environments without underexposing or overexposing the image.
- Compatible with Kenwood DRV-A601W dash cameras: For use with your existing device.
- 1/2.8" CMOS image sensor: Provides crisp and detailed images.
- 161° diagonal viewing angle: 129° horizontal and 66° vertical viewing angles offer a wide field of vision, so you can clearly see what's behind your vehicle.
- 3M tape mounting bracket with 180° adjustability: Allows setting up the camera at the desired angle.
- Quad HD recording: In Dual Camera mode, maximum recording resolution is 2560 x 1440 Wide Quad HD. The rear camera can be turned off in menu setting to enable front camera 4K recording.
- Built-in WDR technology: Easily records clear images in dark or well-lit environments without underexposing or overexposing the image.
Whats Included
- 26' mini-USB cable
- Adhesive mount
- Kenwood KCA-R200 Rear Add-On Dashboard Camera
- Two adhesive pads
- 26' mini-USB cable
- Adhesive mount
- Kenwood KCA-R200 Rear Add-On Dashboard Camera
- Two adhesive pads
Product Manuals
Q: Do I need to use this with a kenwood regular dash cam? Would this work by itself
A: It would not work by itself.
Q: Is this product weather resistant?
A: These cameras are meant to be inside the vehicle not outside. With this being mentioned they are not weather resistant.
A: yes, if you have one of the forward facing Kenwood cameras DRV-A501WDP or DRV-A601WDP, that have a place for a second camera to plug into then this records the second camera in which ever position you choose to mount it. I have mine facing the rear for front and rear coverage. it shows up as a picture in picture on the dashcam but records a separate file, one for the front and one for the rear.
Q: Can this be attached to a motorcycle?
A: This KCA-R200 is an accessory that requires the DRV-A501 or the DRV-A601 dash camera. It cannot be used as an independent camera. You may want to look into the DRV-A301 or the other cameras i mentioned-jenniferr
Q: dose this can use on DVR-A601W
A: Yes, it can be used with the DVR-A601W.
Q: Is camera installed under the rear bumper or way does it install at?
A: I installed it inside the vehicle on the back glass of my SUV.
Q: Can this KCA-R200 be attached to the front window facing to the back.
A: I’m sure you could
