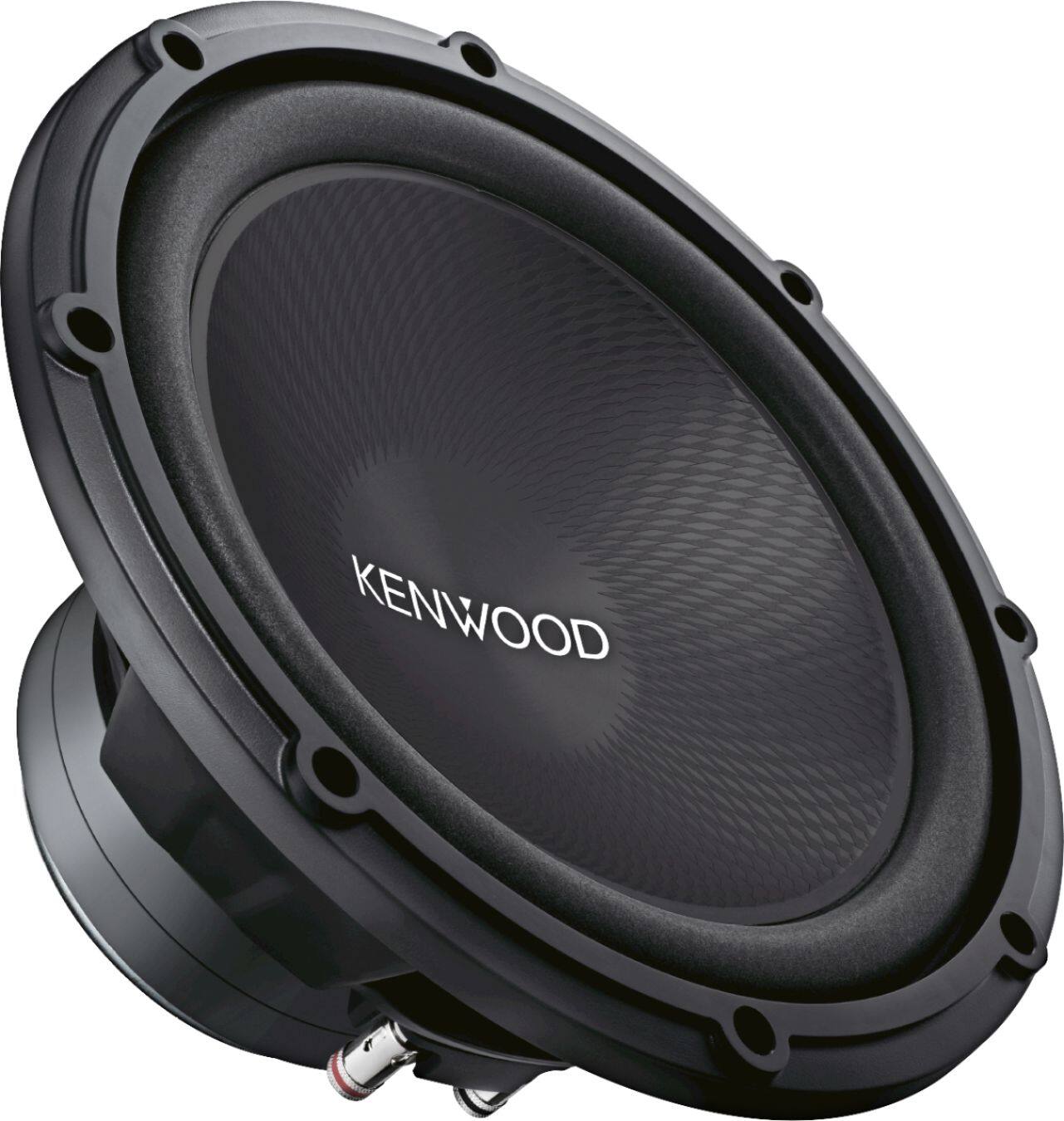

Kenwood - Road Series 12" Dual-Voice-Coil 4-Ohm Subwoofer - Black
- Key Specs
- RMS Power: 250 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 1000 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 34 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.3 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 85 decibels
- Dual Voice Coils: true
- Woofer Size: 12"
- Mount Depth: 6.2 inches
- Woofer Composition: Polypropylene
- Woofer Surround Material: Urethane
- General
- Brand: Kenwood
- Model Number: KFC-W120DVC
- Product Name: Road Series 12" Dual-Voice-Coil 4-Ohm Subwoofer
- Color: Black
- Number of Subwoofers Included: 1
- Audio Power
- RMS Power: 250 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 1000 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Integrated Amplifier: false
- Audio
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 34 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.3 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 85 decibels
- Efficiency: 85 decibels
- Features
- Dual Voice Coils: true
- Grille Included: false
- Marine: false
- Dimensions
- Woofer Size: 12"
- Cutout Diameter: 11 inches
- Mount Depth: 6.2 inches
- Product Height: 12.8125 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.8125 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.1875 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 10.4 pounds (The out of box weight of the item.)
- Design
- Woofer Composition: Polypropylene
- Woofer Surround Material: Urethane
- Frame Material(s): Steel
- Enclosure
- Enclosed: false
- Other
- UPC: 019048223210
Add powerful bass to your car audio system with this 12-inch Kenwood subwoofer. The dual 4-ohm voice coils can handle up to 1000W power, and the 58-oz. double stack magnet increases the performance from the diamond-array speaker cone. This Kenwood subwoofer has compression speaker wire terminals for easy, reliable connections.
Geek Squad® Installation Recommended
Visit your local Best Buy store for more information.
- Handles up to 1000W peak power (250W RMS): For rich sound.
- 34 - 300Hz frequency response: For accurate sound reproduction.
- 85dB sensitivity: Picks up the highs and lows for faithful sound reproduction.
- 11" mounting diameter; 6-1/4" mounting depth: For a proper fit.
- 12" passive subwoofer: Delivers authoritative bass.
- 4 ohms impedance: Conducts power to keep speakers working at optimal levels.
- Handles up to 1000W peak power (250W RMS): For rich sound.
- 34 - 300Hz frequency response: For accurate sound reproduction.
- 85dB sensitivity: Picks up the highs and lows for faithful sound reproduction.
- 11" mounting diameter; 6-1/4" mounting depth: For a proper fit.
- 12" passive subwoofer: Delivers authoritative bass.
- 4 ohms impedance: Conducts power to keep speakers working at optimal levels.
Whats Included
- Kenwood Road Series 12" Dual-Voice-Coil 4-Ohm Subwoofer
- Kenwood Road Series 12" Dual-Voice-Coil 4-Ohm Subwoofer
Q: If I run two of these subwoofers what size amp should I pair them with?
A: I'm 46 I've been doing this since I was 14 years old I would get an amp that runs steady at one ohm 750 w RMS you're going to want a little bit of Headroom above that 500 w for box rise. what that means is once the speakers are inside a box they'll never see 500 watts from a 500 watt amp so you want to go a little bit higher than that so you can actually give them close to rated power. You won't need anything bigger than four gauge wire you want to do 4 gauge power you want to do 4 gauge ground and look into what the big three is on YouTube that'll help keeping your lights from dimming. At the amps ready to do one ohm you can bet you can go ahead and run it at one ohm. Remember when buying an amp don't look at Max wattage look at RMS that's what the amp will put out consistently.. Steve stevo on FB. just so you know I'm getting ready to strap two 1500 watt amps together to run 3K to one sundown Audio zv5. Pretty sure I got this.
Q: What size amp should I purchase for this sub?
A: I use "Kenwood - Class D Digital Mono Amplifier with Variable Low-Pass Crossover - Black" and it seems to work a little to well, and it works for me I think the size of your car can have some play into how you want to set it up. Best recommendation do some research on youtube then take consideration of what fits your budget and your car or truck.
A: I apologize but all vehicle installation recommendations would be discussed with an installer. You can always call or visit your local Best Buy installation team to discuss options.
Q: How much watts does this kenwood road series 12 have
A: Dual 4 amp ohm 1000 watt & wire down to 1 ohm w/ease
Q: What type of box better for optimal sound quality with this sub
A: Sealed, 1.25 sqft box
Q: Will it fit in my 2015 Ford Explorer sport
A: With a box yes
Q: I already have a 12” speaker box will these fit in it?
A: Yes it will
Q: If I got two of these what size amplifier would I need?
A: 1500k amp is all you’d need although I have 3kin 4 of them.
