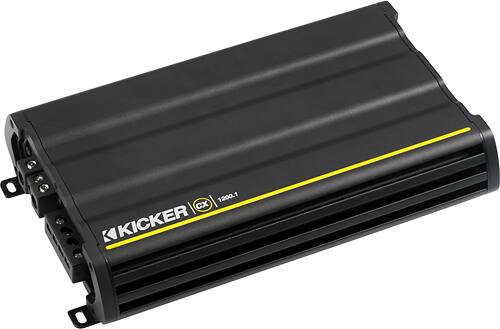

KICKER - CX Series 1200W Class D Mono Amplifier with Variable Low-Pass Crossover - Black
Model: 12CX12001
SKU: 7706044
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 600 x 1
- Maximum Watts x Channel @ Ohms: 1200W x 1 x 2 ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: KICKER
- Model Number: 12CX12001
- Product Name: CX Series 1200W Class D Mono Amplifier with Variable Low-Pass Crossover
- Color: Black
- Mounting Hardware Included: false
- Audio Power
- Continuous Watts x Channel @ Ohms: 600 x 1
- Maximum Watts x Channel @ Ohms: 1200W x 1 x 2 ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Signal-to-Noise Ratio (SNR): 95 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: false (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Dimensions
- Product Height: 2.38 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.06 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.19 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 6.6 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years limited
- Other
- UPC: 713034059783
Upgrade your vehicle's audio system with this Kicker CX Series 12CX12001 1200W Class D mono amplifier that features a variable low-pass crossover and KickEQ bass boost for high-quality sound. Balanced differential inputs offer enhanced noise rejection.
- Geek Squad® installation: is strongly recommended for this product. Please visit your local Best Buy store for details.
- Handles up to 600W RMS (continuous) @ 4 ohms or 1200W RMS @ 2 ohms: For powerful sound.
- 50-200Hz variable low-pass crossover with 12dB/octave slope: Along with a 25Hz fixed subsonic high-pass filter with 24dB/octave slope ensures flexible operation.
- FIT (Fail-Safe Integration Technology): Accepts output from a wide range of sources for versatile compatibility. Balanced differential inputs offer optimal noise rejection.
- Adjustable KickEQ bass boost: Allows you to personalize your audio for rich, dynamic sound.
- 95dB signal-to-noise ratio: Provides clear audio.
- Compact footprint: Supports vertical mounting for easy use in small spaces.
- Designed for use with select Kicker CompD and CompS subwoofers: As well as select CS speakers for simple integration with your existing vehicle audio setup.
- Geek Squad® installation: is strongly recommended for this product. Please visit your local Best Buy store for details.
- Handles up to 600W RMS (continuous) @ 4 ohms or 1200W RMS @ 2 ohms: For powerful sound.
- 50-200Hz variable low-pass crossover with 12dB/octave slope: Along with a 25Hz fixed subsonic high-pass filter with 24dB/octave slope ensures flexible operation.
- FIT (Fail-Safe Integration Technology): Accepts output from a wide range of sources for versatile compatibility. Balanced differential inputs offer optimal noise rejection.
- Adjustable KickEQ bass boost: Allows you to personalize your audio for rich, dynamic sound.
- 95dB signal-to-noise ratio: Provides clear audio.
- Compact footprint: Supports vertical mounting for easy use in small spaces.
- Designed for use with select Kicker CompD and CompS subwoofers: As well as select CS speakers for simple integration with your existing vehicle audio setup.
Whats Included
- Kicker CX Series 1200W Class D Mono Amplifier with Variable Low-Pass Crossover
- Mounting hardware
- Owner's manual
- Kicker CX Series 1200W Class D Mono Amplifier with Variable Low-Pass Crossover
- Mounting hardware
- Owner's manual
Q: Can this power 2 kicker cvx 10s?
A: Easy even a little to much power. I'd set the gain to 75% with two 10in.
Q: Will this amp push 3 Kicker comp 12's
A: undefined
Q: What would the rms be if bridged?
A: Mono amps cannot be bridged
Q: to much
A: It's better to have a little bit more power on the amp then you turn down the gain. For the price it is good for your 8inch but you can go down in power sure and still be ok.
Q: Will this amp work with 1 Kicker CompRT 12"?
A: I got mine set up just like that.
A: Yes, this amp would power both of your subs. This amp will run 2 600RMS subs. You will just need to ensure that you do not turn the amp all the way up so that you do not blow the subs since they are under the RMS of the Amp.
Q: Can this amp blow out a 12 inch CompR sub?
A: Yeah it is but you would know because they would smell really burnt also you would see smoke. I think maybe just a wire got disconnected from your Alpine install, also it is posable to blow your 12 with this amp. If the Amp was set all the way up and you played constaint bass notes for like more than five minutes maybe.
