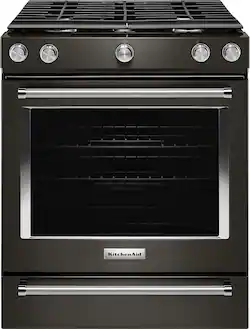

KitchenAid - 5.8 Cu. Ft. Self-Cleaning Slide-In Gas Convection Range - Black Stainless Steel
Model: KSGG700EBS
SKU: 5732002
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Black stainless steel
- Product Height: 36 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 26 3/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 7/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Steam cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Number of Burners: 5
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: KitchenAid
- Model Number: KSGG700EBS
- Product Name: 5.8 Cu. Ft. Self-Cleaning Slide-In Gas Convection Range
- Color: Black Stainless Steel
- Color Finish: Black stainless steel
- Dimensions
- Product Height: 36 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 26 3/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 7/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 230 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 36 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven Capacity: 5.8 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Gas
- Gas Type: Natural gas
- Fingerprint Resistant: false
- Soft Close Door: false
- Control Type: Knob, Touchpad
- Oven Control Location: Front panel
- Clock Display: true
- Oven Light: true
- Propane (LP) Convertible: true
- Propane Kit Model Compatibility: *See features for compatible model
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Convection
- Oven Settings: Keep Warm Setting, Time Bake, Timer
- Oven Features
- Convection Type: Single-fan with heating element (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Oven Cleaning Method: Steam cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Drawer Type: Storage (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Broiler Location: Oven
- Number of Oven Racks: 3
- Number of Oven Rack Positions: 7
- Oven Window: true
- Cooktop Features
- Cooktop Surface Material: Porcelain
- Number of Burners: 5
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Sealed (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Griddle Included: false
- Burner Rating
- Burner 1 Rating: 8000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 17000 british thermal units
- Burner 3 Rating: 5000 british thermal units
- Burner 4 Rating: 15000 british thermal units
- Burner 5 Rating: 9200 british thermal units
- Broiler Burner Rating: 13000 british thermal units
- Total Maximum BTU Rating: 72200 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Propane Conversion Kit Included: true
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: This product may contain one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. Mandatory reporting is not required until January 1, 2025. Whirlpool Corporation is in the process of gathering more information on PFAS use across our supplier base, and will update this disclosure as we learn more. For more information about chemicals in this product, visit www.kitchenaid.com/regulatory. [Este producto puede contener una o más sustancias perfluoroalquilo y polifluoroalquilo reguladas o PFAS. No se requieren informes obligatorios hasta el 1 de enero de 2025. Whirlpool Corporation está en el proceso de recopilar más información sobre el uso de PFAS en nuestra base de proveedores y actualizará esta divulgación a medida que sepamos más. Para obtener más información sobre los químicos en este producto, visite www.kitchenaid.com/regulatory.] (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 883049413525
Boil, braise and stir-fry hearty meals with this KitchenAid gas range. With a built-in steam rack, the 5.8 cu. ft. oven provides additional moisture to keep food succulent. This KitchenAid gas range has five burners with interlocking grates, providing an even cooking surface so you can easily move pots across the stove.
- 5 sealed gas burners: Deliver between 5,000 and 17,000 BTUs of heat, so you can prepare dishes quickly and precisely.
- Porcelain-enamel cooktop surface: Offers a durable design.
- Circulates air throughout the oven: Convection technology for fast cook times and flavorful results.
- Steam-clean oven: Save time and effort by steam-cleaning the oven after cooking.
- Prevents spills from spreading: Sealed burners eliminate the space between the burners and the cooktop.
- Accommodates multiple courses simultaneously: 5.8 cu. ft. oven lets you cook for a large group in less time.
- Store cookie sheets, cooling racks and more: Storage drawer offers discreet storage for your bakeware.
- Safely maintains a temperature for an extended period of time: Sabbath mode helps you comply with kosher cooking practices.
- Liquid Propane Kit Compatible Model:: W10909678 - (serial number engineering digit 0, 1_aka W10909678-a PACKAGED W10681410)
- 5 sealed gas burners: Deliver between 5,000 and 17,000 BTUs of heat, so you can prepare dishes quickly and precisely.
- Porcelain-enamel cooktop surface: Offers a durable design.
- Circulates air throughout the oven: Convection technology for fast cook times and flavorful results.
- Steam-clean oven: Save time and effort by steam-cleaning the oven after cooking.
- Prevents spills from spreading: Sealed burners eliminate the space between the burners and the cooktop.
- Accommodates multiple courses simultaneously: 5.8 cu. ft. oven lets you cook for a large group in less time.
- Store cookie sheets, cooling racks and more: Storage drawer offers discreet storage for your bakeware.
- Safely maintains a temperature for an extended period of time: Sabbath mode helps you comply with kosher cooking practices.
- Liquid Propane Kit Compatible Model:: W10909678 - (serial number engineering digit 0, 1_aka W10909678-a PACKAGED W10681410)
Whats Included
- 30" Self-Cleaning Slide-In Gas Convection Range
- LP/Natural Gas Conversion Kit
- Owner's manual
- Steam Rack
- Heavy duty rack
- 30" Self-Cleaning Slide-In Gas Convection Range
- LP/Natural Gas Conversion Kit
- Owner's manual
- Steam Rack
- Heavy duty rack
Q: What are the dimensions of this stove? I need a 36" wide.
A: The dimensions are Height 36 inches Width 29.88 inches Depth 28.88 inches
Q: No Power cord included??? What Voltage outlet does this need to be plugged into?
A: The power cord is included. I did not have to purchase a separate power cord. The range plugs into a normal power outlet - 120 volts - for both the electric ignition for the burners and the control panel. Hope this helps.
A: I’ve spilled on mine quite a bit. The control panel is made of glass and easy to clean. Spills do not leak into the unit.
Q: Does this model have a griddle?
A: It does not come with griddle top. But’s you can buy it from manufacturer. Here is a detail information from Mr. Sebastian Siojo, sales rep. Part number is W10432544 for the griddle. The price is $43.95+shipping and tax The purchase can be made through the Best Buy partstore. Go to bestbuy.com and search part store in the search bar to get to the correct screen. Then search the part number in the search bar in the part store and you will find the griddle pan. It will say a "Whirlpool" brand but it is made specifically for your kitchenaid range. Best regards, Sebastian Siojo Pacific Sales @ Best Buy Fullerton Imperial Hwy and Harbor Blvd (714) 871-3281 ext. 5 [email protected]
Q: Can the oven racks and the top burner grates be cleaned in dishwasher?
A: Hey Chick, the racks can not be cleaned in the Dishwasher. However, the grates can be cleaned in them. The burners however, can not be cleaned into Dishwasher. We apologize for any inconvenience this may cause.
Q: Does the depth measurement of 29.88 include the handle?
A: Yes, the depth includes the handle.
A: Hey Chick, the controls are located above the knobs in front of the Cook Top. You can also manually light the burners during a power outage as well.
