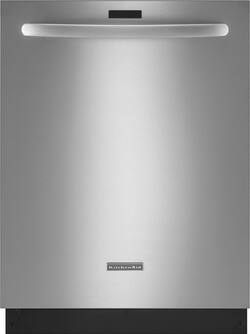

KitchenAid - Top Control Built-In Dishwasher with Tub, Clean Water Wash System, 43dBA - Stainless steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 34 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 43 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 2
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: KitchenAid
- Model Number: KDTM354DSS
- Product Name: Top Control Built-In Dishwasher with Stainless Steel Tub, Clean Water Wash System, 43dBA
- Color: Stainless steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 34 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 27 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 24 1/2 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 27 1/2 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door Open: 49 1/2 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 89 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 34 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 43 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: false (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: false (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Filtered Water: true (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Cycle Specifications
- Number of Cycles: 6 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: Pro Wash (Soil-Sense), Tough, Normal, Light, Express Wash, Rinse Only
- Options and Programs: ProDry, ProScrub, Hi-Temp Wash, Sani Rinse, Top Rack Only, 2-4-8 Hr.Delay
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- Steam Cleaning: false (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- Steam Pre-Wash: false (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Rack Features
- Number Of Racks: 2
- Upper Rack Features: Adjustable tines, Cup shelf, Rack handle, Utility basket (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)
- Lower Rack Features: Adjustable tines, Utility basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Nylon
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Touchpad
- Control Location: Top control
- Handle Type: Bar handle
- Fingerprint Resistant: true
- Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Integrated Water-Softener: false (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
- Electrical Specification
- Estimated Annual Electricity Use: 260 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 34 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Warranty
- Warranty - Parts: 1 Year Limited
- Warranty - Labor: 1 Year Limited
- Other
- UPC: 883049323220
This top control dishwasher comes with innovative Ultra-Fine Filtration. It continuously cleans the wash water for superior performance, even with heavy loads. It features a ProScrub option that uses 40 targeted spray jets to make quick work of stubborn mess. Its advanced ProDry option delivers quality drying performance by circulating the air from a heating element.
- Clean Water Wash system: Continuously removes food particles from the wash water.
- ProScrub option: Helps eliminate soaking or pre-scrubbing with 40 targeted spray jets.
- Professionally inspired design: Combines an extravagant blend of professionally inspired styling with sleek touches for the home.
- Advanced ProDry system: Delivers quality drying performance without rinse aid, using a recessed heating element and a fan to draw moisture out of the wash tub.
- SatinGlide max rails (upper rack): Create a smooth, premium feeling when pulling out the upper rack, particularly with heavy loads.
- Sliding tines in lower rack: Provides the ideal fit for deep and narrow dish sizes.
- 2 rows fold-down tines in upper rack: Adjustable tines can be shifted into one of three positions to accommodate deep or wide dishes.
- Fold-down tines in lower rack: Can be adjusted in one of three positions, so water can clean inside deep or wide dishes.
- 2 fold-down shelves with stemware holders (nylon coated wire): Provides extra room in the upper rack, which is perfect for additional cups, wine glasses, or longer items such as utensils and spatulas.
- Clean Water Wash system: Continuously removes food particles from the wash water.
- ProScrub option: Helps eliminate soaking or pre-scrubbing with 40 targeted spray jets.
- Professionally inspired design: Combines an extravagant blend of professionally inspired styling with sleek touches for the home.
- Advanced ProDry system: Delivers quality drying performance without rinse aid, using a recessed heating element and a fan to draw moisture out of the wash tub.
- SatinGlide max rails (upper rack): Create a smooth, premium feeling when pulling out the upper rack, particularly with heavy loads.
- Sliding tines in lower rack: Provides the ideal fit for deep and narrow dish sizes.
- 2 rows fold-down tines in upper rack: Adjustable tines can be shifted into one of three positions to accommodate deep or wide dishes.
- Fold-down tines in lower rack: Can be adjusted in one of three positions, so water can clean inside deep or wide dishes.
- 2 fold-down shelves with stemware holders (nylon coated wire): Provides extra room in the upper rack, which is perfect for additional cups, wine glasses, or longer items such as utensils and spatulas.
Whats Included
- Dishwasher hookup kit is not included
- KitchenAid Top Control Built-In Dishwasher with Stainless Steel Tub, Clean Water Wash System, 43dBA
- Owner's manual
- Dishwasher hookup kit is not included
- KitchenAid Top Control Built-In Dishwasher with Stainless Steel Tub, Clean Water Wash System, 43dBA
- Owner's manual
Q: Does not have a self cleaning filter?
A: No, this is manual clean.
A: From my understanding it is a tall tub being 24 inches. It is the standard height for a built in dishwasher. We absolutely LOVE ours. Super quiet, cleans dishes and glasses sparkling clean! The best price is at Best Buy because they match the lowest price around. I did my homework so I know. It was very important to us to have a dishwasher that we did not have to bend down almost to the floor to clean out the filter. This one has a self cleaning filter. We are thrilled with our new dishwasher! Hope this helps.
Q: is everything completely dry when cycle finishes
A: This dishwasher has a ProDry option that will dry the dishes completely.
Q: how do you get rid of fingermarks on the SS finish?
A: Use Pledge. I'm not kidding; spray it on, rub it in with the grain, and buff it (also in the direction of the grain) until it is shiny. It resists fingerprints afterward, also.
Q: Can someone please list the cycle times for each cycle, especially the light wash cycle?
A: There is a chart in the operating instructions that details this. We use only the light cycle. It works fine. Here is a summary: ProWash 120 min Tough 120 Normal 80 Light 80 Express 60 Rinse 16 There are other options, e.g., ProScrub and SaniRinse.
A: Model KDTM354DSS is the from the architect series and KDFE104DSS is a stainless steel dishwasher almost the same size, but it is a tall tub design. It operates at a slightly higher decibel level 46 as compared to 43.
A: I had the same trepidation when I decided to purchase this dishwasher just over a month ago. I can't say for sure whether this will last 2 years or not, but so far in terms of appearance, noise level, controls, initial build quality, and bottom-line effectiveness of the dishwasher as a washer of dishes (it's only job!), I would give it a 10 out of 10. I replaced another old KitchenAid dishwasher with this one. That old system was a PITA - far too much use of plastics inside the tub that broke and were difficult and/or expensive to find, but even more critically, that old KitchenAid leaked out of several different seals, one of which (heavy leak out of the front door) was obvious to detect and correct, while others (very slow drippy leak out of some gasket seals underneath) went undetected for probably a year or more and caused a bit of damage to the wooden flooring underneath. That itself was the main reason for my concern in buying a new KitchenAid. The other one was probably a mid-range unit, while this is easily an upper-end model. I see FAR less use of plastics inside this dishwasher (it's basically all metal everywhere, some of it rubber-coated). The fit and finish of this model are excellent, and for quiet operation, I think you'd be hard-pressed to find something better at anything near this unit's price (especially if on sale). In terms of doing its job (getting dishes clean), again, you'd be hard-pressed to improve upon the performance I've found so far with this dishwasher. My wife was willing to just do dishes in the sink and use the old dishwasher as a drying rack for a while - she didn't want to splurge on this machine at the time. She's now convinced also that this was a terrific purchase. Overall, if you can still find this model locally, I'd recommend it. Good luck!
Q: Can our matching cabinet cover that's on our old dishwasher be put on this one?
A: this dishwasher is stainless steel, and architectural. It is designed to fit flush with the face of your cabinets. If you added a panel, the panel would stick out the depth of itself, so probably like 3/4 inch. I think since you are paying for the SS, either how it off, or choose a black or white model that will be cheaper, and mount your panel on that. Also a consideration, I haven't tried this new one yet, but I have a 13 year old architectural series dishwasher of the same door design, and the door is pretty darn heavy. They springs have been replaced TWICE. I wouldn't add anything to it.
