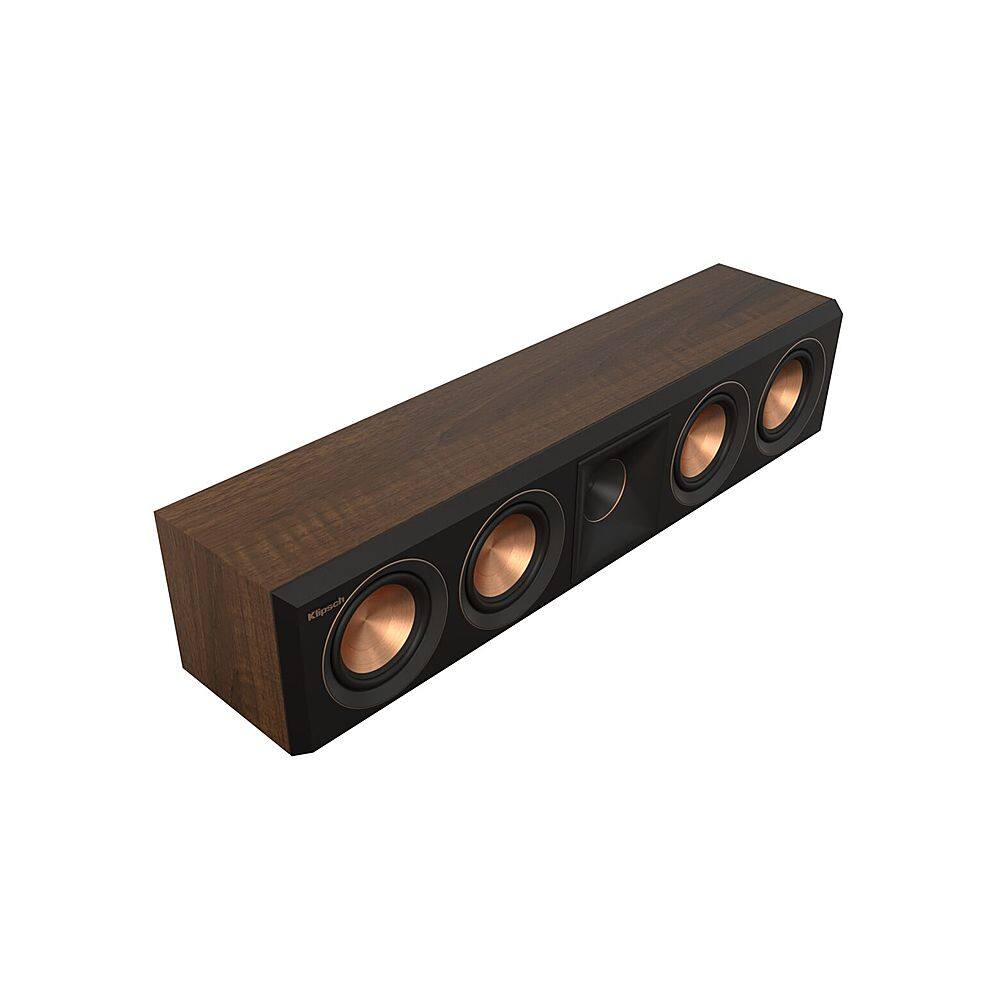

Klipsch - Reference Premiere Series Quad 4" 500-Watt Passive 2-Way Center-Channel Speaker - Walnut
Color
WalnutMore Buying Options
Related Item
Specifications
- Speaker TypeCenter channelRMS Power125 watts
- Key Specs
- Speaker Type: Center channel
- RMS Power: 125 watts (The maximum amount of continuous power the device is able to handle.)
- General
- Brand: Klipsch
- Model Number: 1070046
- Product Name: Reference Premiere Series Quad 4" 500-Watt Passive 2-Way Center-Channel Speaker
- Color: Walnut
- Audio
- Speaker Type: Center channel
- Enclosure Type: Sealed
- RMS Power: 125 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 500 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 25 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 87 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 94 decibels
- High Resolution Audio: false (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Midrange Type: Cone
- Woofer Type: Cone
- Number of Speakers: 1
- Number of Tweeters: 1
- Tweeter Size: 1 inches
- Driver Size: 4 inches
- Number of Woofers: 4
- Woofer Size: 4 inches
- Connectivity
- Speaker Connectivity: Wired
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Audio Only Inputs: No audio only inputs
- Network Connector(s): No network connectors
- Speaker Wire Connection Type: Binding posts
- Features
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 5.72 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 26.85 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.47 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 20.3 pounds (The out of box weight of the item.)
- Material
- Tweeter Material: Titanium
- Woofer Material: Cerametallic
- Included
- Speaker Wire Included: false
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: Five Years
- Warranty - Labor: Five Years
- Other
- UPC: 743878046588
The third generation of Klipsch's award-winning premium Reference Premiere Series features new, larger proprietary Tractrix horn technology to improve high-frequency response and extension, while enhancing imaging and dynamics. Klipsch signature copper Cerametallic woofers with aluminum faraday rings and Tractrix ports provide powerful low frequencies while minimizing distortion and maximizing efficiency. Sleek cabinet design details exude refinement and luxury with enhanced cabinet bracing, aluminum binding posts, cat aluminum feet, and discrete Dolby Atmos connections that allow for easy and refined elevation speaker integration.
- Larger horn: A new, larger 90° x 90° silicone composite hybrid Tractrix horn provides incredibly efficient transfer of high-frequency waves into the listening area for crisper, clearer sound. The phase plug and compression molded silicone face ensure smooth frequency response.
- New cerametallic woofers: The 4” cerametallic woofers have been updated for absolutely flawless sound reproduction, minimum distortion, and maximum efficiency. The redesigned woofer will deliver the power, detail, and emotion you expect from a Klipsch Reference Premiere speaker.
- LTS titanium diaphragm dual tweeter: The exclusive linear travel suspension minimizes distortion for enhanced, detailed performance.
- Sealed Design: An all-new shallow-depth sealed design allows for this center channel speaker to be used for in-wall placement and prevents bass-loading against a back wall in tight spaces like fireplece mantles. The result is crisp, clear vocals in a small and versatile package.
- Improved input panel: Featuring audiophile-grade wire and easily accessible aluminum binding posts for any connection type.
- Vented tweeter design: The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high-frequency reproduction.
- Removable grille: Attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece.
- Cork pads: Cork pads replace rubber bumpers for security on a stand or table.
Whats Included
- Reference Series Quad 4" 500-Watt Passive 2-Way Center-Channel Speaker
- Angle screw
- Reference Series Quad 4" 500-Watt Passive 2-Way Center-Channel Speaker
- Angle screw
Product Manuals
Q: What is the power handling of these speakers?
A: The peak power handling of these speakers is 400 watts.
Q: Do these speakers have wireless multi-room audio capabilities?
A: These speakers do not have wireless multi-room audio capabilities.
Q: What material are the tweeters made of?
A: The tweeters in the Klipsch Reference Premiere speakers are made of titanium.
Q: What is the warranty on these speakers?
A: The manufacturer's warranty for parts and labor on these speakers is 5 years.
Q: What is the size of the woofers?
A: The woofers in the Klipsch Reference Premiere speakers are 5.25 inches.
Q: What is the diameter of the woofers in this speaker?
A: The woofers in this speaker are 4 inches in diameter.
Q: What type of tweeter does this speaker use?
A: This speaker uses a LTS titanium diaphragm dual tweeter.
Q: Does this speaker have a sealed or ported enclosure?
A: This speaker has a sealed enclosure design.
