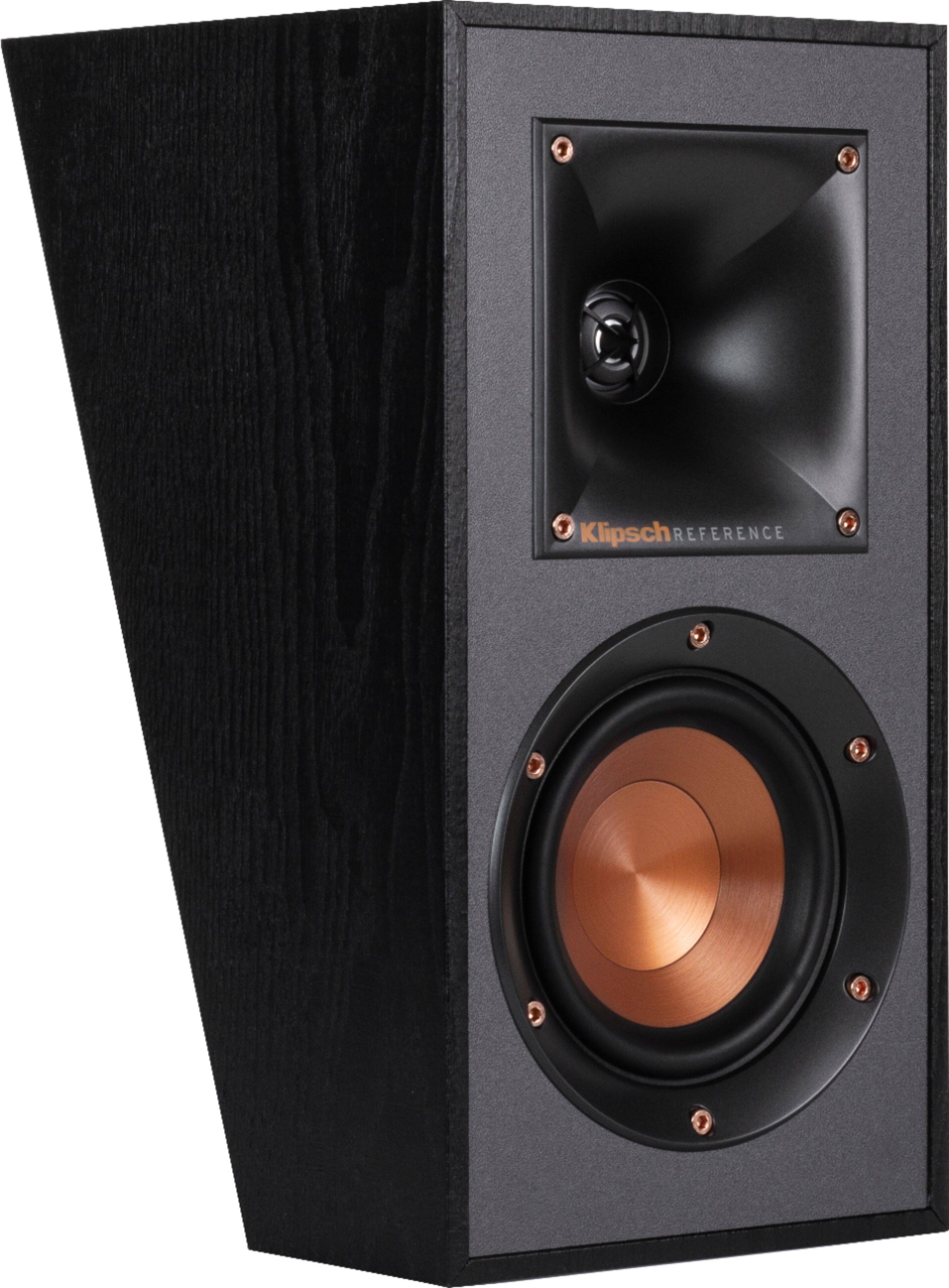

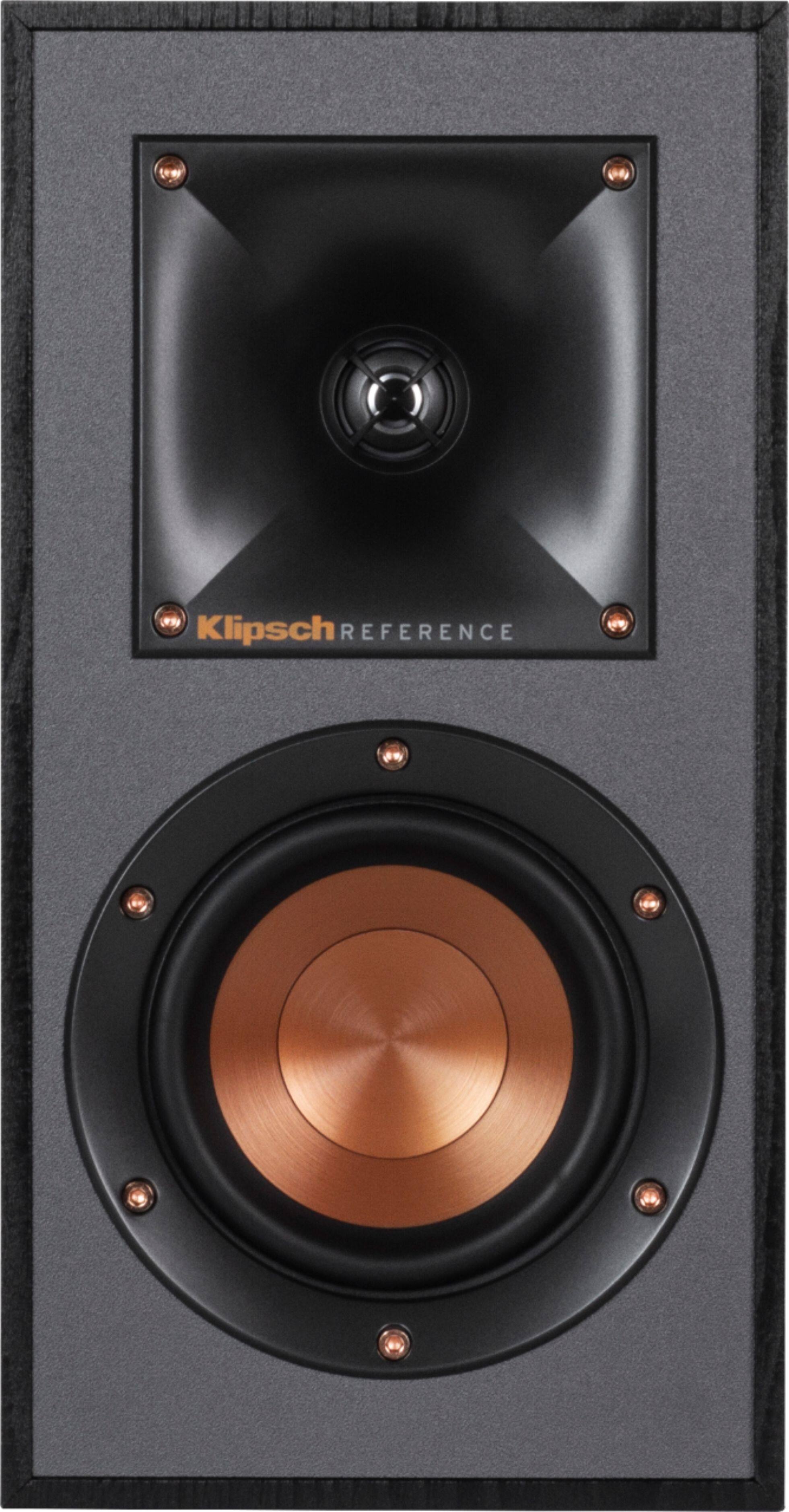

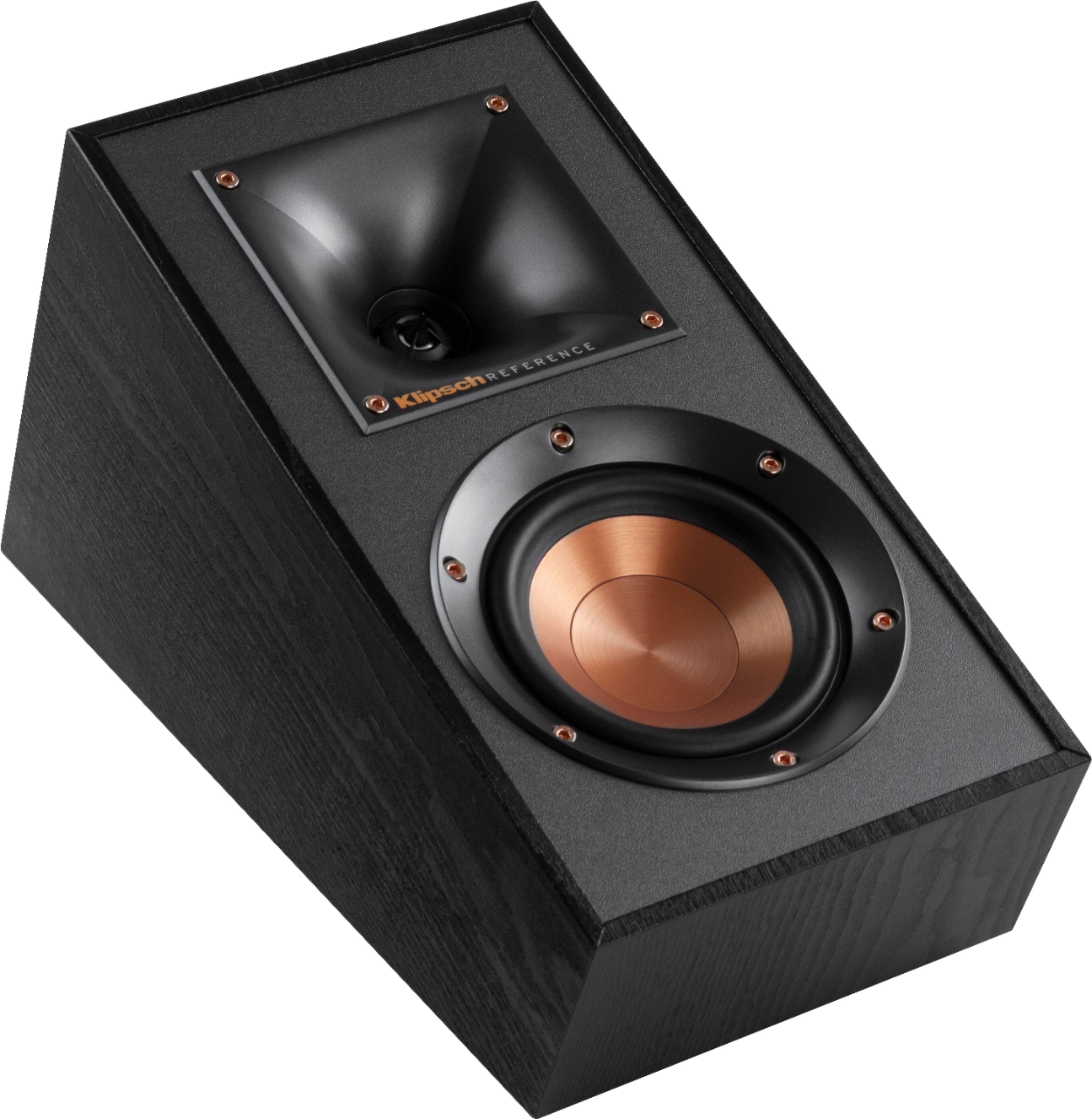

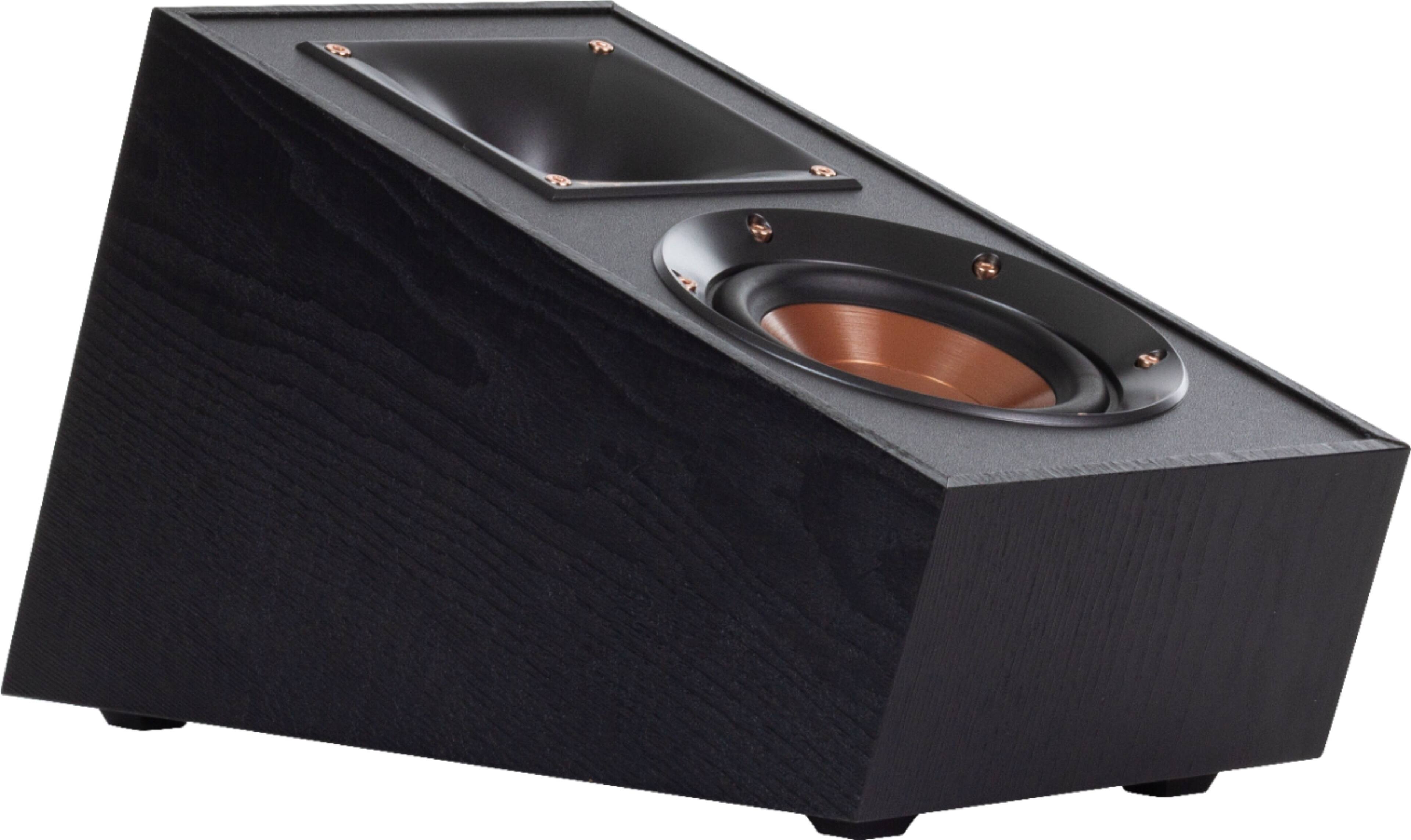

Klipsch - Reference Series 4" 100-Watt Passive 2-Way Height Channel Speakers (Pair) - Black
FREE shipping to
Specifications
- Speaker TypeSatelliteRMS Power50 watts
- Key Specs
- Speaker Type: Satellite
- RMS Power: 50 watts (The maximum amount of continuous power the device is able to handle.)
- General
- Brand: Klipsch
- Model Number: 1065840 R-41-SA
- Product Name: Reference Series 4" 100-Watt Passive 2-Way Height Channel Speakers (Pair)
- Color: Black
- Audio
- Speaker Type: Satellite
- Enclosure Type: Sealed
- RMS Power: 50 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 100 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 8 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Number of Speakers: 2
- Number of Tweeters: 1
- Tweeter Size: 0.75 inches
- Number of Drivers: 2
- Number of Woofers: 1
- Woofer Size: 4 inches
- Connectivity
- Speaker Connectivity: Wired
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Audio Only Inputs: No audio only inputs
- Network Connector(s): No network connectors
- Speaker Wire Connection Type: Binding posts
- Features
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 6.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 6 pounds (The out of box weight of the item.)
- Included
- Cable(s) Included: None
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 years
- Other
- UPC: 743878035537
Heighten your audio experience with this Klipsch Reference Series with Dolby Atmos elevation speaker. Ideal for use in surround systems, these Dolby Atmos-enabled speakers immerse you in detailed 3D sound that brings each tune to life. The sleek, easily-mounted cabinet of this Klipsch Reference Series with Dolby Atmos elevation speaker is made of high-quality materials that enhance acoustic accuracy.
- Handles up to 100W peak power (50W continuous): For robust and controlled audio that is crisp and clear.
- 4" spun copper injection molded graphite (IMG) woofer: Along with 3/4" aluminum tweeter for a complete range of sounds.
- Dolby Atmos overhead sound effects: The addition of elevation speakers reflects sound from the ceiling to put sound anywhere in your room - making you feel like you're truly in the middle of the action.
- 2-way speaker system: Sounds like 1 source rather than several separate sources.
- Vinyl woodgrain finish: Offers a stylish look to complement your existing décor.

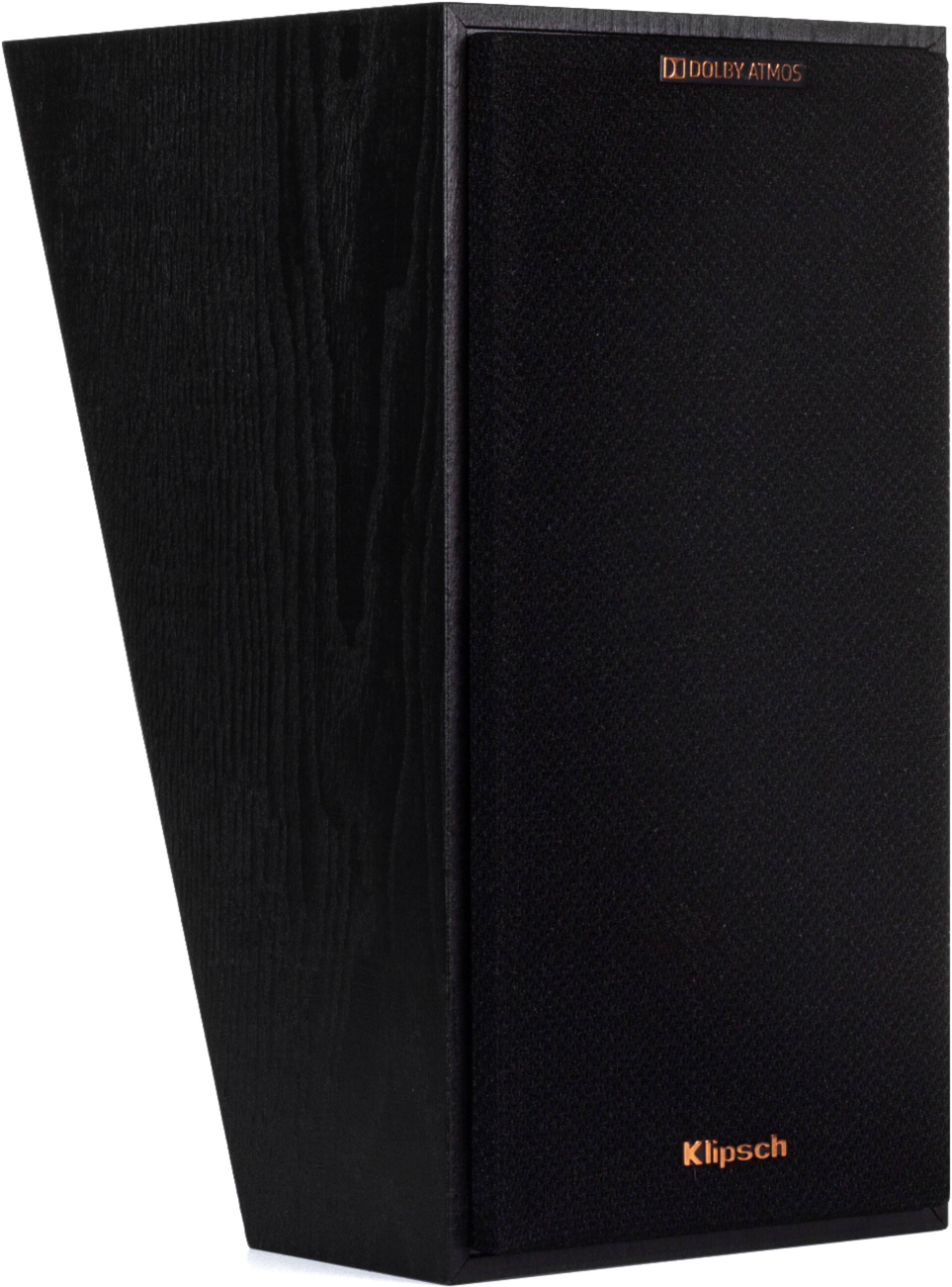

- Removable grille: Remains acoustically transparent while protecting the speaker's components.
- 8 ohms nominal impedance: Ensures efficient conduction of power through the speaker.
- Keyhole mounting: For on-wall elevation/surround sound use.
- Handles up to 100W peak power (50W continuous): For robust and controlled audio that is crisp and clear.
- 4" spun copper injection molded graphite (IMG) woofer: Along with 3/4" aluminum tweeter for a complete range of sounds.
- Dolby Atmos overhead sound effects: The addition of elevation speakers reflects sound from the ceiling to put sound anywhere in your room - making you feel like you're truly in the middle of the action.
- 2-way speaker system: Sounds like 1 source rather than several separate sources.
- Vinyl woodgrain finish: Offers a stylish look to complement your existing décor.
- Removable grille: Remains acoustically transparent while protecting the speaker's components.
- 8 ohms nominal impedance: Ensures efficient conduction of power through the speaker.
- Keyhole mounting: For on-wall elevation/surround sound use.
Whats Included
- Klipsch Reference Series 4" 100-Watt Passive 2-Way Height Channel Speakers (Pair)
- Klipsch Reference Series 4" 100-Watt Passive 2-Way Height Channel Speakers (Pair)
A: They are sold as a pair. We had to cut the box open at the store to confirm. Please update your system Best Buy!
A: The base of the speaker is 11 3/4” by 5 3/4”. With the slight tilt it’s about 12 1/2” at the top of the speaker. Including a photo but it should work to sit on existing speakers.
A: These speakers are designed to be "height" speakers in a Dolby Atmos setup. They are designed to compliment fronts or rears by resting on top of those speakers in an up-firing position to bounce sound off of the ceiling.
A: Yes they are. That exactly what I’m using them for since towers have Dolby Atmos speakers in them.
A: Hi, Mine are located on the front speakers that reach a total height of about 4.5 ft. (ceiling height 8ft.) My Atmos speakers are Klipsh 451a. They work well. Joe
A: I was able to mount them to the ceiling using the rocket fish speaker mounts. They are very secure and sound amazing.
Q: What should the crossover setting be for these?
A: If you are using the speakers as rear or side surrounds instead of as Dolby Atmos speakers, set the crossover to 80Hz. Otherwise the speakers will need to be set as Atmos speakers within the receiver/amplifier (the receiver will then set the crossover frequency accordingly).

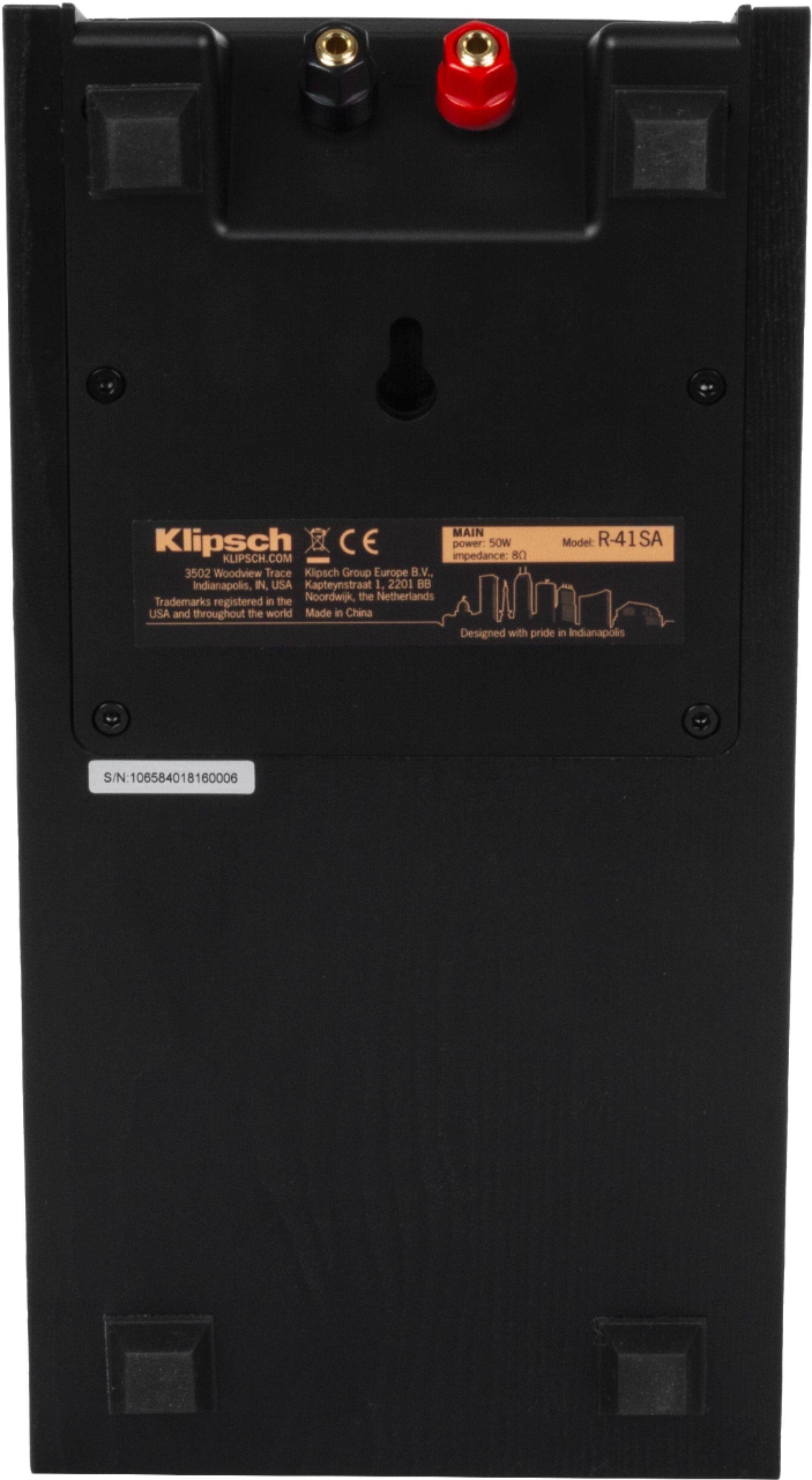

Q: Description says keyhole mount for wall. I cannot see hole for it.
A: Looks like a old skeleton key hole, drywall screw fits perfect in the hole to mount on the wall, by the way amazing speakers...
Compare similar products
Heighten your audio experience with this Klipsch Reference Series with Dolby Atmos elevation speaker. Ideal for use in surround systems, these Dolby Atmos-enabled speakers immerse you in detailed 3D sound that brings each tune to life. The sleek, easily-mounted cabinet of this Klipsch Reference Series with Dolby Atmos elevation speaker is made of high-quality materials that enhance acoustic accuracy.
The Reference Premiere RP-502S II surround speakers deliver the highest performing and encompassing sound possible. The third generation of Klipsch's award-winning premium Reference Premiere Series features new, larger proprietary Tractrix horn technology to improve high-frequency response and extension, while enhancing imaging and dynamics. Klipsch signature copper Cerametallic woofers with aluminum faraday rings and Tractrix ports provide powerful low frequencies while minimizing distortion and maximizing efficiency. Sleek cabinet design details exude refinement and luxury with enhanced cabinet bracing, aluminum binding posts, cat aluminum feet, and discrete Dolby Atmos connections that allow for easy and refined elevation speaker integration.
Set the mood in your home via music with these Klipsch speakers. The wood-grain vinyl exterior imparts a touch of sophisticated elegance to a room, while the Tractrix Horn technology provides clear, vibrant and rich musical tones. The titanium tweeter on these Klipsch speakers dampens high-frequencies to facilitate crisp, natural sound.
The New Reference Series 800 Floor Standing Speaker features the most dramatic upgrades since the series' inception, including many technologies derived from the Klipsch Reference Premiere Series. The Spun-copper thermoformed crystalline polymer woofers utilize trickle-down technology from Klipsch's highly acclaimed Reference Premiere series of speakers. The two 8-inch injection-molded graphite woofers provide deep, distortion-free bass, while the exclusive Klipsch 1-inch aluminum LTS tweeter and larger 90 x 90 square Tractrix Horn provides improved coverage, bandwidth and directivity control. Easy to setup, supports Dolby Atmos, and has amazing sound that will blow you away!
| Pros for Klipsch - Reference Series 4" 100-Watt Passive 2-Way Height Channel Speakers (Pair) - Black | |||
|---|---|---|---|
| Sound Quality, Design, Bass, Ease of use | Sound Quality | Sound Quality, Bass, Appearance, Size, Price | Sound Quality, Bass, Appearance, Design, Highs |
| Cons for Klipsch - Reference Series 4" 100-Watt Passive 2-Way Height Channel Speakers (Pair) - Black | |||
| Size, Price, Power | Weight | There were no cons for this product— | Size, Weight |
Specs
Reviews
Customers are saying
Customers enjoy the good sound quality and ease of mounting the Reference Series 4" speakers. Some appreciate the design and find the bass more than adequate. However, some customers feel that the speakers are somewhat expensive for what they offer, and a larger size might provide a better effect, while others were hoping for more power.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Klipsch height speakers
Have read a lot on the pros and cons and feel they were worth it.
Posted by JasonT
- Rated 5 out of 5 stars
Immersive sound
Excellent sound and quality, the Atmos channel these provide really elevate gameplay within proper games. Example: Resident evil Village has moments of creatures roaming upstairs. Dust falling, critter sounds and booms above you. The intense feeling it gives is astounding. That said make sure you have an adequate Receiver or Avr... a Denon or Sony work quite nicely.
This review is from Klipsch - Reference Series 4" 100-Watt Passive 2-Way Height Channel Speakers (Pair) - Black
Posted by TylerW
- Rated 5 out of 5 stars
Reference speakers
I’ve been using these as wall mounted speakers until my towers arrive next month. I will say even though I haven’t been using them for the intended use, they are still very spectacular and the sound quality is immaculate.
This review is from Klipsch - Reference Series 4" 100-Watt Passive 2-Way Height Channel Speakers (Pair) - Black
Posted by Kailey
