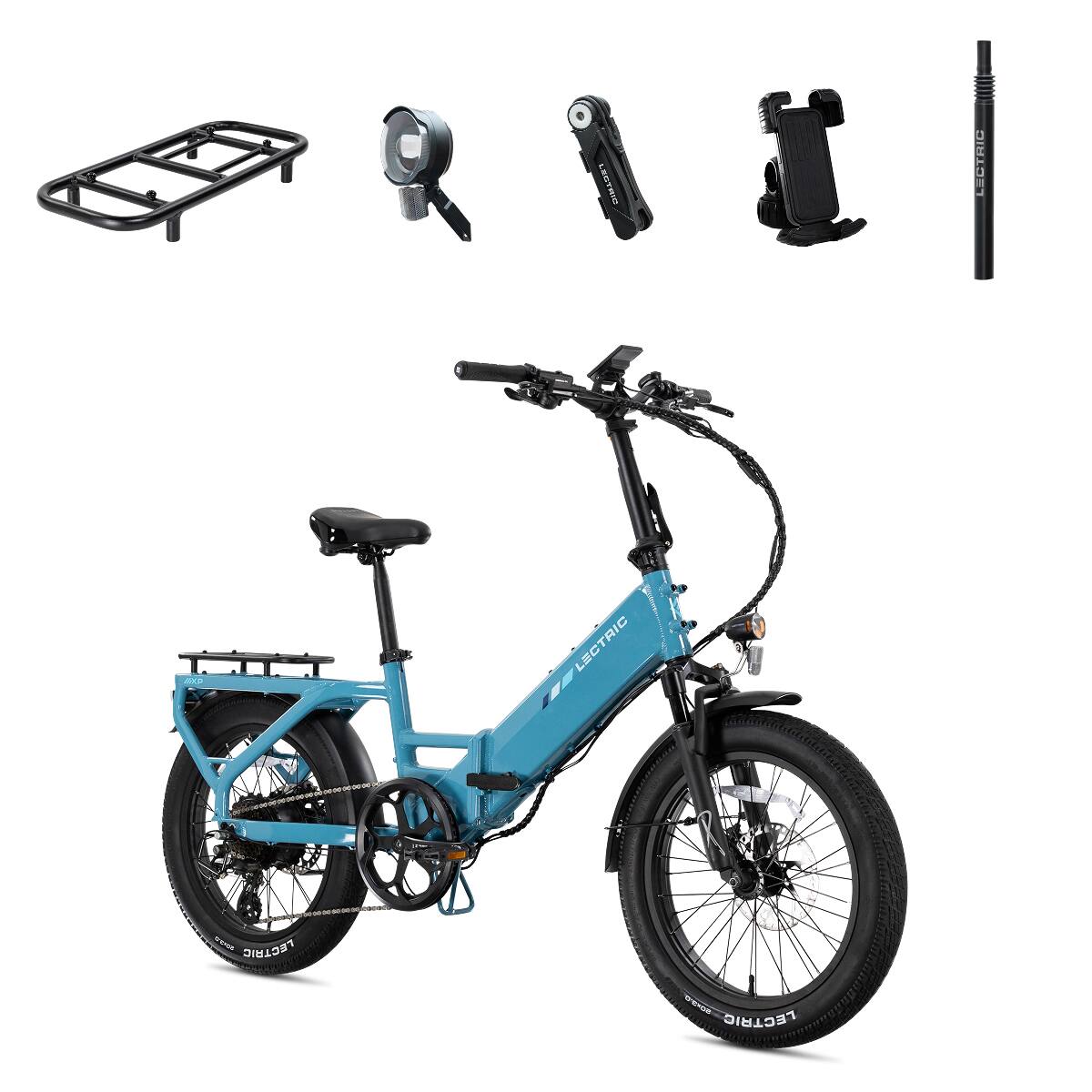

Lectric eBikes - XP4 750 Step-Thru Foldable Long-Range eBike (Max 85mi./28mph) + LevelUp Rack/Phone Mount/Seat Post/Elite Headlight/Lock - Raindrop Blue
Model: 401-01583-R004
SKU: 6645679
This item is no longer available in new condition. See similar items below
- Key Specs
- Color: Raindrop Blue
- Product Weight: 71 pounds (The out of box weight of the item.)
- Maximum Operating Range: 85 miles
- Maximum Speed: 28 miles per hour
- Motor Power (Nominal): 750 watts (Also known as rated power, this is the maximum power a motor can produce without damaging itself under normal working conditions for an extended period of time.)
- Throttle Control Mechanism: Thumb, Pedal assist
- Product Safety Certifications and Standard(s): UL 2849, UL 2271 (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Electric Bike Classification: Class 2 (Refers to the out of the box classification of the electric bike prior to any additional modifications. The three-tiered classification system is used to define and regulate the operation of the vehicle based on its speed capabilities. The use of these vehicles varies from state to state so it is important to check your local regulations prior to operating. Class 1: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 20 miles per hour. Class 2: Bicycle equipped with a throttle-actuated motor that ceases to assist when the e-bike reaches 20 miles per hour. Class 3: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 28 miles per hour.)
- General
- Brand: Lectric eBikes
- Model Number: 401-01583-R004
- Product Name: XP4 750 Step-Thru Foldable Long-Range eBike (Max 85mi./28mph) + LevelUp Rack/Phone Mount/Seat Post/Elite Headlight/Lock
- Color: Raindrop Blue
- Electric Bike Classification: Class 2 (Refers to the out of the box classification of the electric bike prior to any additional modifications. The three-tiered classification system is used to define and regulate the operation of the vehicle based on its speed capabilities. The use of these vehicles varies from state to state so it is important to check your local regulations prior to operating. Class 1: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 20 miles per hour. Class 2: Bicycle equipped with a throttle-actuated motor that ceases to assist when the e-bike reaches 20 miles per hour. Class 3: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 28 miles per hour.)
- Bicycle Type: Adults bike
- Bike Style: Electric bikes
- Recommended Terrain: Gravel, Paved roadways and trails, Hardpacked trails
- Assembly Required: Partial
- Assembled Percentage: 98 percent
- Estimated Assembly Time: 1 minutes
- Dimensions
- Product Width: 18.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Height: 47 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 66 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 71 pounds (The out of box weight of the item.)
- Maximum Weight Capacity: 330 pounds (The maximum load that can be supported by the product.)
- Recommended Maximum User Height: 75 inches
- Recommended Minimum User Height: 58 inches
- Maximum Seat Height: 40 inches
- Minimum Seat Height: 29.5 inches
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Display
- Display Type: TFT
- Information Displayed: Battery life, Assist mode, Distance, Odometer, Speed
- Performance
- Maximum Operating Range: 85 miles
- Maximum Speed: 28 miles per hour
- Motor Power (Nominal): 750 watts (Also known as rated power, this is the maximum power a motor can produce without damaging itself under normal working conditions for an extended period of time.)
- Number of Speed Settings: 5
- Power
- Throttle Control Mechanism: Thumb, Pedal assist
- Electric Bike Motor Type: Rear hub motor
- Batteries Included: true (Indicates whether the product comes with the required batteries for its operation.)
- Removable Battery: true
- Battery Charge Time: 9 hours (Battery charge time will vary depending on the product configuration, product model, applications loaded on the product, power management setting of the product and the product features used by the customer. Charging time will likely decrease with time and usage of the battery.)
- Battery Chemistry: Lithium-ion
- Battery Capacity: 840 watt hours (The amount of energy stored in the battery.)
- Battery Amperage: 17.5 ampere hours
- Battery Voltage: 48 volts
- On/Off Switch: true
- Battery Indicator Light: false
- Rear-Rack Mounted Battery: false
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL 2849, UL 2271 (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Meets And Exceeds All UL Safety Standards: Yes (Indicates that the product, as stated by the manufacturer, is required to, or has met and surpassed the standards established by Underwriter Laboratories (UL) for ensuring quality and safety.)
- Features
- Passenger Ready: true
- Integrated Lights Included: Headlight, Tail light (Indicates the types of active lighting integrated into the product that actively generates light from a bulb instead of reflecting light from another source.)
- Padded Seat: true
- Adjustable Seat(s): true
- Adjustable Handlebar(s): true
- Kickstand: true
- Front Rack: false
- Rear Rack: true
- Fenders: true
- Design
- Bicycle Frame Design: Step-through (Step-through frames, also known as open-frame or low-step bicycles, have a lower curved horizontal top tube which allow the rider to step through the frame when mounting and dismounting. Step-over frames, also known as diamond frames, have a horizontal top tube that connects to the seat tube and down tube to form a triangle. Riders must step over the frame when mounting and dismounting this style of bicycle.)
- Foldable Design: true
- Frame Material(s): 6000 series aluminum
- Gear Shifting Method: Trigger
- Derailleur: true
- Chain Guard: false
- Alloy Rims: true
- Brakes
- Brake Style: Hydraulic disc
- Rear Brakes: true
- Tires
- Suspension Type: Front
- Wheel Diameter: 20 inches
- Wheel Thickness: 3 inches
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810150937763
The Lectric XP4 750 Step-Thru Foldable Long-Range eBike is the latest iteration of the XP model, a pillar in the eBike industry beloved by more than 400,000 riders. Built for both fun and function, the eagerly anticipated XP4 carries on the tradition of being the ultimate eBike for anything you want to do! It’s packed with upgrades for maximum performance and still comes “travel-size” so you can fold, pack, and go! Now with an in-house-designed torque sensor for smoother power distribution and a better riding experience, the XP4 includes a fully redesigned frame, new colors, a full-color TFT display, new 602 hydraulic brakes, in addition to a new option for an upgraded, more powerful 750-watt motor version and a longer-range 17.5Ah battery for up to 85 miles of range so you’ll never run out of fun!
- $355 of Accessories Included!: This XP4 750 Long-Range comes with the LevelUp Rack($79 value), Phone Mount($39 value), Suspension Seat Post ($89 value), Elite Headlight ($99 value), and Bike Lock ($49 value).
- 5 Riding Modes: Five riding modes deliver the speed and power to own the road as a Class 1, 2, or 3 eBike.* New simplified labels, including Eco, Tour, Sport, Sport+ & Turbo, allow riders to choose their riding experience.
- Thumb Throttle + Lock-on Grips: An ergonomic below-the-bar trigger throttle on the left-hand side is easily engaged with your thumb while simultaneously eliminating joint fatigue. Full-length ergonomic lock-on grips add comfort so you can ride longer. The plastic sleeve inside helps lock the grips into place and also allows the grips to be easily removed.
- Stealth M24 Motor + Motor Controller: A 750W rear hub motor (1310W peak) with 85Nm of torque supplies power and speed quicker than ever before. Stealth M24 technology delivers a quieter motor experience without sacrificing power. The 24amp internal controller is IP-X5 rated and potted for weatherproofing and thermal management.
- Suspension Fork: The front fork provides shock absorption for a smooth and comfortable ride. Adjust the tension or lock it out to tailor each ride to your preference based on payload capacity and weight distribution.
- Drivetrain: An 11-32 tooth, 8-speed freewheel paired with a Shimano Altus derailleur and a below-the-bar trigger shifter allows you to swiftly change gears while riding to create pedaling efficiency and an easier riding experience at higher speeds.
- 602 Hydraulic Brakes: Get ultimate stopping power with 602 hydraulic brakes paired with 180mm rotors (2.3mm thick), making it as easy to stop as it is to go, whether in wet or dry conditions. Paired with ergonomically designed aluminum brake levers for durability.
- TFT LCD Display: A custom color TFT display featuring a detachable mount and a USB-C port. You’ll find trip, battery, & power intelligence on the go. New intuitive drop-down menus make navigating the settings on your eBike easy to understand & allow users to customize their ride settings based on preference. The IP-X5-rated display ensures greater water resistance.
- Torque Sensor: Lectric's proprietary in-house-designed torque sensor programming will give you smoother power distribution and a better riding experience. It is designed to manage power output based on the rider’s pedaling effort. With this programming experience, riders can reach higher speeds easily and with more control than ever before.
- Integrated & Removable Battery: An integrated & removable 48V, 17.5Ah (840Wh) lithium-ion battery certified to UL 2271 makes for a clean design while powering your ride for up to 85 miles on a single charge.** The XP4 is also certified to UL 2849.*** Removing the battery from the frame is a breeze with the side-facing key port location.
- Tires—with Slime!: Puncture-resistant 20” x 3” tires are perfect for mixed terrains and make for a smoother ride. The new custom tread pattern has less rolling resistance for better power efficiency and delivers an ultra-quiet experience. Slime is installed to prevent flat tires—at no additional cost.
- Safety Lights + Turn Signals: An integrated safety system, featuring a new bright 90-lumen headlamp with side amber lights and a brake-activated rear light powered by the internal battery, allows you to be seen at any time of day. Turn signals alert drivers, riders, and people nearby. Simply use the left or right arrows on the button pad to turn on the blinkers on either side of the rear light.
- Quick-Release Pedals: Custom-designed 6000 Series Aluminum quick-release pedals with splined inserts allow for easy, tool-free removal and installation. The new shape of the pedals improves foot traction for an optimal experience.
- New: Keyless Riding: Turn your bike on and off with the push of a button, and start riding without having the key in the battery! Keys are needed to remove the battery from the bike frame only.
- Folding Kickstand & KMC Z8 Chain: A heavy-duty steel side-sweeping kickstand located near the chainstay keeps the eBike upright. A KMC Z8 steel chain with inner plate chamfering offers consistent tension and smooth transitions between shifting for a secure performance throughout your ride.
- Telescoping Seat Post: Customize the bike to your perfect size by adjusting the seat post height; simply open the quick-release collar and slide the post to your preferred height and lock it in place by closing the collar.
- Fully Foldable: A foldable hinge at both the handlebar stem and frame guarantees your ride will fit into virtually any compact space. Remove the pedals and the seat post in seconds for easy and lightweight transport.
- Adjustable Handlebar Stem: Ride longer and more comfortably in an upright cruising position with Lectric's new zero-degree stem, which shortens the handlebar reach. Plus, telescoping functionality allows riders to reach a wide range of heights while maintaining comfort and stability.
- Rear Rack & LevelUp Rack: A new rear rack design integrated into the bike frame holds up to 150lbs and features bosses for mounting various accessory combinations. And adding the LevelUp Rack on top of the rack unlocks even more potential accessory combinations!
- Fenders: Polypropylene fenders with a flared tail protect you and your ride from debris. The flexible material is damage-resistant and helps ensure long-term durability.
- Crankset: Forged aluminum, 56-tooth custom chainring is the perfect ratio for effortless 20-inch wheel pedaling.
- Fully Redesigned Frame: The newly designed, more aesthetic XP4 frame is lightweight and features sturdy 6000 series aluminum with mounting points for various accessory combinations. Total bike weight is 62lbs without the battery installed. The XP4 long-range battery weighs 9lbs.
- Easy Charging: An auxiliary charging port near the bottom bracket provides riders with the option to charge the eBike without removing the battery. The XP4 750 comes standard with a 2amp charger for 7-9 hour charging, but a 5amp Fast Charger can be purchased separately, which can charge the long-range battery in as little as 3.5 hours.
- Safety Tested: Lectric eBikes are built with industry-leading safety certifications so you can have peace of mind riding in almost any condition. A US-based bicycle testing lab put the XP4 through the rigorous ISO 4210 standard testing process.
- UL2849 & UL2271 Compliant: The Lectric XP4 750 is certified to UL 2849. Additionally, the XP4 750's lithium-ion battery is certified to UL 2271.
- $355 of Accessories Included!: This XP4 750 Long-Range comes with the LevelUp Rack($79 value), Phone Mount($39 value), Suspension Seat Post ($89 value), Elite Headlight ($99 value), and Bike Lock ($49 value).
- 5 Riding Modes: Five riding modes deliver the speed and power to own the road as a Class 1, 2, or 3 eBike.* New simplified labels, including Eco, Tour, Sport, Sport+ & Turbo, allow riders to choose their riding experience.
- Thumb Throttle + Lock-on Grips: An ergonomic below-the-bar trigger throttle on the left-hand side is easily engaged with your thumb while simultaneously eliminating joint fatigue. Full-length ergonomic lock-on grips add comfort so you can ride longer. The plastic sleeve inside helps lock the grips into place and also allows the grips to be easily removed.
- Stealth M24 Motor + Motor Controller: A 750W rear hub motor (1310W peak) with 85Nm of torque supplies power and speed quicker than ever before. Stealth M24 technology delivers a quieter motor experience without sacrificing power. The 24amp internal controller is IP-X5 rated and potted for weatherproofing and thermal management.
- Suspension Fork: The front fork provides shock absorption for a smooth and comfortable ride. Adjust the tension or lock it out to tailor each ride to your preference based on payload capacity and weight distribution.
- Drivetrain: An 11-32 tooth, 8-speed freewheel paired with a Shimano Altus derailleur and a below-the-bar trigger shifter allows you to swiftly change gears while riding to create pedaling efficiency and an easier riding experience at higher speeds.
- 602 Hydraulic Brakes: Get ultimate stopping power with 602 hydraulic brakes paired with 180mm rotors (2.3mm thick), making it as easy to stop as it is to go, whether in wet or dry conditions. Paired with ergonomically designed aluminum brake levers for durability.
- TFT LCD Display: A custom color TFT display featuring a detachable mount and a USB-C port. You’ll find trip, battery, & power intelligence on the go. New intuitive drop-down menus make navigating the settings on your eBike easy to understand & allow users to customize their ride settings based on preference. The IP-X5-rated display ensures greater water resistance.
- Torque Sensor: Lectric's proprietary in-house-designed torque sensor programming will give you smoother power distribution and a better riding experience. It is designed to manage power output based on the rider’s pedaling effort. With this programming experience, riders can reach higher speeds easily and with more control than ever before.
- Integrated & Removable Battery: An integrated & removable 48V, 17.5Ah (840Wh) lithium-ion battery certified to UL 2271 makes for a clean design while powering your ride for up to 85 miles on a single charge.** The XP4 is also certified to UL 2849.*** Removing the battery from the frame is a breeze with the side-facing key port location.
- Tires—with Slime!: Puncture-resistant 20” x 3” tires are perfect for mixed terrains and make for a smoother ride. The new custom tread pattern has less rolling resistance for better power efficiency and delivers an ultra-quiet experience. Slime is installed to prevent flat tires—at no additional cost.
- Safety Lights + Turn Signals: An integrated safety system, featuring a new bright 90-lumen headlamp with side amber lights and a brake-activated rear light powered by the internal battery, allows you to be seen at any time of day. Turn signals alert drivers, riders, and people nearby. Simply use the left or right arrows on the button pad to turn on the blinkers on either side of the rear light.
- Quick-Release Pedals: Custom-designed 6000 Series Aluminum quick-release pedals with splined inserts allow for easy, tool-free removal and installation. The new shape of the pedals improves foot traction for an optimal experience.
- New: Keyless Riding: Turn your bike on and off with the push of a button, and start riding without having the key in the battery! Keys are needed to remove the battery from the bike frame only.
- Folding Kickstand & KMC Z8 Chain: A heavy-duty steel side-sweeping kickstand located near the chainstay keeps the eBike upright. A KMC Z8 steel chain with inner plate chamfering offers consistent tension and smooth transitions between shifting for a secure performance throughout your ride.
- Telescoping Seat Post: Customize the bike to your perfect size by adjusting the seat post height; simply open the quick-release collar and slide the post to your preferred height and lock it in place by closing the collar.
- Fully Foldable: A foldable hinge at both the handlebar stem and frame guarantees your ride will fit into virtually any compact space. Remove the pedals and the seat post in seconds for easy and lightweight transport.
- Adjustable Handlebar Stem: Ride longer and more comfortably in an upright cruising position with Lectric's new zero-degree stem, which shortens the handlebar reach. Plus, telescoping functionality allows riders to reach a wide range of heights while maintaining comfort and stability.
- Rear Rack & LevelUp Rack: A new rear rack design integrated into the bike frame holds up to 150lbs and features bosses for mounting various accessory combinations. And adding the LevelUp Rack on top of the rack unlocks even more potential accessory combinations!
- Fenders: Polypropylene fenders with a flared tail protect you and your ride from debris. The flexible material is damage-resistant and helps ensure long-term durability.
- Crankset: Forged aluminum, 56-tooth custom chainring is the perfect ratio for effortless 20-inch wheel pedaling.
- Fully Redesigned Frame: The newly designed, more aesthetic XP4 frame is lightweight and features sturdy 6000 series aluminum with mounting points for various accessory combinations. Total bike weight is 62lbs without the battery installed. The XP4 long-range battery weighs 9lbs.
- Easy Charging: An auxiliary charging port near the bottom bracket provides riders with the option to charge the eBike without removing the battery. The XP4 750 comes standard with a 2amp charger for 7-9 hour charging, but a 5amp Fast Charger can be purchased separately, which can charge the long-range battery in as little as 3.5 hours.
- Safety Tested: Lectric eBikes are built with industry-leading safety certifications so you can have peace of mind riding in almost any condition. A US-based bicycle testing lab put the XP4 through the rigorous ISO 4210 standard testing process.
- UL2849 & UL2271 Compliant: The Lectric XP4 750 is certified to UL 2849. Additionally, the XP4 750's lithium-ion battery is certified to UL 2271.
Whats Included
- XP4 750 Foldable Long-Range eBike
- Charger
- Battery Keys (2)
- Instruction Manual
- LevelUp Rack
- Phone Mount
- Suspension Seat Post
- Elite Headlight
- Bike Lock
- XP4 750 Foldable Long-Range eBike
- Charger
- Battery Keys (2)
- Instruction Manual
- LevelUp Rack
- Phone Mount
- Suspension Seat Post
- Elite Headlight
- Bike Lock
Disclaimers
- The purchaser and rider of this product are responsible for knowing and obeying all state and local regulations regarding the use of this product. It is highly encouraged that you read and follow the product instructions including all safety precautions and use protective gear.
- *Where permitted by state law.
- **Range can vary due to weight load, terrain, weather and other conditions
- **NYC consumers please review fire safety info available here: https://www.nyc.gov/site/fdny/codes/reference/lithium-ion-battery-safety.page
- The purchaser and rider of this product are responsible for knowing and obeying all state and local regulations regarding the use of this product. It is highly encouraged that you read and follow the product instructions including all safety precautions and use protective gear.
- *Where permitted by state law.
- **Range can vary due to weight load, terrain, weather and other conditions
- **NYC consumers please review fire safety info available here: https://www.nyc.gov/site/fdny/codes/reference/lithium-ion-battery-safety.page
Q: Hello! When will the Raindrop Blue be in stock again?
A: undefined
A: Hi there! We recommend reaching out to the Best Buy store where you plan to make your purchase to confirm, as this service may not be available at all locations. Thank you!
A: Great question! You can change your bike from Class 2 to Class 3 by following the steps on page 21 of your user manual. Here’s a quick walkthrough: - Press and hold the up and down arrows on your control pad at the same time until the screen shows “P1.” - Tap the power button to scroll through the settings until you reach “P08.” - Use the up/down arrows to change the value from 32 to 100. - Press and hold the up and down arrows again to return to the main screen. - Hold the M button to power off the bike and save your changes. Just a heads up, the throttle will still cap at 20 MPH. To reach up to 28 MPH, you'll need to be in Pedal Assist Level 5. Let us know if you need help with anything else!
A: Does this bike still come with the LevelupRack, Comfort seat and post, Elite Headlight, and lock shown in picture.
Q: To what extent does this bike come assembled?
A: Hey there, Jacheart! The XP4 does come fully assembled and in the folded position!
A: Hey there! I have attached the dimensions for the XP4 750 here for you: 66"L x 18.5"W x 47"H
A: Hey there! The XP4 750 total rider payload is 330lbs! Let us know if you have any other questions.
Q: Do you have tricycle models? For the electric bikes?
A: Hey there! Yes, we do but that model is only available for purchase on our main website, not through Best Buy.
