Lenovo - ThinkPad Universal Thunderbolt 4 Docking Station - Black
FREE shipping to
More Buying Options
About This Item
- Key Specs
- Maximum Number of Displays Supported: 4
- Maximum Supported Resolution: 8K (4320p)
- Number of DisplayPort Outputs (Total): 2
- Number of Thunderbolt Ports (Total): 2
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- General
- Brand: Lenovo
- Model Number: 40B00135US
- Product Name: ThinkPad Universal Thunderbolt 4 Docking Station
- Color: Black
- Display
- Maximum Number of Displays Supported: 4
- Maximum Supported Resolution: 8K (4320p)
- Maximum Supported Refresh Rate: 60Hz (The number of frames per second the device can support, expressed as a frequency. Higher rates help produce smooth, seamless pictures.)

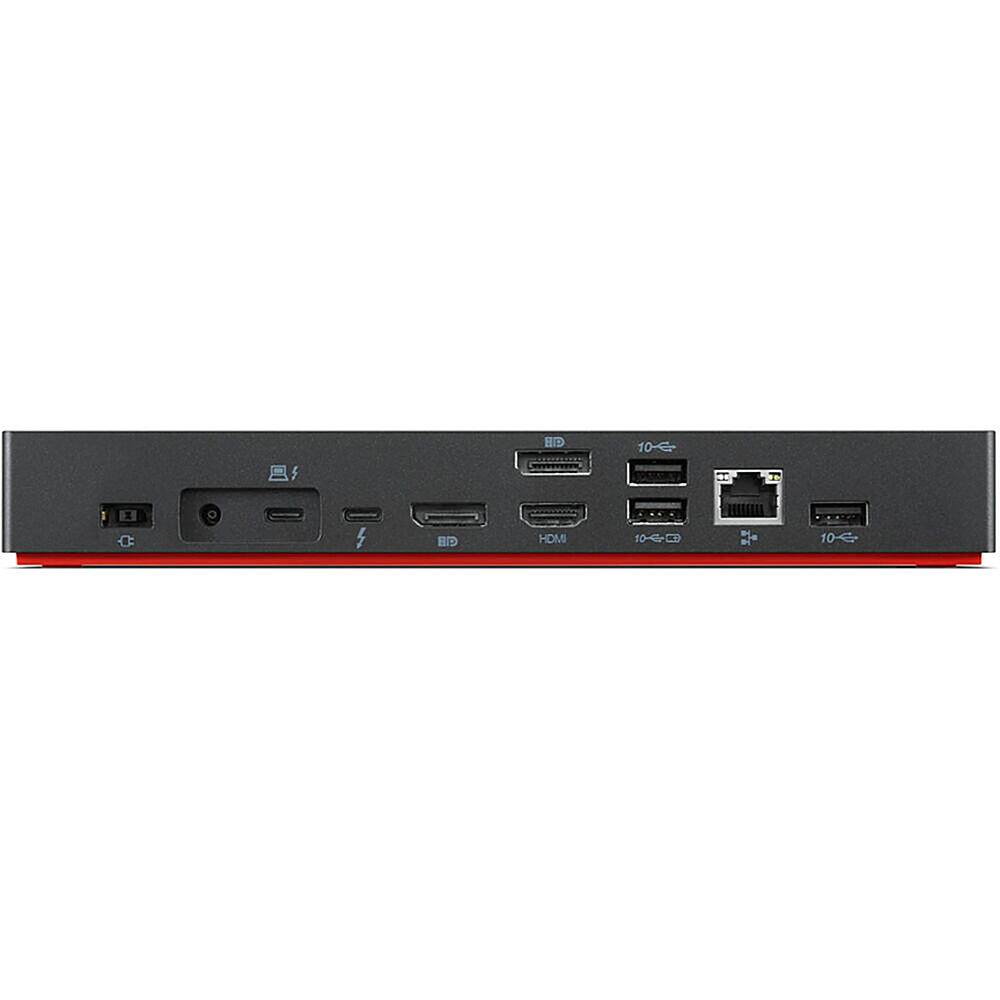

- Ports
- Display Connector(s): 2 x DisplayPort, 1 x HDMI, 2 x Thunderbolt (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 2
- Number of HDMI Ports (Total): 1
- Number of Thunderbolt Ports (Total): 2
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number Of Ethernet Ports: 1
- Number of USB Ports (Total): 4
- USB Ports: 4 x USB-A, 1 x USB-C 2.0 (The number and type of USB ports the product has.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Memory Card Slot: false
- Power
- Powered: true
- Power Supply Included: true
- Cable Length: 1 feet
- Power Supply Input: Ultra-Fit
- Maximum Input Power: 135 watts (The maximum amount of power allowed to come into the device.)
- Maximum Input Voltage: 20 volts
- Maximum Input Amperage: 6.75 amperes (The maximum amount of amperage allowed to come into the device.)
- Passthrough Power: true (Indicates whether the device allows power to passthrough, possibly with some loss, to another device, typically to charge that other device.)
- Power Supply Output: Ultra-Fit (The connector type(s) used by the device to send electrical power to another device.)
- Maximum Output Power: 100 watts (The maximum amount of power produced or allowed to flow through the device.)
- Compatibility
- System Requirements: Win10 64 bit, Win 11 64 bit (The software that a product must have for it to be able to integrate with another product.)
- Brand Compatibility: Lenovo
- Model Compatibility: ThinkPad Universal Thunderbolt 4 Dock
- Dimensions
- Product Height: 1.18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 3.14 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 8.66 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.99 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 year limited
- Warranty - Labor: 3 Year Limited Warranty
- Other
- UPC: 195348677271
Enterprise-Grade Universal Thunderbolt 4 Docking Experience. ThinkPad Universal Thunderbolt 4 Dock delivers reliable and consistent industry leading video, data and power connectivity in a Windows based mixed-PC environment. The ThinkPad Universal Thunderbolt 4 is future-proof and fully loaded to take your productivity, efficiency and creativity to the peak.
- Connection: Thunderbolt Port for Device connect
- Ports/connectors: Audio Ports,Charging Port,Thunderbolt Port,USB Ports,Video Ports,Ethernet
- Design: Universal Thunderbolt 4 Dock
- Other features: Expand your horizon with versatile 8K display support or multiple 4K displays support
- Functionality/technology: Transfer data, Stream up to 8K
- Compatibility: Lenovo ThinkPad
- Connection: Thunderbolt Port for Device connect
- Ports/connectors: Audio Ports,Charging Port,Thunderbolt Port,USB Ports,Video Ports,Ethernet
- Design: Universal Thunderbolt 4 Dock
- Other features: Expand your horizon with versatile 8K display support or multiple 4K displays support
- Functionality/technology: Transfer data, Stream up to 8K
- Compatibility: Lenovo ThinkPad

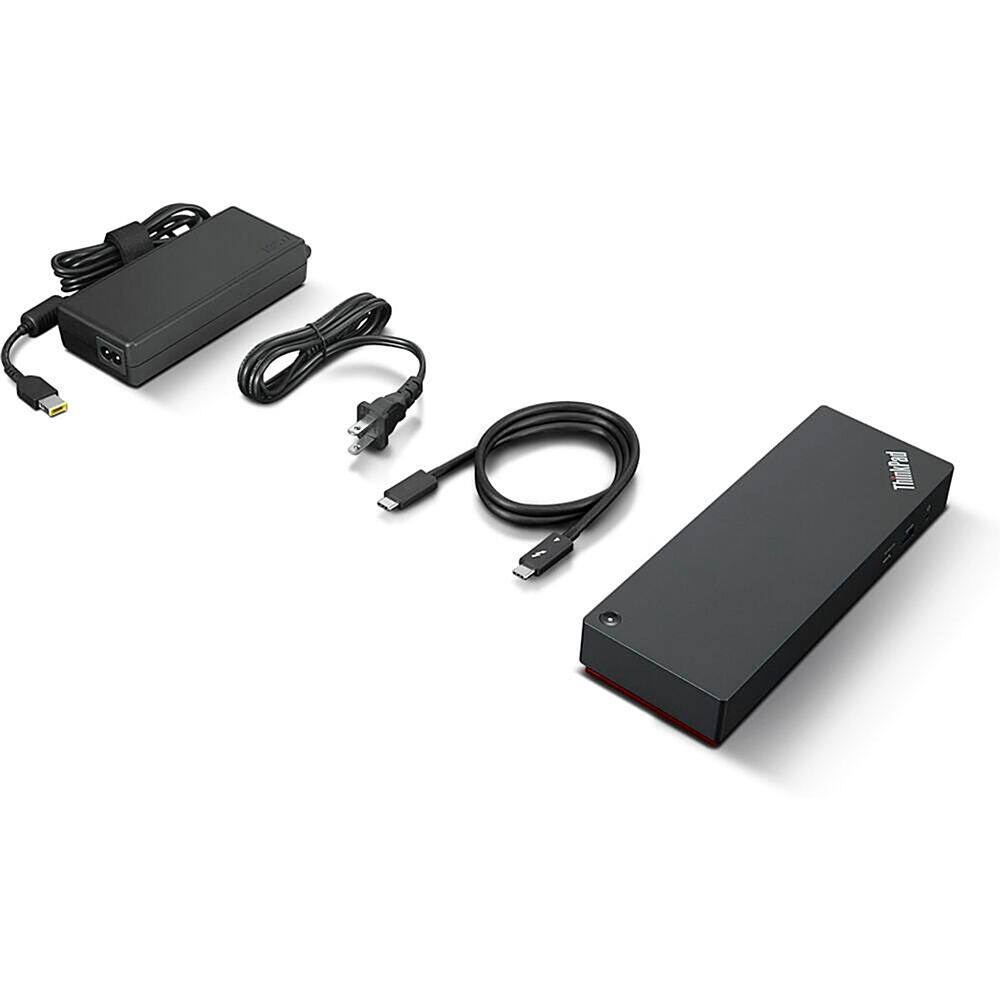

Whats Included
- Thunderbolt 4 Dock
- 135W Slim Tip Power adapter
- 0.7m Thunderbolt 4 Passive Cable
- Setup poster/warranty poster
- Thunderbolt 4 Dock
- 135W Slim Tip Power adapter
- 0.7m Thunderbolt 4 Passive Cable
- Setup poster/warranty poster
A: This docking station supports a maximum resolution of 8K (4320p).
Q: What is the maximum number of displays supported by this docking station?
A: The Lenovo ThinkPad Universal Thunderbolt 4 Docking Station can support a maximum of 4 displays.
Q: Does this Lenovo docking station come with a power supply?
A: Yes, the Lenovo ThinkPad Universal Thunderbolt 4 Docking Station includes a power supply.
Q: How many USB 2.0 Type A ports are there on the ThinkPad Universal Thunderbolt 4 Docking Station?
A: The ThinkPad Universal Thunderbolt 4 Docking Station is equipped with 4 USB 2.0 Type A ports.
Q: Does the ThinkPad Docking Station have an Ethernet port?
A: Yes, the ThinkPad Docking Station has one Ethernet port.
Q: Will this docking station work with a Lenovo Thinkpad T14 Gen 2?
A: Hey SuprMars, It should work with your ThinkPad T14 Gen 2 should it be the Intel configuration of the T14 Gen 2 series that features two Thunderbolt 4 ports.
Q: Will this work with a T16 Gen1? Can the PC be powered through the docking station?
A: Hey KAM, this should work with your ThinkPad T16 Gen 1, so long as it is an Intel powered model with a Thunderbolt 4 port.
Q: This dock can work with Lenovo Thinkpad Workstation 20YVS06T00?
A: Hey, Pitt2147. It should work fine and plug into either of your ThinkPad P17's two Thunderbolt 4 ports.
