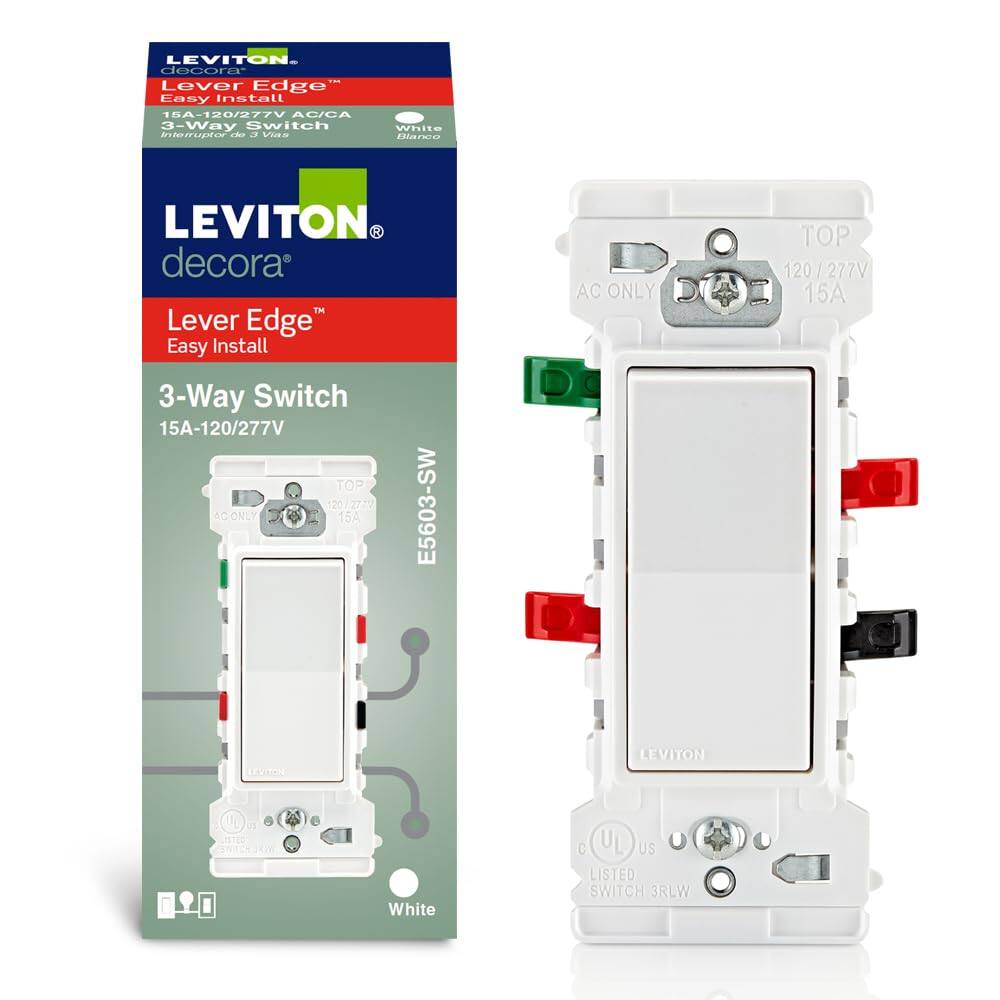

Leviton - Lever Edge 15 Amp 3-Way Rocker Switch E5603-SW - White

Model: E5603-0SW
SKU: 12478423

Not yet reviewed

$21.20
Availability
FREE shipping to
Sold & shipped by
Everyday Goods
(18)

About This Item

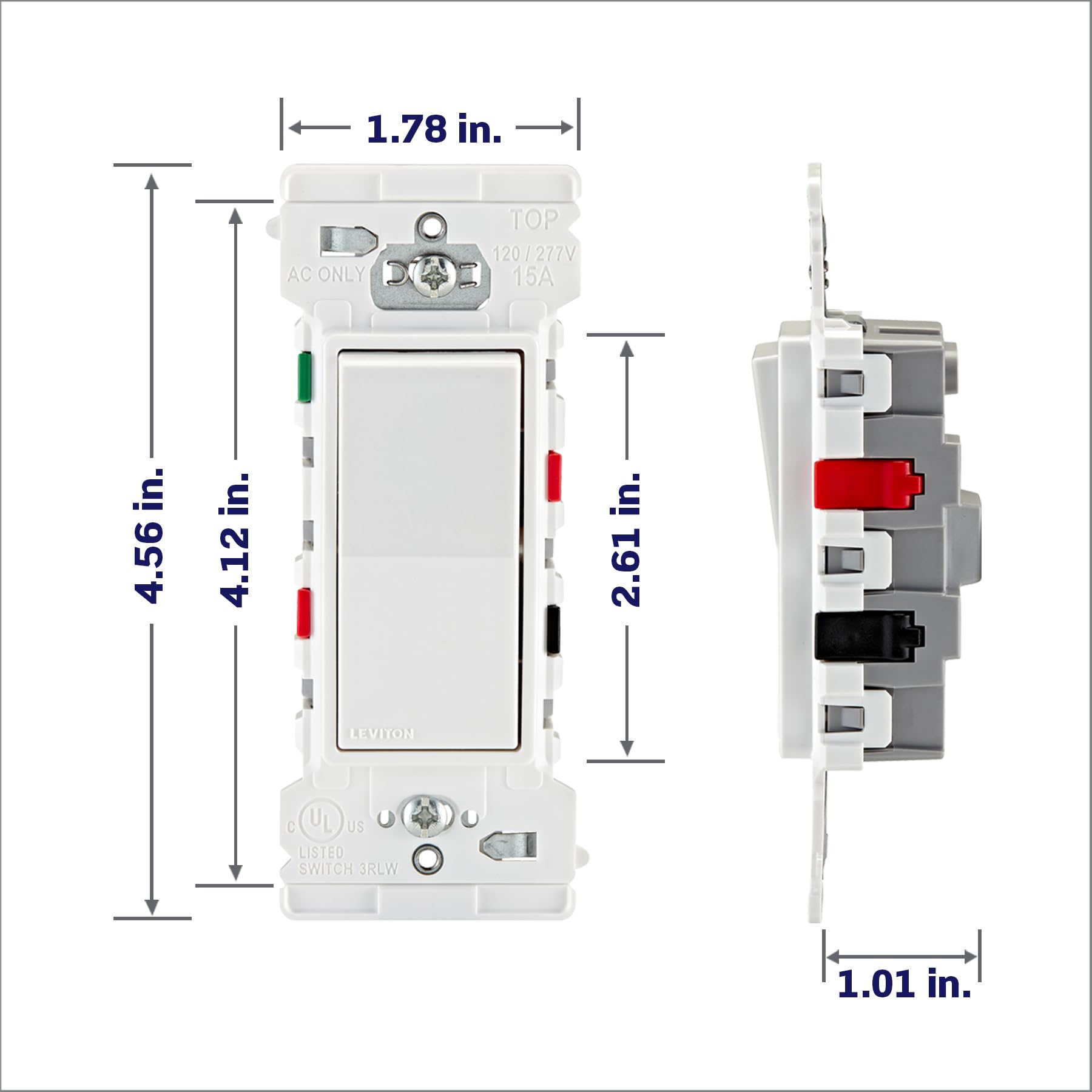

Leviton Lever Edge E5603-SW 15 Amp 3-way rocker switch delivers faster, more reliable wiring for indoor lighting circuits. Rated 15 amps and 125 volts, this 3-way device enables two-location control for hallways, stairways, and other multi-entry spaces. Lever terminals wire up to 3.5X faster than traditional screw devices—open the lever, insert the conductor, and snap closed for an audible click that confirms a secure connection. Color-coded levers reduce miswiring, while the tongue-and-groove alignment and removable top/bottom tabs speed trim-out and allow use with Decora Midway or standard wallplates. Dimensions: 4.2 in H x 1.3 in W x 0.99 in D; weight 0.154 lb. Box includes 1 3-way switch.
  • Key Specs
    • Switch Wiring Configuration: 3-way
    • Indoor or Outdoor Use: Indoor
  • General
    • Brand: Leviton
    • Model Number: E5603-0SW
    • Product Name: Lever Edge 15 Amp 3-Way Rocker Switch E5603-SW
    • Color: White
  • Power
    • Switch Wiring Configuration: 3-way
    • Switch Type: Push button, Rocker
    • Voltage: 120 volts (Amount of power needed to support an electrical current.)
    • Number of Poles: 1
    • Number Of Switches: 1
  • Features
    • Indoor or Outdoor Use: Indoor
  • Dimensions
    • Product Height: 4.2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 1.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Length: 0.99 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
    • Product Weight: 0.1543 pounds (The out of box weight of the item.)
  • Warranty
    • Warranty - Parts: Warranty
    • Warranty - Labor: Warranty
  • Other
    • UPC: 078477332504

Leviton Lever Edge E5603-SW 15 Amp 3-way rocker switch delivers faster, more reliable wiring for indoor lighting circuits. Rated 15 amps and 125 volts, this 3-way device enables two-location control for hallways, stairways, and other multi-entry spaces. Lever terminals wire up to 3.5X faster than traditional screw devices—open the lever, insert the conductor, and snap closed for an audible click that confirms a secure connection. Color-coded levers reduce miswiring, while the tongue-and-groove alignment and removable top/bottom tabs speed trim-out and allow use with Decora Midway or standard wallplates. Dimensions: 4.2 in H x 1.3 in W x 0.99 in D; weight 0.154 lb. Box includes 1 3-way switch.

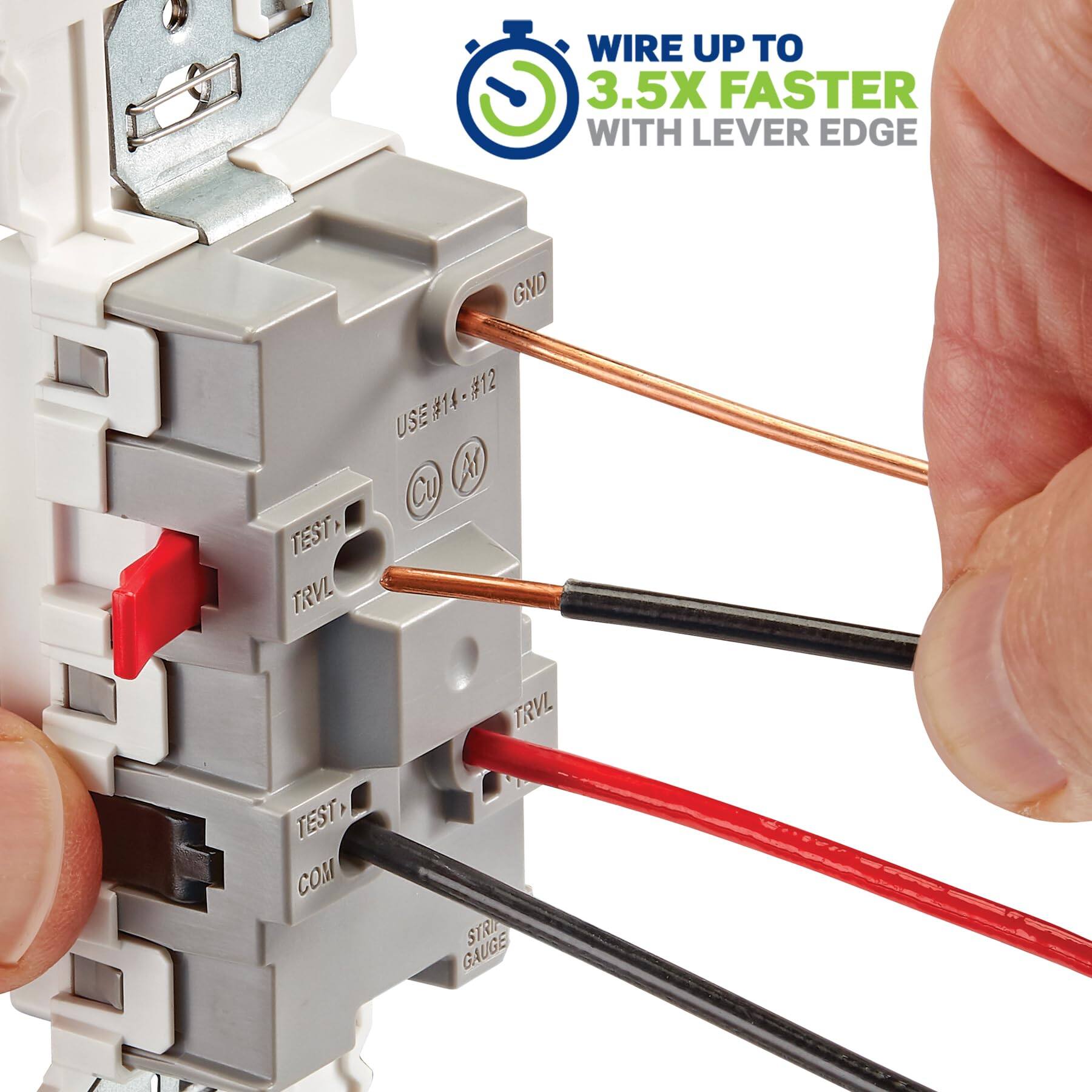

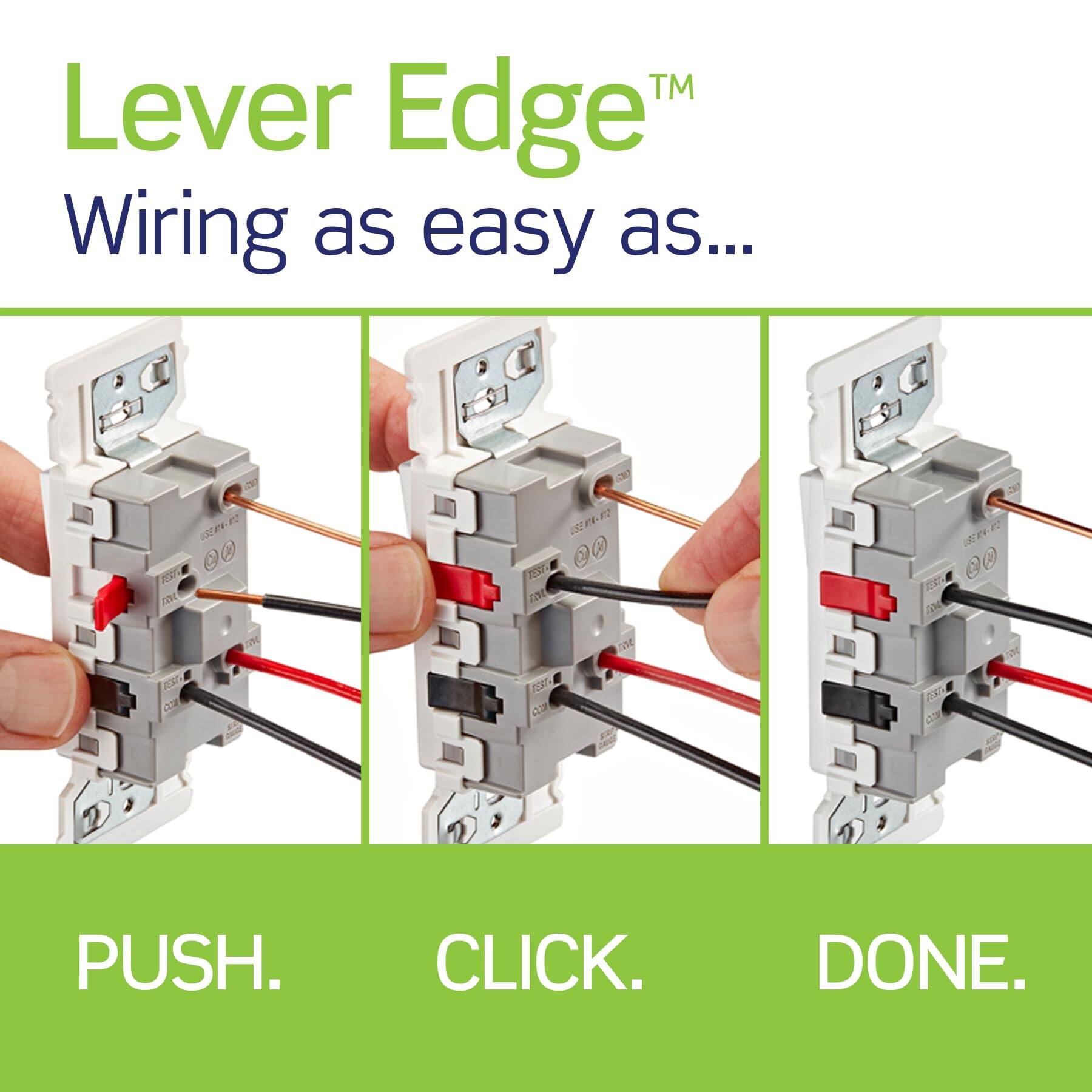

  • Fast, tool-free wiring: Wire up to 3.5X faster than screw terminals—open the lever, insert the wire, and snap it closed; the audible click confirms a secure connection.

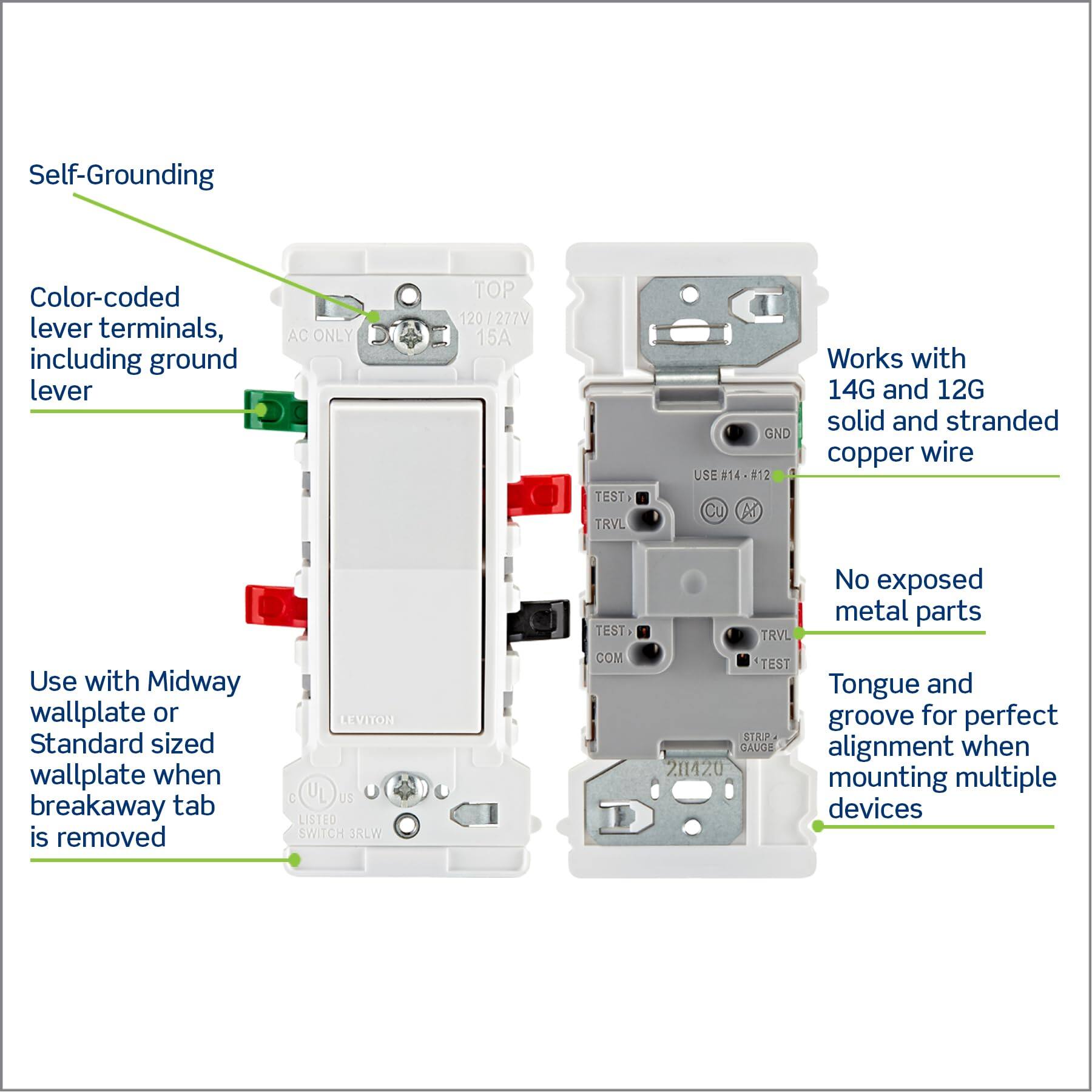

  • Color-coded lever terminals: Color-coded levers identify wire placement to help prevent miswiring, simplifying installation and reducing errors.
  • Secure locking lever design: Innovative locking lever design holds conductors firmly in place for reliable, vibration-resistant terminations and reduced risk of loose connections.
  • Precision-engineered strap: Tongue-and-groove alignment speeds trim-out in multi-gang installations and removable top/bottom tabs allow use with Decora Midway or standard wallplates.
  • 3-way switching for two-location control: Provides 3-way switching for two-location control; ideal for hallways, stairways, and other areas requiring coordinated switching and a professional Decora appearance.
Whats Included
  • 1 3-Way Switch
