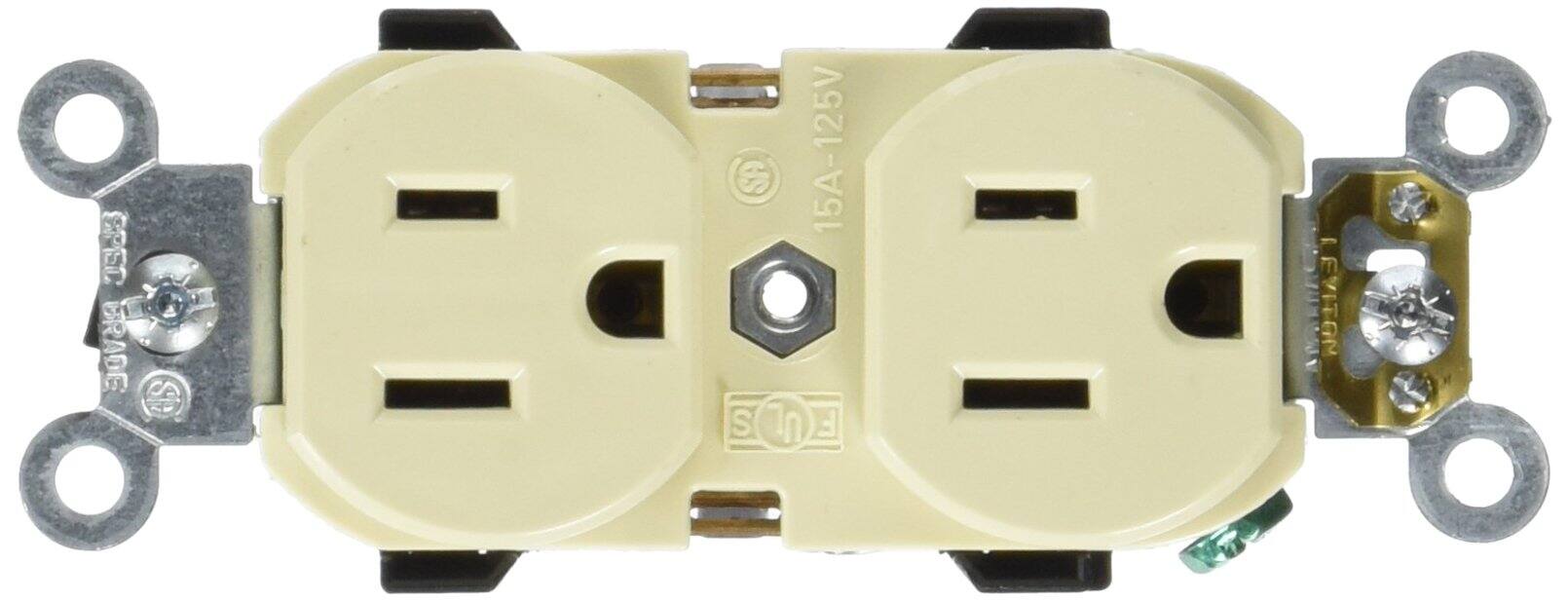

Leviton - R51-5252I Duplex Outlet 15A 125V NEMA 5-15R - Ivory
About This Item
- Key Specs
- Amperage: 15.0 amperes (Strength of electrical current.)
- General
- Brand: Leviton
- Model Number: 1861478
- Product Name: R51-5252I Duplex Outlet 15A 125V NEMA 5-15R
- Color: Ivory
- Power
- Amperage: 15.0 amperes (Strength of electrical current.)
- Voltage: 125.0 volts (Amount of power needed to support an electrical current.)
- Outlet Type: Duplex, Standard
- Number Of Outlets: 2
- NEMA Configuration: 5-15R
- Features
- Material: Thermoplastic
- Dimensions
- Product Height: 0.94 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.19 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 1.25 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 0.15 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: Limited 10
- Warranty - Labor: Limited 10
- Other
- UPC: 078477496022
Leviton R51-5252I is an industrial specification-grade duplex receptacle with a nylon thermoplastic face and base, designed for reliable commercial and utility use. It provides two standard outlets rated 15 A and 125 V with NEMA 5-15R configuration and UL listing. The device supports back and side wiring with four large-head brass spring-loaded terminal screws, steel wire connectors, and eight back-wiring holes for installation flexibility. A wire containment rib and Groundamatic self-grounding strap locked into the base, plus a green grounding screw, ensure secure grounding and tidy wiring. Meets federal specification WC-596F and includes a 10-year limited parts and labor warranty. Product dimensions: 4.19 in W x 1.25 in L x 0.94 in H; weight: 0.15 lb; country of origin: Mexico.
- Industrial-grade duplex outlet: Nylon thermoplastic face and base provide durable, specification-grade construction for industrial and commercial environments.
- Back and side wiring: Back and side wiring with four large-head brass spring-loaded terminal screws, steel wire connectors, and eight back-wiring holes for fast, flexible installation.
- Wire containment rib: Wire containment rib organizes conductors while the Groundamatic self-grounding strap locks into the base with a green grounding screw for reliable grounding.
- Meets federal specification WC-596F: Engineered to meet the latest federal specification WC-596F for performance and quality in specification-grade applications.
- 15 A 125 V, NEMA 5-15R, UL listed: Rated 15 amps and 125 volts with NEMA 5-15R configuration and UL listing for recognized safety compliance.
- Industrial-grade duplex outlet: Nylon thermoplastic face and base provide durable, specification-grade construction for industrial and commercial environments.
- Back and side wiring: Back and side wiring with four large-head brass spring-loaded terminal screws, steel wire connectors, and eight back-wiring holes for fast, flexible installation.
- Wire containment rib: Wire containment rib organizes conductors while the Groundamatic self-grounding strap locks into the base with a green grounding screw for reliable grounding.
- Meets federal specification WC-596F: Engineered to meet the latest federal specification WC-596F for performance and quality in specification-grade applications.
- 15 A 125 V, NEMA 5-15R, UL listed: Rated 15 amps and 125 volts with NEMA 5-15R configuration and UL listing for recognized safety compliance.
