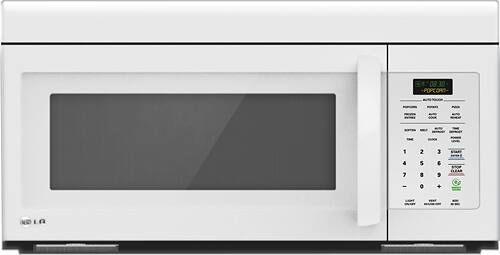

LG - 1.6 Cu. Ft. Over-the-Range Microwave - Smooth White
- Key Specs
- Color Finish: White
- Product Height: 16 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 3/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Turntable Diameter: 12.5 inches
- Control Type: Touchpad
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Wattage: 1000 watts (Measurement of electrical power.)
- General
- Brand: LG
- Model Number: LMV1683SW
- Product Name: 1.6 Cu. Ft. Over-the-Range Microwave
- Color: Smooth White
- Color Finish: White
- Dimensions
- Product Height: 16 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 3/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 53 pounds (The out of box weight of the item.)
- Capacity
- Capacity: 1.6 cubic feet
- Microwave Size: Full-size
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Features
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Timer: true
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Turntable Diameter: 12.5 inches
- Interior Light(s): true
- Nightlight: true
- Controls
- Control Type: Touchpad
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Number of Preset Programs: 10
- Number of Fan Speeds: 2
- Turntable On/Off Option: true
- Functions
- Oven Cooking Modes: Defrost
- Oven Preset Settings: Popcorn, Potato, Pizza, Frozen Entrée, Auto Cook, Auto Reheat, Soften, Melt, Auto Defrost, Time Defrost, Add 30 Sec
- Filter Info
- Removable Filter: true
- Electrical Specification
- Amperage: 14 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1000 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: This product contains PFAS. For more information about PFAS chemicals in this product, visit https://www.lg.com/us/cookware-chemical-compliance-information. Este producto contiene PFAS. Para más información sobre químicas PFAS en este producto, visite https://www.lg.com/us/cookware-chemical-compliance-information. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 Year Limited; 10 Years Limited: magnetron
- Warranty - Labor: 1 year limited
- Other
- UPC: 048231317849
Prepare whole meals with ease using this LG LMV1683SW 1.6 cu. ft. over-the-range microwave that features IntuiTouch controls with one-touch settings for simple operation. The 2-speed fan and removable filter contribute to a clean kitchen.
- IntuiTouch controls: Offer fast and simple touch operation.
- 1.6 cu. ft. capacity: Accommodates a wide variety of meal and snack items.
- 1000 watts of cooking power and 10 power levels: Provide the versatility needed to prepare a variety of foods.
- One-touch settings: Cook frozen entrées, pizza, popcorn and potatoes thoroughly. Auto cook and auto reheat offer versatile preparation. Soften and melt functions provide gentle warming for heat-sensitive foods.
- Auto defrost: Lets you choose from preprogrammed settings for meat, poultry, fish and bread for simple thawing of food items. Time defrost lets you enter your own time.
- Add 30 seconds feature: Lets you add additional time in 30-second or 1-minute increments without interrupting the cooking cycle.
- Stoppable glass turntable: With dual distribution technology provides even heating.
- Cooktop light: Illuminates the cooking surface below, so you can better see what you're cooking on the stove.
- 2-speed, 300 cfm fan: With a hidden vent helps remove cooking odors from your kitchen. Carbon-coated removable charcoal filter helps keep your kitchen clean.
- Time-of-day clock: Plus countdown timer and end-of-cycle/timer tone alerts help you coordinate an entire meal.
- Eco Button: To help conserve energy.
- IntuiTouch controls: Offer fast and simple touch operation.
- 1.6 cu. ft. capacity: Accommodates a wide variety of meal and snack items.
- 1000 watts of cooking power and 10 power levels: Provide the versatility needed to prepare a variety of foods.
- One-touch settings: Cook frozen entrées, pizza, popcorn and potatoes thoroughly. Auto cook and auto reheat offer versatile preparation. Soften and melt functions provide gentle warming for heat-sensitive foods.
- Auto defrost: Lets you choose from preprogrammed settings for meat, poultry, fish and bread for simple thawing of food items. Time defrost lets you enter your own time.
- Add 30 seconds feature: Lets you add additional time in 30-second or 1-minute increments without interrupting the cooking cycle.
- Stoppable glass turntable: With dual distribution technology provides even heating.
- Cooktop light: Illuminates the cooking surface below, so you can better see what you're cooking on the stove.
- 2-speed, 300 cfm fan: With a hidden vent helps remove cooking odors from your kitchen. Carbon-coated removable charcoal filter helps keep your kitchen clean.
- Time-of-day clock: Plus countdown timer and end-of-cycle/timer tone alerts help you coordinate an entire meal.
- Eco Button: To help conserve energy.
Whats Included
- LG 1.6 Cu. Ft. Over-the-Range Microwave
- Owner's manual
- Removable wire rack
- LG 1.6 Cu. Ft. Over-the-Range Microwave
- Owner's manual
- Removable wire rack
Q: Is there a timer on LG microwave LMV1683ST?
A: No, this microwave does not have a timer. I also could not believe it does not and I believe we are going to return it just for that reason. Yes, it has a cook timer of course, but it does not have a kitchen timer which we used all of the time on our other microwave.
Q: Can this be vented to the inside?
A: Yes :) It has a Convertible Vent Type that allows to vent inside or outside.
Q: Can this microwave be mounted under a cabinet as well ?
A: Hello Anna, yes, this model is meant to be mounted underneath a cabinet. If you have a cooktop/range underneath please make sure that there are at least 30" between cooktop and cabinet. 30" min. cabinet opening width & 30" min. clearance from bottom of cabinet to cooking surface or countertop before installation. ...and in case you are wondering, it does come with its own wall mounting kit. We appreciate your feedback, please give us a “thumbs up” if this answer is helpful to you; and please let us know if we can assist you with anything else. Have a lovely week!
A: The install cost for a standard install is $150.00, more if they run into stuff. I am not sure if that includes removing the old one. I removed mine and installed the new one. It takes two people who are of normal strength.
Q: Does this mount to the wall in back, or under a cabinet on top?
A: The mounting hardware is on the top of the LG - 1.6 Cu. Ft. Over-the-Range Microwave.
A: Yes, it will fit in a regular sized opening. I replaced an old "wpool" model in my under cabinet mount space. Take your time, and follow directions. It will work perfectly...
Q: Is there suggested number of inches between the range cook top and the bottom of this microwave?
A: The required minimum installation spacing between the bottom of the LG LG - 1.6 Cu. Ft. Over-the-Range Microwave - Stainless Steel, Model # LMV1683ST and the Counter top or Cooktop surface is actually given as the minimum spacing between the Cooktop or Counter top surface and the bottom of the upper cabinet that the microwave is to be installed under before installation and that is a minimum of 30". The microwave has a height of 16 7/16" so the minimum distance between the bottom of the microwave and the Cooktop surface after installation should be 13 9/16"...^IFV
