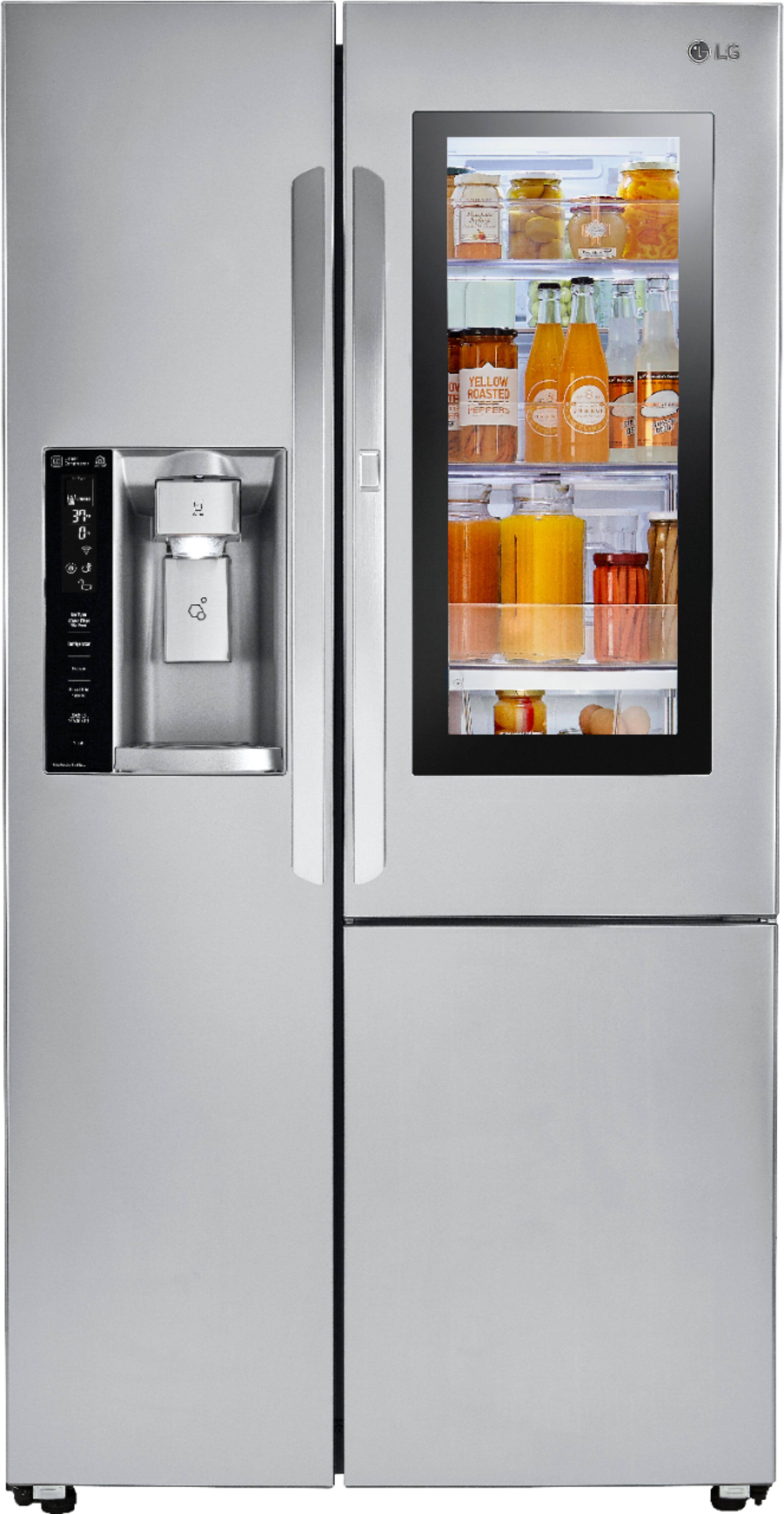

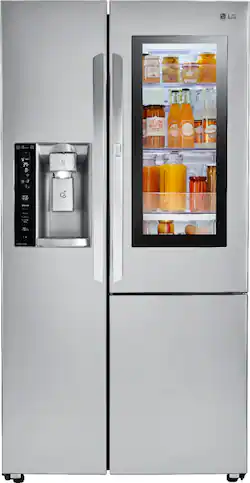

LG - 21.7 Cu. Ft. Door-in-Door Side-by-Side Counter-Depth Smart Refrigerator with Smart Cooling+ - Stainless Steel
Model: LSXC22396S
SKU: 5838598
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 70 5/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 69 11/32 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 5/16 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 29 3/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 31 13/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 21.74 cubic feet
- Refrigerator Style: Side-by-Side
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: LG
- Model Number: LSXC22396S
- Product Name: 21.7 Cu. Ft. Door-in-Door Side-by-Side Counter-Depth Smart Refrigerator with Smart Cooling+
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 70 5/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 31 13/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 69 11/32 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 5/16 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 29 3/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 31 13/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 24 5/8 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 46 5/8 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 284.4 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 71 3/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 36 3/8 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 33 13/16 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 21.74 cubic feet
- Refrigerator Capacity: 14.34 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 7.4 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Side-by-Side
- Fingerprint Resistant: false
- Convertible Temperature Zone: false (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Door-Open Alarm: true
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Electronic
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Hinge Setting: Fixed left, Fixed right
- Lighting Type: LED
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ice & Water
- Ice Maker: Yes
- Secondary Ice Maker: No (This feature, often located within a pull-out freezer drawer, produces and stores ice in addition to the primary ice maker.)
- Ice Dispenser Ice Form: Cubed, Crushed
- Ice Maker Location(s): Freezer
- Daily Ice Production: 4.1 pounds (Maximum quantity of ice that can be produced within 24 hours.)
- Ice Maker Ice Form: Cubed
- Ice and Water Dispenser: Ice and water
- Ice and Water Dispenser Location: External
- Dispensed Water Type: Cold Water
- Dispenser Features: Dispenser control lock-out, Dispenser light, Filtration replacement light, Tall
- Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 4
- Refrigerator Shelf Style: Adjustable, Fixed, Folding, Removable, Spill proof
- Quick Access Door: true (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true
- Deli Meat Drawer: false (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Spill Protector Tempered Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Left
- Freezer Door Type: Swing Door
- Freezer Shelf Material: Glass
- Freezer Interior Light: true
- Quick Freeze: false (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
- Filter Info
- Water Filtration: true
- Water Filter Model Number: LT1000P (The water filter model(s) recommended for use with the product.)
- Air Filter: true (A filter that works to remove odors and contaminants from the air within the appliance.)
- Air Filter Model Number: LT120F (The air filter model(s) recommended for use with the product.)
- Electrical Specification
- Amperage: 20 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 637 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Warranty
- Warranty - Parts: 1 Year General, 5 Years on the Sealed System, 5 Years on the Compressor, 6-10 Years on Linear Compressor
- Warranty - Labor: 1 Year General, 5 Years on the Sealed System, 5 Years on the Compressor, 6-10 Years on Linear Compressor
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 048231788786
Bringing innovation and distinctive design together, LG’s new refrigerator with InstaView Door-in-Door will enhance even the most beautifully crafted kitchen. The sleek tinted glass panel illuminates with two quick knocks, allowing you to see inside without ever opening the door, reducing cold air loss to help keep food fresher longer. With a generous 26cu. ft. capacity , this side-by-side refrigerator maximizes food storage space to accommodate all of your family's food. It's designed with convenient slide-out and folding shelving, tilting and adjustable door bins, and multiple crisper drawers— to help facilitate organization, so you can find just what you need in a snap. Plus, it comes with sophisticated LG styling and features like an intuitive LED display, contoured doors, and Smart Cooling System.
- Large Capacity, 22 cu ft.: Great size in a feature-packed refrigerator.
- InstaView Door-in-Door: InstaView Door-in-Door refrigerators have a sleek glass panel that allows you to see inside the easy access door without letting the cold air out. Simply knock twice on the glass to illuminate the contents within.
- LG ThinQ App Compatible: From making extra ice for tonight’s dinner party to getting smartphone notifications when the door is left open, use the LG ThinQ app to control key features and get important notifications from anywhere.
- ThinQ Care: Keep your appliances running smoothly with ThinQ Care, now in the ThinQ app. Get notifications about usage, maintenance, plus early diagnosis right on your phone. ThinQ Care will help you understand your appliance needs, avoid potential problems, and keep your appliance running its best.
- ColdSaver Panel: Door-in-Door with ColdSaver Panel reduces cold air loss to extend the freshness of food.
- Slim SpacePlus Ice System: The LG Slim SpacePlus Ice System provides the most shelf space.
- Tall Ice and Water Dispenser: Finally, an ice & water dispenser that can accommodate just about any container.
- Smart Cooling System: Smart Cooling system is designed to monitor and maintain conditions to help keep food fresh.
- Premium LED Lighting: LED panels located on the rear of the refrigerator provide an exceptionally bright interior and saves energy over traditional lighting.
- Humidity Control Crispers: Humidity-controlled crispers are a great place to keep fruits, vegetables, and more.
- Sophisticated Style and Design: Details matter more than ever when creating a distinctive kitchen.
- ENERGY STAR Qualified: Save money and energy with this ENERGY STAR qualified LG refrigerator that exceeds energy standards.
- SmartDiagnosis: Troubleshoot quickly and efficiently with SmartDiagnosis.
- Multi-Air Flow System: Multi-Air Flow Freshness System designed to monitor and maintain conditions to help keep food fresh.
- Large Capacity, 22 cu ft.: Great size in a feature-packed refrigerator.
- InstaView Door-in-Door: InstaView Door-in-Door refrigerators have a sleek glass panel that allows you to see inside the easy access door without letting the cold air out. Simply knock twice on the glass to illuminate the contents within.
- LG ThinQ App Compatible: From making extra ice for tonight’s dinner party to getting smartphone notifications when the door is left open, use the LG ThinQ app to control key features and get important notifications from anywhere.
- ThinQ Care: Keep your appliances running smoothly with ThinQ Care, now in the ThinQ app. Get notifications about usage, maintenance, plus early diagnosis right on your phone. ThinQ Care will help you understand your appliance needs, avoid potential problems, and keep your appliance running its best.
- ColdSaver Panel: Door-in-Door with ColdSaver Panel reduces cold air loss to extend the freshness of food.
- Slim SpacePlus Ice System: The LG Slim SpacePlus Ice System provides the most shelf space.
- Tall Ice and Water Dispenser: Finally, an ice & water dispenser that can accommodate just about any container.
- Smart Cooling System: Smart Cooling system is designed to monitor and maintain conditions to help keep food fresh.
- Premium LED Lighting: LED panels located on the rear of the refrigerator provide an exceptionally bright interior and saves energy over traditional lighting.
- Humidity Control Crispers: Humidity-controlled crispers are a great place to keep fruits, vegetables, and more.
- Sophisticated Style and Design: Details matter more than ever when creating a distinctive kitchen.
- ENERGY STAR Qualified: Save money and energy with this ENERGY STAR qualified LG refrigerator that exceeds energy standards.
- SmartDiagnosis: Troubleshoot quickly and efficiently with SmartDiagnosis.
- Multi-Air Flow System: Multi-Air Flow Freshness System designed to monitor and maintain conditions to help keep food fresh.
Whats Included
- LG InstaView Door-in-Door 21.7 Cu. Ft. Counter-Depth Refrigerator
- Water filter
- Air filter
- LG InstaView Door-in-Door 21.7 Cu. Ft. Counter-Depth Refrigerator
- Water filter
- Air filter
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: Has LG fixed their compressor problem?
A: NO!! I purchased a French door refrigerator in November 2020 deliver and in stalled January 2021 and it stopped cooling 2 weeks later repair man said it was the compressor. My refrigerator was manufactured in July 2020. Still waiting on repairs.
Q: Can the sensitivity of the instaview function be changed?
A: you can disable the sensor all together by removing the small plastic cover on top of the door and unplugging the sensor connector. The plastic cover has the letters "NEXT 1DID" written on it, you will need to remove 1 screw and pop the cover off. Then there are 3 connectors behind it, unplug the one with 5 wires connected to it. You will know if you unplug the right one if you knock on the fridge and the light does not come on anymore. Everything else will still work fine except the sound sensor will no longer turn the fridge light on.
A: We have the same problem even after changing the filter with one not made by LG. LG should be answering this Question!!!
Q: WHO SERVICES YOUR WARRANTY AND IS A GEEK SQUAD WARRANTY NECESSARY
A: I bought LG refrigerator 2015. Since then, I had to replace its 'ice maker', 'compressor' and 'motherboard'. Last time when its motherboard was replaced, it stopped running within 2 hours after the replacement. LG technician mad a FAKE REPORT saying that it stopped running due to an electrical issue with our outlet. What a ridiculous made-up story!! Now, LG Service is telling me that I need to pay for the repair after they FAILED to repair in a timely manner with its 30-day warranty! After dealing with LG Customer Service and a lousy technician with bad attitudes, I'll never buy LG product in my life!!
A: (1) No, they are not attached. (2) it is adequate (3) yes. (4) Yes.
A: LT1000P/PC/PCSis the code on the replacement cartridge
Q: Dose the warranty on your product start from the date of purchase?
A: The warranty on this refrigerator and all our products does start from date of original purchase. This ENERGY STAR® QualifiedLG 21.7 Cu. Ft. Side-by-Side InstaView™ Door-in-Door® Counter-Depth Smart Wi-Fi Refrigerator - Black Stainless Steel, Model # LSXC22396D has a Limited Manufacturer's Warranty of 1 Year Parts and Labor, 5 Years on the Sealed System (Parts & Labor), 5 Years on the Compressor (Parts & Labor), 6-10 Years on Linear Compressor (Parts Only) and these are all from date of original purchase...^IFV
Q: Is the stainless steel model fingerprint resistant?
A: The LSXC22396S is not fingerprint or smudge resistant. It can be easily cleaned with a stainless steel cleaner. ^CP
