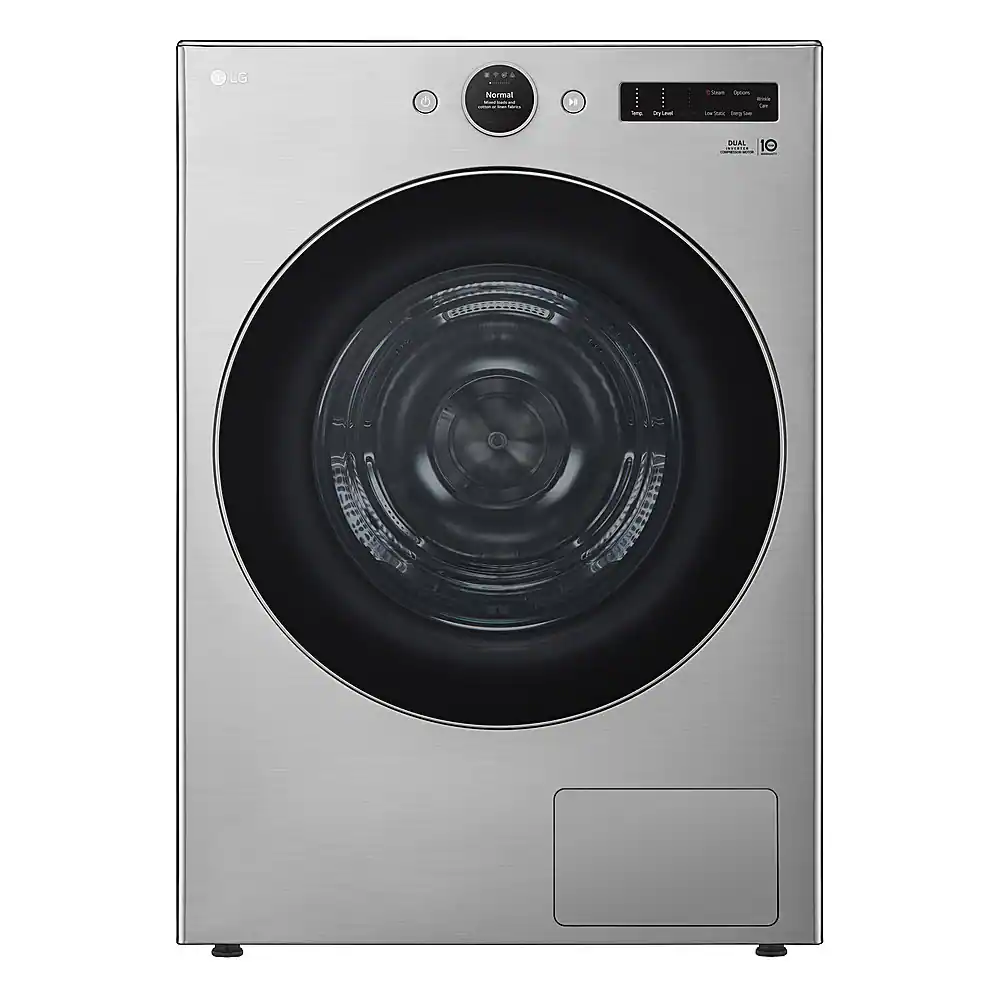

LG - 7.8 Cu. Ft. Stackable Smart Electric Dryer with Ventless Heat Pump Technology - Graphite Steel
- Key Specs
- Color Finish: Graphite steel
- Product Height: 39 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 32 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 52 3/4 inches (Measurement from the back of the product to its front, with door fully open.)
- Capacity: 7.8 cubic feet
- Steam Function: false (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Dryer Heating Source: Electric
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Pedestal Model Compatibility: WPD6V
- Matching Washer Model Number: WM5500HVA, WM5700HVA, WM6998HVA
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Stacking Kit Model Compatibility: HSTK1B
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: LG
- Model Number: DLHC5502V
- Product Name: 7.8 Cu. Ft. Stackable Smart Electric Dryer with Ventless Heat Pump Technology
- Color: Graphite Steel
- Color Finish: Graphite steel
- Commercial Merchandise: false
- Dimensions
- Product Height: 39 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 32 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 52 3/4 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 165.5 pounds (The out of box weight of the item.)
- Capacity
- Capacity: 7.8 cubic feet
- Features
- Steam Function: false (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Dryer Heating Source: Electric
- Fingerprint Resistant: false
- Automatic Temperature Control: true (This feature regulates hot and cold temperatures of the water or air within the appliance in order to keep them in the optimal range for each cycle.)
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Time-Remaining Display: true
- Vibration Reduction: false (Additional features, such as sensors that adjust spin speeds or weights that counter unbalanced loads, help to minimize vibration for smoother, quieter operation.)
- Interior Light(s): true
- Drying Type: Heat pump (Vented dryers take in room temperature air, heat it to dry clothing, then exhaust the resulting moisture-laden air outside through a duct, and typically have shorter trying times than ventless dryers. Ventless dryers (condenser and heat pump) do not require external ventilation. Instead, condensers cool the warm air and drain or store the resulting water. Heat pump systems reheat the cooled air for another cycle. Overall, ventless dryers are more energy efficient than vented.)
- Design
- Reversible Door Hinge: false
- Exhaust Vent Location: Ventless
- 4-Way Venting: false (The appliance has four possible vent locations (right, left, front, or rear), which allows for placement versatility.)
- Control Type: Touchpad, Dial
- Control Location: Front panel
- Display Type: LCD
- Compact Design: false
- Drum Material: Stainless steel
- Drying Rack: false
- Window: true
- Cycle Specifications
- Number Of Drying Cycles: 23
- Drying Cycles: Normal, AI Dry, Bedding, Small Load, Delicates, Bedding Refresh, Power Dry, Down Jacket Refresh, Timed Dry, Drum Care, Towels, Perm. Press, Activewear, Quick Dry, Outerwear Refresh, Shrinkage Relief, Silent Dry, Rainy Days, Heavy Duty, Easy Ironing, Air Dry, Condenser Care, Downloaded (Dryers typically have multiple pre-programmed drying cycles to accommodate various fabrics and materials. These often include Normal/Regular, Permanent Press/Wrinkle Reduction, Heavy Duty, and Delicate/Gentle.)
- Options and Programs: Wrinkle Care, Control Lock, Wi-Fi, Remote Start, Drum Light, Signal, Damp Signal, Cycle List Edit, Cycle Optimization, Smart Diagnosis, Reset Settings
- Number of Temperature Settings: 0
- Temperature Settings: Not Applicable
- Compatibility
- Pedestal Available: true
- Pedestal Model Compatibility: WPD6V
- Matching Washer Available: true
- Matching Washer Type: Front load
- Matching Washer Model Number: WM5500HVA, WM5700HVA, WM6998HVA
- Stackable: true (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Stacking Kit Included: false
- Stacking Kit Model Compatibility: HSTK1B
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Filter Info
- Self-Cleaning Filter: false (Filter that requires little to no cleaning maintenance.)
- Lint Filter Full Indicator: false
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): CSA Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- NSF Listed: false (Meets the National Sanitation Foundation's standards for public health protection.)
- Warranty
- Warranty - Parts: 1 Year General, 3 Years Drum, 10 Years Motor and Compressor
- Warranty - Labor: 1 Year General, 3 Years Drum, 10 Years Motor and Compressor
- Connectivity
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Other
- UPC: 195174061640
Compared to conventional vented dryers, this LG HeatPump dryer uses up to 65% less energy to dry every load.¹ How? By smartly recycling the pre-warmed air rather than venting it outside. But savings are only one reason to start drying differently. Ventless design can be installed almost anywhere, with a modern look that elevates any room. Even caring for favorite clothes takes a new turn—our exclusive Direct Drive Motor delivers precise tumbling motions that are perfect for delicates.
- 7.8 cu. ft. Mega Capacity: Say never again to never-ending piles of laundry—this mega capacity dryer is among the largest front load ventless heat pump unit in its class² and can easily handle the laundry needs of a family of five. How big is 7.8 cu. ft.? Big enough to fit a king-size comforter and more in a single load for big time savings every week.
- Sleek Ventless Design: Space-saving ventless design means it can be installed virtually anywhere. No detail was overlooked in this dryer's sleek, modern style. The flat front design with a choice of black steel, graphite steel or white finish and tinted, tempered glass door brings a premium point of view to your laundry space.
- LCD Digital Dial Control: Customize your dry—or let AI Dry do it for you. Laundry day is just that easy with LG’s built-in intelligence and intuitive LCD dial. Streamlined controls give you more of what you need with each turn of the dial, from descriptions of each setting and helpful prompts to status updates and remaining cycle time. Easily access more than 20 cycles and quickly modify any cycle using the touch panel for total laundry control.
- Dual Inverter Heat Pump Technology: Meet a more modern approach to drying. LG's DUAL Inverter Heat Pump technology uses up to 65% less energy to dry every load.³ Not only does this ENERGY STAR certified dryer feature LG’s most energy efficient ventless drying system, the low temperatures are easier on clothes and can help them look their best for longer. And with no need for venting, this dryer is easy to install and is virtually maintenance free.
- ThinQ Smart Technology: The ThinQ app offers control and convenience to help you simplify life and enjoy the comforts of home. Control your dryer remotely or use voice commands with Google or Alexa voice assistants. Plus, download additional cycles and access Smart Diagnosis, customer support, and more.⁴
- Inverter Direct Drive Motor System: When it comes to powerful, reliable performance, there’s just no comparison. Featuring LG Exclusive Direct Drive Dryer, this ventless dryer provides even drying performance and precise tumbling motions that are extra kind to delicates. You’ll enjoy quiet operation and greater energy efficiency than belt-driven motors—no belts, no pulleys, no worries. What else can you count on? The peace of mind of a 10-year limited warranty.
- Built-In Intelligence: AI Sensor Dry with Infrared Sensor: Forget about endless sorting or toggling through cycles—built-in sensors use AI technology to detect fabric texture and load size, then automatically select the right drying motions, temperatures and more for advanced fabric care. A combination of AI Sensor Dry plus an additional IR sensor detects moisture levels and automatically adjusts drying time for loads of all sizes.
- ThinQ UP: ThinQ UP enabled smart appliances receive continual software updates for new downloadable features and enhancements sent wirelessly to the appliance. Choose which features you want and customize your appliance based on your lifestyle and personal preferences.
- ThinQ Care: Available within the ThinQ app, ThinQ Care sends proactive usage, maintenance, and diagnostic alerts to your smartphone to help keep your LG smart appliances running smoothly.
- Auto Cleaning Condenser: Unlike some dryers that require manual cleaning of the condenser for optimal performance, LG’s Auto Cleaning Condenser does the work for you. Using water extracted during the drying cycle, it powerfully flushes away lint and debris every time you dry for better airflow, better drying and enhanced energy efficiency—automatically.
- Closet Depth: LG closet-depth washers and dryers are worth showing off, but when space dictates otherwise it’s good to know they’ll easily fit in a closet with plenty of room to close the closet door. Install the pair side-by-side, or get a stacking kit and install the dryer over the washer to save even more space.
- NeveRust Stainless Steel Drum: Unlike tubs made from porcelain or plastic, the LG NeveRust Stainless Steel Tub avoids the chips and nicks that can snag fabrics and ruin clothing. Durable surface actually gets smoother over time and keeps your dryer looking like new, even after years of use.
- LoDecibel Quiet Operation: Run the dryer whenever you want, without interrupting naptime or your favorite show. This dryer is designed for quiet operation, from the motor to the cabinet to individual components. Pleasant end-of-cycle chime lets you know when clothes are dry.
- Wrinkle Care Option: When you hate wrinkles but can’t be there to remove clothes as soon as they’re dry, just select the Wrinkle Care option before hitting start. The dryer will periodically tumble the load for up to 3 hours after the cycle is done or until the door is opened to help keep wrinkles at bay.
- 7.8 cu. ft. Mega Capacity: Say never again to never-ending piles of laundry—this mega capacity dryer is among the largest front load ventless heat pump unit in its class² and can easily handle the laundry needs of a family of five. How big is 7.8 cu. ft.? Big enough to fit a king-size comforter and more in a single load for big time savings every week.
- Sleek Ventless Design: Space-saving ventless design means it can be installed virtually anywhere. No detail was overlooked in this dryer's sleek, modern style. The flat front design with a choice of black steel, graphite steel or white finish and tinted, tempered glass door brings a premium point of view to your laundry space.
- LCD Digital Dial Control: Customize your dry—or let AI Dry do it for you. Laundry day is just that easy with LG’s built-in intelligence and intuitive LCD dial. Streamlined controls give you more of what you need with each turn of the dial, from descriptions of each setting and helpful prompts to status updates and remaining cycle time. Easily access more than 20 cycles and quickly modify any cycle using the touch panel for total laundry control.
- Dual Inverter Heat Pump Technology: Meet a more modern approach to drying. LG's DUAL Inverter Heat Pump technology uses up to 65% less energy to dry every load.³ Not only does this ENERGY STAR certified dryer feature LG’s most energy efficient ventless drying system, the low temperatures are easier on clothes and can help them look their best for longer. And with no need for venting, this dryer is easy to install and is virtually maintenance free.
- ThinQ Smart Technology: The ThinQ app offers control and convenience to help you simplify life and enjoy the comforts of home. Control your dryer remotely or use voice commands with Google or Alexa voice assistants. Plus, download additional cycles and access Smart Diagnosis, customer support, and more.⁴
- Inverter Direct Drive Motor System: When it comes to powerful, reliable performance, there’s just no comparison. Featuring LG Exclusive Direct Drive Dryer, this ventless dryer provides even drying performance and precise tumbling motions that are extra kind to delicates. You’ll enjoy quiet operation and greater energy efficiency than belt-driven motors—no belts, no pulleys, no worries. What else can you count on? The peace of mind of a 10-year limited warranty.
- Built-In Intelligence: AI Sensor Dry with Infrared Sensor: Forget about endless sorting or toggling through cycles—built-in sensors use AI technology to detect fabric texture and load size, then automatically select the right drying motions, temperatures and more for advanced fabric care. A combination of AI Sensor Dry plus an additional IR sensor detects moisture levels and automatically adjusts drying time for loads of all sizes.
- ThinQ UP: ThinQ UP enabled smart appliances receive continual software updates for new downloadable features and enhancements sent wirelessly to the appliance. Choose which features you want and customize your appliance based on your lifestyle and personal preferences.
- ThinQ Care: Available within the ThinQ app, ThinQ Care sends proactive usage, maintenance, and diagnostic alerts to your smartphone to help keep your LG smart appliances running smoothly.
- Auto Cleaning Condenser: Unlike some dryers that require manual cleaning of the condenser for optimal performance, LG’s Auto Cleaning Condenser does the work for you. Using water extracted during the drying cycle, it powerfully flushes away lint and debris every time you dry for better airflow, better drying and enhanced energy efficiency—automatically.
- Closet Depth: LG closet-depth washers and dryers are worth showing off, but when space dictates otherwise it’s good to know they’ll easily fit in a closet with plenty of room to close the closet door. Install the pair side-by-side, or get a stacking kit and install the dryer over the washer to save even more space.
- NeveRust Stainless Steel Drum: Unlike tubs made from porcelain or plastic, the LG NeveRust Stainless Steel Tub avoids the chips and nicks that can snag fabrics and ruin clothing. Durable surface actually gets smoother over time and keeps your dryer looking like new, even after years of use.
- LoDecibel Quiet Operation: Run the dryer whenever you want, without interrupting naptime or your favorite show. This dryer is designed for quiet operation, from the motor to the cabinet to individual components. Pleasant end-of-cycle chime lets you know when clothes are dry.
- Wrinkle Care Option: When you hate wrinkles but can’t be there to remove clothes as soon as they’re dry, just select the Wrinkle Care option before hitting start. The dryer will periodically tumble the load for up to 3 hours after the cycle is done or until the door is opened to help keep wrinkles at bay.
Whats Included
- 7.8 Cu. Ft. Stackable Smart Electric Dryer with Ventless Heat Pump Technology
- Drain Hose
- Band Clamp
- 2 Cable Ties
- Elbow Bracket for Securing Drain Hose
- Drain Hose Holder
- Spare Screw
- Owner Manual
- 7.8 Cu. Ft. Stackable Smart Electric Dryer with Ventless Heat Pump Technology
- Drain Hose
- Band Clamp
- 2 Cable Ties
- Elbow Bracket for Securing Drain Hose
- Drain Hose Holder
- Spare Screw
- Owner Manual
Q: Can this ventless dryer stack on top of the washer model WM4080HWA?
A: Yes, the LG DLHC5502W ventless dryer can stack on top of the washer model WM4080HWA. Both appliances are designed to be stackable and compatible with each other. The DLHC5502W is a 27-inch-wide, stackable, ventless electric dryer, which matches the dimensions of the WM4080HWA front-load washer. This compatibility allows for efficient use of space in laundry areas where vertical stacking is preferred. -Charles
Q: What is the washing machine model that compliments this dryer?
A: Hi there, Jason. Thank you for reaching out! The matching washer for the LG DLHC5502B dryer is the LG WM6700HBA front-load washer. This washer complements the dryer in both design and performance, offering AI technology, advanced washing programs, and smart connectivity to streamline your laundry experience. If you're considering a stacked setup, you may also need the LG stacking kit (HSTK1B) for proper installation. https://www.lg.com/us/washers-dryers/lg-dlhc5502b-electric-dryer#pdp_specs If you have any other questions or need further assistance, feel free to send us a private message on Social Media @LGUSSupport. We'd be happy to help! —Renzo
A: Hi there, Joan! Thank you for your inquiry about the DLHC5502V dryer. The matching pedestal for this model is the WPD6V, which is designed to fit perfectly and provide additional storage space. If you need any accessories, consider purchasing a vent kit if venting is required, as well as any necessary installation materials. If you have any further questions or need assistance, please feel free to send us a private message on Social Media @LGUSSupport. We're here to help, and we appreciate your understanding! —Avril
A: I use the same drain as the washing machine. The dryer has a very small hose for draining. Best Buy provided all the needed parts and handled the installation. I am happy with the dryer because I had venting issues prior to this dryer.
Q: Can you send a link for the manual?
A: Hello there, Las. We understand your inquiry about the LG dryer, model # DLHC5502B. The owner's manual for this unit can be found directly on our official website. This resource contains important information on installation, operation, and maintenance. Here is the link to the owner's manual: https://www.lg.com/us/support/product/lg-DLHC5502B.ABLEEUS We appreciate your patience. Please send us a private message on Social Media @LGUSSupport if you need any further assistance. —Renzo
Q: So I can just hook the hose up to the washing machine next to it?
A: Hi there, Las. We understand your question about the LG dryer, model # DLHC5502B. This is a ventless dryer with heat pump technology, which means it operates differently from a traditional vented dryer. Instead of venting hot, moist air outside, this dryer collects the moisture in a small internal tank or it is drained out through a separate drain hose. Since this model is a ventless unit, it does not require an external vent. If you have the unit drained, you can install the included drain hose to a nearby drain, like the standpipe for your washing machine. https://www.bestbuy.com/site/lg-7-8-cu-ft-stackable-smart-electric-dryer-with-ventless-heat-pump-technology-black-steel/6573533.p?skuId=6573533 We appreciate your patience. Please send us a private message on Social Media @LGUSSupport if you need any further assistance. —Renzo
A: As indicated in its header, the Energy Star® Most Efficient LG 7.8 cu. Ft. Mega Capacity Smart Front Load Dryer with Dual Inverter HeatPump™ Technology and Inverter Direct Drive Motor System, Model # DLHC5502B, is a heat pump dryer. It has a drain port on the back that you have to attach a drain hose to so it can channel out the moisture or water that remains after the laundry inside has been dried. Depending on the usage frequency, you should drain it every two to three uses or at least once a month. There are explicit instructions and illustrated diagrams on page 21 in the owner's manual under 'How to Connect the Drain Hose' that are easy to follow for connecting the included drain hose...^Ivan.
A: Hi there, Jack. We understand your inquiry and appreciate you considering LG for your laundry setup. You’re looking at the DLHC5502W dryer and wondering if it will stack safely with your WM4000HWA washer. Let’s walk through what you need to know: First, the DLHC5502W dryer is designed to be stackable and pairs perfectly with front-load washers. Although its “Matching Washer Model Number” lists WM5500HWA and WM6500HWA, the key factor is that your WM4000HWA is also a front-load washer with the same 27″ width and nearly identical depth, so it meets the basic dimensional requirements. Troubleshooting Step: Before stacking, ensure both units are level on the floor and use the LG-approved Stacking Kit HSTK1B. This kit secures the dryer to the top of your WM4000HWA and includes brackets and hardware to prevent shifting or tipping. Double-check that you have at least 1″ of clearance around the stack for proper ventilation and door swing. https://www.bestbuy.com/site/lg-7-8-cu-ft-stackable-smart-electric-dryer-with-ventless-heat-pump-technology-white/6573534.p?skuId=6573534 We’re happy to help you verify compatibility and walk you through installation details—please send us a private message on Social Media @LGUSSupport so our team can explore all possible solutions and ensure your setup is safe and secure. We appreciate your patience and look forward to assisting you further. —Renzo
