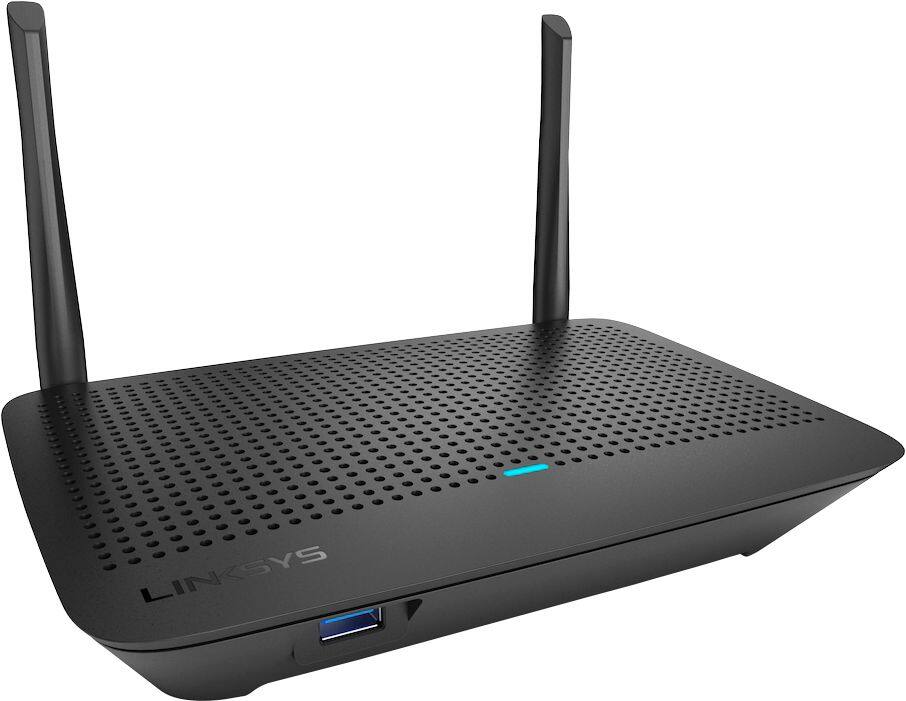

Linksys - MAX-STREAM AC1300 Dual-Band Mesh Wi-Fi 5 Router - Black
- Key Specs
- Wi-Fi Range: 1200 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 1.3 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- General
- Brand: Linksys
- Model Number: MR6350
- Product Name: MAX-STREAM AC1300 Dual-Band Mesh Wi-Fi 5 Router
- Color: Black
- Security
- Data Encryption: true
- Encryption Type: WPA2-Personal (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: NAT, SPI (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Security Features: Guest network access, parental control, double firewall protection (SPI and NAT), up to 128-bit encryption
- Parental Controls: true (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Network
- Band Technology: Dual (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number Of Connected Devices: 12
- Number of Antennas: 2
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 5 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AC, N (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Wi-Fi Range: 1200 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Input/Output Technology: MU-MIMO (Multi-user Multiple-Input Multiple Output) (Generally, multiple-input multiple-output communication technologies allow for more signals to be transmitted at a single time, which can improve the device's overall performance.)
- Number of 2.4Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. Because the 2.4 GHz band is used to transmit wireless signals to a wide variety of devices, there is often high amounts of traffic on that stream. But with multiple streams, each can be designated to a specific device for optimal performance. For example, if one 2.4 GHz stream is assigned to one device, such as a desktop computer, it leaves the remaining streams open for guest users, devices that use more data, or devices with specific band compatibility.)
- Number of 5.0Ghz Streams: 1 (A router's streams are like lanes on a highway. The more streams a router has, the less traffic congestion. The 5.0 GHz band provides high speed, short-range data transmission and typically has less traffic than the 2.4 GHz band. With multiple streams, each can be designated to a specific device for optimal performance. For example, if one 5.0 GHz stream is assigned to one device, such as a streaming media player, it leaves the remaining streams open for guest users, devices that need less data, or devices with specific band compatibility.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- App Name: Linksys app
- Integrated Modem: false
- Wireless: true
- Ports
- Number Of WAN Ports: 1 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): RJ-45, USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 4 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Wi-Fi Speed: 1.3 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Dimensions
- Product Height: 5.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 5.9 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 8.07 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 Year
- Warranty - Labor: 1 Year
- Other
- UPC: 745883787678
The Linksys MR6350 WiFi 5 router covers 1200 square feet* and handles up to 12+ devices at speeds up to 1.3 Gbps. Powered by Intelligent Mesh™ Technology, that adapts to your WiFi needs, your devices will always have a full-strength signal throughout your entire home.
*Range specifications are based on performance test results under normal use case conditions. Actual ranges will increase or decrease depending on wireless obstructions, operating environments, and building material. Wireless coverage claims are used only as reference and are not guaranteed, as each wireless network is unique.
- Bye Bye Dead Zones: Powered by Intelligent Mesh™ Technology that adapts to your WiFi needs, your devices will always have a full-strength signal throughout your entire home.
- Easy Setup and Control: The Linksys App makes it simple to set up, lets you access your network from anywhere, and view or prioritize which connected devices are using the most WiFi.
- Smarter Security: With automatic software updates, Parental Controls, and separate Guest Access, your network will always remain safe, secure and up to date.
- 24/7 Support: If you’ve got WiFi questions, we’re here with a friendly support staff available by phone or online.
- Alexa Wi-Fi Access: With Alexa, you can easily manage Wi-Fi access for devices and individuals in the home,taking focus away from screens and back to what’s important.Say commands like“Alexa, turn off Timmy’s Wi-Fi”,when it’s time for dinner or“Alexa, enable guest Wi-Fi”when you have people over
- Bye Bye Dead Zones: Powered by Intelligent Mesh™ Technology that adapts to your WiFi needs, your devices will always have a full-strength signal throughout your entire home.
- Easy Setup and Control: The Linksys App makes it simple to set up, lets you access your network from anywhere, and view or prioritize which connected devices are using the most WiFi.
- Smarter Security: With automatic software updates, Parental Controls, and separate Guest Access, your network will always remain safe, secure and up to date.
- 24/7 Support: If you’ve got WiFi questions, we’re here with a friendly support staff available by phone or online.
- Alexa Wi-Fi Access: With Alexa, you can easily manage Wi-Fi access for devices and individuals in the home,taking focus away from screens and back to what’s important.Say commands like“Alexa, turn off Timmy’s Wi-Fi”,when it’s time for dinner or“Alexa, enable guest Wi-Fi”when you have people over
Whats Included
- Ethernet cable
- Linksys MAX-STREAM AC1300 Dual-Band Mesh Wi-Fi Router
- Owner's manual
- Power adapter
- Ethernet cable
- Linksys MAX-STREAM AC1300 Dual-Band Mesh Wi-Fi Router
- Owner's manual
- Power adapter
Product Manuals
A: A solution for this sort of problem that a lot of people overlook is Powerline technology. A Powerline adapter plugs into your wall and it has an Ethernet port you connect to your router. You then put another Powerline adapter in another room that has a device you want to connect. Alternatively, you can plug a second router into the 'client' Powerline adapter creating a 2nd hot spot (or more) in your house. Configuring such a network is a bit more complicated than setting up a mesh network, but in my experience provides a much more reliable connection than WiFi by itself.
A: Hi. Do you mean to set up the router in bridge mode? If yes, then here’s how: https://www.linksys.com/us/support-article/?articleNum=316730
A: Hi, gloriax. Our Linksys MR6350 should work fine with most of the Internet Service Provider and most of the devices so long as they support wired or wireless connection.
A: Hi. Yes, you only need to connect one router into the modem. The other MR6350 should be connected to the parent/main router wirelessly or wired, depending on your preference.
Q: Is this unit ac 1300 compatible with centurylink
A: Hi. Our Linksys MR6350 should work fine with it as it is compatible with most of the Internet Service Providers.
Q: Is this router capable of handeling a 100mbps with an upload speed of 20mbps?
A: Hi. The Linksys MR6350 can support up to 867 Mbps wirelessly on the 5 GHz band for devices that are compatible with the 802.11ac standard, and up to 400Mbps for the 2.4GHz band. The LAN ports support gigabit speed too.
Q: Will this router work with an AT&T modem that is a SpeedStream 4100 by Siemens?
A: Hi, Dave02. Our routers will work with most ISP modems as long as they offer Ethernet connections.
A: Hi, Isoman67. The Linksys MR6350 Mesh WiFi 5 Router is a dual-band Mesh Router. Make sure that the 2.4GHz band is set to broadcast and you can try to check if other devices can detect the 2.4GHz. For assistance, you can reach out to us at [email protected] and share more details with the link to this post for our reference.
